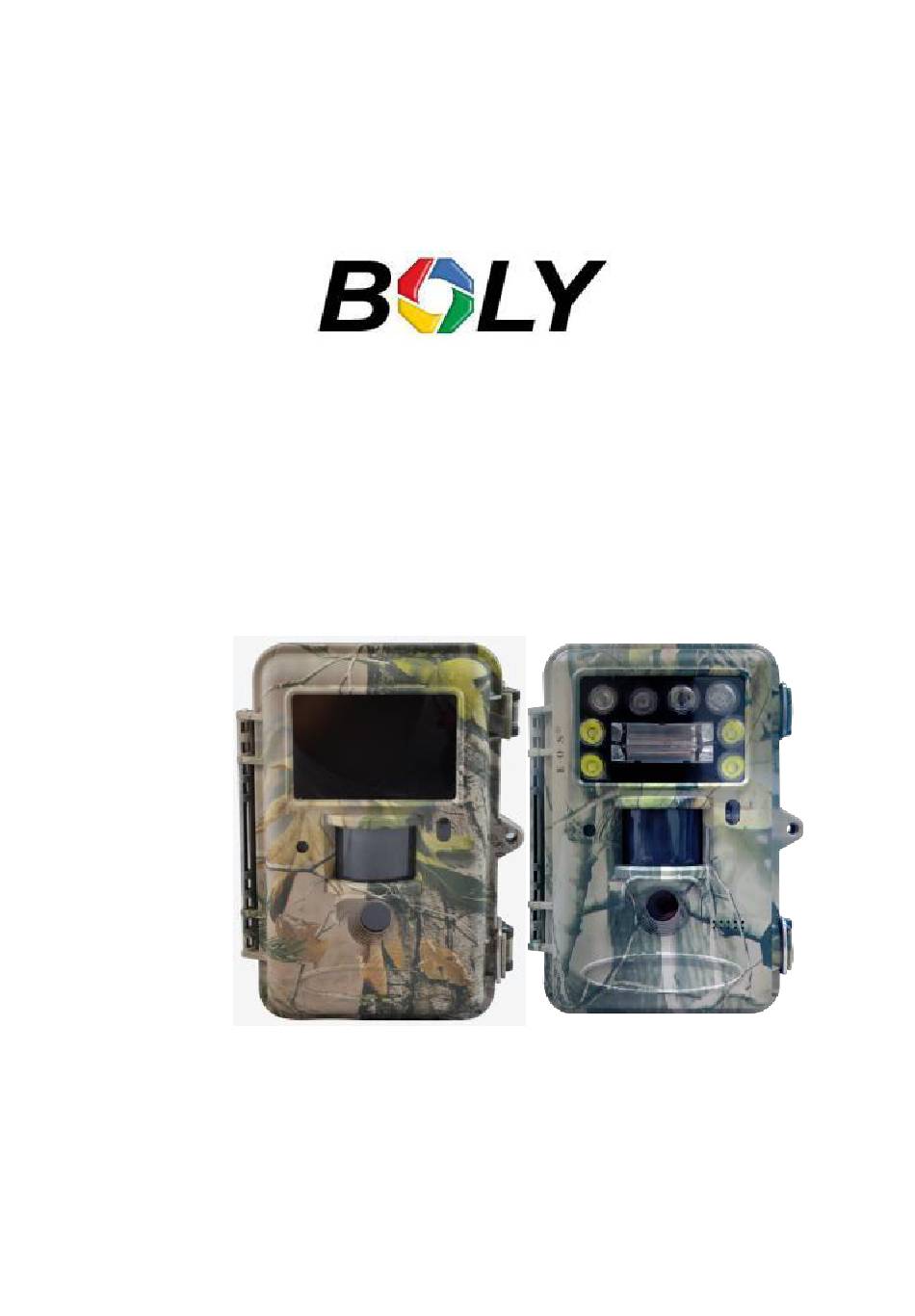

- Page 1 User Manual Trail Camera SG2060 Series...
-
Page 2: Table Of Contents
Boly Trail Cameras Table of Contents 1.Getting Started............... 1 2.Camera Operation ............3 2.1 Batteries/ Power Supply........3 2.2 SD Card Information...........3 2.3 Camera Mode............4 2.4 Trigger Mode ............5 3. Camera Setup Settings and Display.......6 3.1 Settings Interface & Display....... 6 3.2 Manual Image / Video Capturing......7... -
Page 3: Getting Started
Boly Trail Cameras 1.Getting Started ① ② ③ ④ ⑤ ⑥ ⑧ ⑦ ② Flash/White LED: Available for ① IR LED ④ Microphone SG2060-T ⑥ Lens ③ Indication ⑧ Speaker: SG2060Series ⑤ PIR ⑦ Lock... - Page 4 Boly Trail Cameras 4x1.7mm DC in 4x1.7mm DC in Model Product Features SG2060-K Ultra-High Quality 48MP, Extra long detection range SG2060-T Combination White LED/Xenon Flash, color pictures and videos at night， Motion Sharp Technology...
-
Page 5: Camera Operation
Boly Trail Cameras 2.Camera Operation 2.1 Batteries/ Power Supply The camera is powered by eight AA batteries. High-density, high-performance, rechargeable alkaline or NiMH batteries are recommended,all batteries must be 1.5V. When the batteries are low, the camera will automatically shut down. -
Page 6: Camera Mode
Boly Trail Cameras the camera. The camera will operate properly with a locked SD card inserted, but the card will not be able to store captured images or videos taken by the camera. Do not remove the SD card while the camera is on. -
Page 7: Trigger Mode
Boly Trail Cameras SETUP Mode Customize the camera settings, or playback pictures and videos the camera has taken on the LCD display. OFF Mode Turns off the camera. The camera will still consume a small amount of battery power while in the OFF mode. It is recommended to remove the batteries if the camera will not be used for a long period of time. -
Page 8: Camera Setup Settings And Display
Boly Trail Cameras PIR and Timer Triggering: For both PIR triggering and Timer triggering, users need to set PIR sensitivity to low, normal, or high according to the external environment, and set the Timer interval to a desired non-zero value. The camera will capture pictures or videos in a preset time interval even if there is no motion detected. -
Page 9: Manual Image / Video Capturing
Boly Trail Cameras When the camera is in SETUP mode, the screen will activate and display the following: 3.2 Manual Image / Video Capturing Place the camera in SETUP mode and press to manually capture photos or record video. Press again to stop capturing. -
Page 10: Camera Setup Operation
Boly Trail Cameras To delete: Press DEL to delete images or videos in the playback state. If you are in the preview state,press to enter into playback state first. 3.4 Camera Setup Operation To view the camera settings menu, slide the power switch to the setup position.Use the ▼or▲... - Page 11 Boly Trail Cameras clip.This mode disables the photo burst function. Default: Photo To set the camera’s clock.The clock format is YY/MM/DD hour:minute:second.Press▼▲to Set Clock change the value.Press ►◄to select date or time field. Choose the image size,e.g.48MP,36MP,16MP. Photo Size Default:36MP Choose the number of continuous photos taken after each trigger.
- Page 12 Boly Trail Cameras Default:1920x1080 Choose the duration of video recordings. This parameter is only active and adjustable when the device is in video mode and ON.Press▼▲ Video Length to decrease or increase the value.Its value extends from 5 to 90 seconds(for SG2060 Series).
- Page 13 Boly Trail Cameras This parameter defines the sensitivity of the High: indicates that the camera is more responsive to motion. It is recommended to use high sensitivity in a room or environment with little interference. Normal: The default value is normal.
- Page 14 Black&White means select Picture Type 940nm led, Colour is selected whtie led or Xenon , (Available for SG2060-T) Default: Black&White Choose the days of the week the camera works Work Day on. Not available for SG2060 Series. Default: All...
- Page 15 Boly Trail Cameras This setting controls when the camera is active each day. If activated, the camera will NOT take pictures or videos outside of the specified Work Hour working hour, regardless of any other setup option settings. The values are set to military time which ranges from 00:00 to 23:59.
- Page 16 Boly Trail Cameras In hunting mode, when the SD card is full, the first images or videos will be replaced by new pictures or videos. This allows you to capture Recycle more without the need to retrieve your Storage memory card manually. In SETUP mode, the SD card can’t recycle storage.
-
Page 17: Technical Specifications
Boly Trail Cameras This camera has a new PIR, which is patented. The new PIR’s detection range can reach 100ft. in good environments. The following picture compares the detection zone between the normal and new PIR. The PIR detection angle (α) is smaller than the field of view (FOV) angle (β). - Page 18 Boly Trail Cameras LED Type Xenon,White Led or 940Nm LED Number 4Pcs Illumination Distance 90Ft. Image Sensor 16MP Color CMOS Aperture ƒ/ 2.4 Field of View 57 Degrees Memory Card 64GB Max Display Screen Built-In 2.3" LCD Sound Recording Operating Ambient -20 ℃...
- Page 19 Boly Trail Cameras Non-Operating Temperature -30 ℃ to + 70 ℃ Relative Humidity 5% to 90% Noncondensing Dimensions 145.1*90*145mm Unit Weight ~ 0.40Kg 8AA batteries or 6V, Power Supply 2A external power supply Standby Power Consumption <0.3mA(<7mAh/Day) Compliances FCC, CE, RoHS...
-
Page 20: Parts List
Boly Trail Cameras 5.Parts List Part Name Quantity Digital Camera USB Cable Mounting Bracket Belt User’s Manual Warranty Card Version 4.2...
