Boly Trail Camera Table of Contents 1. Getting Started ......... 1 2. Camera Operations ........3 2.1 Power Supply ........3 2.2 SD Card Information ......3 2.3 SIM Card Information ......4 2.4 Camera Modes ......... 5 2.5 Manual Image / Video Capturing ..5 2.6 Manage Images and Videos ....

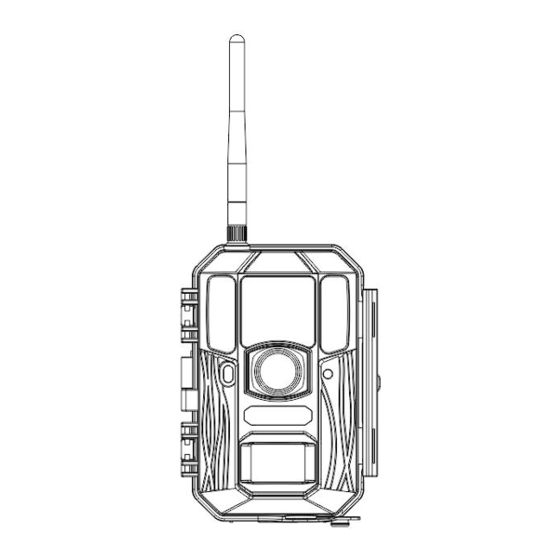

Boly Trail Camera 1. Getting Started Fig. 1: Front View Fig. 2: Inner Panel View Fig. 3: Bottom view...
Page 4
Boly Trail Camera whiteLED/Infrared Antenna Lens Microphone Lock Indication LED Right Up/Video OK/Play SD Card Slot Left SIM Card Slot Down/Photo Speaker Power Switch Menu Shot LCD display Battery Tray DC In USB Port Screw Hole You can choose different models according to different needs.
Boly Trail Camera 2. Camera Operations 2.1 Power Supply 2.1.1 Powered by Batteries ① 4 or 8 AA batteries High-density, high-performance rechargeable non-rechargeable Alkaline batteries are recommended. You can also use NiMH batteries as well, each battery should be above 1.5V.
Boly Trail Camera properly inserted into the camera. Make sure the SD card is unlocked before inserting it into the camera If you experience any problems with an inserted SD card, try reformatting the SD card through the camera’s main settings option.
Boly Trail Camera 2.4 Camera Modes The different modes are according to the position of the power switch. The three basic operation modes as below: OFF Mode: Switching the camera to the OFF position turns the camera off. The camera will still consume a small amount of power while in “OFF”...
Boly Trail Camera manually capture photos or record video. Press SHOT again to stop video capture. 2.6 Manage Images and Videos Place the camera in SETUP Mode and press Playback/Preview to view images or videos. The latest image or video will be shown on the LCD screen.
Boly Trail Camera Indicates the camera or the SIM card do not recognize the SIM card is not working due to connection/activation issues. 3)Take a manual photo by pressing the “SHOT/►” button, or press OK to view the photos stored on the camera 4)Find the picture you want to manually send...
Boly Trail Camera The camera will capture pictures or video when motion is detected and at the preset time(s), regardless of motion detection. If PIR Trigger/Sensitivity and Time Lapse options are BOTH OFF, the camera will not capture any photos or videos.
Boly Trail Camera 2.10 Find Camera This is GPS protection against burglars , if you input the email adderss, the GPS mode will be fixed to always ON, the camera will send picture to you, you can also find the longitude and latitude in email.
Boly Trail Camera 3. Remote Display & Settings 3.1 Basic Key Function & Display To update the camera settings, place the power switch to the TEST/SETUP position. To navigate the menus, utilize the following built-in buttons: MENU: Enter the program menu in Preview Mode ▼►...
Boly Trail Camera 3.2 Mobile Communication The camera can receive and respond to commands sent via SMS, MMS, GRPS, FTP,Molnus and the Apple or Android application, as long as the camera is correctly connected to a wireless carrier. To enable the SMS functionality using the mobile application, you must complete the following steps: ...
Page 14
Boly Trail Camera STEP 1: Select your country and carrier. STEP 2: Check WAP/Internet Parameters: Fill out the required fields (marked with an asterisk). Input Email server such as “smtp.gmail.com” or “smtp.bolymedia.com.” NOTE: If your email uses encryption techniques, please select the corresponding protocol.
Boly Trail Camera STEP 3: Choose between default or manual settings. For first time users, we suggest using the default settings. STEP 4: Input the phone number of the phone to receive/send the remote commands and images in the “administrator number” field and email address in “Receive Email 1”...
Page 17
Boly Trail Camera You also need to have the phone number and the APN name to the SIM-card you will use for the camera. The APN name is provided by the operator of the SIM card. Each operator has their own APN name. If not present in any documents sent along with the SIM-card, then please check the operator’s homepage for APN settings.
Boly Trail Camera Step4 Press the Register camera button to register your camera. (In Molnus) Step5 Slide the functions switch to ON position on your camera. Quickly place the device with the camera facing an area with no movement, for example against the wall. (On...
Boly Trail Camera Google store or download the application directly from our website, under the Downloads section: http://www.bolymedia.com/index/Support For Apple, search BGTools in the official Apple Apps store. 3.5.1 BG Tools Usage Instructions for Android App The Android APP makes it easy to communicate with the camera, so you don’t need to edit the SMS.
Page 20
STEP 3 STEP 4: In the Select Mail Server: you can decide on using a Boly Email or Other Email service.Select “my device” to add or delete a device. STEP 5: Select “Setting” to set users parameters or set to...
Page 21
Boly Trail Camera BG662-M STEP 5 STEP 6 STEP 6: Select “Get Photos” means you can get a photo from your camera device. There are two ways to send an image via Email : Send to email by GPRS. STEP 7: For more settings, select “Advanced” to set Super user information, change the password, format the SD card, system checking, arming, or disarming.
Boly Trail Camera Click“ ”to add a device and choose your device, or slide to the left to delete it. Android 3.6 Camera Setup Options To view the camera settings menu, you need to enter the SETUP Mode, and press MENU.
Page 23
Boly Trail Camera Menu Descriptions Options Basic Settings Choose between capturing images, videos or both Camera Mode at the same time: Photo, Video, Pic+Video Default: Photo Choose the image size: Photo Size Default: 8MP Choose the video size: 4K, 2K ,1080Por 720P.
Page 24
Boly Trail Camera LED,and B&W pictures or videos with 940nm LED at night. Default: Black&White The camera can capture images or videos at a preset time interval regardless of motion detection. Changing this setting to a non-zero value turns on Time Lapse mode and the camera will take photos at the set interval time –...
Page 25
Boly Trail Camera decrease or increase the desired PIR Interval time. Default: 5 seconds Choose the days of the week you want the camera to work. Work Day This setting is only available in Hunting Mode. Default: All This setting allows the camera to be active only during the set period of time per day.
Page 26
Boly Trail Camera information will include how many videos and pictures were taken and the last picture taken at the end of time you have set. Instant: Only works in ON mode. The camera will send a message instantly after it captures a photo or video.
Page 27
Boly Trail Camera Size phone or email. There are 3 options for this setting. Small: Sends severely compressed picture. Medium: Sends slightly compressed picture. Original: Sends the original pictures. Default: Low Automatic positioning function,add longitude and latitude into image properties, can also send GPS information to mobile phone or Email, for viewing camera location.
Page 28
Boly Trail Camera Default: OFF All information on the SD card will be deleted. Format SD Make sure that you have already made a backup of important data on the SD card. Default Restore all settings back to the default values.
Boly Trail Camera 4. PIR Detection Zone The PIR’s detection range can reach 70ft in an open environment. The following picture shows this camera’s PIR detection range compared to standard PIR detection range. The PIR detection angle (α) is smaller than the field of view angle (β).
Boly Trail Camera 5. Technical Specifications Detection Range 100ft. Illumination 100ft. Distance LED Number 4pcs white led and 4pcs 940nm led Aperture ƒ/ 2.4 Memory Card 64GB Max Display Screen Built-In 2" LCD Sound Recording Operating -20℃ ~ + 60 ℃...
