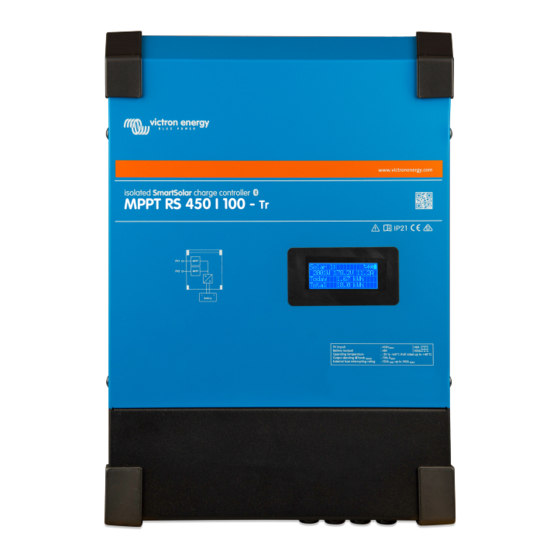

- Page 1 ENGLISH Isolated SmartSolar MPPT RS SmartSolar MPPT RS 450|100 2020-09-29...
-
Page 2: Table Of Contents
Isolated SmartSolar MPPT RS Table of Contents 1. Safety Instructions ........................1 2. General Description ......................... 3 2.1. Features ........................3 2.2. Interfacing and Communications ..................3 2.3. Setup options ........................ 4 3. Installation ..........................5 3.1. Location of the MPPT ....................... 5 3.2. -
Page 3: Safety Instructions
Isolated SmartSolar MPPT RS 1. Safety Instructions ELECTRIC SHOCK HAZARD Please read this manual carefully before the product is installed and put into use. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only. - Page 4 Isolated SmartSolar MPPT RS Ensure that the equipment is used under the correct ambient conditions. Never operate the product in a wet or dusty environment. Never use the product where there is a risk of gas or dust explosions. Ensure there is adequate free space for ventilation above and below the product and check that the ventilation vents are not blocked.
-
Page 5: General Description
Isolated SmartSolar MPPT RS 2. General Description The MPPT RS is a solar charge controller intended to operate with a PV voltage of between 80-400V and designed to charge a 48V battery bank. 2.1. Features Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, a fast MPPT algorithm will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. -
Page 6: Setup Options
Isolated SmartSolar MPPT RS 2.3. Setup options Adaptive three step charging The SmartSolar MPPT Charge Controller is configured for a three step charging process: Bulk – Absorption – Float. A regular equalization charge can also be programmed. Bulk- During this stage the controller delivers as much charge current as possible to rapidly recharge the batteries. Absorption - When the battery voltage reaches the absorption voltage setting, the controller switches to constant voltage mode. -
Page 7: Installation
This product contains potentially dangerous voltages. It should only be installed under the supervision of a suitable qualified installer with the appropriate training, and subject to local requirements. Please contact Victron Energy for further information or necessary training. Excessively high ambient temperature will result in the following: ·... -
Page 8: Mppt Grounding And Detection Of Pv Array Insulation Faults
Isolated SmartSolar MPPT RS 3.2. MPPT grounding and detection of PV array insulation faults The MPPT RS will test for sufficient resistive isolation between PV+ and GND, and PV- and GND. In the event of a resistance below the threshold, the unit will stop charging, display the error, and send the error signal to the GX device (if connected) for audible and email notification. -
Page 9: Example Pv Configuration
Isolated SmartSolar MPPT RS While functional with correct installation, BEWARE that the product warranty will be void if a PV array with a short circuit current larger than 20A array is connected in reverse polarity. You must keep the individual tracker inputs isolated from each other. That means one solar PV array per input, do not attempt to connect the same array to multiple tracker inputs. -
Page 10: Cable Connection Sequence
Isolated SmartSolar MPPT RS 3.5. Cable connection sequence First: Confirm correct battery polarity, connect the battery. Second: if required, connect the remote on-off, and programmable relay Third: Confirm correct PV polarity, and then connect the solar array (if incorrectly connected with reverse polarity, the PV voltage will drop, the controller will heat up but will not charge the the battery). -
Page 11: Programmable Relay
Isolated SmartSolar MPPT RS 3.9.2. Programmable relay Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. DC rating: 4A up to 35VDC and 1A up to 70VDC 3.9.3. Voltage sense For compensating possible cable losses during charging, two sense wires can be connected directly to the battery or to the positive and negative distribution points. -
Page 12: Programming With Victronconnect
Isolated SmartSolar MPPT RS Number Connection Description VSENSE - Voltage Sensor negative VENSE + Voltage Sensor positive 3.10. Programming with VictronConnect This guide will help you with the specific elements of VictronConnect that relate to the MPPT Solar Charge Controller. More general information about the VictonConnect App - how to install it;... -
Page 13: Battery Settings
Isolated SmartSolar MPPT RS 3.10.2. Battery settings Battery voltage The MPPT RS is fixed to 48V, and is only available for 48V systems. Max charge current Allows the user to set a lower maximum charge current. Charger enabled Toggling this setting turns the Solar Charger off. The batteries will not be charged. This setting is intended only for use when carrying-out work on the installation. - Page 14 Isolated SmartSolar MPPT RS Battery voltage Vb (@start-up) Multiplier Maximum absorption times > 11.9 V Vb < 12.2 V x 2/3 04:00 hours > 12.2 V Vb < 12.6 V x 1/3 02:00 hours Vb > 12.6 V x 2/6 01:00 hours The multiplier is applied to the maximum absorption time setting and this results in the maximum duration of the absorption period used by the charger.
- Page 15 Isolated SmartSolar MPPT RS Tail current Set the current threshold that will be used to finish absorption phase before the maximum absorption time expires. When the battery current gets below the tail current for one minute, the absorption phase will end. This setting can be disabled by setting it to zero.
-
Page 16: Programmable Relay
Isolated SmartSolar MPPT RS 3.10.3. Programmable relay A programmable relay switch is available on some SmartSolar models. The datasheet for your model will tell you whether or not it is available. The relay offers three connections: 1. NO (Normally Open) 2. - Page 17 Isolated SmartSolar MPPT RS 9. Float or Storage state. This option switches the relay ON when the charger is in the float state. 10. Day detection (Panels irradiated). This option switches the relay ON whilst the solar panels are providing energy (Day/Night detection).
-
Page 18: Operation
Isolated SmartSolar MPPT RS 4. Operation 4.1. Device display The unit has an LCD screen that displays operational information. The screen cycles through the relevant displays every few seconds. Startup Screen When the units is first switched on it will display firmware, serial number and model details for severals while the unit performs self tests. -
Page 19: Status - Live Data Information
Isolated SmartSolar MPPT RS 4.2. STATUS - Live Data Information • MPPT [Model Number] confirms the connected device. A custom name can also be set if desired. • Solar 'Gauge' icon shows the dynamic real-time power output from the solar array. With regard to the Solar Panel voltage, note that the Solar charger will only operate once the Panel voltage has risen more than 5V above battery voltage. -
Page 20: History - Thirty-Day Graphic
Isolated SmartSolar MPPT RS Is my battery being charged? The battery will be charged whenever the power available from the PV panels exceeds the power being drawn by the loads (lights, fridge, inverter, etc.). You can only tell if that is the case with Charge Controllers which have all loads connected to the load output terminals. Remember: any loads connected directly to the battery can't be monitored by the Solar Charger. - Page 21 Isolated SmartSolar MPPT RS Figure 4. MPPT Tracker view Page 19 Operation...
-
Page 22: Protections And Automatic Restarts
Isolated SmartSolar MPPT RS It is also possible to see a specific yield, maximum power, and maximum voltage for the individual trackers by selecting the tracker tab in the history view. (If you are operating an (Energy Storage System) the charge time for this will be included in the 'Bulk' reading.) It is possible to export the history as a comma separated file (.csv) by clicking the three connected dots at the top right of the history screen: This is an example of the exported data for 3 of 30 days:... -
Page 23: High Battery Voltage
Isolated SmartSolar MPPT RS 4.4.1. High battery voltage Reduce DC input voltage and/or check for a faulty battery- or solar-charger in the system. After shutting down due to a high battery voltage, the unit will first wait 30 seconds and then retry operation as soon as the battery voltage has dropped to acceptable level. -
Page 24: Troubleshooting
Isolated SmartSolar MPPT RS 5. Troubleshooting Check the Victron website for error codes and troubleshooting: https://www.victronenergy.com/live/mppt-error-codes Page 22 Troubleshooting... -
Page 25: Technical Specifications
Isolated SmartSolar MPPT RS 6. Technical Specifications Isolated SmartSolar MPPT RS 450/100 Synchronised Parallel Operation Yes, up to 25 units with VE.Can Maximum PV input power 9000W (450V 20A) Maximum DC charging power 5000 W SOLAR Maximum DC voltage 450 V Nominal DC voltage 300 V Start-up voltage... - Page 26 Isolated SmartSolar MPPT RS Isolated SmartSolar MPPT RS 450/100 Emission, Immunity 1) Protection key: c) battery voltage too high d) battery voltage too low e) temperature too high g) Solar earth leakage 2) Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function, including minimum closed time and relay-off delay.
-
Page 27: Appendix
Isolated SmartSolar MPPT RS 7. Appendix 7.1. Appendix A : Connection Overview Figure 5. MPPT RS Front Front bottom plate cover removed to reveal connection area Page 25 Appendix... - Page 28 Isolated SmartSolar MPPT RS Figure 6. Bottom Connections Detail of connection area looking up from the bottom Page 26 Appendix...
- Page 29 Isolated SmartSolar MPPT RS Figure 7. User I/O User I/O Connector is located on bottom left side of connection area, diagram shows 3 perspectives. Left Side - Top - Right Side Table 4. User I/O Functions - See Installation Section for more details. Number Connection Description...
-
Page 30: Appendix B : Block Diagram
Isolated SmartSolar MPPT RS 7.2. Appendix B : Block Diagram Page 28 Appendix... -
Page 31: Appendix C : Example System Schematic And Wiring Diagram
Isolated SmartSolar MPPT RS 7.3. Appendix C : Example system schematic and wiring diagram 8 x 270W 60 cell panels in 11 x 270W 60 cell panels in series – 304 Voc series – 418 Voc AC Input Supply - Either Grid Generator Critical AC Loads... -
Page 32: Appendix D : Dimensions
Isolated SmartSolar MPPT RS 7.4. Appendix D : Dimensions Dimension Drawing - SS MPPT 450/100 SCC145110410 SmartSolar MPPT 450/100-Tr VE.Can 6.2(3x) 32.5 87.5 87.5 103.5 Dimensions in mm Page 30 Appendix...
