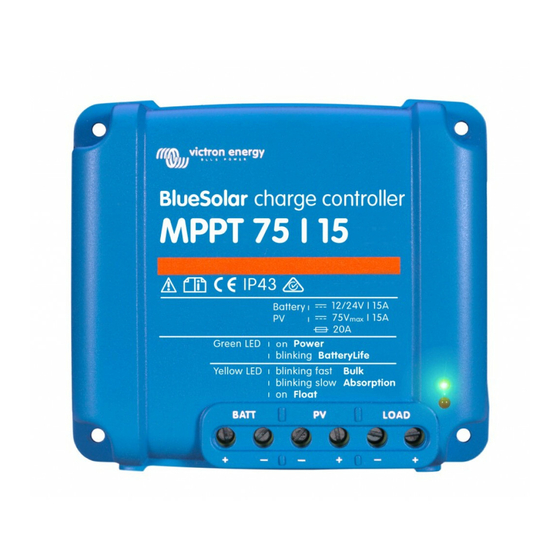

Victron energy BlueSolar MPPT 75/10 Manual
Bluesolar charge controllers
Hide thumbs
Also See for BlueSolar MPPT 75/10:
Related Manuals for Victron energy BlueSolar MPPT 75/10
Summary of Contents for Victron energy BlueSolar MPPT 75/10
- Page 1 Manual BlueSolar charge controllers MPPT 75/10 MPPT 75/15 MPPT 100/15 MPPT 100/20 MPPT 100/20-48V...
-
Page 2: General Description
1 General Description 1.1 Ultra fast MPPT tracking Especially in case of a clouded sky, when light intensity is changing continuously, a fast MPPT algorithm will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. 1.2 VE.Direct For a wired data connection to a Color Control panel, PC or other devices 1.3 Load output... - Page 3 1.5.4. Equalization See section 3.9 1.6 Internal temperature sensor Compensates absorption and float charge voltages for temperature (range 6°C to 40°C) 1.7 Optional external voltage and temperature sensor (range -20°C to 50°C) The Smart Battery Sense is a wireless battery voltage-and-temperature sensor for Victron MPPT Solar Chargers.
-
Page 4: Important Safety Instructions
2. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS - This manual contains important instructions that shall be followed during installation and maintenance. Danger of explosion from sparking Danger of electric shock ● It is advised to read this manual carefully before the product is installed and put into use. -
Page 5: Installation
3. Installation WARNING: DC (PV) INPUT NOT ISOLATED FROM BATTERY CIRCUIT CAUTION: FOR PROPER TEMPERATURE COMPENSATION THE AMBIENT CONDITION FOR CHARGER AND BATTERY MUST BE WITHIN 5°C. 3.1. General ● Mount vertically on a non-flammable substrate, with the power terminals facing downwards. - Page 6 ● The controller will operate only if the PV voltage exceeds battery voltage (Vbat). ● PV voltage must exceed Vbat + 5V for the controller to start. Thereafter minimum PV voltage is Vbat + 1V. ● Maximum open circuit PV voltage: 75V respectively 100V For example: 12V battery and mono- or polycristalline panels connected to a 75V controller ●...
- Page 7 Some loads with high inrush current can best be connected directly to the battery. If equipped with a remote on-off input, these loads can be controlled by connecting the load output of the controller to this remote on-off input. A special interface cable may be needed.
- Page 8 3.8 Battery charging information The charge controller starts a new charge cycle every morning, when the sun starts shining. Lead-acid batteries: default method to determine length and end of absorption The charging algorithm behavior of MPPTs differs from AC connected battery chargers. Please read this section of the manual carefully to understand MPPT behavior, and always follow the recommendations of your battery manufacturer.
- Page 9 2. Restarting the charge process The charging algorithm will reset if charging has stopped for an hour. This may occur when the PV voltage drops below the battery voltage due to bad weather, shade or similar. 3. Battery being charged or discharged before solar charging begins The automatic absorption time is based on the start-up battery voltage (see table).
-
Page 10: Troubleshooting
4. Troubleshooting Problem Possible cause Solution Charger does Reversed PV connection Connect PV correctly not function No fuse inserted Insert 20A fuse Blown fuse Reversed battery Connect battery correctly Replace fuse connection A bad battery connection Check battery connection Use cables with larger cross Cable losses too high section Large ambient temperature... - Page 11 Figure 1a: configuration pins of the VE.Direct communication port, 75V models Figure 1b: pin numbering of the VE.Direct communication port. 4 3 2 1...
- Page 12 Figure 2a: configuration pins of the VE.Direct communication port, 100V model Figure 2b: pin numbering of the VE.Direct communication port, 100V model...
- Page 13 Figure 3: Battery management options EN: No bridge: BatteryLife algorithm NL: Geen brug: BatteryLife algoritme FR: Pas de pont : Algorithme BatteryLife DE: Keine Überbrückung: BatteryLife Algorithmus ES: Ningún puente: algoritmo BatteryLife SE: Ingen brygga: BatteryLife-algoritm EN: Bridge between pin 1 and 2: Low voltage disconnect: 11.1V or 22.2V 75V models Automatic load reconnect: 13.1V or 26.2V...
- Page 14 Figure 4: Power connections Figure 5: The Victron inverters model Phoenix 12/800, 24/800, 12/1200 and 24/1200 can be controlled by connecting the right side connection (1) of the inverter remote control directly to the solar charger load output. Similarly, all Phoenix VE.Direct inverters can be controlled by connecting to the left side connection of the...
- Page 15 Serial number: Version : 03 , 2020 Date : June 24 Victron Energy B.V. De Paal 35 | 1351 JG Almere PO Box 50016 | 1305 AA Almere | The Netherlands General phone : +31 (0)36 535 97 00 E-mail : sales@victronenergy.com...
