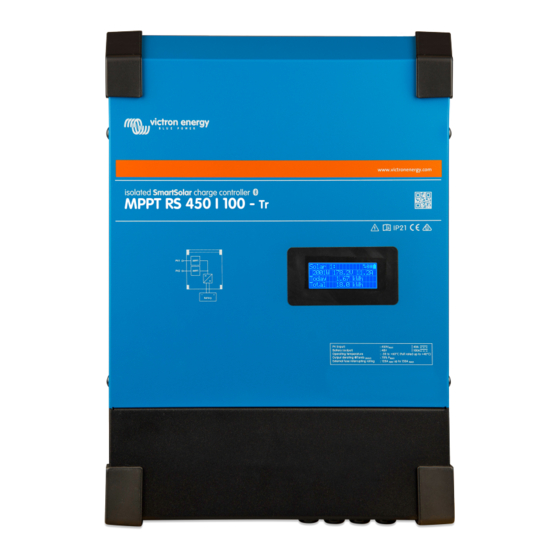

Victron energy SmartSolar MPPT RS 450/100 Manual
Hide thumbs
Also See for SmartSolar MPPT RS 450/100:
Related Manuals for Victron energy SmartSolar MPPT RS 450/100
Summary of Contents for Victron energy SmartSolar MPPT RS 450/100

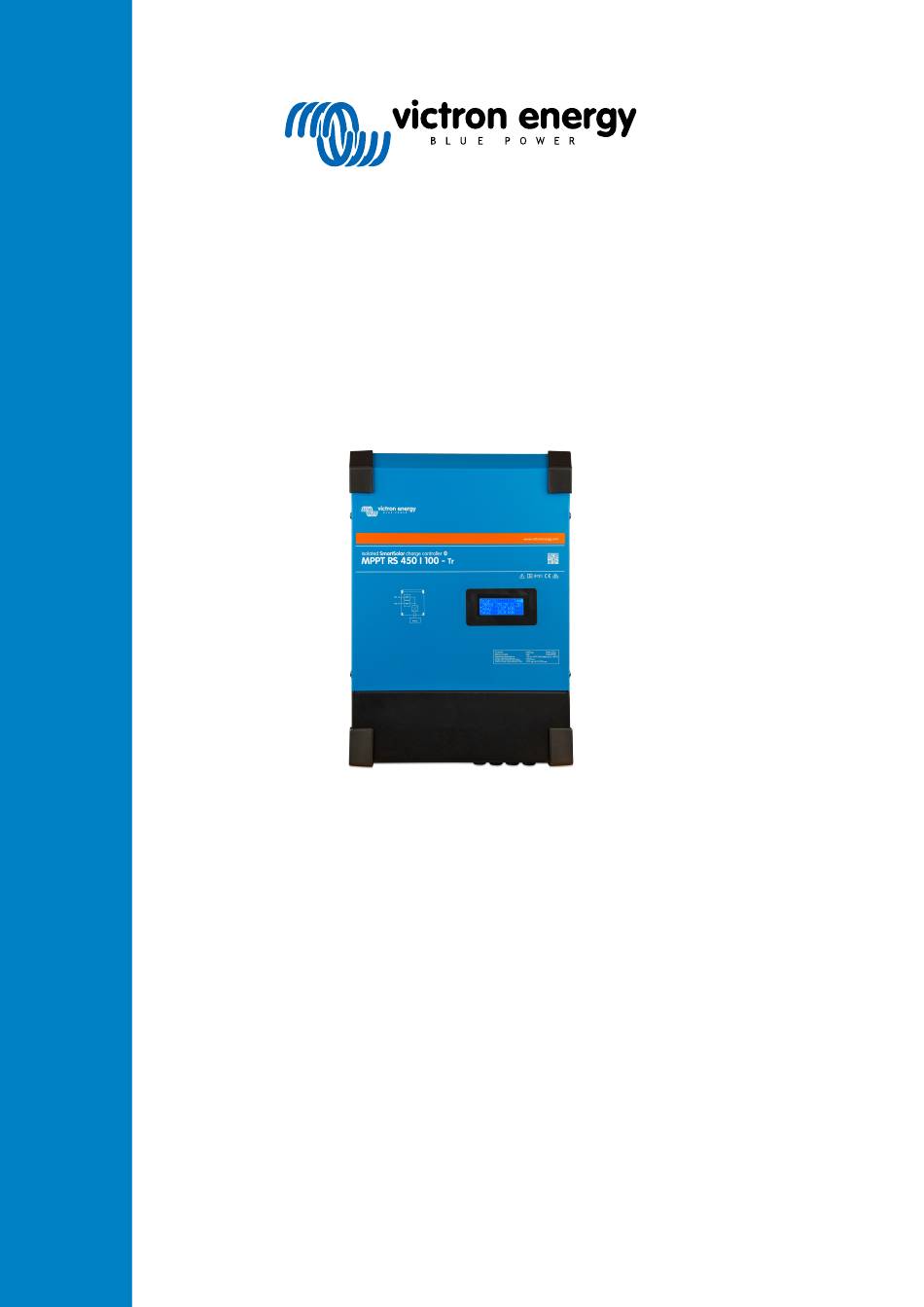

- Page 1 ENGLISH Isolated SmartSolar MPPT RS SmartSolar MPPT RS 450|100 & 450|200 Rev 05 02/2021...
-
Page 2: Table Of Contents
Isolated SmartSolar MPPT RS Table of Contents 1. Safety Instructions ........................1 2. General Description ......................... 3 2.1. Features ........................3 2.2. Interfacing and Communications ..................3 2.3. Setup options ........................ 4 3. Installation ..........................5 3.1. Location of the MPPT ....................... 5 3.2. -
Page 3: Safety Instructions
Isolated SmartSolar MPPT RS 1. Safety Instructions ELECTRIC SHOCK HAZARD Please read this manual carefully before the product is installed and put into use. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only. - Page 4 Isolated SmartSolar MPPT RS Ensure that the equipment is used under the correct ambient conditions. Never operate the product in a wet or dusty environment. Never use the product where there is a risk of gas or dust explosions. Ensure there is adequate free space for ventilation above and below the product and check that the ventilation vents are not blocked.
-
Page 5: General Description
Isolated SmartSolar MPPT RS 2. General Description The MPPT RS is a solar charge controller intended to operate with a PV voltage of between 80-400V and designed to charge a 48V battery bank. 2.1. Features Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, a fast MPPT algorithm will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. -
Page 6: Setup Options
Isolated SmartSolar MPPT RS 2.3. Setup options Adaptive three step charging The MPPT Charge Controller is configured for a three step charging process: Bulk – Absorption – Float. A regular equalization charge can also be programmed. Bulk- During this stage the controller delivers as much charge current as possible to rapidly recharge the batteries. Absorption - When the battery voltage reaches the absorption voltage setting, the controller switches to constant voltage mode. -
Page 7: Installation
This product contains potentially dangerous voltages. It should only be installed under the supervision of a suitable qualified installer with the appropriate training, and subject to local requirements. Please contact Victron Energy for further information or necessary training. Excessively high ambient temperature will result in the following: ·... -
Page 8: Battery And Battery Lead Requirements
Isolated SmartSolar MPPT RS The positive and negative conductors of the PV array must be isolated from ground. Ground the frame of the PV array to local requirements. The ground lug on the chassis should be connected to the common earth. -
Page 9: Mppt Rs Example Pv Configuration
Isolated SmartSolar MPPT RS The maximum open circuit voltage of the PV array must be less than 8 times the minimum battery voltage when at float. For example, where a battery has a float voltage of 54.0 volts, the maximum open circuit voltage of the connected array cannot exceed 432 volts. -
Page 10: Cable Connection Sequence
Isolated SmartSolar MPPT RS Figure 2. MPPT RS PV example diagram 8 x 270W 60 cell panels in 11 x 270W 60 cell panels in series – 304 Voc series – 418 Voc 418V and 304V DC PV Distribution 3.5. Cable connection sequence First: Confirm correct battery polarity, connect the battery. -
Page 11: Synchronised Parallel Operation
Isolated SmartSolar MPPT RS Supply voltage (V+ supply): 9V-70V Maximum supply current: 500mA Data rate: 250 kbps CANH/CANL voltage tolerance: +/-70VDC CAN transceiver ISO specification: ISO 11898-2:2016 To provide maximum flexibility, the battery voltage is used for the V+ supply line of VE.CAN. This means that all equipment connected to VE.CAN are a permanent load to the battery. -
Page 12: Programmable Analog/Digital Input Ports
Isolated SmartSolar MPPT RS 3.9.5. Programmable analog/digital input ports The product is equipped with 2 analog/digital input ports. The digital inputs are 0-5v, and when a input is pulled to 0v it is registered as 'closed' These ports can be configured in VictronConnect. For more information search Victron Community. 3.9.6. -
Page 13: Settings
Isolated SmartSolar MPPT RS 3.10.1. Settings The settings page is accessed by clicking on the Cog icon at the top right of the Home page. The settings page provides access to view or change the settings of the Battery; Load; Streetlight; and Port functions. From this page you can also view Product information such as the Firmware versions installed on the MPPT Solar Charger. - Page 14 Isolated SmartSolar MPPT RS User-defined presets will be stored in the preset library - in this way installers will not have to define all the values each time they are configuring a new installation. By selecting Edit Presets, or on the Settings screen (with expert mode on or not), custom parameters can be set as follows: Absorption voltage Set the absorption voltage.
- Page 15 Isolated SmartSolar MPPT RS Duration of the Automatic equalization cycle In the case of all VRLA batteries and some flooded batteries (algorithm number 0, 1, 2 and 3) automatic equalization ends when the voltage limit (maxV) has been reached, or after a period equal to (absorption time/8) - whichever comes first. For all tubular plate batteries (algorithm numbers 4, 5 &...
-
Page 16: Programmable Relay
Isolated SmartSolar MPPT RS Current and voltage limits are identical to the automatic equalize function. The duration of the equalisation cycle is limited to a maximum of 1 hour when triggered manually. Manual equalization can be stopped at any time by selecting 'Stop Equalize'. 3.10.3. - Page 17 Isolated SmartSolar MPPT RS 2. Clear panel high voltage. (User-defined Voltage) This option switches the relay ON when the panel voltage rises above the chosen “Panel high voltage” setting, and switches the relay OFF when the panel voltage falls below the chosen “Clear panel high voltage” setting. Ensure, of course, that the “Panel high voltage”...
-
Page 18: Operation
Isolated SmartSolar MPPT RS 4. Operation 4.1. Device display The unit has an LCD screen that displays operational information. The screen cycles through the relevant displays every few seconds. Startup Screen When the units is first switched on it will display firmware, serial number and model details for severals while the unit performs self tests. -
Page 19: Status - Live Data Information
Isolated SmartSolar MPPT RS 4.2. STATUS - Live Data Information • MPPT [Model Number] confirms the connected device. A custom name can also be set if desired. • Solar 'Gauge' icon shows the dynamic real-time power output from the solar array. With regard to the Solar Panel voltage, note that the Solar charger will only operate once the Panel voltage has risen more than 5V above battery voltage. -
Page 20: History - Thirty-Day Graphic
Isolated SmartSolar MPPT RS 4.3. HISTORY - Thirty-day Graphic (The fragmented square icon (top left) allows you to toggle between 'portrait' and 'landscape' screen presentations.) A summary of activity for the last 30 days is presented graphically. Swipe the bar left or right to show any of the previous 30 days. The daily log shows: •... -
Page 21: Protections And Automatic Restarts
Isolated SmartSolar MPPT RS This is an example of the exported data for 3 of 30 days: Days Yield Max. Max. Min. Max. Time in Time in Time Last (Wh) battery battery bulk(m) absorp. error last last last power voltage voltage voltage float... -
Page 22: Troubleshooting
Isolated SmartSolar MPPT RS 5. Troubleshooting Check the Victron website for error codes and troubleshooting: https://www.victronenergy.com/live/mppt-error-codes Page 20 Troubleshooting... -
Page 23: Technical Specifications
Isolated SmartSolar MPPT RS 6. Technical Specifications Isolated SmartSolar MPPT RS 450/100 450/200 CHARGER Programmable charge voltage Minimum: 36 V range Maximum: 62 V Charge voltage'absorption' Default : 57.6 V Charge voltage 'float' Default : 55.2 V Maximum charge current 100 A 200 A Battery temperature sensor... - Page 24 Isolated SmartSolar MPPT RS Isolated SmartSolar MPPT RS 450/100 450/200 MPPT operating range is also constrained by battery voltage - PV VOC should not exceed 8xbattery float voltage. For example, a 52,8V float voltage results in a maximum PV VOC of 422,4V. See product manual for further information. A higher short circuit current may damage the controller if PV array is connected in reverse polarity.
-
Page 25: Appendix
Isolated SmartSolar MPPT RS 7. Appendix 7.1. Appendix A : Connection Overview Figure 5. MPPT RS 450|100 Front Front bottom plate cover removed to reveal connection area Figure 6. MPPT RS 450|100 Bottom Connections Detail of connection area looking up from the bottom Page 23 Appendix... - Page 26 Isolated SmartSolar MPPT RS Figure 7. User I/O User I/O Connector is located on bottom left side of connection area, diagram shows 3 perspectives. Left Side - Top - Right Side Table 3. User I/O Functions - See Installation Section for more details. Number Connection Description...
-
Page 27: Appendix B : Block Diagram
Isolated SmartSolar MPPT RS 7.2. Appendix B : Block Diagram Page 25 Appendix... -
Page 28: Appendix C : Example System Schematic And Wiring Diagram
Isolated SmartSolar MPPT RS 7.3. Appendix C : Example system schematic and wiring diagram 8 x 270W 60 cell panels in 11 x 270W 60 cell panels in series – 304 Voc series – 418 Voc AC Input Supply - Either Grid Generator Critical AC Loads... -
Page 29: Appendix D : Dimensions
Isolated SmartSolar MPPT RS 7.4. Appendix D : Dimensions Dimension Drawing - SS MPPT 450/100 SCC145110410 SmartSolar MPPT 450/100-Tr VE.Can 6.2(3x) 32.5 87.5 87.5 103.5 Dimensions in mm Page 27 Appendix...
