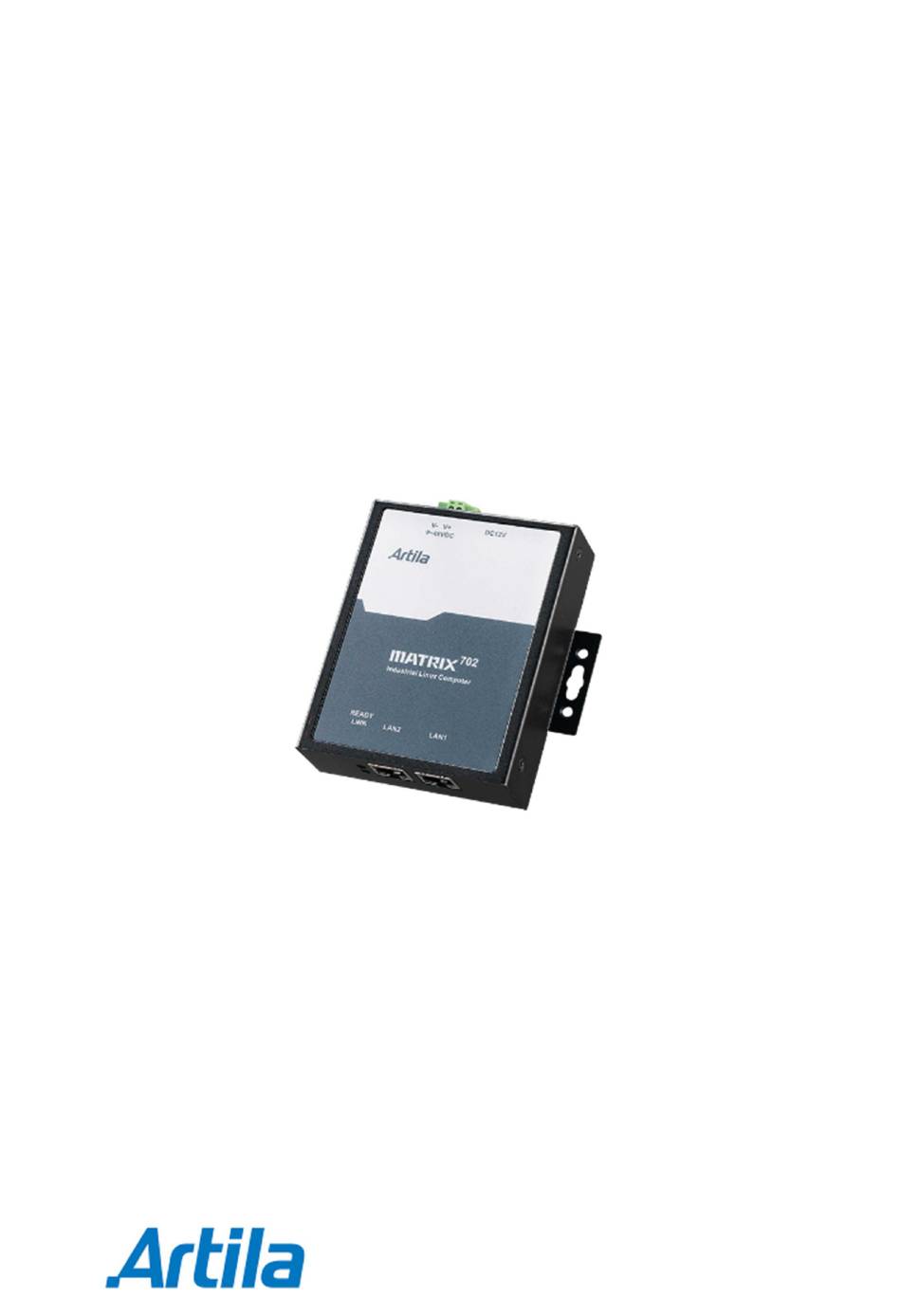

- Page 1 Matrix-702 Linux-Ready Cortex-A5 Industrial IoT Gateway Hardware Guide Version: 1.0 2020 May Copyright © Artila Electronics Co., Ltd. All Rights Reserved.
- Page 2 Matrix-702 Hardware Guide Trademarks The Artila logo is a registered trademark of Artila Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Artila.
- Page 3 Matrix-702 Hardware Guide Document Amendment History Revision Date Remark V 1.0 2016 Jun. Initial ARTILA...
-
Page 4: Table Of Contents
Matrix-702 Hardware Guide Table of Contents Introduction ....................5 Features ....................5 Specifications (Hardware)................ 5 Specifications (Software) ................. 6 Packing List ..................... 7 Optional Accessory.................. 7 Layout ......................8 Connector & LED Indicator ..............8 Dimension ....................9 Pin Assignment and Definitions ..............10 LED Indicators .................. -
Page 5: Introduction
Matrix-702 based on ARM Cortex-A5, is a Linux-ready IoT gateway with highly integrated and low power consumption and wide-range Temperature operating. Matrix-702 provides a reliable IoT gateway as a data transmission from wired to wireless network that easily integrates with a wide range of target markets, such as industrial control, automation, mobile gateway and other applications. -
Page 6: Specifications (Software)
Support Backup/Restore from SD card or USB device • Boot Loader: Barebox • File System: EXT4 Software Development • Toolchain: gcc 8.2.0xx + glibc 2.28xx • Supports in-place C/C++ code compilation Package Management • Package repository: Artila self-maintained repository • Command: Using standard apt-get command ARTILA... -
Page 7: Packing List
Please refer to “M-A5D35” system on module information for software operating & utility at following: http://www.artila.com/download/A5D35/Linux/ 1.4 Packing List Matrix-702: Linux-ready Cortex-A5 536MHz Industrial IoT Gateway with 512MB SDRAM, 16GB eMMC Flash 1.5 Optional Accessory DK-35A (36-DK35A-000): DIN RAIL Mounting Kit ... -
Page 8: Layout
Matrix-702 Hardware Guide 2. Layout 2.1 Connector & LED Indicator +9~+48 VDC +12VDC Power Input Power Input Hole reserved for Hole reserved for Antenna Antenna System Ready LED LINK LED LAN2 LAN1 10/100Mbps Gigabit Ethernet Port Ethernet Port ARTILA... -
Page 9: Dimension
Matrix-702 Hardware Guide 2.2 Dimension Unit: mm ARTILA... -
Page 10: Pin Assignment And Definitions
Matrix-702 Hardware Guide 3. Pin Assignment and Definitions 3.1 LED Indicators The LED provides the Matrix-702 operation information. The LED status is described as follow: “READY” (Ready LED indicator): Ready LED will turn on in green color while power is properly supplied. After system is ready for operation, Ready LED will keep in solid orange color and a beep will be heard ... -
Page 11: Power Connector
¢ 3.4 Console Port There is a serial console ports (4-pin wafer box header / JP1) inside the Matrix-702. Pin assignment is: RX, TX, +3.3V, GND. +3.3V Therefore, you need to open the upper metal case and prepare or purchase a serial console cable to use the serial console port. -
Page 12: Minipcie Slot
Matrix-702 Hardware Guide 3.5 miniPCIe Slot The Matrix-702 comes with one miniPCIe (mPCIe) slot and dual holes for antenna reserved for communication/networking functionality. 3.6 SIM card Socket There is a micro-SIM card socket inside. After removed top cover, it can be inserted a micro-SIM card accompanying LTE/4G module. -
Page 13: Sd Card Socket
Matrix-702 Hardware Guide 3.7 SD card Socket There is a micro-SD card socket inside as data storage. After removed top cover, it can be accessed the SD card. ARTILA...
