Matrix-752 Hardware Guide Trademarks The Artila logo is a registered trademark of Artila Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Artila.
Page 3
Matrix-752 Hardware Guide Document Amendment History Revision Date Remark V 1.0 2020 June Initial ARTILA...

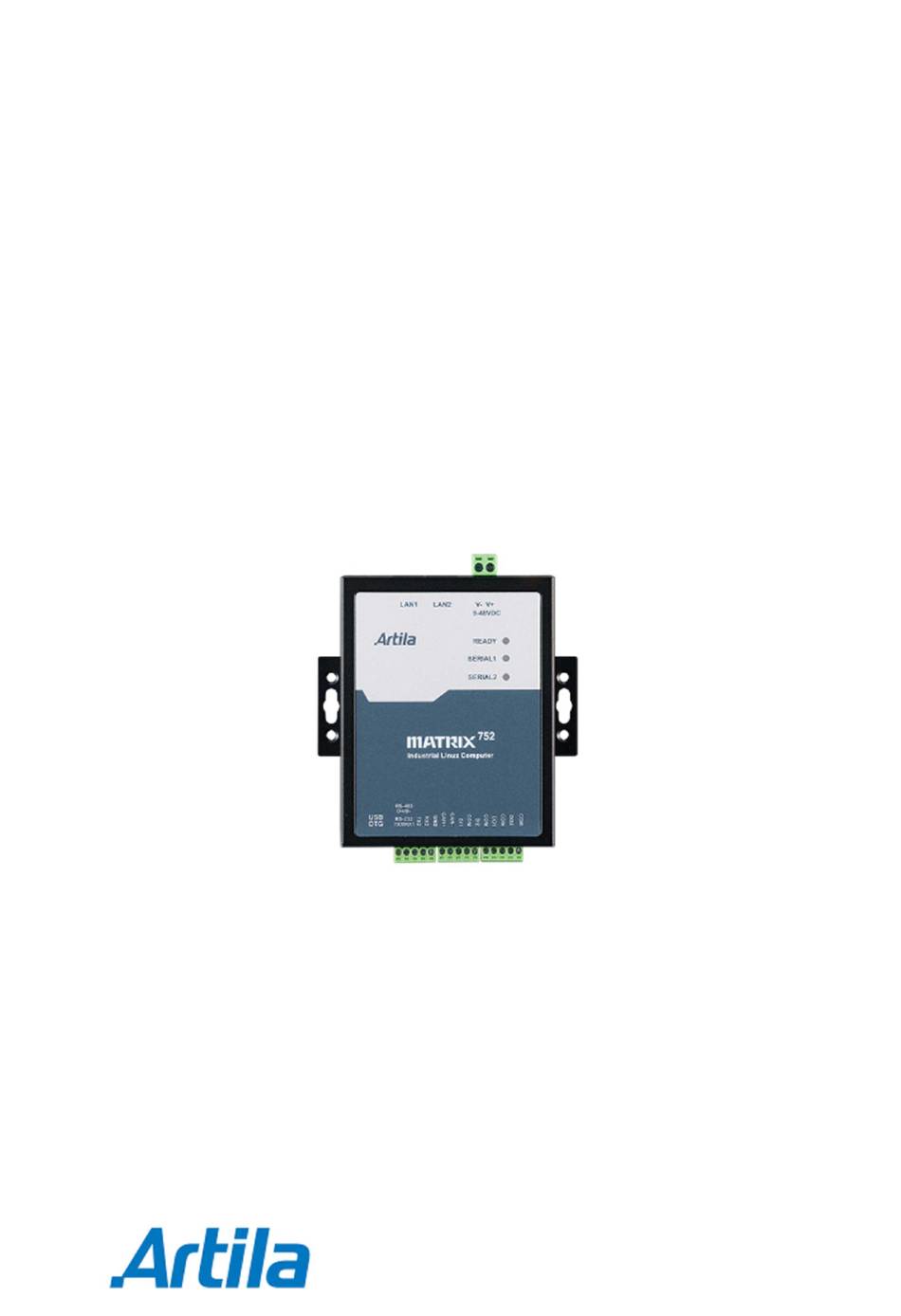

Matrix-752 Hardware Guide 1. Introduction Matrix-752 based on arm Cortex-A7, is a Linux-ready IoT gateway with highly integrated and low power consumption. Matrix-752 provides an ideal building block that easily integrates with a wide range of target markets, such as industrial control, automation, mobile gateway and other applications.
Page 6
Matrix-752 Hardware Guide TTY (Serial) Ports • 1 x RS-485 or RS-232 Port • 1 x RS-232 Port • Direction Control (RS-485): Auto, by software • Connector: Terminal block • RS-485 Signal: Data+, Data- • RS-232 Signal: TX, RX TTY (Serial) Port Parameters •...
Matrix-752 Hardware Guide 2. Layout 2.1 Connector & LED Indicator Power Input Hole Hole (Reserved (Reserved for Antenna) for Antenna) Ready LED Serial Port LED 1 Serial Port LED 2 Console Micro-SIM (internal) Reset Micro-SD (internal) USB OTG RS485(D+/D-) Digital Output...
Matrix-752 Hardware Guide 3. Pin Assignment and Definitions 3.1 Multi-function Reset Button The Matrix-752 provides a multi-function reset button located on the side of the chassis as shown below: Reset Button The behavior of the reset button depends on how long you press the reset button.
Matrix-752 Hardware Guide 3.2 LED Indicators The LED provides the Matrix-752 operation information. The LED status is described as follow: Ready LED Serial Port LED 1 Serial Port LED 2 “Ready” (Ready LED indicator): Ready LED keeps ON when system is ready for operating.
Matrix-752 Hardware Guide 3.3 Ethernet LAN Port There are two 10/100Mbps Ethernet by RJ45 (with LED indicator) connectors. LAN2 LAN1 The Ethernet Port use RJ45 connector. Pin-Assignment as below: Signal ETx + ETx - ERx + ERx - ARTILA...
Matrix-752 Hardware Guide 3.4 Power Connector Connecting +9 ~ +48VDC power line to the Power in terminal block. Power Input 3.5 USB OTG Port One USB OTG port by micro-USB connector is equipped for operation. ARTILA...
RS232(TX2/RX2) Enable/Disable Termination resistor for RS-485 (JP4) The Matrix-752 provides on-board 120Ohm termination resistor for each RS-485 port. To enable the termination resistor, please remove the upper cover of the Matrix- 752, and the adjust the associated jumper to short as below:...
Page 16
Matrix-752 Hardware Guide Set Serial Port 1 to RS232 port (JP3 & JP6) The Serial Port on Matrix-752, default is RS-485 at JP3 (setting Pin 3 and Pin4) To Enable RS-232 port, setting JP3 at Pin 1 and Pin 2...
The Matrix-752 provides on-board 120Ohm termination resistor for each CAN port. Default setting is “Disable” the terminal resistor for CAN bus. To enable the termination resistor, please remove the upper cover of the Matrix-752, and the adjust the associated jumper to short position1 and position 2, shown below:...
Matrix-752 Hardware Guide 3.8 Digital Input Two channels Digital Input are equipped with 5000Vrms photocoupler isolation which share the same common ground. Digital Input Pin assignment of Digital Input Pin8 Pin9 Pin10 Pin11 Signal The specification of the isolated input channels is: Logical High: 5~24Vdc Logical Low: 0~1.5Vdc...
Matrix-752 Hardware Guide 3.9 Digital Out There are two channels Digital Output by solid state relay. • Solid State Relay: Normal Open (NO) Type • Contact Rating: 80VDC@1.5A Digital Output Pin assignment of Digital Input Pin12 Pin13 Pin14 Pin15 Signal...
Matrix-752 Hardware Guide 3.10 Serial Console Port There is a 4-pin wafer box header (JP2) inside the Matrix-752 features as serial console port that used for locally accessing Matrix-752 system via console port. Console Port Pin assignment is: RX, TX, +3.3V, GND.
Matrix-752 Hardware Guide 3.11 External Battery connection There is a 2Pin wafer (1.2mm pitch) reserved that can be connected to external battery for RTC External Battery Connection 3.12 SD card Socket There is a micro-SD card socket inside as data storage.
Matrix-752 Hardware Guide 3.13 miniPCIe Slot The Matrix-752 comes with a miniPCIe slot and dual holes for antenna reserved for communication/networking functionality. Reserved for Reserved for Antenna Antenna miniPCIe Slot 3.14 Micro-SIM card socket There is a micro-SIM card socket inside.
