Matrix-710 Hardware Guide Trademarks The Artila logo is a registered trademark of Artila Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Artila.
Page 3
Matrix-710 Hardware Guide Document Amendment History Revision Date Remark V 1.0 2017 July Initial V 1.01 2017 Nov. Product Description updated to “IoT Gateway” V 1.02 2019 Nov. FCC instruction, Spec updated ARTILA...

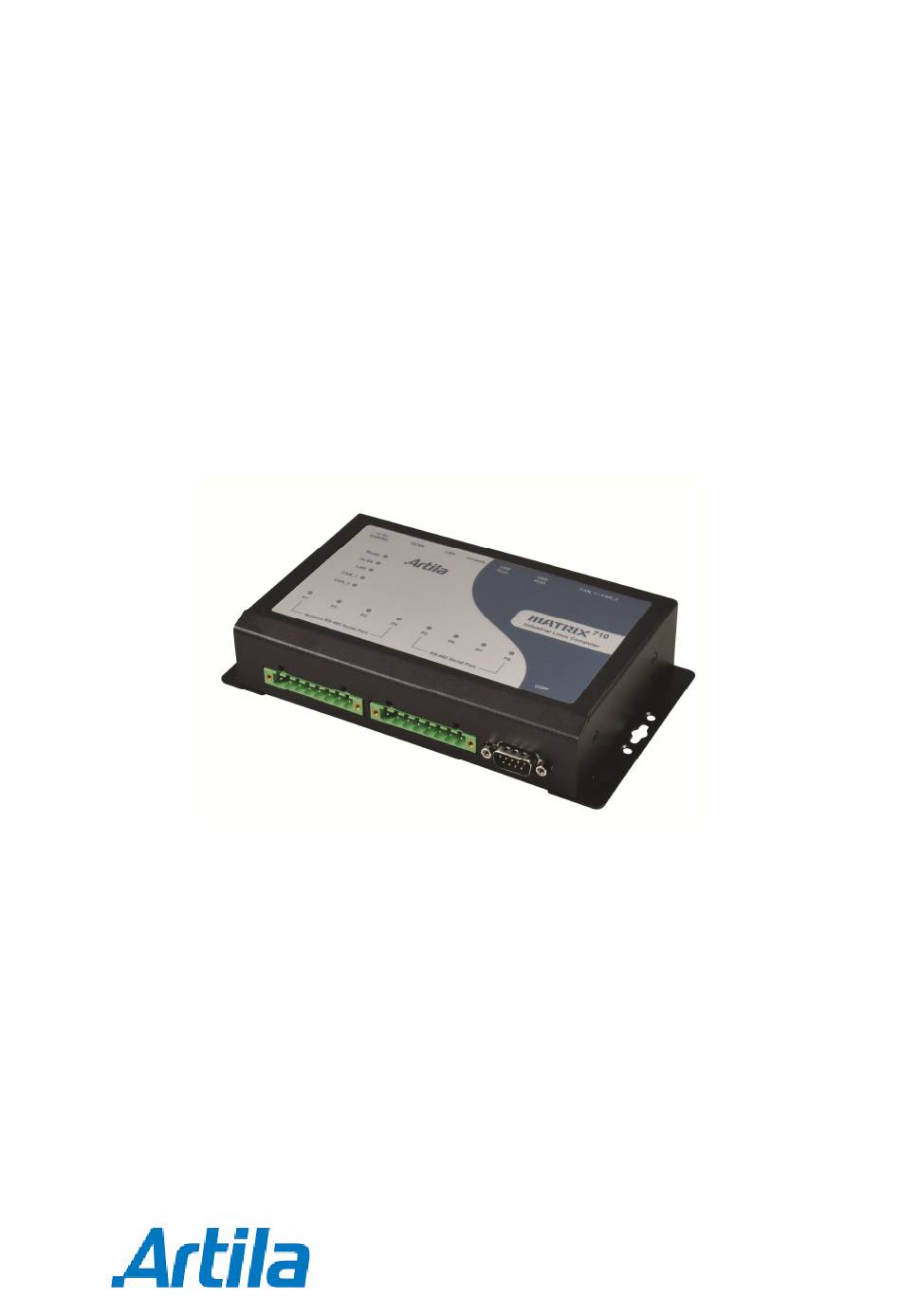

Matrix-710 Hardware Guide 1. Introduction Matrix-710 based on ARM Cortex-A5, is a Linux-ready IoT gateway with highly integrated and low power consumption. Matrix-710 provides an ideal building block that easily integrates with a wide range of target markets, such as industrial control, automation, mobile gateway and other applications.
Page 6
Matrix-710 Hardware Guide CAN Bus Ports • Type: 2 x CAN Bus 2.0 A/B compliant ports • Speed: Up to 1Mbps • Isolation: 1500Vrms • CAN 1: 1~2 pin, CAN 2: 3~4 pin, GND: 5 pin TTY (Serial) Ports •...
Matrix-710 Hardware Guide 3. Pin Assignment and Definitions Multi-function Reset Button The Matrix-710 provides a multi-function reset button located on the right side of the chassis shown below Reset Button The behavior of the reset button depends on how long you press the reset button.
Matrix-710 Hardware Guide LED Indicators The LED provides the Matrix-710 operation information. The LED status is described as follow: Ready GLAN CAN_1 CAN_2 P1 ~ P8 “Ready” (Ready LED indicator): Ready LED will turn on in green color while power is properly supplied.
Matrix-710 Hardware Guide Serial Port The Matrix-710 provide total eight RS-485 ports with automatic direction control. P1 to P4: RS485 with 1500Vrms isolation protection. P5 to P8: RS485 without isolation. Meanwhile, P8 can be set as RS-232 using the connector labeled ‘COM’.
Page 14
Enable/Disable Termination resistor for RS-485 The Matrix-710 provides on-board 120Ohm termination resistor for each RS-485 port. To enable the termination resistor, please remove the upper cover of the Matrix-710, and the adjust the associated jumper to short position1 and position 2, shown below: Port No.
Matrix-710 Hardware Guide Power Connector Connecting +9 ~ +48VDC power line to the Power in terminal block. In the meantime, “READY LED” will turn on in green color while power is properly supplied, After system is ready for operation, “READY LED” will keep in solid orange color and a beep will be heard.
Therefore, you need to open the upper metal case and prepare or purchase a serial console cable to use the serial console port. Or, it can be purchased “Console Cable” from Artila, P/N is CB-PHDF9-050. USB Port Four type-A USB 2.0 ports are built for operation.
Matrix-710 Hardware Guide CAN Bus Port The Matrix-710 comes with two CAN bus ports. Users can open the CAN bus ports as network sockets, the socket names are ‘can0’ and ‘can1’ respectively. Port Label. CAN1 CAN2 Socket Mapping can0 can1...
Matrix-710 Hardware Guide miniPCIe socket The Matrix-710 comes with a miniPCIe socket also SIM card socket reserved for communication/networking functionality. Full Size Half size 3.10 SD card socket There is a SD card socket inside as data storage. It can be accessed by opening top cover.
