Page 1: Hardware Guide

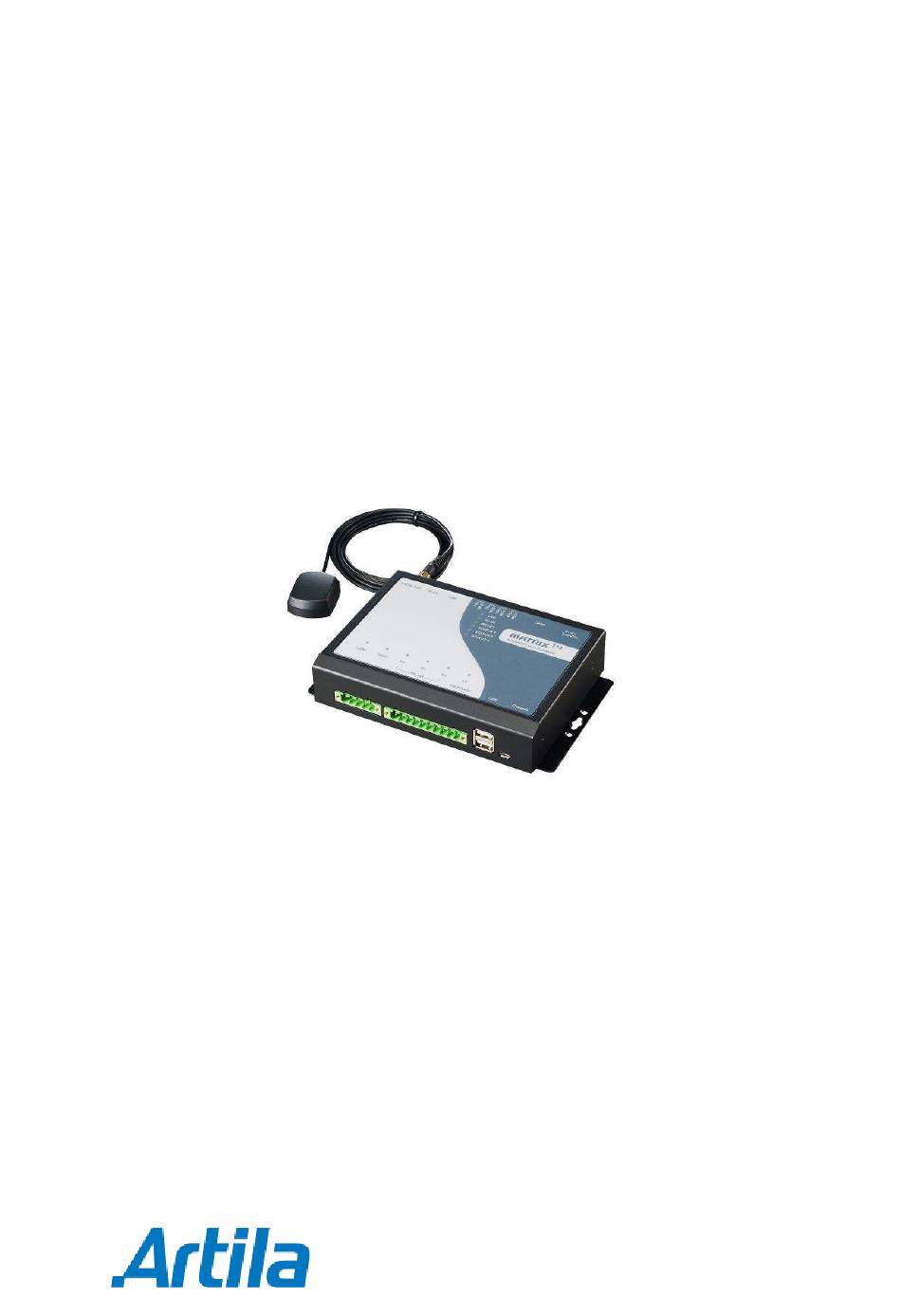

Matrix-713 Linux-Ready Cortex-A5 Industrial IoT Gateway Hardware Guide Version: 1.0 2018 APR. Copyright © Artila Electronics Co., Ltd. All Rights Reserved. - Page 2 Matrix-713 Hardware Guide Trademarks The Artila logo is a registered trademark of Artila Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Artila.
- Page 3 Matrix-713 Hardware Guide Document Amendment History Revision Date Remark V 1.0 2018 Apr. Initial ARTILA...
-
Page 4: Table Of Contents
Matrix-713 Hardware Guide Table of Contents Introduction ....................5 Features ....................5 Specifications (Hardware) ..............5 Specifications (Software) ............... 7 GNSS / IMU Specification ..............8 Packing List ................... 9 Optional Accessory ................9 Cellular Module Parameters ..............9 Layout ......................10 Pin Assignment and Definitions .............. -
Page 5: Introduction
Matrix-713 Hardware Guide 1. Introduction Matrix-713, a reliable industrial IoT gateway, based on ARM Cortex-A5, is highly integrated, Linux-Ready with wide-range Temperature operating. It provides an ideal building block that easily integrates with a versatile application, such as industrial control, automation, power management and others. - Page 6 Matrix-713 Hardware Guide CAN Bus Ports • Type: 2 x CAN Bus 2.0 A/B compliant ports • Speed: Up to 1Mbps • Isolation: 2500Vrms • CAN 1: 1~2 pin, CAN 2: 3~4 pin, GND: 5pin TTY (Serial) Ports • 4 x Isolated RS-485 (1500Vrms isolation), P1 ~ P3 •...
-
Page 7: Specifications (Software)
Supports bootup from eMMC or SD card • Boot Loader: Barebox • File System: EXT4 Software Development • Toolchain: gcc 6.2.x + glibc 2.24 • Supports in-place C/C++ code compilation Package Management • Package repository: Artila self-maintained repository • Command: Using standard apt-get command ARTILA... -
Page 8: Gnss / Imu Specification
Matrix-713 Hardware Guide Popular Packages Web server: Apache/Nginx/Lighttpd Database: MySQL/SQLite3/PostgreSQL Script Language: PHP/Python/Perl/NodeJS Text editor: vim/nano/sed Administration: Webmin Software Operating & Utility Please refer to “M-A5D35” SoM (System on Module) information for software operating & utility at following: http://www.artila.com/download/A5D35/Linux/... -
Page 9: Packing List
Matrix-713 Hardware Guide Packing List Matrix-713: Linux-ready Cortex-A5 536MHz Industrial IoT Gateway with 512MB SDRAM, 8GB eMMC Flash Optional Accessory DK-35A (36-DK35A-000): DIN RAIL Mounting Kit PWR-12V-1A (31-62100-000): 110~240VAC to 12VDC 1A Power Adaptor Cellular Module Parameters For Europe/Asia /LATAM •... -
Page 10: Layout
Matrix-713 Hardware Guide 2. Layout ARTILA... -
Page 11: Pin Assignment And Definitions
Matrix-713 Hardware Guide 3. Pin Assignment and Definitions Multi-function Reset Button The Matrix-713 provides a multi-function reset button located on the right side of the chassis shown below Reset Button The behavior of the reset button depends on how long you press the reset button. -
Page 12: Led Indicators
Matrix-713 Hardware Guide LED Indicators The LED provides the Matrix-713 operation information. The LED status is described as follow: “LAN” & “GLAN” (Network LED indicator): Link and Activity LED will turn ON when the Ethernet cable is connected. When there is network data traffic, this LED will flash. -
Page 13: Can Bus Port
The Matrix-713 provides on-board 120Ohm termination resistor for each CAN port. Default setting is “Disable” the terminal resistor for CAN bus. To enable the termination resistor, please remove the upper cover of the Matrix-713, and the adjust the associated jumper to short position1 and position 2, shown below: CAN Port No. -
Page 14: Serial Port
Matrix-713 Hardware Guide Serial Port The Matrix-713 provide total four RS-485 ports with automatic direction control, also with 1500Vrms isolation protection. Meanwhile, P4 can be set as RS-422 using the connector labeled ‘RS-485/422’. P1 ~ P4 3.4.1 RS-485/RS422 Selection (JP4 & J8) RS-485 / RS-422 (P4) can be selected by setting jumper at JP4 &... -
Page 15: Pin Assignment Of Rs-485/Rs422
3.4.3 Enable/Disable Termination resistor for RS-485 The Matrix-713 provides on-board 120Ohm termination resistor for each RS-485 port. To enable the termination resistor, please remove the upper cover of the Matrix-713, and the adjust the associated jumper to short position1 and position 2, shown below: Port No. -
Page 16: Usb Port
Matrix-713 Hardware Guide USB Port Two type-A USB 2.0 ports are built for operation. Serial Console Port There is a Micro-USB connector which acts as serial console port. Typically, a console is accessed from Computer over an Micro-USB connection. Audio Port One Audio Out port with line-out Jack as sound out. -
Page 17: Digital Input
Matrix-713 Hardware Guide Digital Input Two channel Digital Input are equipped with 5000Vrms photocoupler isolation which share the same common ground. The specification of the isolated input channels is: Logical High: 5~24Vdc Logical Low: 0~1.5Vdc Input resistance: 1.8KOhms@0.32W Response time: 20µs... -
Page 18: Minipcie Socket
Matrix-713 Hardware Guide 3.13 miniPCIe socket There comes with two miniPCIe socket: mPCIe A & mPCIe B Interface: USB mPCIe A: USB host signal connected to SOM (M-A5D35) directly mPCIe B: USB host signal is through USB Hub-IC... -
Page 19: Sd Card Socket
Matrix-713 Hardware Guide 3.15 SD card socket There is a SD card socket inside as data storage. It can be accessed by opening top cover. SD Card Socket ARTILA...
