Panels and
Cabling

Front Panel Features

Rear Panel Features and Cabling

AUDIO IN
IN OUT
AL
2-CH LPCM
CP
BITSTREAM
HAE 100 4K PLUS
C C
D D
This section covers the following:
Front Panel Features
Rear Panel Features and Cabling
IN OUT
SIGNAL
CONFIG
HDCP
A A
B B
C C

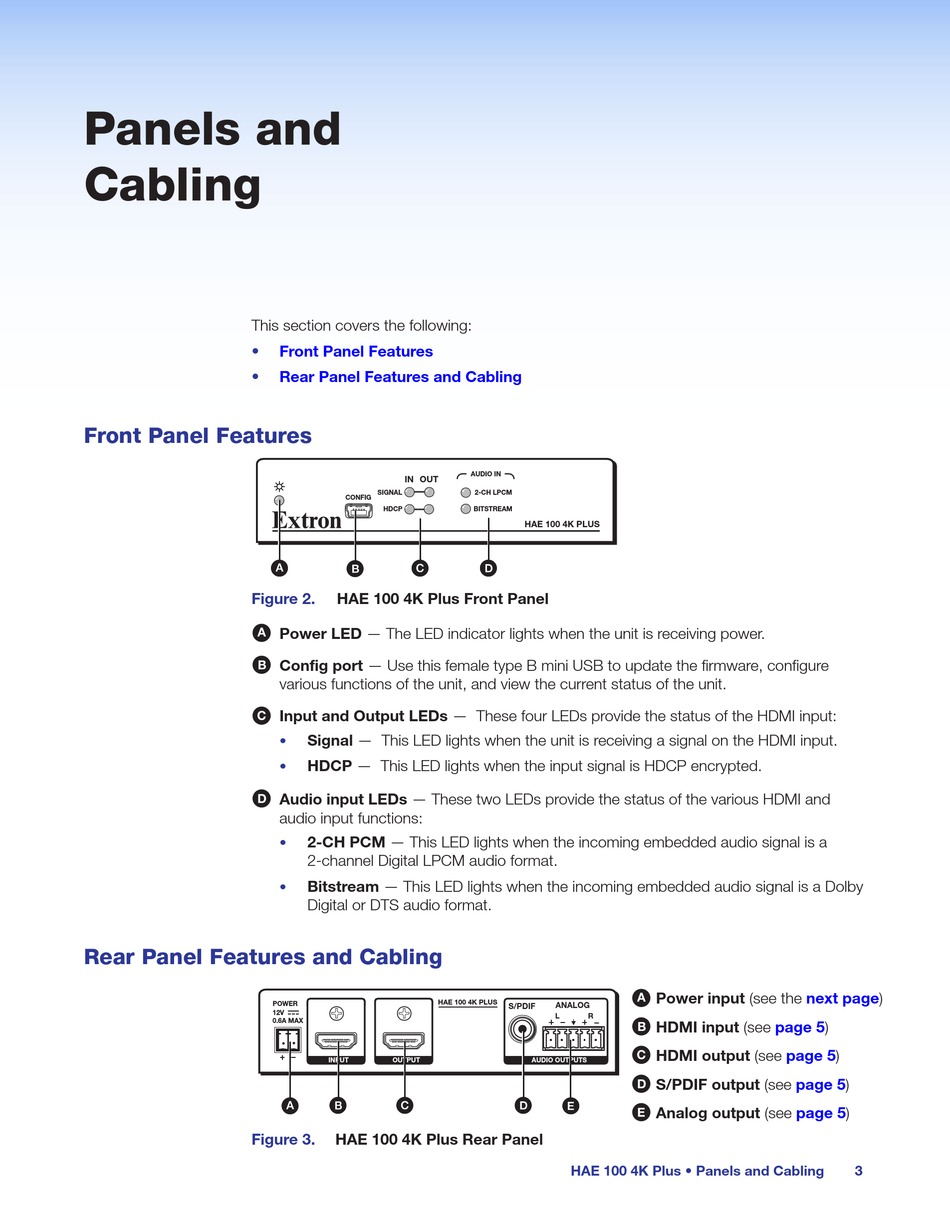

Figure 2.
HAE 100 4K Plus Front Panel
A
Power LED — The LED indicator lights when the unit is receiving power.
B
Config port — Use this female type B mini USB to update the firmware, configure
various functions of the unit, and view the current status of the unit.
C
Input and Output LEDs — These four LEDs provide the status of the HDMI input:
Signal — This LED lights when the unit is receiving a signal on the HDMI input.
HDCP — This LED lights when the input signal is HDCP encrypted.
D
Audio input LEDs — These two LEDs provide the status of the various HDMI and
audio input functions:
2-CH PCM — This LED lights when the incoming embedded audio signal is a
2-channel Digital LPCM audio format.
Bitstream — This LED lights when the incoming embedded audio signal is a Dolby
Digital or DTS audio format.
POWER
12V
0.6A MAX
INPUT
OUTPUT
B B
C C
A A
Figure 3.
HAE 100 4K Plus Rear Panel
AUDIO IN
2-CH LPCM
BITSTREAM
HAE 100 4K PLUS
D D
HAE 100 4K PLUS
ANALOG
S/PDIF
L
R
AUDIO OUTPUTS
D D
E E
HAE 100 4K Plus • Panels and Cabling
POWER
12V
0.6A MAX
INPUT
OUTPUT
A A
B B
C C
A
Power input (see the
next
B
HDMI input (see
page
C
HDMI output (see
page
D
S/PDIF output (see
page
E
Analog output (see
page
HAE 100 4K PLUS
S/PDIF
AUDIO
D D
page)
5)
5)
5)
5)
3
