Summary of Contents for Extron electronics PowerCage FOX AEX 104

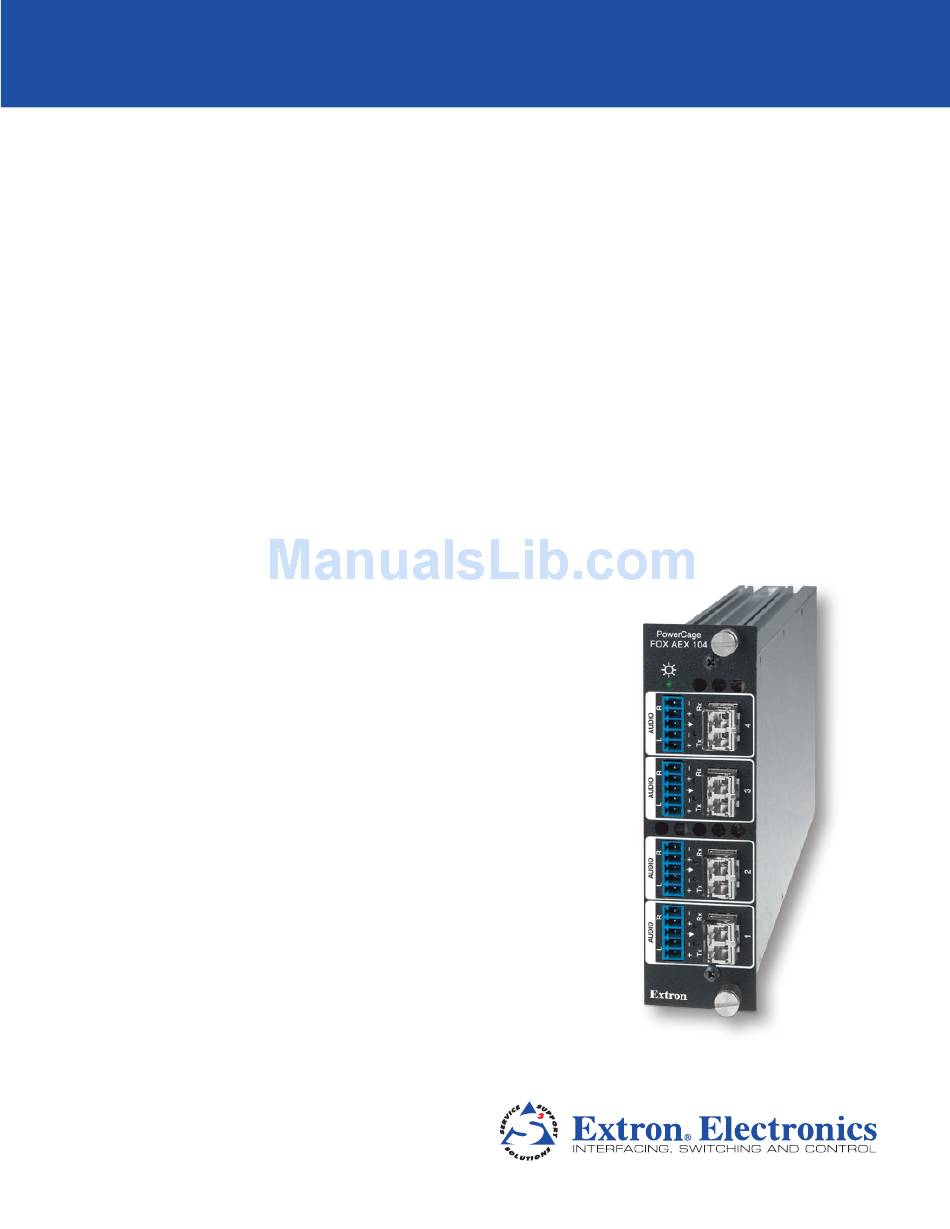

- Page 1 User Guide Fiber Optic Audio Extractor PowerCage FOX AEX 104 ™ Four Input Fiber Optic Audio Extractor 68-2064-01 Rev. A 04 12...
- Page 2 Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and mainte- equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third nance (servicing) instructions in the literature provided with the equipment.
- Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 . The wiring and function are the same, whichever way your product is labeled. Copyright © 2012 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners.
-
Page 5: Table Of Contents
Contents Introduction ............1 About This Guide ..........1 About the PowerCage FOX AEX 104 ....1 Features .............. 2 Application Diagrams .......... 3 Point-to-point Application ....... 3 Before a Fiber Matrix Application ....4 After a Fiber Matrix Application ...... 5 Installation and Operation ........ - Page 6 PowerCage FOX AEX 104 • Contents...
-
Page 7: Introduction
About the PowerCage FOX AEX 104 The PowerCage FOX AEX 104 is a four input fiber audio extraction product that extracts local audio in a fiber matrix application. It is a board to be installed in an Extron PowerCage enclosure. -
Page 8: Features
Input Data Rate Selection — A recessed toggle switch on the front panel allows for selectable input data rates. The PowerCage FOX AEX 104 can be set to 2G or 4G rates. Power — 120 V or 240 VAC, 50 or 60 Hz power source PowerCage Mounting —... -
Page 9: Application Diagrams
Transmission of HDMI video with HDCP content requires two fibers. Point-to-point Application In systems without a fiber matrix switcher, the PowerCage FOX AEX 104 can be incorporated between the fiber transceiver and the fiber receiver (see figure 1). Local 2-ch Audio Out... -
Page 10: Before A Fiber Matrix Application
Before a Fiber Matrix Application The PowerCage FOX AEX 104 can be placed before a fiber matrix switcher for independent processing of source audio signals by a DSP processor (see figure 2). ANAHEIM, CA PRIMARY POWER SUPPLY REDUNDANT POWER SUPPLY 100-240V 50/60Hz 1.2A MAX. -
Page 11: After A Fiber Matrix Application
After a Fiber Matrix Application The PowerCage FOX AEX 104 can also be placed after a FOX matrix switcher for routing to audio amplifiers or a DSP processor (see figure 3). Extron Extron PowerCage 100-240V 1.3A, 50-60Hz XPA 1002 FOX AEX 104... -
Page 12: Installation And Operation
Installation and Operation This section describes how to integrate the PowerCage FOX AEX 104 into a FOX matrix system and how to operate it. Topics in this section include: Mounting the Units • • Rear Panel Features System Operation •... -
Page 13: Wiring The Audio Connectors
Connect local 2-ch audio output to the Audio connector of the extraction point. After the PowerCage FOX AEX 104 and all connected devices are powered up, the system is fully operational. If any problems are encountered, ensure all traditional and fiber cables are routed and connected properly. -
Page 14: Changing The Input Data Rate
Changing the Input Data Rate The DIP switch on the main board switches the PowerCage FOX AEX 104 between 2G and 4G input data rates. If necessary, remove the PowerCage FOX AEX 104 board from the PowerCage enclosure. Use an Extron Tweeker to move DIP switch 2 up (On position) for 2G input data rates or down (Off position) for 4G input data rates. -
Page 15: Reference Information
FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. • The PowerCage FOX AEX 104 is not compatible with the FOX 3G HD-SDI extender or the FOX 3G DVC signal converter. Optical fiber interconnection between transmitter or fiber matrix and receiver Number/type ........ - Page 16 EMI/EMC ......... CE, C-tick, FCC Class A, ICES, VCCI MTBF ..........30,000 hours Warranty ........3 years parts and labor NOTES: • All nominal levels are at ±10%. • Specifications are subject to change without notice. 8.0-033012-D1 PowerCage FOX AEX 104 • Reference Information...
-
Page 17: Part Numbers
OM4 MM P/2K Plenum 2 km (6,562 foot) Spool 22-225-02 SM P/2K Plenum 2 km (6,562 foot) Spool 22-223-02 Fiber Optic Termination Kit 100-656-01 QLC MM/10 Multimode, qty. 10 101-018-01 QLC SM/10 Singlemode, qty. 10 101-017-01 PowerCage FOX AEX 104 • Reference Information... -
Page 18: Installing A Board In The Enclosure
Installing a Board in the Enclosure The PowerCage FOX AEX 104 is a double slot board for the PowerCage 1600 enclosure. NOTE: The boards are hot-swappable and can be installed or removed without disconnecting power to the PowerCage enclosure. Use ESD precautions when installing a board to avoid damaging the board. Keep the board in the anti-static bag until needed. -
Page 19: Extron Warranty
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
