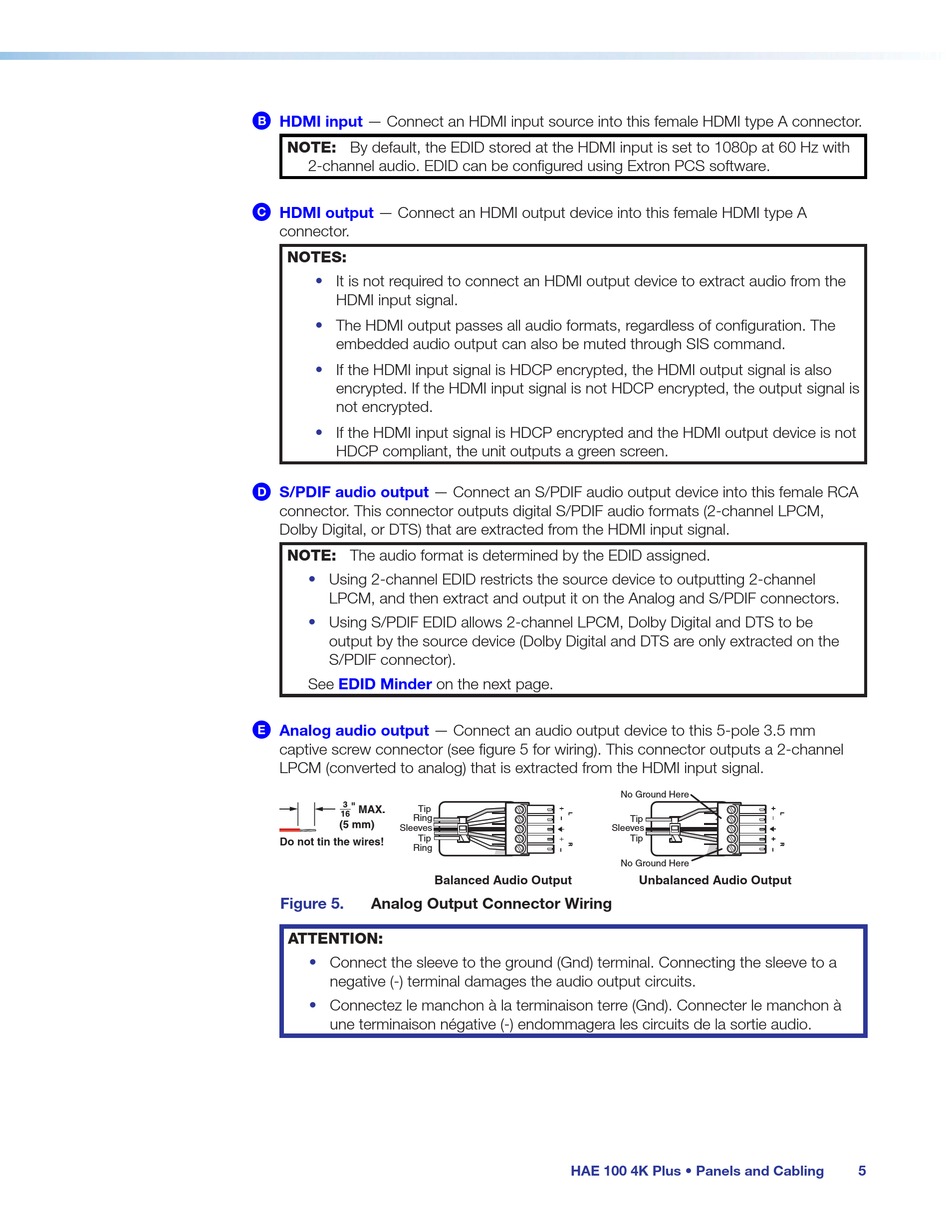

Extron electronics HAE 100 4K Plus User Manual page 10

B HDMI input — Connect an HDMI input source into this female HDMI type A connector.
NOTE: By default, the EDID stored at the HDMI input is set to 1080p at 60 Hz with
2-channel audio. EDID can be configured using Extron PCS software.
C HDMI output — Connect an HDMI output device into this female HDMI type A
connector.
NOTES:
It is not required to connect an HDMI output device to extract audio from the
•
HDMI input signal.
• The HDMI output passes all audio formats, regardless of configuration. The
embedded audio output can also be muted through SIS command.
• If the HDMI input signal is HDCP encrypted, the HDMI output signal is also
encrypted. If the HDMI input signal is not HDCP encrypted, the output signal is
not encrypted.
• If the HDMI input signal is HDCP encrypted and the HDMI output device is not
HDCP compliant, the unit outputs a green screen.
D S/PDIF audio output
connector. This connector outputs digital S/PDIF audio formats (2-channel LPCM,
Dolby Digital, or DTS) that are extracted from the HDMI input signal.
NOTE: The audio format is determined by the EDID assigned.
• Using 2-channel EDID restricts the source device to outputting 2-channel
LPCM, and then extract and output it on the Analog and S/PDIF connectors.
•
Using S/PDIF EDID allows 2-channel LPCM, Dolby Digital and DTS to be
output by the source device (Dolby Digital and DTS are only extracted on the
S/PDIF connector).
See EDID Minder
E Analog audio output
captive screw connector (see figure 5 for wiring). This connector outputs a 2-channel
LPCM (converted to analog) that is extracted from the HDMI input signal.
Tip
Ring
Sleeves
Tip
Do not tin the wires!
Ring
Figure 5. Analog Output Connector Wiring
ATTENTION:
• Connect the sleeve to the ground (Gnd) terminal. Connecting the sleeve to a
negative (-) terminal damages the audio output circuits.
• Connectez le manchon à la terminaison terre (Gnd). Connecter le manchon à
une terminaison négative (-) endommagera les circuits de la sortie audio.
— Connect an S/PDIF audio output device into this female RCA
on the next page.
— Connect an audio output device to this 5-pole 3.5 mm
Sleeves
Balanced Audio Output
HAE 100 4K Plus • Panels and Cabling
No Ground Here
Tip
Tip
No Ground Here
Unbalanced Audio Output
5
