3G-AE 100 • Setup Guide
The Extron 3G-AE 100 extracts embedded digital audio from a 3G-SDI, HD-SDI, or SDI
signal and converts it to analog stereo audio at the output ports. This guide provides basic
instructions for an experienced installer to set up and operate the 3G-AE 100.
WARNING:

Installation

ATTENTION:
Verify that the 3G-AE 100 is disconnected from the power source before proceeding.
3G-AE
100
3G/HD
SD-SDI
POWER
12V
0.8A MAX
1 2

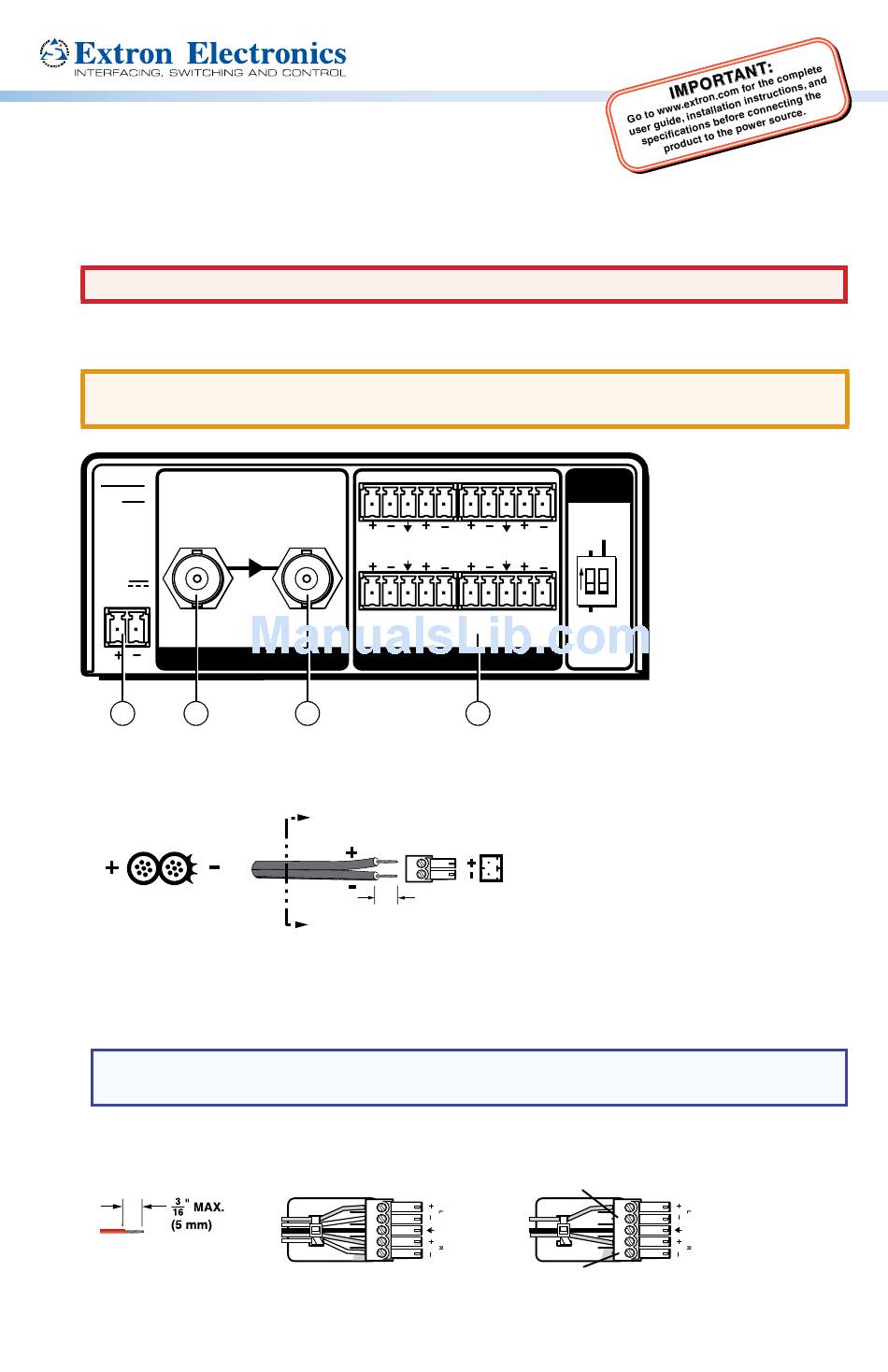

Figure 1. 3G-AE 100 Rear Panel
a
Wire the power supply as shown below and connect it to the power connector.
Ridges
Smooth
SECTION A–A
Power Supply Output Cord
b
Connect an input device to the 3G-SDI input connector.
c
If necessary, connect an output device to the Loop Through connector. This connector may
also be used for cascading to another 3G-AE 100.
NOTE:
It is not required to connect a device to the Loop Through connector in order to
extract audio from the input device.
d
Connect up to four audio output devices to the Analog Outputs, using a cable with a
balanced or unbalanced 3.5 mm, 5-pole captive screw connector. Wire as shown below.
Do not tin the wires!
Installation and service must be performed by authorized personnel only.
Turn the input and output devices off and unplug their power cords.
LOOP
THROUGH
CH 1
CH 5
INPUT ANALOG OUTPUTS
3
A
A
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Output
CH 2 CH 3 CH 4
CH 6 CH 7 CH 8
4
3/16"
(5 mm) Max.
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Audio Output
GROUP
SELECT
SPARE
1/2
ON
1 2
3/4
