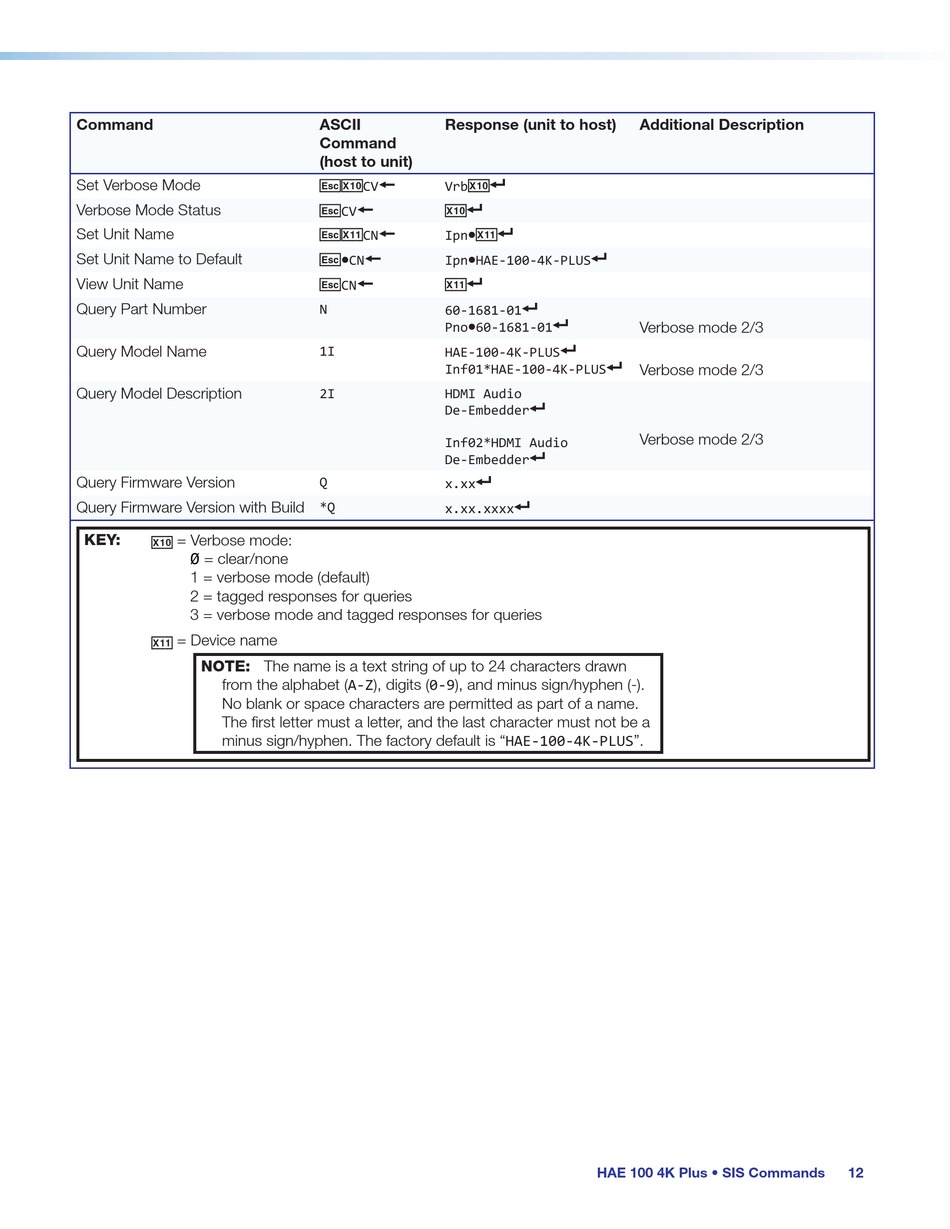

Extron electronics HAE 100 4K Plus User Manual page 17

Command
Set Verbose Mode
Verbose Mode Status
Set Unit Name
Set Unit Name to Default
View Unit Name
Query Part Number
Query Model Name
Query Model Description
Query Firmware Version
Query Firmware Version with Build
KEY: X1) = Verbose mode:
0 = clear/none
1 = verbose mode (default)
2 = tagged responses for queries
3 = verbose mode and tagged responses for queries
X1! = Device name
NOTE: The name is a text string of up to 24 characters drawn
from the alphabet (A-Z), digits (0-9), and minus sign/hyphen (-).
No blank or space characters are permitted as part of a name.
The first letter must a letter, and the last character must not be a
minus sign/hyphen. The factory default is "HAE-100-4K-PLUS".
ASCII Response (unit to host)
Command
(host to unit)
EX1) } X1)]
CV Vrb
E } X1)]
CV
EX1! } • X1!]
CN Ipn
E • }
CN Ipn HAE-100-4K-PLUS
•
E } X1!]
CN
N
60-1681-01
Pno 60-1681-01
•
1I
HAE-100-4K-PLUS
Inf01*HAE-100-4K-PLUS
2I HDMI Audio
De-Embedder
Inf02*HDMI Audio
De-Embedder
]
Q
x.xx
*Q
x.xx.xxxx
Additional Description
]
]
]
Verbose mode 2/3
]
]
Verbose mode 2/3
]
Verbose mode 2/3
]
]
