ATI Technologies Q45D O & M Manual

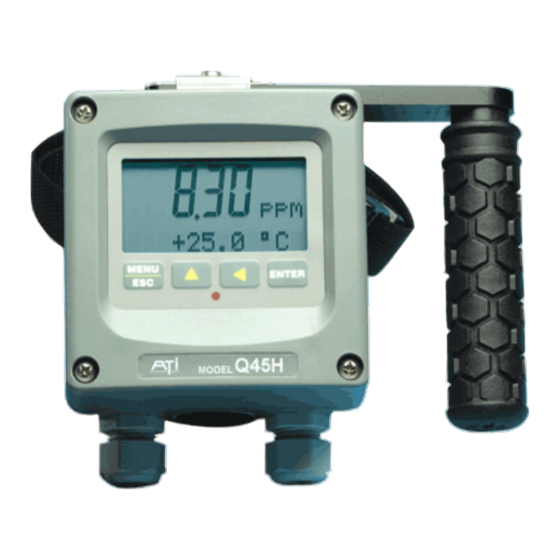

Portable optical d.o. measurement system
Hide thumbs Also See for Q45D:
Table of Contents

Advertisement

Quick Links

Download this manual
Portable Optical D.O.
Measurement System
Home Office
Analytical Technology, Inc.
6 Iron Bridge Drive
Collegeville, PA 19426
Phone: 800-959-0299
610-917-0991
Fax:
610-917-0992
Email: sales@analyticaltechnology.com
O & M Manual
Model Q45D/60
European Office
ATI (UK) Limited
Unit 1 & 2 Gatehead Business Park
Delph New Road, Delph
Saddleworth OL3 5DE
Phone: +44 (0)1457-873-318
Fax:
+ 44 (0)1457-874-468
Email: sales@atiuk.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q45D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATI Technologies Q45D

Summary of Contents for ATI Technologies Q45D

  • Page 1 O & M Manual Model Q45D/60 Portable Optical D.O. Measurement System Home Office European Office Analytical Technology, Inc. ATI (UK) Limited 6 Iron Bridge Drive Unit 1 & 2 Gatehead Business Park Collegeville, PA 19426 Delph New Road, Delph Phone: 800-959-0299...

  • Page 2: Table Of Contents

    PART 1 - INTRODUCTION ........4 General............4 General............. 42 Features ............5 External Sources of Problems ....42 Q45D/60 System Specifications ....6 Analyzer Tests ......... 43 Q45D Performance Specifications ..... 8 8.31 Display Messages ........43 Sensor Tests ..........46 PART 2 –...
  • Page 3 RROR OOKMARK NOT DEFINED 7 - U .................... 18 IGURE NTERFACE 8 - S ..................... 23 IGURE OFTWARE 9 - Q45D D ................44 IGURE ISPLAY ESSAGES 10 - P 100 RTD T ..................46 IGURE ABLE 11 - B ..........

  • Page 4: Part 1 - Introduction

    0-40 ppm, and the sensing system will operate on water streams with temperatures ranging from 0 to 50C. While the Q45D may be used with either optical oxygen or galvanic membrane sensors, this manual is specific for systems utilizing ATI’s optical D.O. sensor.

  • Page 5: Features

    Q45D-ODO Optical D.O. System Part 1– Introduction Features • Standard Q45D/60 electronic transmitters are designed to be a fully isolated, battery operated instrument. The monitor can be quickly converted to either a loop power transmitter or line powered analyzer. • High accuracy, high sensitivity system, measures from 0.1 ppm to 40.0 ppm through 2 internal automatic ranges.

  • Page 6: Q45D/60 System Specifications

    Q45D-ODO Optical D.O. System Part 1– Introduction Q45D/60 System Specifications (Common to all variations) Displayed Parameters Main input, 0.1 ppm to 40.0 ppm %Saturation, 0 to 999.9% Sensor temperature, -10.0 to 50.0°C (23 to 122ºF) Sensor signal, -40 to +2000 mVDC Loop current, 4.00 to 20.00 mA...
  • Page 7 Q45D-ODO Optical D.O. System Part 1– Introduction Output Isolation 600 V galvanic isolation Filter Adjustable 0-9.9 minutes additional damping to 90% step input Temperature Input Pt1000 RTD with automatic compensation Sensor Optical oxygen sensor utilizing fluorescence quenching technology. Optical element life 3-5 years.

  • Page 8: Q45D Performance Specifications

    Q45D-ODO Optical D.O. System Part 1– Introduction Q45D Performance Specifications (Common to all variations) Accuracy 0.2% of selected range or better Repeatability 0.05% of selected range or better Sensitivity 0.05% of selected range Non-linearity 0.1% of selected range Warm-up Time...

  • Page 9: Part 2 - Instrument Handle/Mounting

    Part 2 – Instrument Handle/Mounting General The Q45D/60 Portable Dissolved Oxygen System comes complete with a specially designed handle that allows the system to be comfortably carried, or quickly strapped to a railing. Although the system is designed to be a portable system, it can be permanently mounted for longer term field use.

  • Page 10: Part 3 -Electrical Connection

    Once inside the enclosure, the individual colored sensor cable leads can be connected directly to the SENSOR connection terminals by matching the wire colors. On Q45D older systems, there may exist a YELLOW wire label on the sensor terminal strip rather than the wire color ORANGE or BROWN, which are used now.

  • Page 11: Sensor Wiring

    Q45D-ODO Optical D.O. System Part 3– Electrical Connection Sensor Wiring The sensor cable can be quickly connected to the Q45 terminal strip by matching the wire colors on the cable to the color designations on the label in the monitor.

  • Page 12: Figure 3 - Optical Sensor Wiring

    Q45D-ODO Optical D.O. System Part 3– Electrical Connection             Figure 3 - Optical Sensor Wiring O&M Manual (Rev-D (4/12)

  • Page 13: Part 4 - Optical D.o. Sensor

    Part 4 – Optical D.O. Sensor General Optical D.O. sensors are supplied complete and ready to use. All that’s needed is to make the proper sensor connections as shown in the previous section. A rubber boot protects the end of the sensor in transit. Leave the protective boot in place until the sensor is to be placed into operation.

  • Page 14: Optical Sensing

    D.O. concentration on the sensor side of the film than on the bulk solution side. The automatic air cleaning system integrated into the Q45D system will eliminate coating problems by cleaning the sensor on a regular programmed schedule.

  • Page 15: Part 5 - Configuration

    Part 5 – Configuration General To turn the system ON, simply press and hold the MENU key for approximately 5 seconds and the display will come on. To turn the unit off, press and hold the ENTER key until the display shuts off (about 3 seconds). Note that the unit must be in the MEASURE menu in order for the 3-second key press to operate.
  • Page 16 Part 5 – Configuration Q45D-ODO Optical D.O. System POWER CABLE DC BATTERY BOARD (REAR OF ENCLOSURE) Figure 6 - Battery Board Connections The first (S1) is an On/Off slide switch. This switch must be in the ON position for operation. Turn it to OFF if you do not intend to operate the monitor in the next week or two.

  • Page 17: Battery Power Circuit Board

    Part 5 – Configuration Q45D-ODO Optical D.O. System MODE This switch is used to set the voltage at which monitor will shut off when powered by internal batteries. Alkaline batteries can normally be run down to about 0.8 volts. When using alkaline batteries, the mode switch is in the OFF position (factory default).

  • Page 18: Software Interface

    Part 5 – Configuration Q45D-ODO Optical D.O. System Software Interface The user interface for the Q45 Series instrument consists of a custom display and a membrane keypad. All functions are accessed from this user interface (no internal jumpers, pots, etc.).

  • Page 19: 5.51 Keys

    Part 5 – Configuration Q45D-ODO Optical D.O. System 5.51 Keys All user configurations occur through the use of four membrane keys. These keys are used as follows: MENU/ESC To scroll through the menu section headers or to escape from anywhere in software. The escape sequence allows the user to back out of any changes in a logical manner.
  • Page 20 Part 5 – Configuration Q45D-ODO Optical D.O. System Lower Line During normal operation, the lower line of the display indicates user-selected secondary measurements that the system is making. This also includes calibration data from the last calibration sequence and the transmitter model number and software version.

  • Page 21: Software

    Icon B battery power is low. Software The software of the Q45D is organized in an easy to follow menu-based system. All user settings are organized under five menu sections: Measure, Calibration [CAL], Configuration [CONFIG], Control [CONTROL] and Diagnostics [DIAG].
  • Page 22 Part 5 – Configuration Q45D-ODO Optical D.O. System Any data that may be changed will be flashing. This flashing indicates user entry mode and is initiated by pressing the ENTER key. The UP arrow key will increase a flashing digit from 0 to 9. The LEFT arrow key moves the flashing digit from right to left.

  • Page 23: Figure 8 - Software Map

    Part 5 – Configuration Q45D-ODO Optical D.O. System Start MENU MEASURE CONFIG CONTROL DIAG SECTIONS (displ ay only) Temperature Cal D.O. Entry Lock Set Hold Set 0V #1 Sensor mV Cal Temp Set Delay Fault List Set 2.5V #1 Contrast...
  • Page 24 Part 5 – Configuration Q45D-ODO Optical D.O. System To select a list item for modification, first select the proper menu with the MENU key. Scroll to the list item with the UP arrow key and then press the ENTER key.

  • Page 25: Measure Menu [Measure]

    Part 5 – Configuration Q45D-ODO Optical D.O. System 5.62 Measure Menu [MEASURE] The default menu for the system is the display-only menu MEASURE. This menu is a display-only measurement menu, and has no changeable list items. When left alone, the instrument will automatically return to this menu after approximately 30 minutes.

  • Page 26: Calibration Menu [Cal]

    Part 5 – Configuration Q45D-ODO Optical D.O. System % Saturation The most common display of D.O. in water is either PPM or mg/L units. However, the same PPM value at different water temperatures can represent quite different concentrations of oxygen in terms of the percent of saturation. This display simply indicates the % of oxygen saturation represented by the current PPM or mg/L display.

  • Page 27: Configuration Menu [Config]

    Press ENTER to initiate user entry mode and the first digit will flash. Use arrow keys to modify value. See 49 for the Q45D lock/unlock code. Press ENTER to toggle lock setting once code is correct. Incorrect codes do not change state of lock condition.
  • Page 28 Press ENTER to store the new value. Zero Filter The Q45D allows the user to program a value near zero below which the monitor will read zero. Because sensors rarely have a perfect zero stability, this zero filter eliminates occasional displays of numbers that are not meaningful.
  • Page 29 Part 5 – Configuration Q45D-ODO Optical D.O. System Proc Cond The Q45D instrument also utilizes the process conductivity value as an input for the calculation of a theoretical ppm value during a saturation calibration. This value is only required to be entered during initial installation - it does not need to be modified at every calibration.

  • Page 30: Control Menu [Control]

    Part 5 – Configuration Q45D-ODO Optical D.O. System 5.65 Control Menu [CONTROL] The Control Menu contains all of the output control user settings: Set 0V Set 2.5V #1 Set 0V Set 2.5V #2 These functions set the output range for each of the two instrument outputs.

  • Page 31: Diagnostics Menu [Diag]

    Part 5 – Configuration Q45D-ODO Optical D.O. System 5.66 Diagnostics Menu [DIAG] The diagnostics menu contains all of the user settings that are specific to the system diagnostic functions, as well as functions that aid in troubleshooting application problems. Set Hold The Set Hold function locks the current loop output values on the present process value.
  • Page 32 Part 5 – Configuration Q45D-ODO Optical D.O. System Faults are not stored; therefore, they are immediately removed if power is cycled. If the problem causing the faults still exists, however, faults will be displayed again after power is re-applied and a period of time elapses during which the diagnostic system re-detects them.
  • Page 33 Part 5 – Configuration Q45D-ODO Optical D.O. System Auto-Off Enables the automatic shut-off feature for the instrument. If ON, the instrument will automatically shut-off in 30 minutes after no keys are pressed to save power. If OFF, the meter will stay powered continuously until either the internal power...

  • Page 34: Part 6 - Calibration

    During calibration, the system will display the current ppm reading and the user can manually enter a reference value from a lab sample or comparative reference instrument. In the Q45D system, the 1-Point calibration adjusts the slope of the sensor output response.
  • Page 35 Part 6 – Calibration Q45D-ODO Optical D.O. System If the sensor has been removed and placed into a bucket of water, allow sensor to temperature equilibrate with the solution as much as possible. With the sensor coming from an application which differs greatly in temperature, the user may have to wait as much as 20 minutes.

  • Page 36: Dissolved Oxygen Air Span Cal (% Sat)

    Part 6 – Calibration Q45D-ODO Optical D.O. System 6.12 Dissolved Oxygen Air Span Cal (% sat) This is the recommended method for air temperatures greater than about 10C; however, it requires that the sensor be removed from the process and cleaned.

  • Page 37: 6.13 Dissolved Oxygen Zero Cal

    Part 6 – Calibration Q45D-ODO Optical D.O. System The system now begins acquiring data for the calibration value. As data is gathered, the units for ppm and temperature may flash. Flashing units indicate that this parameter is unstable. 8. The calibration data point acquisition will stop only when the data remains stable for a pre-determined amount of time (approximately 15- 20 seconds.) This can be overridden by pressing ENTER.
  • Page 38 Part 6 – Calibration Q45D-ODO Optical D.O. System 2. Place about an inch of zero solution in a small beaker or other convenient container and immerse the tip of the sensor. Allow the sensor to sit undisturbed for at least 15 minutes. Suspend sensor, DO NOT LET SENSOR SIT ON TIP.

  • Page 39: Temperature Calibration

    Part 6 – Calibration Q45D-ODO Optical D.O. System Temperature Calibration The temperature calibration sequence is essentially a 1-point offset calibration that allows adjustments of approximately ±5 °C. If sensor cable lengths beyond the standard cable length are being used the resistance of this added cable will affect the temperature accuracy and will have to be off-set to compensate for this added resistance.
  • Page 40 Part 6 – Calibration Q45D-ODO Optical D.O. System 5. The message Adjust value - press ENTER will be displayed, and the right-most digit will begin to flash, indicating that the value can be modified. Using the UP and LEFT arrow keys, modify the value to the known ref solution temperature.

  • Page 41: Part 7 - System Maintenance

    Part 7 – System Maintenance General The Q45D/60 Dissolved Oxygen System will generally provide unattended operation over long periods of time. With proper care, the system should continue to provide measurements indefinitely. For reliable operation, maintenance on the system must be done on a regular schedule. Keep in mind that preventive maintenance on a regular schedule is much less troublesome than emergency maintenance that always seems to come at the wrong time.

  • Page 42: Part 8 - Troubleshooting

    Part 8 – Troubleshooting General The information included in this section is intended to be used in an attempt to quickly resolve an operational problem with the system. During any troubleshooting process, it will save the most time if the operator can first determine if the problem is related to the analyzer, sensor, or some external source.

  • Page 43: Analyzer Tests

    Part 8 – Troubleshooting Q45D-ODO Optical D.O. System as the powered sensor depletes oxygen in the static sample directly at the sensor face. 5. Carefully examine any junction box connections for loose wiring or bad wire stripping. If possible, connect the sensor directly to the analyzer for testing.
  • Page 44 The temperature reading is < -10 ºC TC Error TC may be open or shorted. Check sensor wiring and perform RTD test as described in sensor manual. Check j-box connections. Figure 9 - Q45D Display Messages O&M Manual (Rev-D (4/12)
  • Page 45 Chcksum Fail Internal software storage error. System failure, consult factory. Display Fail Internal display driver fail. System failure, consult factory. Range Cal Fail Failure of factory temperature calibration. Consult factory. Figure 9 – Q45D Display Messages (Cont’d) O&M Manual (Rev-D (4/12)

  • Page 46: Figure 10 - Pt100 Rtd Table

    Part 8 – Troubleshooting Q45D-ODO Optical D.O. System Sensor Tests 1. Check the condition of the optical sensing element. Mechanical damage to the black covering over the optical element is an indication that sensor problems are likely 2. Prior to disconnecting the sensor, measure the sensor output voltage at the analyzer terminal strip with a DVM while the sensor is hanging in air.

  • Page 47: Figure 11 - Barometric Pressure Conversion Table

    Part 8 – Troubleshooting Q45D-ODO Optical D.O. System If you suspect that water has gotten into a cable connection or into the plug connection of a submersible sensor, disconnect the cable and allow the parts of the sensor to sit in a warm place for 24 hours.

  • Page 48: Figure 12 - Oxygen Solubility Table

    Part 8 – Troubleshooting Q45D-ODO Optical D.O. System Oxygen Solubility vs. Temperature Temperature Temperature °F °C °F °C 14.6 23.3 14.1 24.4 13.7 25.6 13.3 26.7 12.9 27.8 12.6 28.9 12.2 30.0 11.9 31.1 11.6 32.2 10.0 11.3 33.3 11.1 11.0...

  • Page 49: Spare Parts

    Spare Parts Part No. Description 07-0012 Q45D D.O. monitor electronics assembly, 3VDC Submersible O.D.O. Sensor with 30’ cable 63-0100 Lock/Unlock Code: 1454 O&M Manual Rev-D (4/12)
  • Page 50 PRODUCT WARRANTY Analytical Technology, Inc. (Manufacturer) warrants to the Customer that if any part(s) of the Manufacturer's equipment proves to be defective in materials or workmanship within the earlier of 18 months of the date of shipment or 12 months of the date of start- up, such defective parts will be repaired or replaced free of charge.
