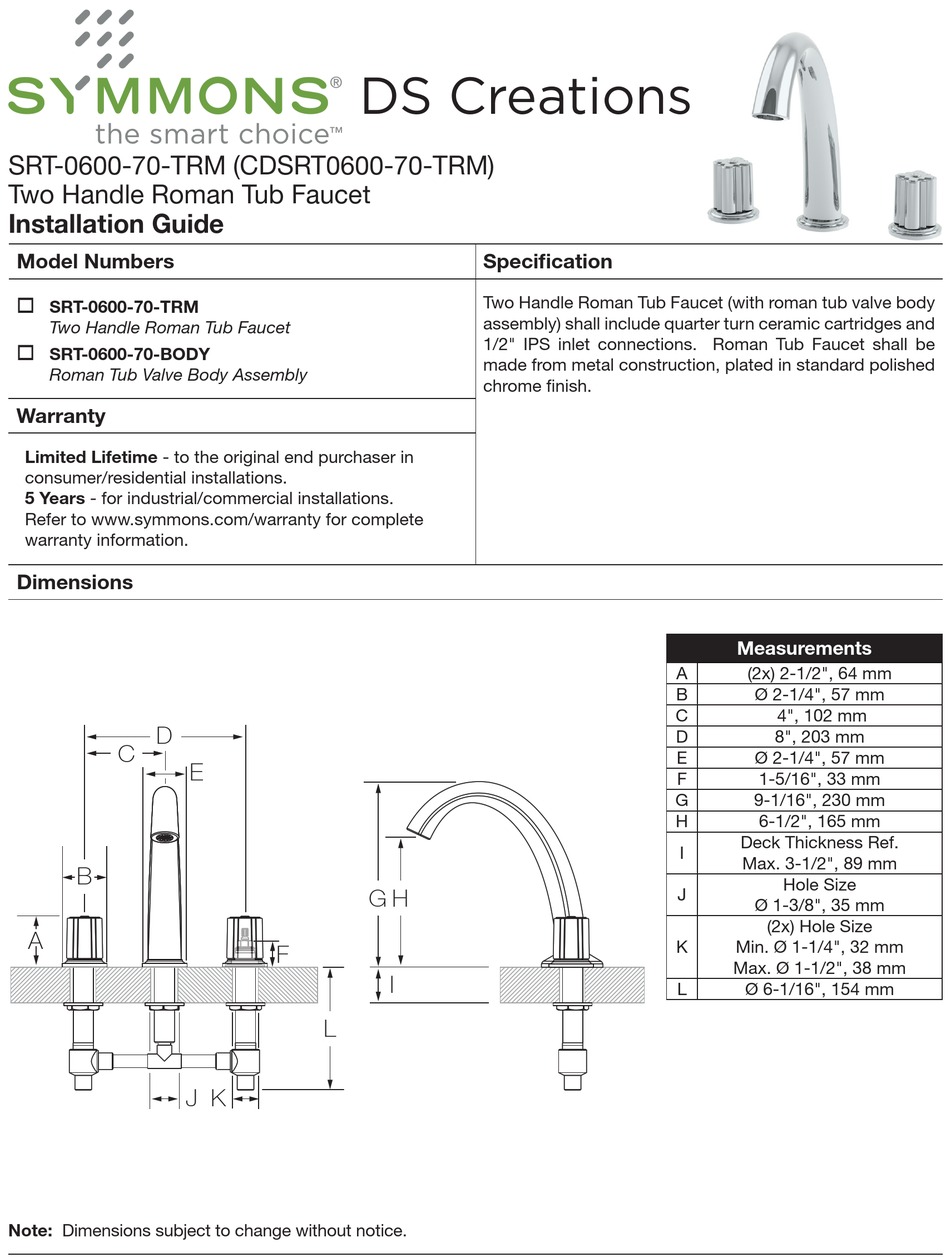

SRT-0600-70-TRM (CDSRT0600-70-TRM)
Two Handle Roman Tub Faucet
Installation Guide
Model Numbers
SRT-0600-70-TRM
Two Handle Roman Tub Faucet
SRT-0600-70-BODY
Roman Tub Valve Body Assembly
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dimensions
D D
C C
B B
A A
J J K K
Note: Dimensions subject to change without notice.
DS Creations
E E
G G
F F
L L
Specification
Two Handle Roman Tub Faucet (with roman tub valve body
assembly) shall include quarter turn ceramic cartridges and
1/2" IPS inlet connections. Roman Tub Faucet shall be
made from metal construction, plated in standard polished
chrome finish.
H H
I I
Measurements
A
(2x) 2-1/2", 64 mm
B
Ø 2-1/4", 57 mm
C
4", 102 mm
D
8", 203 mm
E
Ø 2-1/4", 57 mm
F
1-5/16", 33 mm
G
9-1/16", 230 mm
H
6-1/2", 165 mm
Deck Thickness Ref.
I
Max. 3-1/2", 89 mm
Hole Size
J
Ø 1-3/8", 35 mm
(2x) Hole Size
K
Min. Ø 1-1/4", 32 mm
Max. Ø 1-1/2", 38 mm
L
Ø 6-1/16", 154 mm
