Foam Blocks
15 foot blue straps
Metal bumper hooks
20 foot rope Bow/Stern tie-downs
• You are responsible for attaching the racks and
accessories to your vehicle securely and periodically
inspecting the product for wear and damage. Improper
attachment could result in an automobile accident and
serious injury.
• SportRack is not responsible for damage to your gear
or vehicle. For heavier loads consider purchasing a full
rack system.
• After driving 5 miles, stop to ensure straps/ropes are
still tight. Limit transport distance to 250 miles.
• Do not place blocks on sunroofs or spoilers.
1
2
506-7019
STANDARD 6" CANOE CARRIER - SR5528

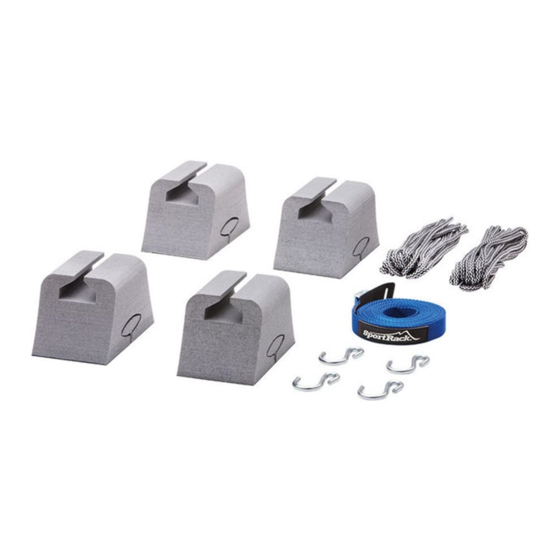

PARTS INCLUDED
description
WARNINGS / LIMITATIONS
• The blocks may be placed on a bare roof or wrapped around a factory rack
crossbar. If foam is to be wrapped around a crossbar, the foam insert needs
to be cut out and removed with sharp blade or scissors.
• Clean the bottom anti-skid surface of the foam blocks and top of the vehicle
prior to loading canoe.
part number
qty.
ABR528R
2
ABR702
1
853-7711
4
853-7712
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SportRack SR5528
Summary of Contents for SportRack SR5528
- Page 1 Improper attachment could result in an automobile accident and serious injury. • SportRack is not responsible for damage to your gear or vehicle. For heavier loads consider purchasing a full rack system. • After driving 5 miles, stop to ensure straps/ropes are still tight.
- Page 2 • Attach 4 foam blocks to top edge of canoe gunwales (2 per side) as shown with anti-skid surface facing up. Blocks should be spaced on canoe so that when canoe is placed on vehicle roof, the blocks are close to the front wind- shield and rear window while still preventing canoe from touching vehicle.
