SportRack SR3141 Manual

3 bike suv and van mount bike rack

Download this manual

Upper support leg

Adjustable hub

Cam buckle

• Ensure that the hooks do not come in contact with the

roof rail. (Risk of permanent deformation damage)

• Number of bicycles carried should not exceed

designated carrying capacity for your specific model.

• 3 Bike maximum carrying capacity = 132lbs/60Kg.

• Check tightness of all bolts and knobs periodically.

• Check straps for wear and replace if worn.

• Not intended for off-road use.

• Not intended for tandems or recumbents.

• Do not install on a trailer or other towed vehicle.

• Failure to use blue safety strap may result in loss

of bicycles.

• Do not open your trunk/rear hatch with the rack

installed; it may cause damage to your vehicle.

501-5961

3 BIKE SUV AND VAN MOUNT BIKE RACK - SR3141

Rubber bumper

Lower support leg

WARNINGS / LIMITATIONS

Knob

Cam lever

Bike support arms

80" Strap

Need help?

Do you have a question about the SR3141 and is the answer not in the manual?

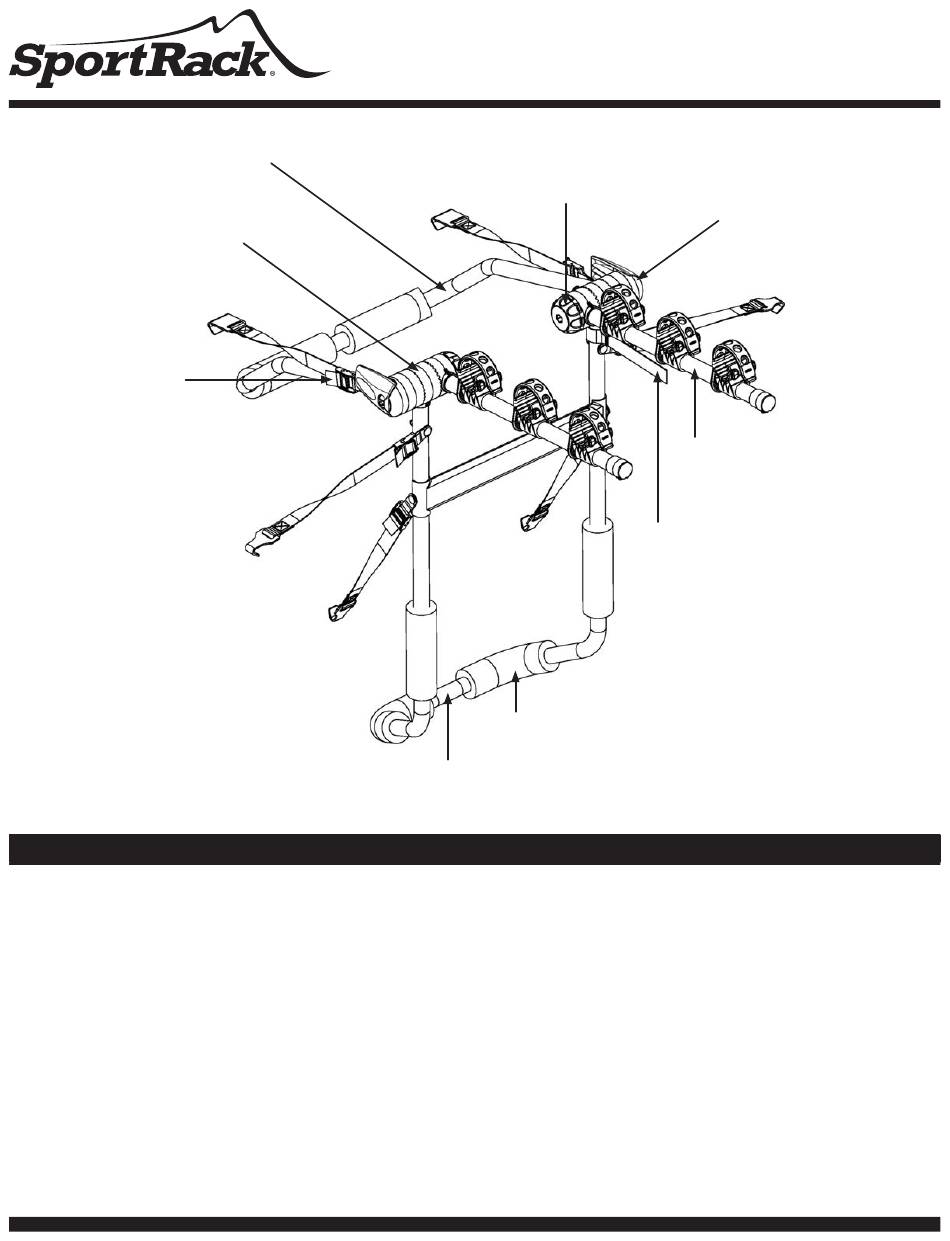

Page 1 3 BIKE SUV AND VAN MOUNT BIKE RACK - SR3141 Upper support leg Knob Cam lever Adjustable hub Cam buckle Bike support arms 80" Strap Rubber bumper Lower support leg WARNINGS / LIMITATIONS • Ensure that the hooks do not come in contact with the roof rail.
Page 2 IT IS YOUR RESPONSIBILITY TO INSURE THE SAFE AND PROPER USE OF THIS PRODUCT Improper attachment or misuse of this product may be HAZARDOUS and may result in damage to your SR3141, bicycles, vehicle, or vehicles driving behind you as a result of colliding with or trying to avoid the fallen bicycles and SR3141.
Page 3 • Loosen the two adjustable hub assemblies by untightening the two knobs. • Move the upper support leg until the SR3141 is set approximately to the same angle as in Step 2 that closely resembles your vehicle. Hold the SR3141 in place to check for correct adjustment. Only the upper support leg may rest on glass.
Page 4 ATTACH UPPER HOOKS • Once you have the SR3141 assembled to it’s proper setting, place it on the vehicle. Now attach the two upper hooks into the slot at the leading edge of the trunk or hatch lid. Adjust the straps lengths so the SR3141 stays in place on the car in the desired position.
Page 5 • For maximum security, we recommend that a arms in the bicycle cradles. Make sure to frame and the SR3141 arms with the 80" strap simple knot be tied at the end of the buckle. cover the pedal closest to the vehicle to help (See illustration).
