501-5976
COMPLETE
ROOF RACK

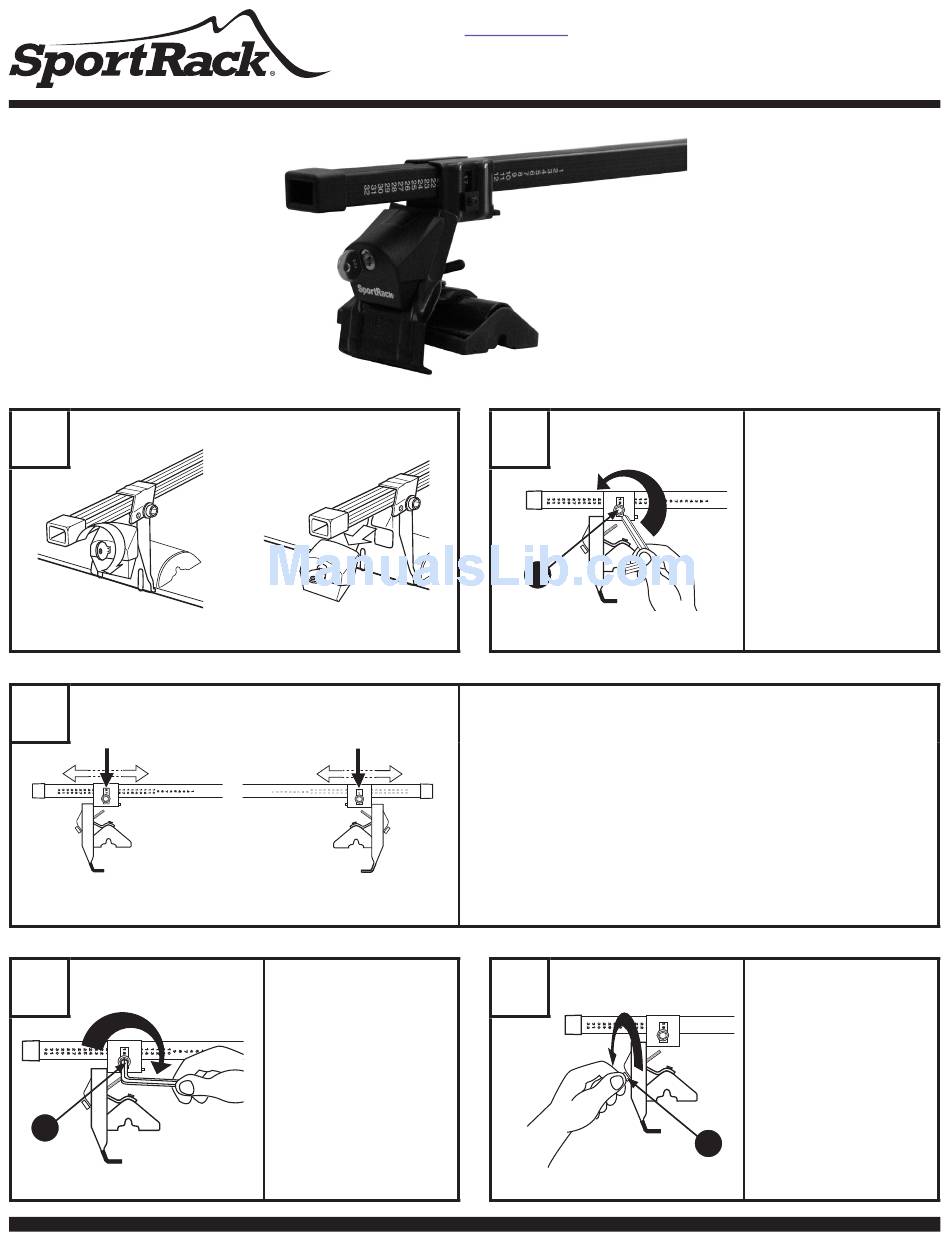

• Tighten screw X to 6Nm /
53 in-lbs.
SYSTEM - SR1010
2
X
• Using the included fit chart, adjust foot positions to the numbers for your vehicle.
Use "Front" dimensions for front bar and "Rear" for rear bar.
5
• Unscrew X with the tool
included.
• Unscrew Y.
Y
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SportRack SR1010
Summary of Contents for SportRack SR1010
- Page 1 COMPLETE ROOF RACK SYSTEM - SR1010 • Unscrew X with the tool included. • Using the included fit chart, adjust foot positions to the numbers for your vehicle. Use “Front” dimensions for front bar and “Rear” for rear bar. • Tighten screw X to 6Nm / 53 in-lbs.
- Page 2 • Position the rack on your vehicle according to distance A and B indicated for your vehicle in the included fit chart. • Locate clamp plate and pad as shown. Tighten • Check all fittings are bolts Y alternately. secure and correctly positioned.
- Page 3 2013 COMPLETE ROOF RACK SYSTEM - SR1010 - FIT GUIDE Lbs. / Kg Front Rear Weight Limit Fit Tips Vehicle Make and Model Year Front Rear inch inch ACURA EL 4DR 01-06 24 3/4 EL 4DR 97-00 8 1/4 27 1/2...
- Page 4 2013 COMPLETE ROOF RACK SYSTEM - SR1010 - FIT GUIDE Lbs. / Kg Front Rear Weight Limit Fit Tips Vehicle Make and Model Year Front Rear inch inch SUBARU Impreza 4DR 12-13 Impreza 4DR 08-11 Impreza 5DR 12-13 Impreza 5DR...
