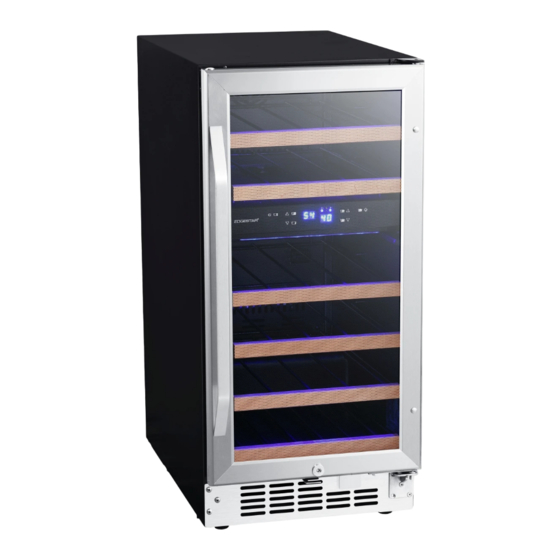

EdgeStar CWR263DZ Owner's Manual

Built-in wine cooler
Hide thumbs Also See for CWR263DZ:
Table of Contents

Advertisement

Quick Links

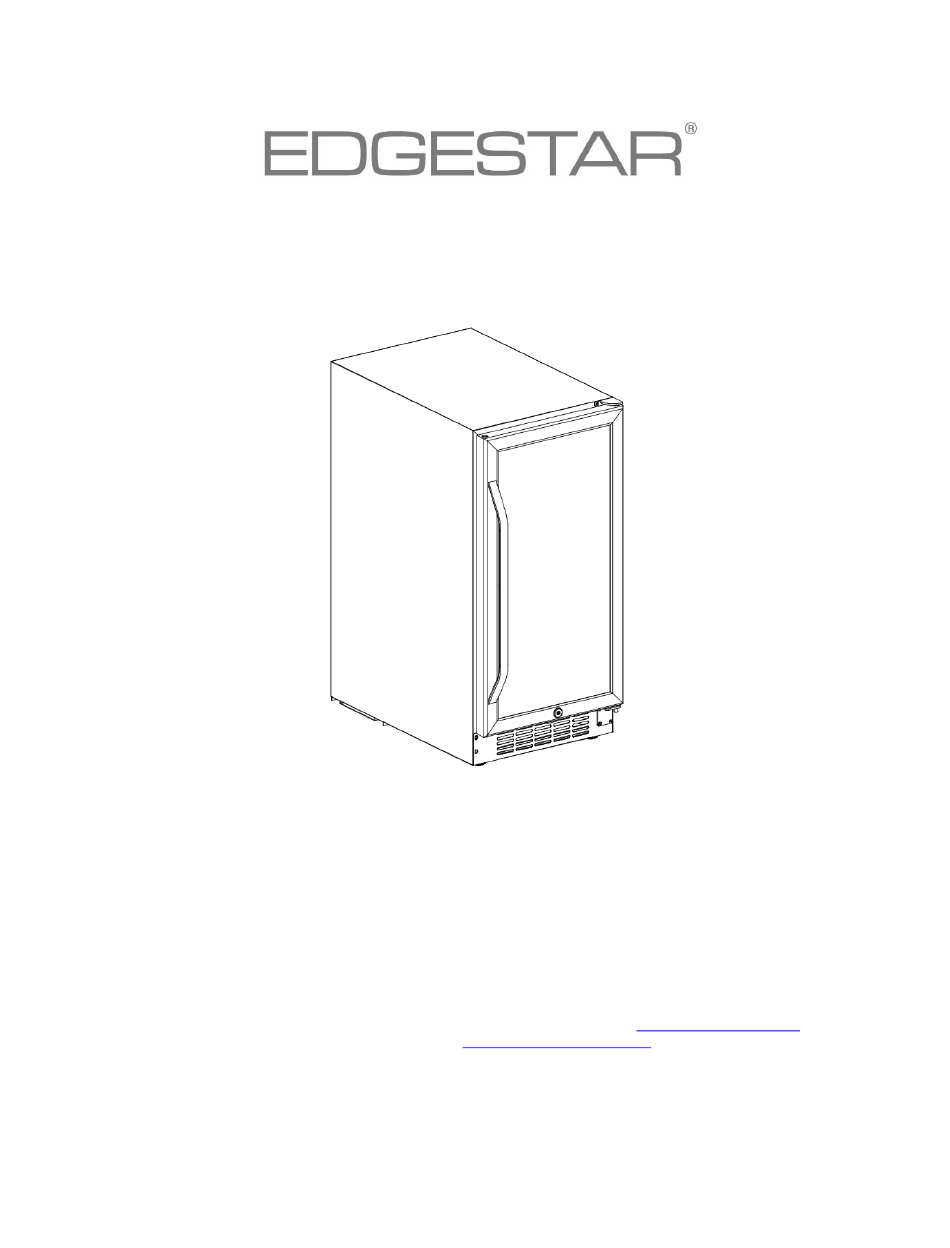

Built-In Wine Cooler
CWR263DZ
Owner's Manual
For more information on other great EdgeStar products on the web, go to
http://www.edgestar.com
To use the EdgeStar self-diagnostic tool, go to
https://support.edgestar.com
V2.0-08062018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWR263DZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EdgeStar CWR263DZ

Summary of Contents for EdgeStar CWR263DZ

  • Page 1 Built-In Wine Cooler CWR263DZ Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.0-08062018...
  • Page 2 Important Safety Information Improper handling can cause serious damage to the EdgeStar Wine Cooler and / or injury to the user. This Wine Cooler is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the ratings label located on the rear panel of the unit for electrical and other technical data related to this unit.
  • Page 3 General Safety  To prevent back and other types of injuries, use at least two people to move and install the Wine Cooler.  This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.

  • Page 4: Table Of Contents

    Temperature Alarm ..............................16 Door Ajar Alarm ................................ 16 ................................16 EFROSTING ......................17 REPARING THE OOLER FOR TORAGE CLEANING AND MAINTENANCE .......................... 17 ..............................17 XTERIOR LEANING ..............................17 NTERIOR LEANING TROUBLESHOOTING ............................. 18 SPECIFICATIONS ..............................20 EDGESTAR LIMITED WARRANTY ........................21...

  • Page 5: First Time Operating Instructions

    The instruction manual should be read before use. Introduction Thank you for purchasing this EdgeStar Wine Cooler. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship.

  • Page 6: Parts Identification

    Parts Identification Front View Back View...

  • Page 7: Carbon Filter

    Carbon Filter A built-in carbon filter protects your beverages by acting as a natural barrier against harmful odors. Internal Fan This is an air-cooled unit equipped with an internal fan that maintains a consistent internal temperature. Note: The Carbon filter should be replaced every 3 - 6 months depending on the unit’s exposure level to odor.

  • Page 8: Installing The Wine Cooler

    Installing the Wine Cooler The Wine Cooler should be installed in accordance with local electrical code requirements. The Wine Cooler should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. Before you plug the Wine Cooler into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle.

  • Page 9: Installation Clearance Requirements

    Installation Clearance Requirements Important Notes  Choose a location that has ambient temperatures above 50° F and below 95° F. Operation outside these temperatures may result in lowered efficiency or cause other adverse effects.  This unit MUST be installed in an area protected from the elements, e.g. wind, rain, water spray or drips.
  • Page 10  The Wine Cooler should be installed on a firm and level surface that will be able to support the entire weight of a fully loaded unit. It is important for the Wine Cooler to be level in order to work properly. If needed, you can adjust the height of the Wine Cooler by rotating the feet.

  • Page 11: Electrical Requirements

    Electrical Requirements ELECTRIC SHOCK HAZARD!  Plug into a grounded 3-prong outlet.  Never remove the grounding prong from the plug.  Never use an adapter to bypass the grounding prong.  DO NOT use an extension cord.  Failure to follow these instructions can result in fire, electrical shock, or death. Before you move your Wine Cooler into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National...

  • Page 12: Installing The Door Handle

    Installing the Door Handle To install the door handle: Open the door and carefully pull the door gasket around the area where the handle is to be installed. Carefully remove the two pre-installed decorative plugs from the front of the door. Insert each Phillips head screw through the gasket side of the door until the screw passes through the door.

  • Page 13: Reversing The Door Swing

    Reversing the Door Swing Follow the instructions below to reverse the door swing. Important: Before you begin, unplug the Cooler. To Reverse the Door from Right Swing to Left Swing Open the door and use a Philips Screwdriver to remove the bottom screws from the lower hinge.

  • Page 14: Removing And Installing Decorative Plugs

    Install the lower hinge and bushing on the bottom left support bracket. Carefully insert the door into the upper right corner hinge, then slide the door on top of the lower hinge and secure the door by installing the lower screws. Removing and Installing Decorative Plugs Follow the instructions below to remove the decorative plugs from the door.

  • Page 15: Operation

    Carefully turn the screwdriver clockwise to remove the two pre-installed decorative plugs from the front of the door. Reinsert the decorative plugs into the right side of the door using this same procedure. Remove the decorative plastic cap from the top left corner of the door and insert it into the top right corner.

  • Page 16: Using The Temperature Control Panel

    Using the Temperature Control Panel The dual zone Wine Cooler has a temperature range from 54°F to 65°F for the upper zone, and 40°F to 54°F for the lower zone.  Up Button : Press the button on the control panel to increase the temperature by 1 degree increments.

  • Page 17: Normal Sounds

    32°F (0°C), “LO” is shown on the temperature display panel and the temperature alarm will sound continuously after one hour. If one of these situations occurs please reference the troubleshooting section found in this manual or contact EdgeStar for support. Door Ajar Alarm This Wine Cooler includes a door ajar alarm, which will sound if one of the doors is open for more than five (5) minutes.

  • Page 18: Preparing The Wine Cooler For Storage

    Preparing the Wine Cooler for Storage If the Wine Cooler will not be used for a long time, or is to be moved to another place, it will be necessary to defrost the unit and dry the interior. Disconnect the Wine Cooler from the power supply by removing the power plug from the wall socket.

  • Page 19: Troubleshooting

    Troubleshooting Before Calling for Help If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem may be something that can easily be solved or explained. Symptoms Possible Causes Solutions...
  • Page 20 Symptoms Possible Causes Solutions The body of the Wine Cooler The unit is not grounded Contact your local electrician is electrified. properly. to test your electrical grounding system. Frost is forming in the Wine The environment is humid. Though the unit uses an “auto-defrost”...

  • Page 21: Specifications

    Note: Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the Wine Cooler for the most accurate information. Description of product Built-in Wine Cooler Model CWR263DZ Voltage / Frequency AC 115V~60Hz Amperage 1.5 A Input Power...

  • Page 22: Edgestar Limited Warranty

    WHAT IS COVERED: For a period of ONE (1) YEAR from the date of original retail purchase, EdgeStar will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Labor will be performed free of charge at an authorized EdgeStar repair facility and EdgeStar will supply new, rebuilt, or refurbished parts free of charge.
