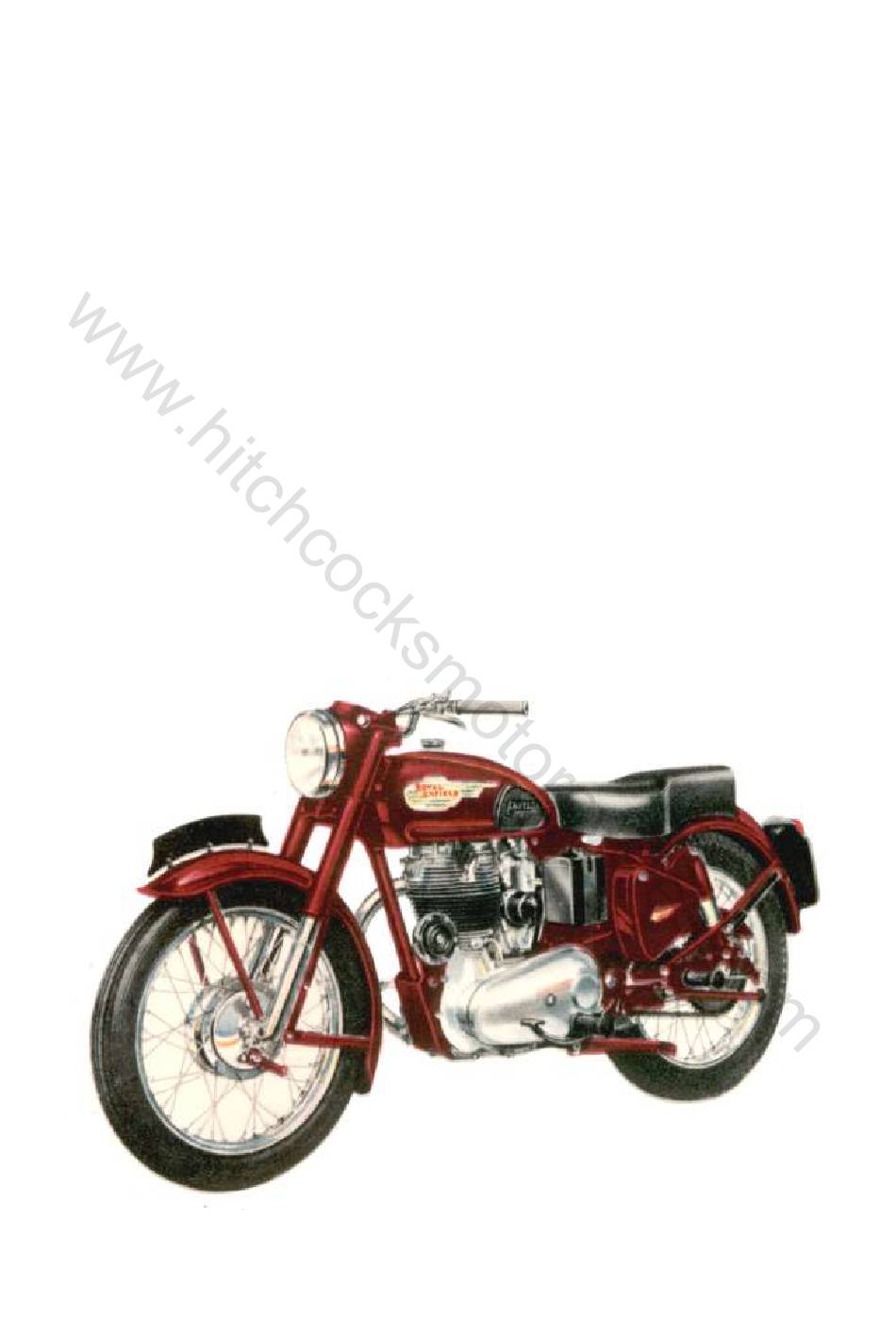

ROYAL ENFIELD WORKSHOP MANUAL
WORKSHOP
MAINTENANCE MANUAL
FOR THE
Royal
Enfield
350 BULLET 1949—55
500 BULLET 1953—55
MAN 8
