Altronix WayPoint307A Installation Manual page 4

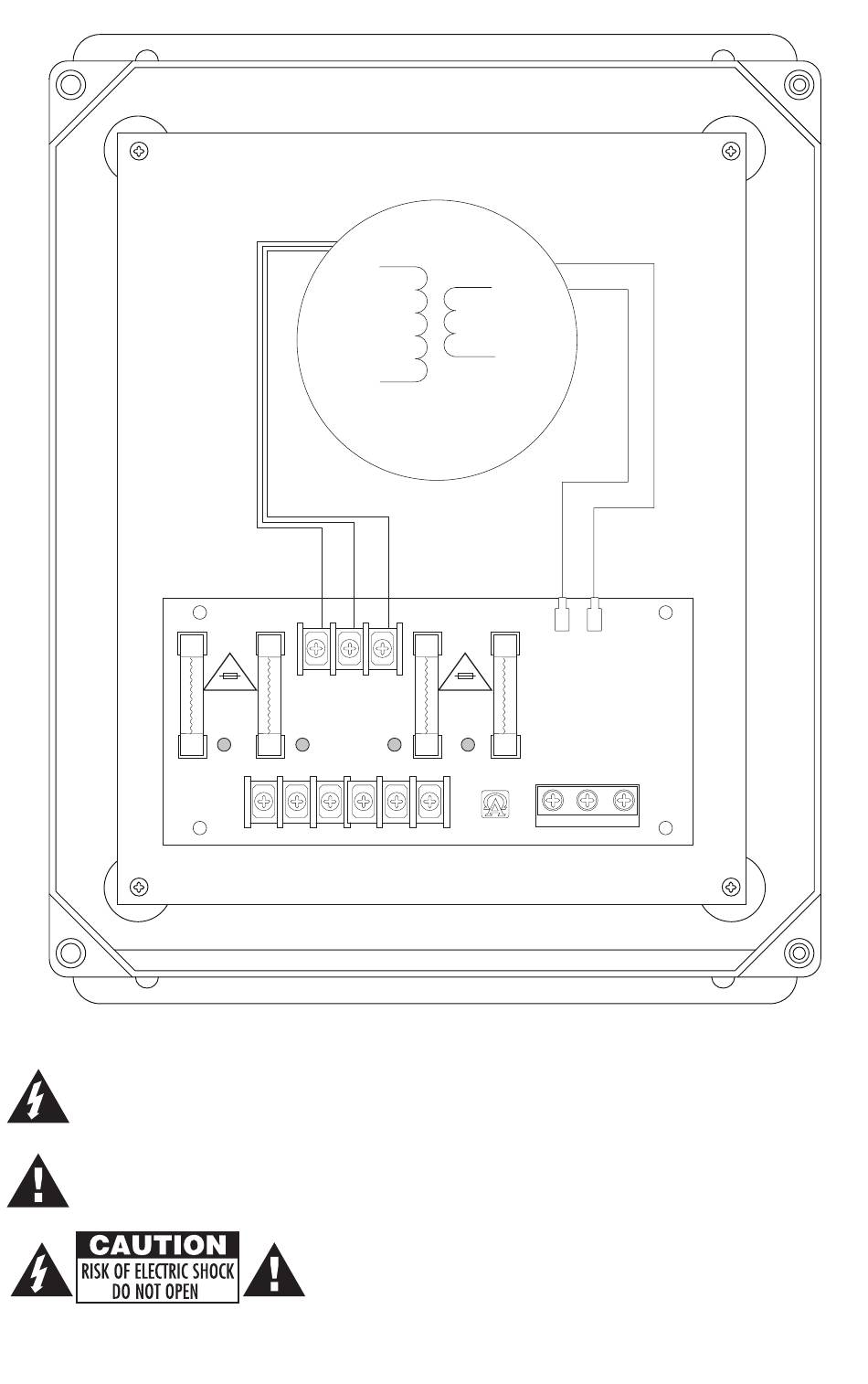

Fig. 1
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may
be of sufficient magnitude to constitute an electric shock .
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance .
- 4 -
INPUT INPUT
28V 24V COM
15A 32V
24VAC 28VAC
OUT1
COM 24V 28V COM
CAUTION: To reduce the risk of electric shock do not open
enclosure . There are no user serviceable parts inside .
Refer servicing to qualified service personnel .
XFMR*
15A 32V
24VAC 28VAC
OUT2
24V 28V
L G N
CAUTION
277VAC
WayPoint307A
