Summary of Contents for Azbil ATT085

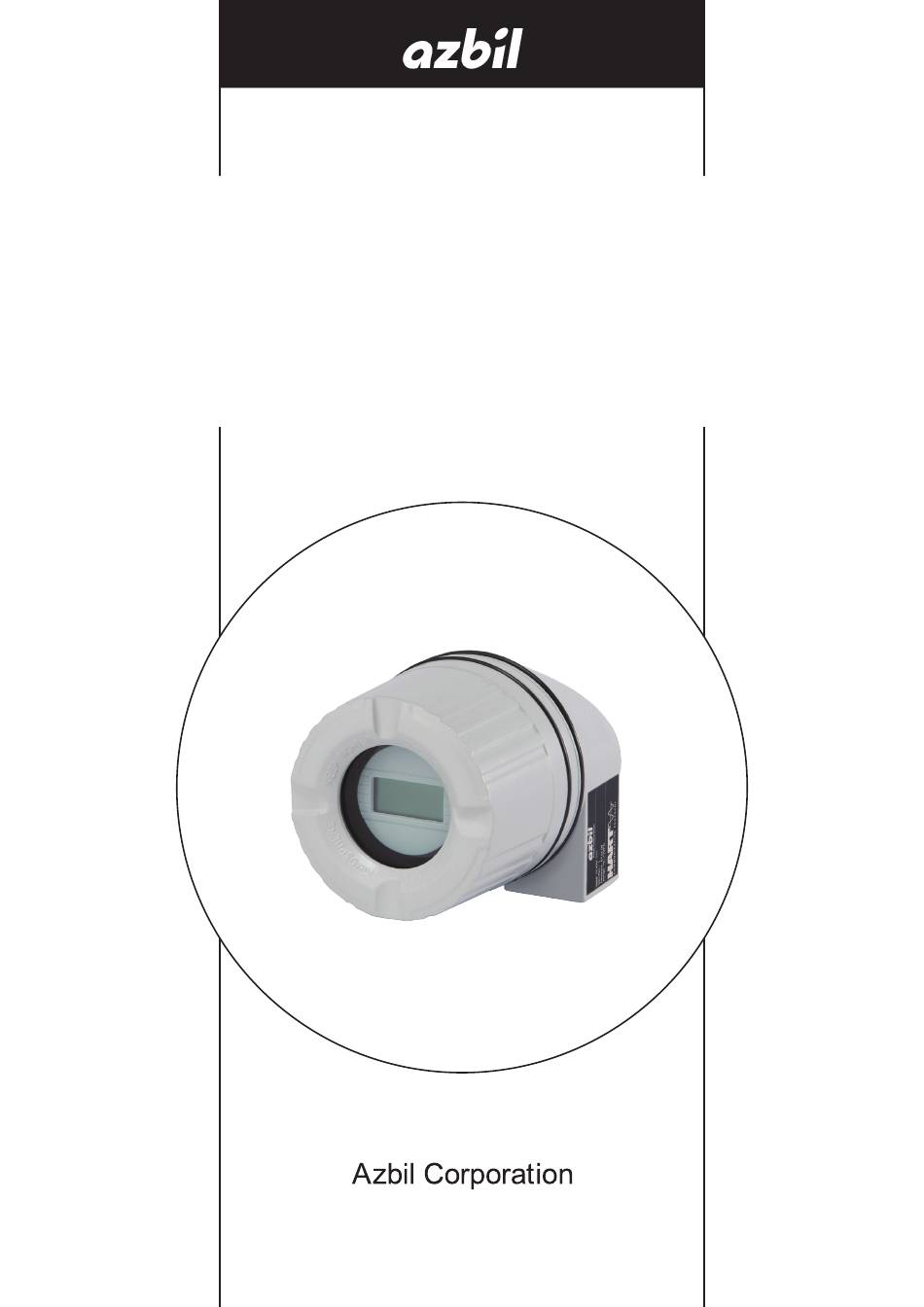

- Page 1 CM2-ATT085-2002 ATT085 Advanced Temperature Transmitter with F fieldbus™ - protocol OUNDATION Brief User’s Manual...
- Page 2 In no event shall Azbil Corporation be liable to anyone for any indirect, special or consequential damages. This information and specifications in this document are subject to change without notice.
- Page 3 Handling Precautions: Handling Precautions indicate items that the user should pay attention to when handling the ATT085. To use this product correctly and safely, always observe the following precautions. We are not responsible for damage or injury caused by the use of the product in violation...
- Page 4 ■ Handling Precautions for This Product Installation Precautions WARNING When installing, use proper fittings and proper tightening torque for connections to the process and to the exhaust. Gas leakage is dangerous because process gas and calibration gas are flammable. Please refer to the leak check instructions in this manual and verify that there is no gas leakage.
- Page 5 Maintenance Precautions WARNING When removing this device for maintenance, be careful of residual pressure or residual process gas. Leakage of process gas is dangerous. When working on the vent, check its direction so that people do not come into contact with vented gas. There is a danger of burns or other physical harm. When the device is being used in an explosion-proof area, do not open the cover.
-
Page 7: Table Of Contents
Table of Contents Chapter 1. Identification ............1 1-1. -
Page 9: Chapter 1. Identification
Chapter 1 Identification Chapter 1. Identification 1-1. Nameplate The right device? Compare and check the details on the device nameplate against the measuring point requirements. 0DFC9602- Figure 1-1. Nameplate of the head transmitter (example, Ex version) 1. Device identification number (Device_ID) 2. -
Page 10: Certificates And Approvals
Chapter 1 Identification 1-3. Certificates and approvals On leaving the factory, the device was in perfect condition from the point of view of safety. The device complies with the standards EN 61010-1 “Protection Measures for Electrical Equipment for Measurement, Control, Regulation and Laboratory Procedures” and with the EMC requirements of IEC/EN 61326. -
Page 11: Chapter 2. Installation Instructions
Chapter 2 Installation instructions Chapter 2. Installation instructions 2-1. Incoming acceptance, transport, storage 2-1-1. Incoming acceptance On receipt of the goods, check the following points: • Are the contents or the packaging damaged? • Is the delivery complete and is anything missing? Check the scope of delivery against your order. -
Page 12: Installation Instructions
Chapter 2 Installation instructions 2-3. Installation instructions A screwdriver is needed to mount the head transmitter. Handling Precautions: Damage of the head transmitter >> Do not overtighten the mounting screws. Maximum torque = 1 N·m (3/4 pound-feet). 2-3-1. Mounting typical of Europe Figure 2-2. -
Page 13: Chapter 3. Wiring
Chapter 3 Wiring Chapter 3. Wiring CAUTION Switch off power supply before installing or connecting the device. Failure to observe this may result in destruction of parts of the electronics. When installing Ex-approved devices in a hazardous area please take special note of the instructions and connection schematics in the respective Ex documentation added to these User's Manual. -
Page 14: Connecting The Sensor Cables
Chapter 3 Wiring 3-2. Connecting the sensor cables Handling Precautions: When connecting 2 sensors ensure that there is no galvanic connection between them. The resulting equalizing currents distort the measurements considerably. The sensors must be galvanically isolated from one another by connecting each sensor separately to a transmitter. -
Page 15: Shielding And Grounding
Chapter 3 Wiring • The terminals for the fieldbus connection (1+ and 2−) are not polarity sensitive. • Conductor cross-section: Max. 2.5 mm for screw terminals • • Max. 1.5 mm for spring terminals. Minimum stripping length of wire = 10 mm (0.39 in) •... -
Page 16: Post-Connection Check
Chapter 3 Wiring 3-4. Post-connection check Device condition and specifications Notes Are the device or the cables free of damage (visual check)? Electrical connection Notes Does the supply voltage match the specifications on the 9 to 32 V DC nameplate? Do the cables used comply with the fieldbus specificati- See User's Manual ons? -
Page 17: Chapter 4. Operation And Commissioning
Chapter 4 Operation and commissioning Chapter 4. Operation and commissioning 4-1. Function check Prior to commissioning, please ensure that: • The device has been mounted correctly. • The electrical connection is correct. 4-2. Display and operating elements (optional) Option: display with transmitter. Figure 4-1. -
Page 18: Configuration Of The Head Transmitter And Ff Functions
Commissioning → DD (Device Description: *.sym, *.ffo, *.sy5, *.ff5 files) • Network configuration → *.cff file (Common File Format) These files can be acquired as follows: • Free of charge via the Internet: www.azbil.com • ™ Via the F Fieldbus organization: www.fieldbus.org... -
Page 19: Switching On The Head Transmitter
Chapter 4 Operation and commissioning 4-5. Switching on the head transmitter Once the final checks have been successfully completed, it is time to switch on the supply voltage. The head transmitter performs a number of internal test functions after power-up. As this procedure progresses, the following sequence of messages appears on the display: Step Display... - Page 20 Chapter 4 Operation and commissioning...
-
Page 21: Appendix A. Explosion Protected Models
Appendix A Explosion protected models Appendix A. Explosion protected models A-1. FM intrinsically safe, nonincendive and suitable approvals 図番 DWG.NO 80396229... - Page 22 Appendix A Explosion protected models 図番 DWG.NO 80396230...
- Page 24 1. Warranty period and warranty scope 1.1 Warranty period Azbil Corporation's products shall be warranted for one (1) year from the date of your purchase of the said products or the delivery of the said products to a place designated by you.
- Page 25 Although acceleration of the above situation varies depending on the conditions or environment of use of the products, you are required not to use any Azbil Corporation's products for a period exceeding ten (10) years unless otherwise stated in specifications or instruction manuals.
- Page 27 Document Number: CM2-ATT085-2002 Document Name: ATT085 Advanced Temperature Transmitter with ™ fieldbus - protocol OUNDATION Brief User's Manual Date: 1st edition: May 2015 2nd edition: July 2016 Issued/Edited by: Azbil Corporation...
