Summary of Contents for Azbil ALTJ 9000 Series

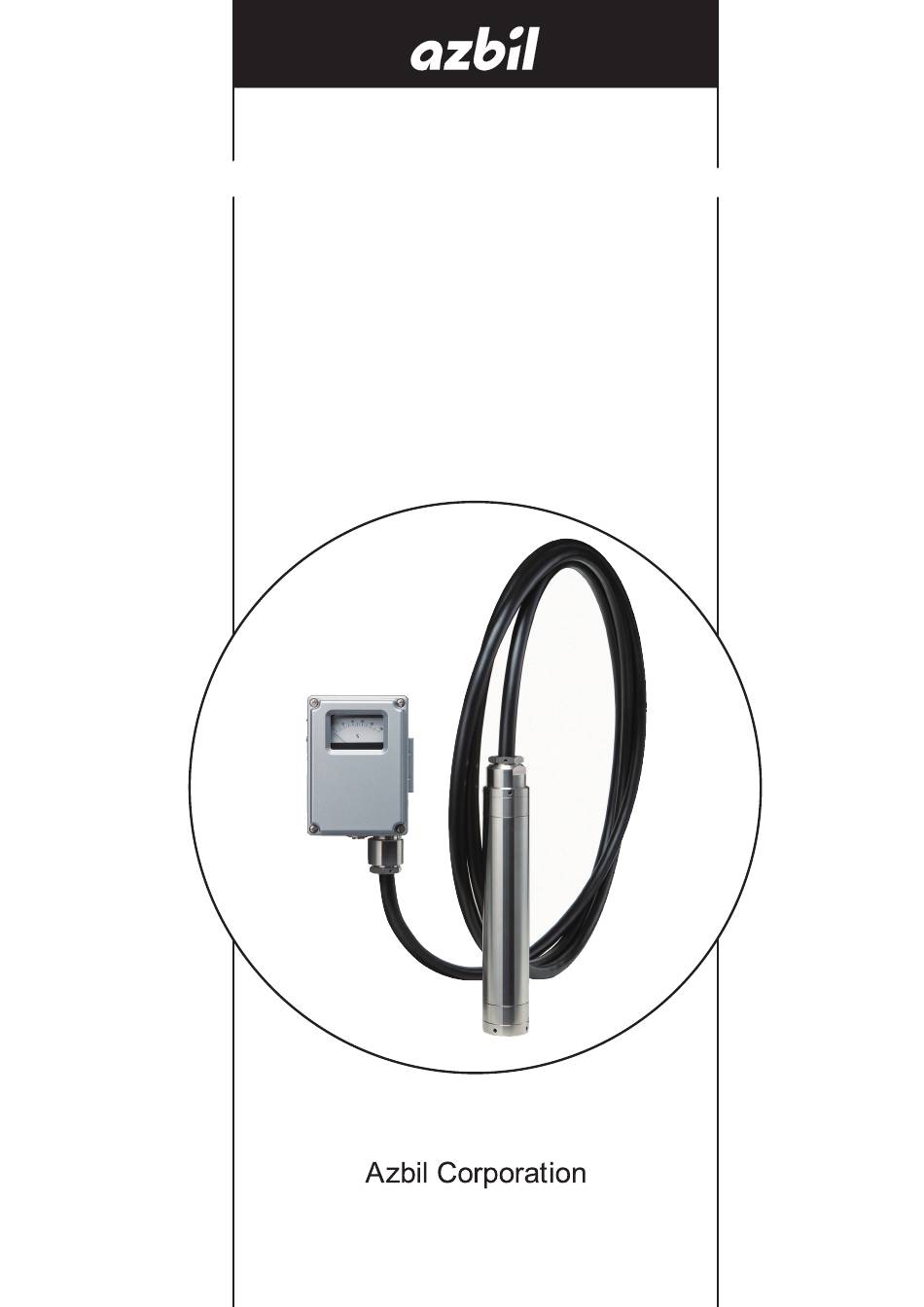

- Page 1 CM2-JTL100-2001 ALTJ™ 9000 Immersion Type Liquid-Level Transmitter User's Manual...
- Page 2 In no event shall Azbil Corporation be liable to anyone for any indirect, special or consequential damages. This information and specifications in this document are subject to change without notice.
- Page 3 Precautions for Use „ For safe use of the product, the following symbols are used in this manual. WARNING Warnings are indicated when mishandling the product might result in the death or serious injury of the user. CAUTION Cautions are indicated when mishandling the product might result in minor injury to the user or damage to property.
-
Page 4: Cautions Regarding Safe Work
Cautions regarding Safe Work „ Installation Precautions WARNING The weight of this product may exceed 10 kg, depending on the model. When transporting or installing this product, wear safety shoes and use a transportation device or have two or more workers carefully carry the product. - Page 5 „ Wiring Precautions WARNING Do not perform wiring work with wet hands. Doing so may cause an electric shock. Before starting wiring work, be sure to dry your hands or use appropriate gloves, and turn off the power. Failure to do so may cause an electric shock. CAUTION Perform wiring work correctly while carefully checking the specifications.
-
Page 6: Introduction
Introduction Thank you for purchasing the ALTJ9000 Immersion Type Liquid Level Transmitter. „ The ALTJ9000 Series Setting span Application 3 to 100 kPa (0.3 to 10 m) 70 to 700 kPa (7 to 70 m) For tap water JTL320 JTL330 For sludge, waste water, JTL321 JTL331... -
Page 7: Table Of Contents
Table of Contents Precautions for Use Cautions regarding Safe Work Introduction Chapter 1 Precautions „ Unpacking the Package and Checking the Product „ Parts of This Product „ Checking the Specifications „ Storing „ Transporting „ Installing „ Disassembly of the Probe „... - Page 8 Chapter 6 Configuration (Setting) Chapter 7 Operation Preparations for Operation „ Connecting the Communicator (CommStaff) „ Checking the Settings Starting and Stopping the Operation „ Preparation Prior to Operation „ Beginning Operation „ Stopping Device Operation Chapter 8 Calibration „ Calibrating the Output Signal „...
-
Page 9: Chapter 1 Precautions
Chapter 1 Precautions WARNING The weight of this product may exceed 10 kg, depending on the model. When transporting or installing this product, wear safety shoes and use a transportation device or have two or more workers carefully carry the product. If the product is raised or dropped carelessly, personal injury or damage to the product may occur. -
Page 10: X84; Parts Of This Product
Chapter 1 Precautions „ Parts of This Product The following figure shows the structure and gives the part names for this product. Housing (junction box) Nameplate Terminal block assembly Meter assembly Cover Shell Fig. 1-2. Structure of junction box Table 1-1. Main materials of junction box parts Weight of main Part Main material... - Page 11 Chapter 1 Precautions Housing (probe) Cable-retaining flange Electronics module Hollow cable Meterbody Cover (lower portion) Cover (upper portion) Chain Shell Weight Fig. 1-3. Structure of probe and peripheral parts Table 1-2. Main materials of probe and peripheral parts Part Main material Weight of main material Cable-retaining flange Stainless steel...
-
Page 12: X84; Checking The Specifications
Chapter 1 Precautions „ Checking the Specifications The specifications of this product are written on the nameplate attached to the product, on the junction box. Check that the specifications you requested agree with those stated on the nameplate. In particular, be sure to check the specifications below. y Tag No. -
Page 13: X84; Disassembly Of The Probe
Chapter 1 Precautions „ Disassembly of the Probe As a rule, do not disassemble the probe, since it has already been adjusted at the factory. When disassembling the probe for maintenance or inspection purposes, be sure to follow the instructions ( Chapter 9 Maintenance and Inspection). -
Page 15: Chapter 2 Function And Configuration
Chapter 2 Function and Configuration „ Overview The ALTJ9000 immersion type liquid level transmitter incorporates a microprocessor, uses a semiconductor pressure sensor to detect the water pressure, and outputs the cur- rent signal in proportion to the liquid level. This transmitter is composed of a probe and a junction box. -
Page 16: X84; Configuration
Chapter 2 Function and Configuration „ Configuration y Probe The probe, which consists of a pressure-receiving section and a transmission section, is installed underwater. The water pressure is transmitted to a semiconductor pressure sensor through a metallic diaphragm and sealed liquid. The transmission section processes the output of the semiconductor pressure sensor. -
Page 17: X84; Operating Principle
Chapter 2 Function and Configuration „ Operating Principle The pressure-receiving section transmits the water pressure through the metallic dia- phragm and sealed liquid to the sensor section. In the sensor section, the sensor deforms to a degree that corresponds to the transmitted pressure, and the resistance value changes. A Wheatstone bridge circuit detects the resistance and sends it to the transmission section after A-D conversion. -
Page 19: Chapter 3 Installation
Chapter 3 Installation WARNING Be sure to hold the chain when installing the product with the weight attached. Do not hold the hollow cable, since it is slippery and holding it may cause an accident. Only specialists should do the installation and wiring work. Otherwise a fire or electric shock may result. "Specialists"... -
Page 20: X84; Junction Box
Chapter 3 Installation „ Junction box y Install the junction box in a location with an ambient temperature ranging from -5 to +55 °C. y If the junction box is installed in a poor atmosphere with high chlorine gas concen- tration or high humidity, a contact failure or wire break may occur due to corrosion. -
Page 21: Chapter 4 Electrical Wiring
Chapter 4 Electrical Wiring WARNING Only authorized engineers are permitted to perform the installation or wiring work. Failure to do so may cause a fire or electric shock. Authorized engineers are those who have instrumentation work and electrical work skills. Do not perform wiring work with wet hands. -
Page 22: X84; Wiring
Chapter 4 Electrical Wiring „ Wiring This device uses a 2-wire system. The power supply wire also serves as a signal wire. 24 V DC power is required for the power supply circuit. Wire the device while referring to the following. y General Wiring SUPPLY- SUPPLY+... -
Page 23: X84; Piping For Wiring/Cable Gland
Chapter 4 Electrical Wiring „ Piping for Wiring/Cable Gland Run the cable into the case of the liquid level transmitter as described below. y Attach the pipe serving as a conduit or the cable gland to the conduit for electrical wiring on the bottom left of this device. -
Page 24: X84; Hollow Cable (Between The Probe And Junction Box)
Chapter 4 Electrical Wiring „ Hollow Cable (Between the Probe and Junction Box) Use the special cable in the hollow pipe (hollow cable) connected at the time of shipment for wiring. Do not use any other wire or cable. Additionally, since the wiring of this section was done at the factory, please use it as it is. -
Page 25: Chapter 5 Function And Configuration Of Commstaff
CommStaff „ Introduction CommStaff is a setup tool that communicates with Azbil smart devices (ALTJ9000 and others) to allow the user to change various settings. It runs on a Windows PC. CommStaff 's communication interface connects to a USB port on the Windows PC, and the communi- cation cable connects to the communication terminal on the smart device. -
Page 26: X84; Operating Environment
USB 2.0 or higher Operation has not been verified with an OS other than the above. y Communication Interface Use a communication module that satisfies the following conditions. Table 5-2. SFN/DE communication interface CFS100 SFN DE azbil product model No.: 80345962-001 80345962-002... -
Page 27: Chapter 6 Configuration (Setting)
Chapter 6 Configuration (Setting) CAUTION Do not perform the SFN communication when the process of the liquid level transmitter is in the automatic control status. Doing so may cause the output to vary, resulting in a hazardous operation status. This chapter describes the settings that can be changed using the communicator. For details about changing settingus, refer to the following user's manual for CommStaff. -
Page 29: Chapter 7 Operation
Chapter 7 Operation WARNING Install this product in a location where the operating conditions (pressure rating, temperature, humidity, voltage ( specification sheet), mounting orientation, and ambient atmosphere ( Chapter 3 Installation) are satisfied. Failure to do so may cause a fire or malfunction. CAUTION Do not perform the SFN communication when the process of the liquid level transmitter is in the automatic control status. -
Page 30: Preparations For Operation
Chapter 7 Operation Preparations for Operation „ Connecting the Communicator (CommStaff) The communication method ofthe transmitter is SFN communication. The following figure shows the wiring for connection of a communicator and this device. For SFN communication using CommStaff, be sure to connect the cable and terminals of this device as shown below. - Page 31 Chapter 7 Operation y Checking the Settings y Checking the Configuration (Settings) Refer to Chapter 6 Configuration (Setting), and correct any incorrect settings that are found. y Checking the Burnout (B/O) Setting Check using the communicator (CommStaff) that the burnout direction is correct. The burnout direction and whether it is used can be changed using SW2 and SW3 on the elec- tronics module of the probe.
-
Page 32: Starting And Stopping The Operation
Chapter 7 Operation Starting and Stopping the Operation „ Preparation Prior to Operation y Minimum Liquid Level Position (Zero Position) The zero position of the liquid level is the diaphragm position on the bottom of the probe of this device. Therefore, the measuring range is from the diaphragm position (the groove in the probe cover) to the height of the operating range. -
Page 33: X84; Beginning Operation
Chapter 7 Operation „ Beginning Operation When the zero adjustment described previously is completed, the device is ready for use. Consequently, measured values can be checked. y Checking Measured Values y Check the measured value using the communicator. y After checking of the measured value, disconnect the communication cable, tighten the cover of the junction box, and change the process to its normal operation. -
Page 35: Chapter 8 Calibration
Chapter 8 Calibration This chapter describes the calibration work conducted by Azbil or a designated service station. Normally, calibra- tion is not done by the user because a precision reference input device and measurement instrument are needed. However, calibration is described here in case the user has no choice but to do it. Two kinds of calibration are described below. -
Page 36: X84; Calibrating The Setting Range Using Standard Input (Input Calibration)
Chapter 8 Calibration „ Calibrating the Setting Range Using Standard Input (Input Calibration) y Preparation The following describes how to calibrate the lower range value (LRV) and upper range value (URV) of the measuring range by inputting the standard pressure to this device. First, calibrate the lower range value, and then calibrate the upper range value. -
Page 37: X84; Resetting The Calibration Value
Chapter 8 Calibration y Wiring and Piping for Calibration Generally, follow the diagram below. 24 V DC power − Precision resistor Voltmeter SUPPLY- SUPPLY+ Black wire Red wire Standard pressure generator Fig. 8-2. Wiring and piping for calibration of input y Calibration Procedure for Measuring Range After checking the measurement range using the communicator ( Chapter 6... -
Page 39: Chapter 9 Maintenance And Inspection
Chapter 9 Maintenance and Inspection Overview WARNING If a corrosion mark is found on a pressure resistance part such as a bolt, nut, or flange, replace the defective part with a new one. Otherwise, a part with reduced pressure resistance performance may be damaged and subsequently create a dangerous situation. -
Page 40: Disassembly And Assembly
Chapter 9 Maintenance and Inspection Disassembly and Assembly The following gives the procedure if each part must be disassembled or assembled to check the seal, replace parts, or clean the device. „ Disassembling the Probe Do not disassemble the probe if possible, in order to maintain airtightness. Before disas- sembling the probe, be sure to turn off the power. - Page 41 Chapter 9 Maintenance and Inspection y Removing the Weight (1) Loosen the two nuts near the weight. (2) Loosen the bolts and pull the probe out of the weight. y Disconnecting the Cable (1) Turn the upper cover of the probe to remove it. Upper cover Fig.
- Page 42 Chapter 9 Maintenance and Inspection (3) Disconnect the connector from the printed circuit board inside the probe. When disconnecting the connector, be sure to hold the connector body. Pulling the lead wires may cause wire(s) to break. Connector Fig. 9-4. Disconnecting the connector y Removing the Meterbody and Housing (1) Turn the lower cover of the probe to remove it.
- Page 43 Chapter 9 Maintenance and Inspection (2) As shown in Fig. 9-6 A , put a screwdriver in a groove (a groove with small vertical depth) and pry to slightly pull the meterbody out from the housing. (There are four grooves in total, two grooves with large vertical depth and two grooves with small vertical depth.) If the removal process is difficult, insert the blade of the screwdriver into another groove (one with a large vertical depth) and push out the body as shown in Fig.
-
Page 44: X84; Assembling The Probe
Chapter 9 Maintenance and Inspection „ Assembling the Probe Basically, assemble the probe in the reverse order of disassembly. When assembling the probe, be sure to check the O-ring and matching surface for scratches and contamination. If the O-ring or matching surface is dirty, wipe it off using a clean cloth and apply a thin layer of silicone grease. -
Page 45: X84; Disassembling The Junction Box
Chapter 9 Maintenance and Inspection „ Disassembling the Junction Box Before disassembling the junction box, be sure to turn off the power. y Disconnecting the Hollow Cable (1) Loosen the four screws of the junction box cover to remove the cover. Screw (4) Fig. - Page 46 Chapter 9 Maintenance and Inspection (3) Loosen the remaining upper two screws that hold the terminal block assembly and remove the terminal block assembly by sliding the plate. Do not pull hard on the hollow cable since it is connected to the terminal block section on the rear panel of the plate.
- Page 47 Chapter 9 Maintenance and Inspection (5) Disconnect the rubber tube from the fitting for the air hole in the junction box. Rubber tube Tube joint Fig. 9-13. Disconnecting the rubber tube (6) After loosening the hexagon gland at the top end of the hollow cable mounting port with a wrench, gradually pull out the hollow cable.
- Page 48 Chapter 9 Maintenance and Inspection y Removing the Optional Meter To replace or remove the meter, follow the steps below. It is not necessary to remove the meter when the hollow cable is disconnected. (1) Loosen the four screws of the junction box cover to remove the cover. ( Fig.
-
Page 49: X84; Assembling The Junction Box
Chapter 9 Maintenance and Inspection „ Assembling the Junction Box y Assembling the Hollow Cable (1) Tighten the shell with a wrench to secure it to the connection port at the lower right portion of the junction box. Tightening torque: 4.0 ± 0.5 N·m Shell Fig. - Page 50 Chapter 9 Maintenance and Inspection (3) While pulling the lead wire from the hollow cable connection section at the lower portion of the junction box, gradually put the sheath portion of the hollow cable in the shell until it stops. Pay special attention so that the lead wire does not become caught. Shell Lead wire Fig.
- Page 51 Chapter 9 Maintenance and Inspection y Assembling the Terminal Block Assembly and Hollow Cable (1) Connect the lead wires of the hollow cable to the RED (+), BLK (-), and GND terminals on the terminal block located on the board using screws. BLK (-) RED (+) Fig.
- Page 52 Chapter 9 Maintenance and Inspection (4) Tighten the four screws, including the 2 temporarily attached ones, to secure the terminal block assembly. Tightening torque: 1.0 ± 0.1 N·m Fig. 9-23. Attaching the terminal block assembly y Assembling the Optional Meter If the meter has been removed, assemble it in the reverse of the disassembly order ( l Removing the Optional Meter (Page 9-10)).
- Page 53 Chapter 9 Maintenance and Inspection (2) Attach the meter with the plate using screws. Tightening torque: 1.0 ± 0.1 N·m Fig. 9-25. Attaching the meter with the plate y Attaching the Cover Attach the cover firmly using screws until the gasket is tightly compressed. Tightening torque: 1.2 ±...
-
Page 54: Inspection
Chapter 9 Maintenance and Inspection Inspection „ Insulation Resistance Test and Withstand Voltage Test As a rule, do not test the insulation resistance or withstand voltage. Lightning arrestors are incorporated into the probe and junction box. When these tests are conducted, the built-in lightning arrestors may be damaged. -
Page 55: Replacement Parts
Chapter 9 Maintenance and Inspection Replacement Parts To use the product in good condition, the following parts used for the probe need to be replaced periodically. Note that the replacement cycle may vary depending on the temperature and fluid measured. Part name Replacement cycle Seal cap... -
Page 56: Maintenance And Inspection Of Liquid Level Transmitter For Sludge And Seawater
Chapter 9 Maintenance and Inspection Maintenance and Inspection of Liquid Level Transmitter for Sludge and Seawater The liquid level transmitter for sludge and seawater (optional specifications 1: P00) has a structure in which a unit for protection of the pressure-receiving diaphragm is attached to the top of the probe. The following describes the procedure if the product needs to be disassembled or assembled to replace the rubber diaphragm or for cleaning. - Page 57 Chapter 9 Maintenance and Inspection (2) Attach the cover and inject silicone oil or distilled water with a syringe, etc., until it overflows Silicone oil Bolt hole in cover (6 locations) Cover Fig. 9-29. Adding silicone oil after attaching the cover (3) Remove the air remaining in the bolt holes in the cover with a clip.
- Page 58 9-20...
-
Page 59: Chapter 10 Self-Diagnosis
„ Serious Failure (Critical Status) Diagnostic message Meaning Remedy METER BODY FAULT AD conversion error The meterbody may be malfunctioning. Contact Azbil or your salesperson for assistance. CHARA PROM FAULT Character data error SUSPECT INPUT Pressure sensor error MDU/DAC COMP FAULT CPU error The electronics module may be malfunctioning. - Page 60 10-2...
-
Page 61: Chapter 11 Troubleshooting
If this liquid level transmitter does not operate correctly or malfunctions, check the items shown below. If the problem does not improve even after the check is performed, immediately stop operation, disconnect the power supply, and contact Azbil or your salesperson for assistance. Table 11-1. Troubleshooting... -
Page 62: Terms And Conditions
1. Warranty period and warranty scope 1.1 Warranty period Azbil Corporation's products shall be warranted for one (1) year from the date of your purchase of the said products or the delivery of the said products to a place designated by you. - Page 63 Although acceleration of the above situation varies depending on the conditions or environment of use of the products, you are required not to use any Azbil Corporation's products for a period exceeding ten (10) years unless otherwise stated in specifications or instruction manuals.
- Page 67 Document Number: CM2-JTL100-2001 Document Name: ALTJ™ 9000 Immersion Type Liquid-Level Transmitter User's Manual Date: 1st edition: Nov. 2017 Issued/Edited by: Azbil Corporation...
