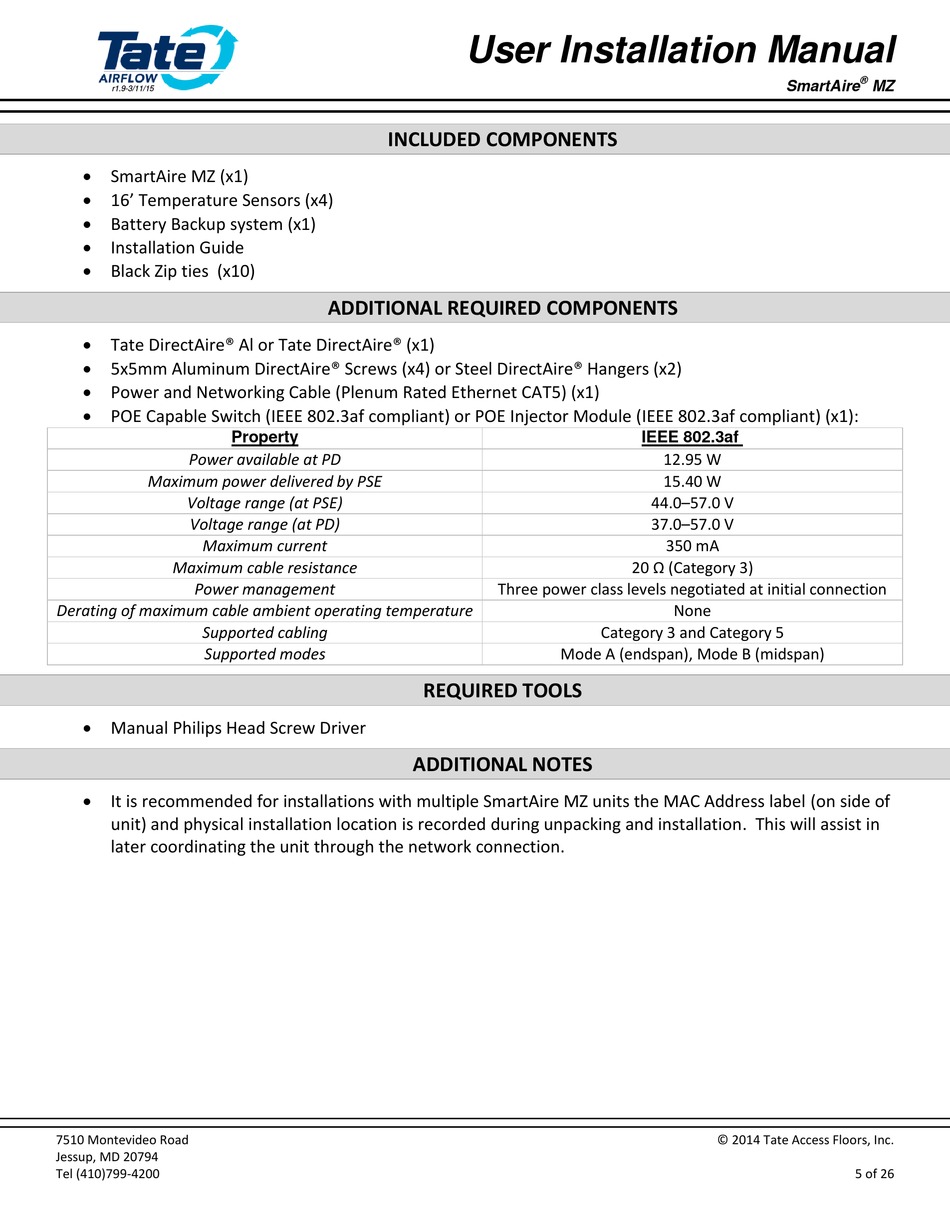

Included Components; Additional Required Components; Required Tools; Additional Notes - Tate SmartAire MZ User's Installation Manual

r1.9-3/11/15
 SmartAire MZ (x1)
 16' Temperature Sensors (x4)
 Battery Backup system (x1)
 Installation Guide
 Black Zip ties (x10)
 Tate DirectAire® Al or Tate DirectAire® (x1)
 5x5mm Aluminum DirectAire® Screws (x4) or Steel DirectAire® Hangers (x2)
 Power and Networking Cable (Plenum Rated Ethernet CAT5) (x1)
 POE Capable Switch (IEEE 802.3af compliant) or POE Injector Module (IEEE 802.3af compliant) (x1):
Property
Power available at PD
Maximum power delivered by PSE
Voltage range (at PSE)
Voltage range (at PD)
Maximum current
Maximum cable resistance
Power management
Derating of maximum cable ambient operating temperature
Supported cabling
Supported modes
 Manual Philips Head Screw Driver
 It is recommended for installations with multiple SmartAire MZ units the MAC Address label (on side of
unit) and physical installation location is recorded during unpacking and installation. This will assist in
later coordinating the unit through the network connection.
7510 Montevideo Road
Jessup, MD 20794
Tel (410)799-4200
User Installation Manual

INCLUDED COMPONENTS

ADDITIONAL REQUIRED COMPONENTS

Three power class levels negotiated at initial connection

REQUIRED TOOLS

ADDITIONAL NOTES

IEEE 802.3af
12.95 W
15.40 W
44.0–57.0 V
37.0–57.0 V
350 mA
20 Ω (Category 3)
None
Category 3 and Category 5
Mode A (endspan), Mode B (midspan)
© 2014 Tate Access Floors, Inc.
®
SmartAire MZ
5 of 26
