Lot#MM112-MM113-MM114

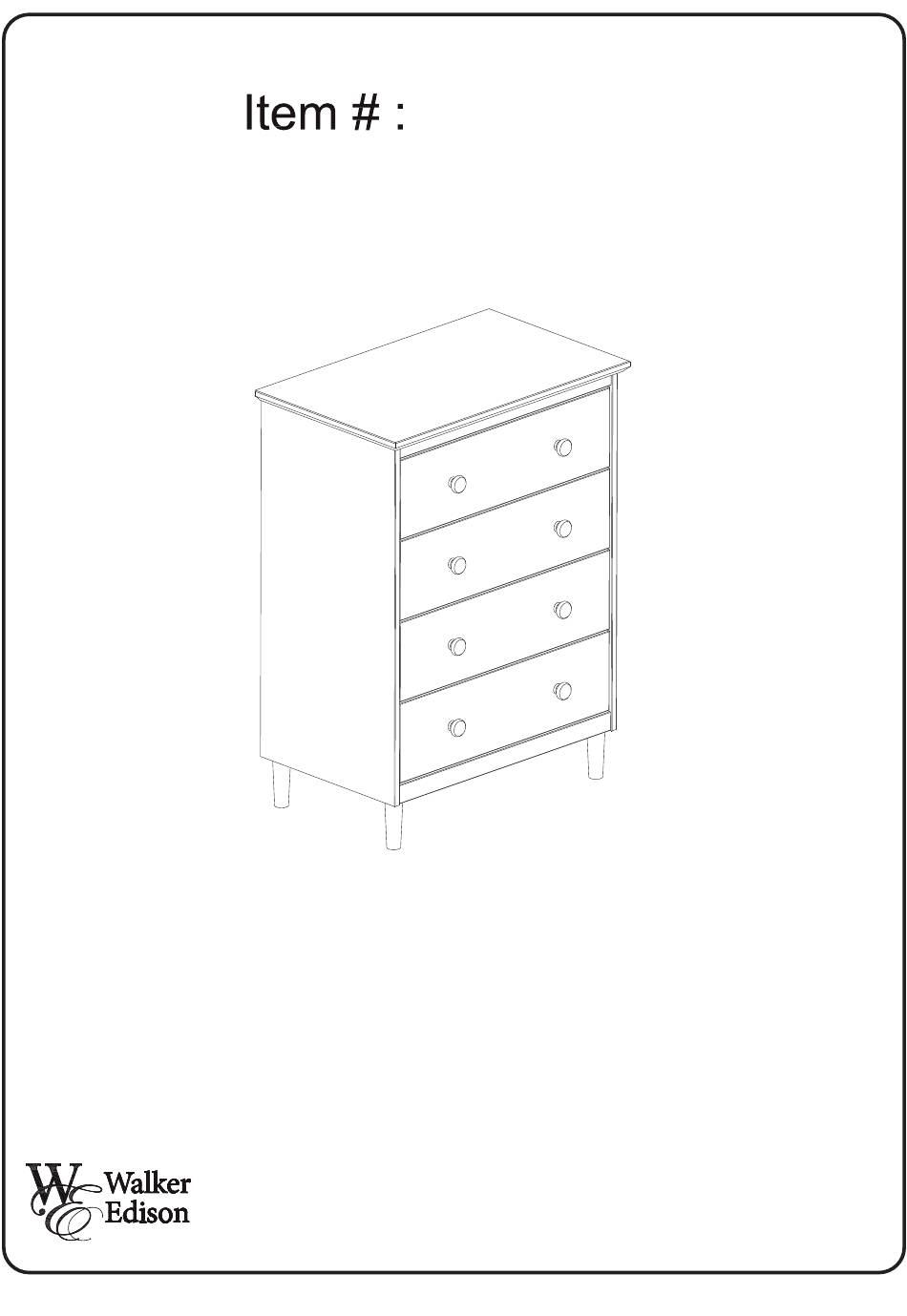

BR4DDR
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, to report damage
or request parts. www.walkeredson.com
®
Revised 02/2019
P.1
Copyright © 2018, by Walker Edson Furniture Co., LLC, All rights reserved.
Advertisement
Related Manuals for Walker Edison BR4DDR
Summary of Contents for Walker Edison BR4DDR
- Page 1 Lot#MM112-MM113-MM114 BR4DDR Assembly Instructions Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredson.com ® Revised 02/2019 Copyright © 2018, by Walker Edson Furniture Co., LLC, All rights reserved.
- Page 3 Part# Description Part# Description Top panel 01 pcs Drawer runner 08 pcs Right side panel 01 pcs Front drawer 04 pcs Left side panel 01 pcs Left side drawer 04 pcs Botto ront crossbeam 01 pcs Right side drawer 04 pcs Back crossbeam 02 pcs Drawer bottom...
- Page 4 Wooden dowel Ø8*30mm Wooden dowel Ø8*20mm Screw Ø3,5*25mm Ø3,5*30mm Screw Screw M4*22mm Screw Ø4,5*45mm Ø10*10 Nail Knob Glue “H” Profile 808 mm Wall anchor Washer Ø6mm Ø7*80mm Screw Allen key Hammer recommended for assembly (not included)
- Page 5 Step 1 Ø8*30mm Insert wood dowel (A) and glue (I) into parts (2, 3, 4, 5, 6, 11, 12). Ø8*20mm Insert wood dowel (B) and glue (I) into part (9). Step 2 Use screw (C) to attach parts (2,3) to part (9) Ø3,5*25mm...
- Page 6 Step 3 Secure front cross beam (4,5,6) to panels (2,3) using screw (D) Ø3,5*30mm Step 4 Use screw (D) to attach part (1) to body Ø3,5*30mm...
- Page 7 Step 5 Please assemble on a clean soft surface to avoid damage. Use screw (D) to attach part (6) to body Ø3,5*30mm Step 6 Apply glue to leg contact surfaces Use screw (N) to attach part (15) to part (8) and key (0).
- Page 8 Step 7 Ø10*10 Secure back panel (7) with part (J) to body with nails (F) 808mm Step 8 Insert wood dowel (A) into part (9) (Runner small). FRONT Ø8*30mm...
- Page 9 Step 9 Attach parts (11,12) to part (10), insert panel (13) into groves and secure part (14) with screws(D) Insert knob (H) with screws(E). Ø3,5*30mm M4x22mm...
- Page 10 Step 10 Insert wood dowel (A) Assembly Complete! Ø8*30mm Maintenance Guide To maintain long term performance and easy gliding of your solid wood drawers, we recommend applying wax to the wooden guide rails. 1.Bee's wax is recommended or Paraffin wax from a standard candle can be used. 2.Apply the wax by rubbing it on the wooden guide rails where there is wood-on-woo contact when opening and closing the drawer.
- Page 11 Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors. 1º 2º Wall Back panel Ø6mm Ø3,5*30mm P.11...
