Walker Edison BU52SERSD Assembly Instructions Manual

Hide thumbs

page of 30

/ 30
Bookmarks

Quick Links

Download this manual

Item # : BU52SERSD

Assembly Instructions

Please visit our website for the most current instructions, assembly tips, report damage,

or request parts. www.walkeredison.com

Revised 16/12/2019 (L)

Walker Edison

2019 b

P.1

Table of Contents

Summary of Contents for Walker Edison BU52SERSD

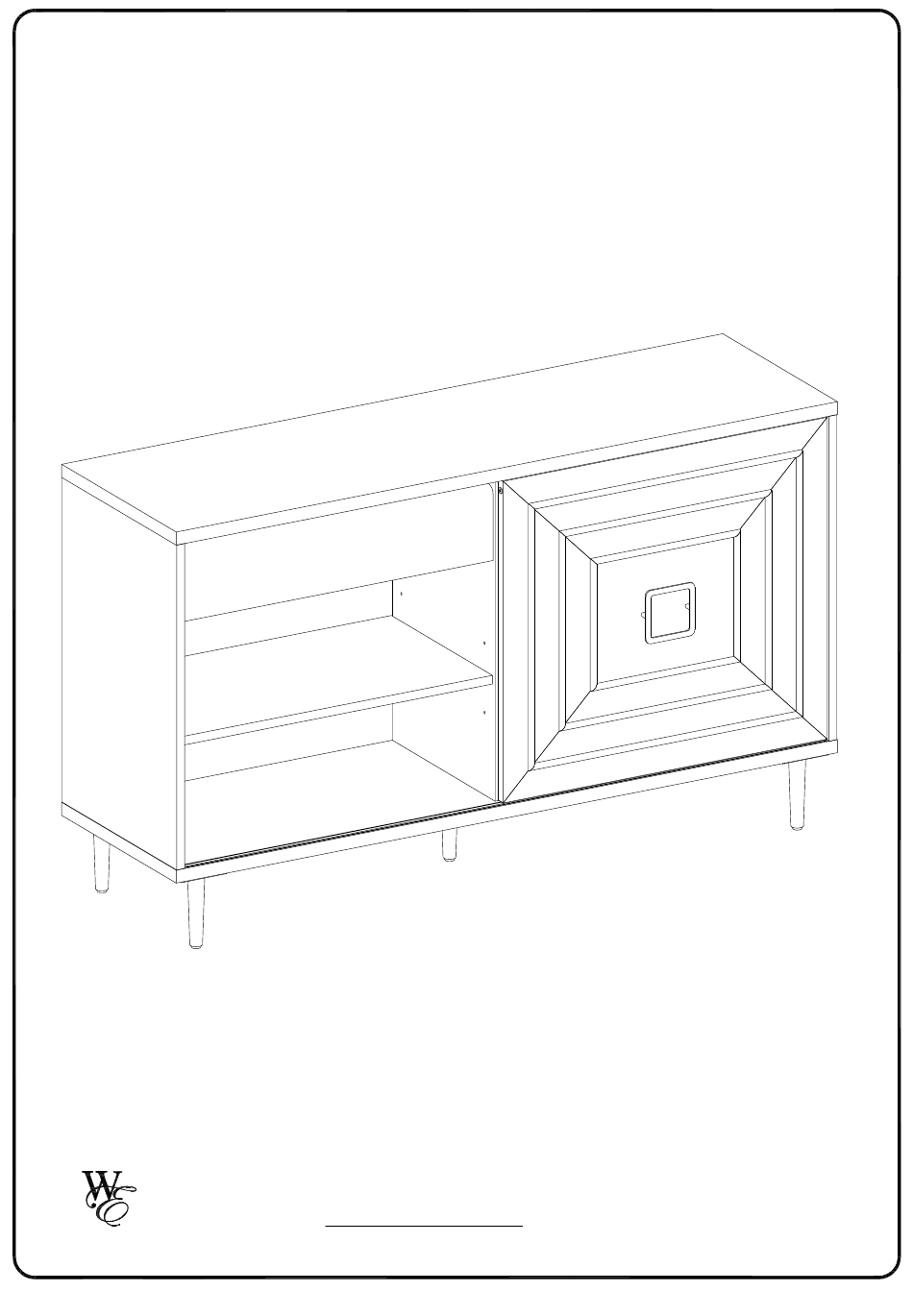

Page 1 Item # : BU52SERSD Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 16/12/2019 (L) Walker Edison ® © Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved.
Page 2: General Assembly Guidelines
A Phillips head screwdriver is required for the assembly of this product . VII. Power tools should not be used to assemble this product. VIII. Drill may be needed for securing product to wall. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
Page 4: Hardware List
Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
Page 5 Pick up the slider arm (Z) and separate the slide Runner for the following Steps. Extend the Slide .Runner all the way forward,press the plastic release lever of the slider arm up and pull the Slide Runner Complete out . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
Page 8 Step 4 Insert wooden dowel (A) into parts (3,4,5), then secure cam bolt (B) into parts (3,4,5) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
Page 9 16 x 2pcs 15 x 2pcs Insert wooden dowel (A) into parts (7,16), then secure cam bolt (B) into parts (1,15) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
Page 10 Step 6 Finished edge Finished edge Using cam lock(C) secure part (7) to parts (4,5) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.10...
Page 20 Using cam lock (D) attach part (15) to parts (11,12) and cam lock (C) attach part (15) to part (16) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.20...
Page 22 (T) in the same level. So the shelf is not titled .Put part (8) into unit as per diagram. Tilt and rest the adjustable shelf (8) onto the shelf support pins . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.22...
Page 23 Using screw (S) attach Pulley (R,Q) to part (10) ,then using handle bolt (K) secure handle (J) to part (10) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.23...
Page 24 Pick up the door (10), and fit the pulley (R) over the slider rails on the bottom panel (2) ,then place the pulley (Q) into top panel (1) , till it click into pulley (R) as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.24...
Page 28 Wall Using screw (V) attach Velcro strap (U) into Nut (W) to wall with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.28...
Page 29 Step 25 Position the assembled unit at the desired location ,if necessary adjust the floor leveler at the bottom of the support leg to level the unit . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.29...
