Installing the Marquee on top of three games.
Step 2:
Unlock the back covers from the left and
right mounts. Facing the back of the game,
the cabinet to the right will have the mount
that contains all the electronics.
The cabinet to the left will have the mount
with no electronics.
1/2"

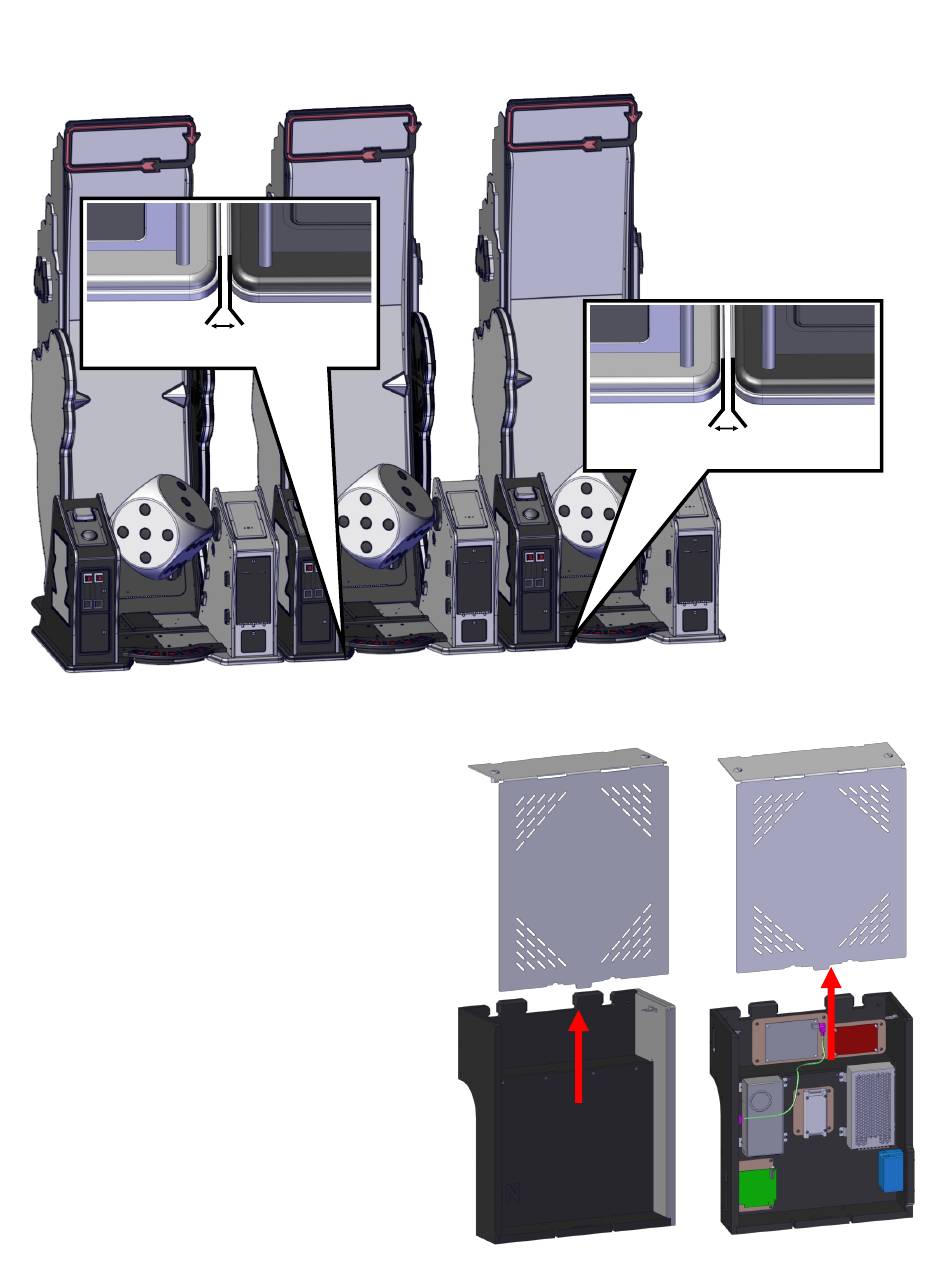

Step 1:
Position the two games leaving
1/2" between them at the front.
1/2"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ice MONOPOLY ROLL-N-GO
Summary of Contents for Ice MONOPOLY ROLL-N-GO
- Page 1 Installing the Marquee on top of three games. Step 1: Position the two games leaving 1/2” between them at the front. 1/2” 1/2” Step 2: Unlock the back covers from the left and right mounts. Facing the back of the game, the cabinet to the right will have the mount that contains all the electronics.
- Page 2 Step 3: Secure the cabinet mounts to the top of the cabinets. Use four AA6220 bolts and AA6070 washers. Make sure the mount with the electronics are on top of the cabinet on the left looking at the front of the game (right if from the back!).
- Page 3 Step 4: Slide the right upper assembly over and onto the mounts as shown. Step 5: Secure it to the mounts using three AA6212 bolts and three AA6281 washers. Attach harnesses shown.
- Page 4 Step 6: Slide the left upper assembly over and onto the mounts as shown. Then secure using three AA6281 bolts and three AA6212 washers. Attach harnesses shown. Step 7: At each side of the center display are the mounting inserts. They are shown within the circles.
- Page 5 Step 8: Secure the display using two AA6281 bolts and AA6212 washers. Location is shown with the yellow circles with arrows. Attach harnesses shown. Step 9: Slide the sign onto the poles.
- Page 6 Step 11: Game 1: Computer connects to the DVI connection on the marquee, not the network line. The other end of that cable should be Display port which connects to the computer in game 1. A network switch is used to connect all the computers together. NOTE: There is a network connec- tion on the marquee.
- Page 7 Step 12: Attach the two wire channel covers. Carefully wire tie all wires and neatly tuck them inside this channel. Secure the wire channel using two bolts and washers. Software settings: The game that you have the display port plugged into, go into game options and set under “system settings”, machine ID =1, Mega Marquee ON.
