YOKOGAWA AQ2170 Operation Manual

1st Edition: October 2012(YMI)
All Rights Reserved, Copyright© 2012,
Yokogawa Meters & Instruments Corporation

Introduction

The AQ2170 series are full featured mini sized and lightweight
optical power meters designed for use with an optical Light source
to perform optical loss measurements on optical fiber cables.
Optical connections to the AQ2170 are made via the universal
adapter interface on the top of the unit.
The instrument has 7 working wavelengths(The AQ2170H is 5
wavelengths) to totally satisfy your needs.
It can be extensively used in telecommunication projects and
other situations where optical power of wavelengths close to
infrared ray needs to be measured.

Features

Small size with light weight, saving power and easy to carry
Unit-shifting automatically, auto-off, power capacity display
on the LCD
Supply with linear and logarithmic optical power display

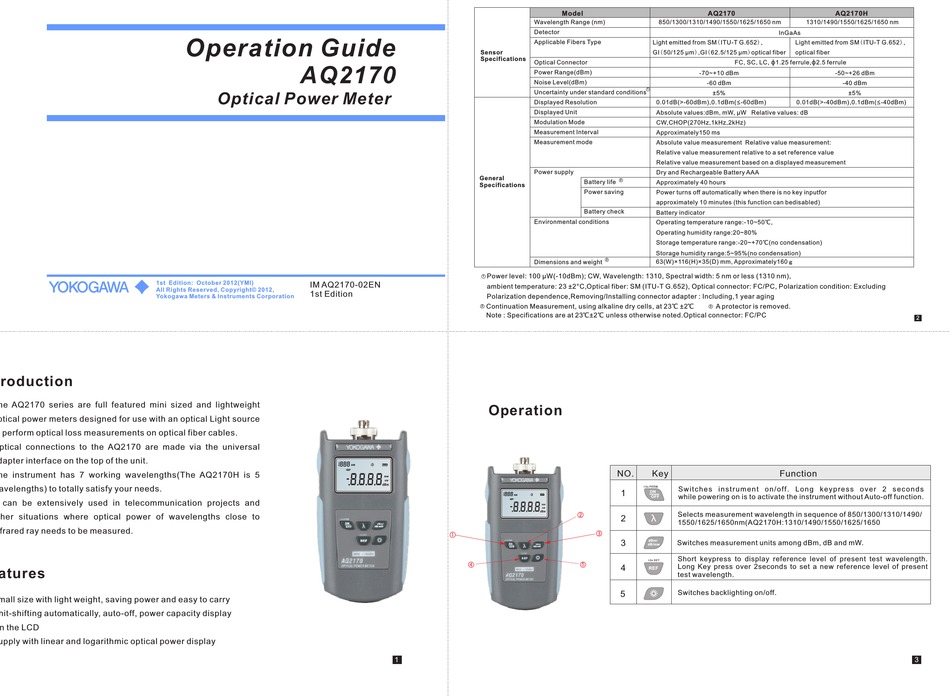

Operation Guide
AQ2170
Optical Power Meter
IM AQ2170-02EN
1st Edition
18 8 8
nm
- REF
.8.8.8.8
Model
Wavelength Range (nm)
Detector
Applicable Fibers Type
Sensor

Specifications

Optical Connector
Power Range(dBm)
Noise Level(dBm)
Uncertainty under standard conditions
Displayed Resolution
Displayed Unit
Modulation Mode
Measurement Interval
Measurement mode
Power supply
General
Battery life
Specifications
Power saving
Battery check
Environmental conditions
Dimensions and weight
Power level: 100 μW(-10dBm); CW, Wavelength: 1310, Spectral width: 5 nm or less (1310 nm),
1
ambient temperature: 23 ±2°C,Optical fiber: SM (ITU-T G.652), Optical connector: FC/PC, Polarization condition: Excluding
Polarization dependence,Removing/Installing connector adapter : Including,1 year aging
Continuation Measurement, using alkaline dry cells, at 23
2
℃
Note : Specifications are at 23 ±2

Operation

18 8 8
nm
- REF
.8.8.8.8
5
1
AQ2170
850/1300/1310/1490/1550/1625/1650 nm
InGaAs
Light emitted from SM( ITU-T G.652) ,
GI( 50/125 µm) ,GI(62.5/125 µm) optical fiber
FC, SC, LC, ϕ1.25 ferrule,ϕ2.5 ferrule
-70~+10 dBm
-60 dBm
1
±5%
0.01dB(>-60dBm),0.1dBm(≤-60dBm)
Absolute values:dBm, mW, µW Relative values: dB
CW,CHOP(270Hz,1kHz,2kHz)
Approximately150 ms
Absolute value measurement Relative value measurement:
Relative value measurement relative to a set reference value
Relative value measurement based on a displayed measurement
Dry and Rechargeable Battery AAA
2
Approximately 40 hours
Power turns off automatically when there is no key inputfor
approximately 10 minutes (this function can bedisabled)
Battery indicator
Operating temperature range:-10~50℃,
Operating humidity range:20~80%
Storage temperature range:-20~+70℃(no condensation)
Storage humidity range:5~95%(no condensation)
3 63(W)×116(H)×35(D) mm, Approximately160ｇ
℃ ±2 ℃ A protector is removed.
3
℃
unless otherwise noted.Optical connector: FC/PC
NO. Key Function
>2s PERM
S w i t c h e s i n s t r u m e n t o n / o ff . L o n g k e y p r e s s o v e r 2 s e c o n d s
1
ON
while powering on is to activate the instrument without Auto-off function.
OFF
Selects measurement wavelength in sequence of 850/1300/1310/1490/
2
1550/1625/1650nm(AQ2170H:1310/1490/1550/1625/1650
3 dBm/
Switches measurement units among dBm, dB and mW.
dB/mw
Short keypress to display reference level of present test wavelength.
>2s SET
4 Long Key press over 2seconds to set a new reference level of present
REF
test wavelength.
Switches backlighting on/off.
5
AQ2170H
1310/1490/1550/1625/1650 nm
Light emitted from SM( ITU-T G.652) ,
optical fiber
-50~+26 dBm
-40 dBm
±5%
0.01dB(>-40dBm),0.1dBm(≤-40dBm)
2
3
