Ultrapro
Maintenance and Troubleshooting Guide

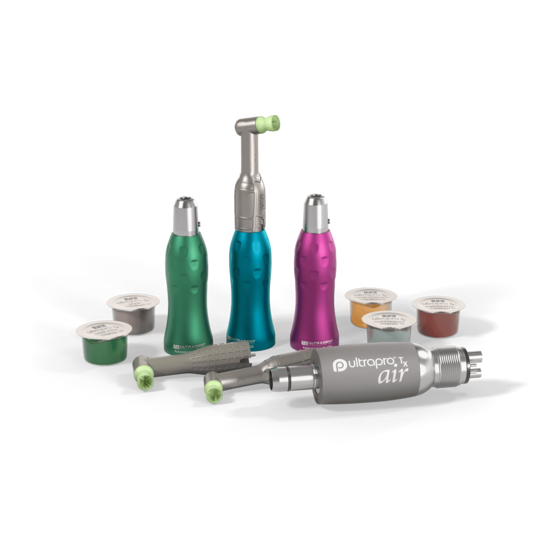

Thank you for choosing the Ultrapro Tx Air Hygiene Handpiece from Ultradent
When properly cared for, your motor will provide years of quality service. Please follow these guidelines to ensure proper functioning over
the life of your equipment.
Oil and Lubrication
Lubrication of the motor and nose cone is necessary to keep all the moving parts running properly. Oil also helps flush debris out of the
motor, helping to prevent buildup or wear and tear.
Lubricating Motor
OIL
Lubricating Motor
Lubricating Nosecone
OIL
Lubricating Nosecone
*For complete sterilization and maintenance instructions, please refer to the product IFU.
Preventing Buildup
Motors coated with debris may not work consistently or may lose power when pressure is applied to the motor.
To prevent debris inside the motor:
1.
Have your air compressor serviced regularly
2.
Clean or replace air hoses regularly
Always check that your compressed air is filtered, dry, and free of oil.
© 2018 Ultradent Products, Inc. All Rights Reserved. 062918
Tx Air Handpiece
®
OIL
Figure 1
OIL
OIL
OIL
Figure 1
Figure 2
OIL
Figure 2
OIL
Figure 1

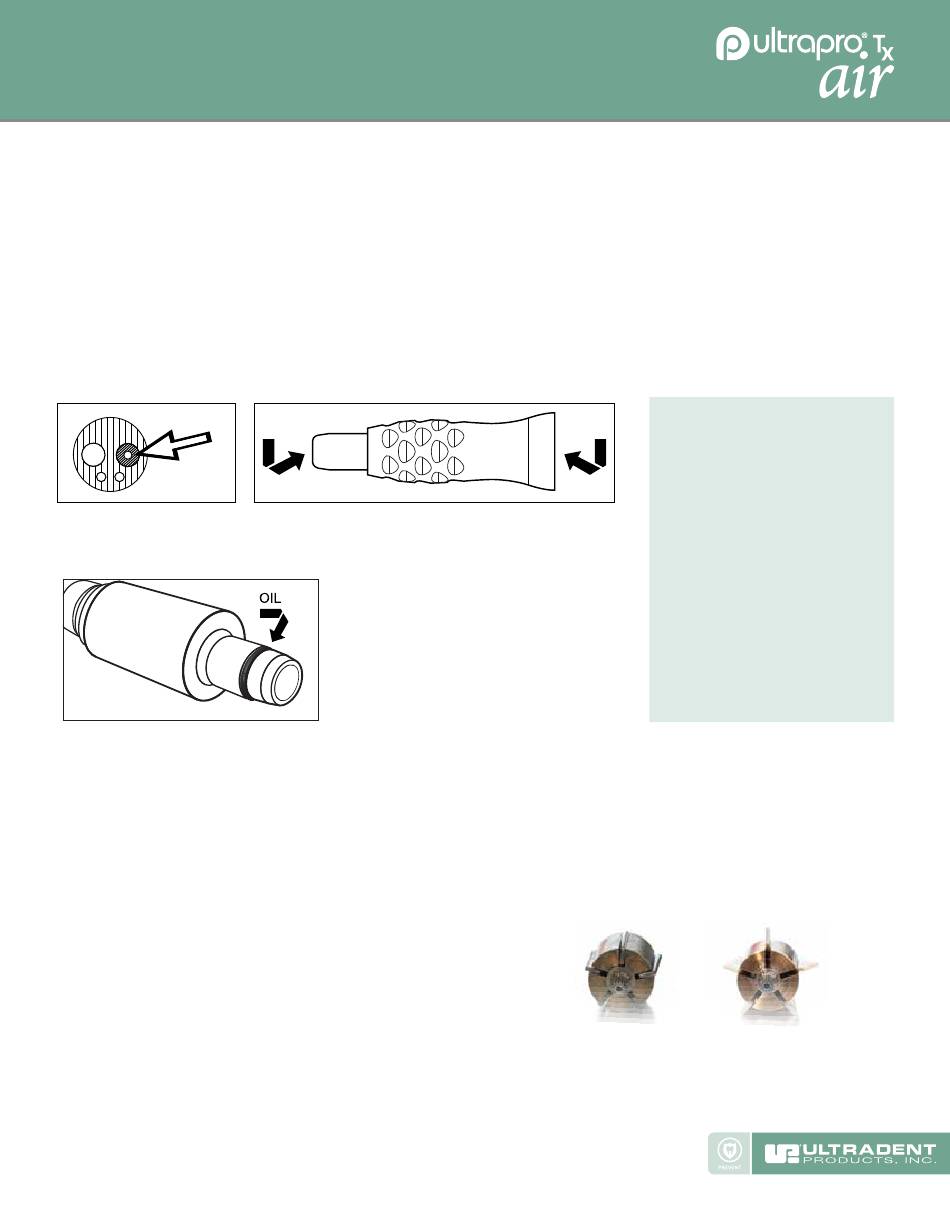

Lubricating Motor
Figure 2
Lubricating Nosecone
Poorly maintained motor
OIL
After sterilizing, place two drops
of handpiece oil into the motor
air tube (Fig. 1) and 1–2 drops
of oil into both ends of the
nosecone (Fig. 2). To properly
disperse the oil, run the motor
for several seconds.
Apply one drop of oil to the O-ring
once per week to keep the nose
cone swivelling smoothly.
Well-maintained motor
800.552.5512
U LT R A D E N T. C O M
