Ultradent Products UltraVac Manual

UltraVac
Vacuum Former

General Use Procedure:

. Insert selected sheet resin material into the clamping frame. The S or screw-handle clamps allow adjustment of the frame according to the thickness of the
1
material used. For most materials, spray model and plate with Ultrasep
2. Place model or cast on vacuum plate. Instructions for various applications are outlined below.
3. Slide clamping frame upward until it locks into position. Turn main switch on. Allow appropriate time (usually 2-4 minutes) for the material to heat sufficiently
to achieve optimal sag for vacuum forming. We recommend approximately 2.5 inches (6.5cm) for the 0.035" Sof-Tray
materials are heated until they sag 0.5-1 inch. Milky, semi-transparent coping material should be formed when it becomes clear and barely begins to sag.
Experience helps in knowing optimum point of sag for the various plastic materials used. Thinner materials such as coping, splint, and 0.040" mouthguards
do not require the same amount of sag as thicker materials (see individual material instructions below).
4. When the desired sag has been achieved, lower the clamping frame over the model. Activate the vacuum. A smooth, controlled lowering is recommended for
thin materials.
5. Run vacuum motor for 10-20 seconds for thin plastics and 20-40 seconds for thick materials to ensure adaptation. Turn off main switch. Allow material
to cool until it is comfortable enough to handle.

Miscellaneous Application Procedures:

A. Opalescence Tooth Whitening Appliances:
®
1. The stone model should be carefully trimmed through the palate (Fig. 2).
Proper trimming will prevent rocking or movement of the model on the
plate. Trim the base as close as possible to 90° to the average long axis of
the teeth to minimize undercuts that may potentiate folds in the plastic
upon forming. After model is dry, apply and cure Ultradent
Resin to create reservoirs.
2. Insert a 0.035" Sof-Tray sheet into the plastic clamping frame. Sof-Tray
sheets are ideal since they are thin, tough and soft. Lock the Sof-Tray sheet
into position using the S or single-handle clamps.
3. Place stone model on vacuum plate. Although not mandatory, spraying
model and plate with a layer Ultrasep III (silicone) will aid in separating the
model from the form. Slide the clamping frame all the way up to the locked
position and the turn switch on. The heating element will activate and begin
to soften the Sof-Tray sheet. Allow 2-3 minutes to achieve optimum sag
(~2.5 inches or 6.5cm, Fig. 3). This amount of heating facilitates a thinner
bleaching tray.
4. When the material has sagged enough, lower the plastic clamping frame over
the model in a smooth, controlled manner. Maintain vacuum for 10-20
seconds.
Description & Indications
The UltraVac vacuum former is a light-weight version of the Ultra-Form. The UltraVac utilizes a single, three-
™
position toggle switch operation system that activates the unit's heating element and vacuum pump and also
turns the unit off. An indicator light on the UltraVac's base warns the operator when the heating element is
activated and ready for operation.
Operating Instructions (Read before operating):
Prior to plugging in the UltraVac become familiar with the unit's features and operating functions. It is equipped
with non-stick vacuum plates and smooth-glide clamping frame systems (Fig. 1).
™
1. Before operation, make sure the clamping frame opens, closes and locks easily into place using the
screw-handle clamp. Attach the two black handles into the clamping frame. Check the slide operation by
moving the clamping frame into the up, Heat position.
2. Plug the unit into a standard grounded outlet (U.S., 10 amps, 120 volts; Europe, 5 amps, 240 volts).
3. Place the switch in the Heat position. Make sure heating element activates and the indicator light
activates. Rotate heating element hood to either side before placing plastic tray sheet in clamping frame.
Next, move the toggle switch to the Vacuum position to ensure that the vacuum pump functions properly.
Note: Smoking from the heating element may occur with the first use due to oil on the heating element. If the
UltraVac unit does not function properly, call 1-800-552-5512 (in the U.S.) or your respective distributor
(outside the U.S.) for assistance. Your vacuum former is now ready for use. Please read the following instructions
before operating.
Important Note: Never leave the Ultra-Form or UltraVac unit unattended when on. DO NOT attempt to deactivate or
alter product safety features. The unit could be damaged and/or cause fire if unattended while heating element is on.
Operate in a clean, uncluttered area. Keep all combustibles away from unit. Use caution as heating element hood
becomes hot, especially after repeated use.
LC Block-Out
®
:
III silicone lubricant.
™

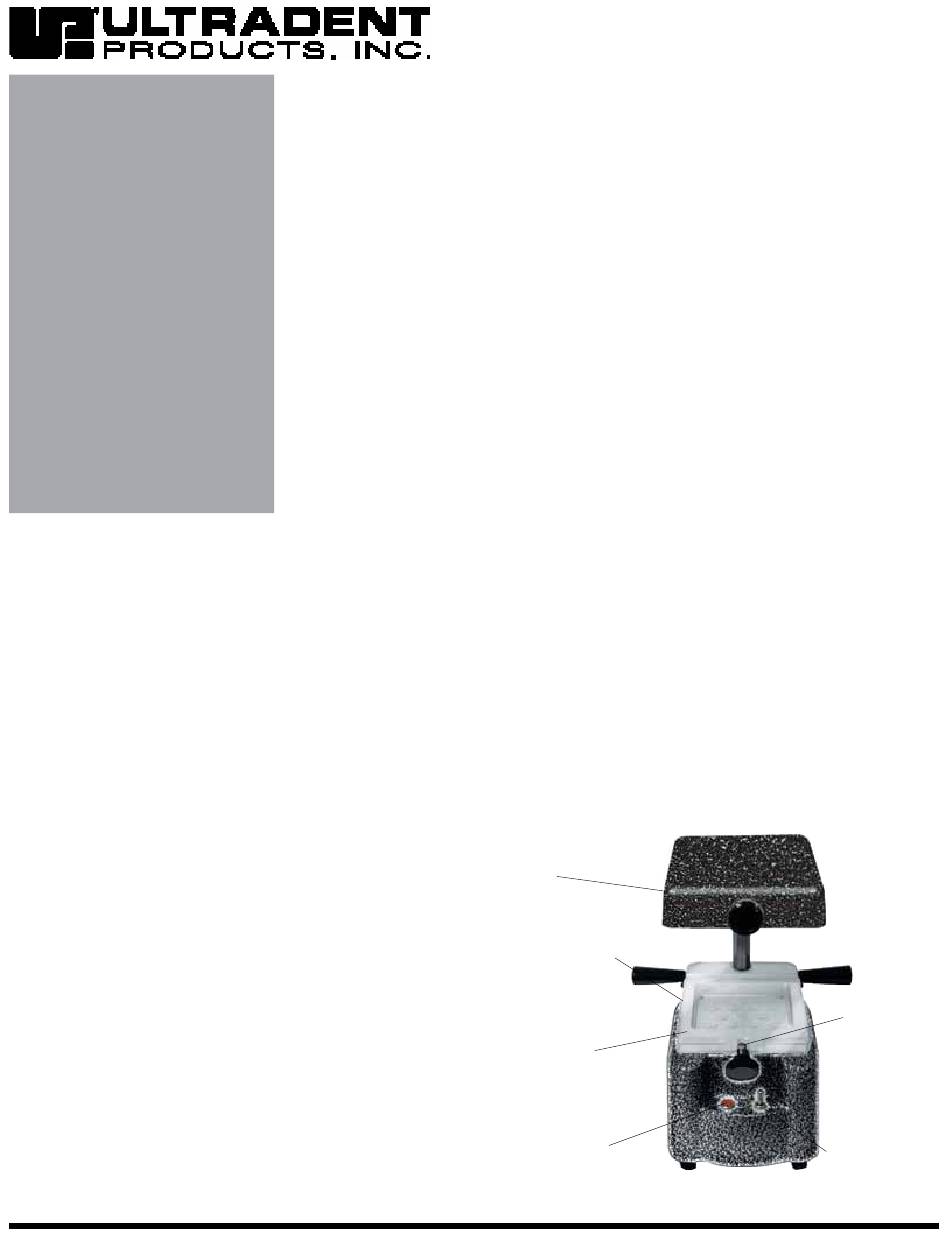

Heating element
hood
Clamping frame
Vacuum plate
Heating element
indicator light
bleaching material (Fig. 3). Most other
®
Screw-handle
clamp
Heating element
and Vacuum
On-Off switch
Fig. 1
