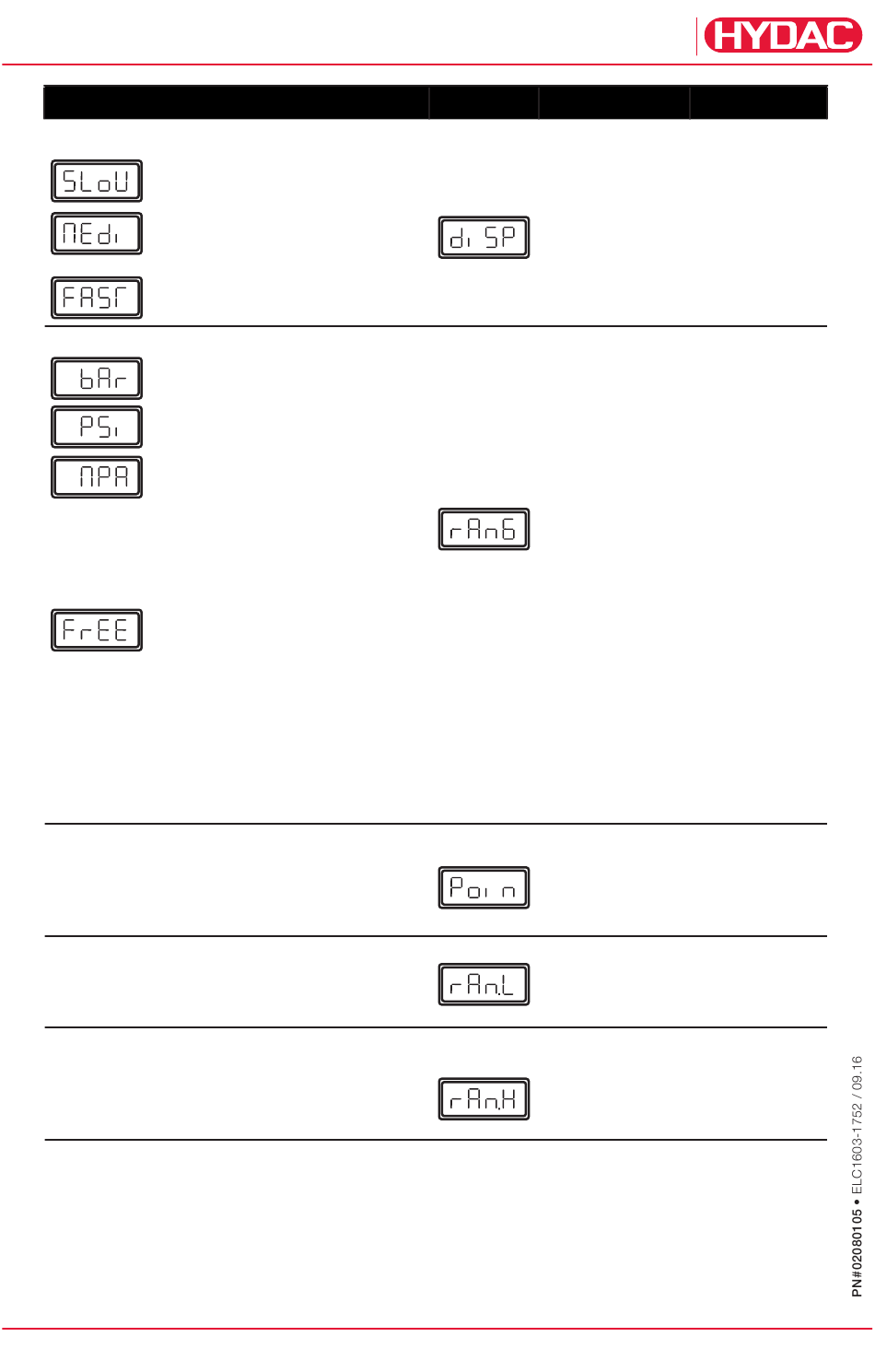

Setting
Display
Display reacts slowly to
pressure variations
Display reacts at standard rate
to pressure variations
Display reacts quickly to
pressure variation
Pressure Range Scale
Pressure in Bar.
Pressure in PSI
Pressure in MPa
When shifting between bar, PSI, MPa, the
EDS 3000 changes all switching points
adjustments into chosen unit automatically.
The normal range can be
scaled freely. If this adjustment
is selected, the decimal place
as well as upper and lower
range limits must be adjusted.
Example: If the range has been changed to
0 to 215.5, the display value 215.5 corre-
sponds to the maximum pressure capable
of being measured by the EDS. Application:
Display other scales like KN, Kg, etc.
Decimal Place
(only in "rang"= "free" setting)
No. of decimal places, that the EDS 3000
displays
Low Range
(only in "rang"= "free" setting)
Lower display range limit
High Range
(only in "rang"= "free" setting)
upper display range limit
ELECTRONICS
Display Setting Range
SLOW /
MEDI /
FAST
BAR /
PSI /
MPa /
FREE
0.00 to 0.000
0.00 to 99.99s
-999 to 9899
EDS 3000 Operating Manual
Pre-Setting
MEDI
PSI
0.0
0
Measure
range final
