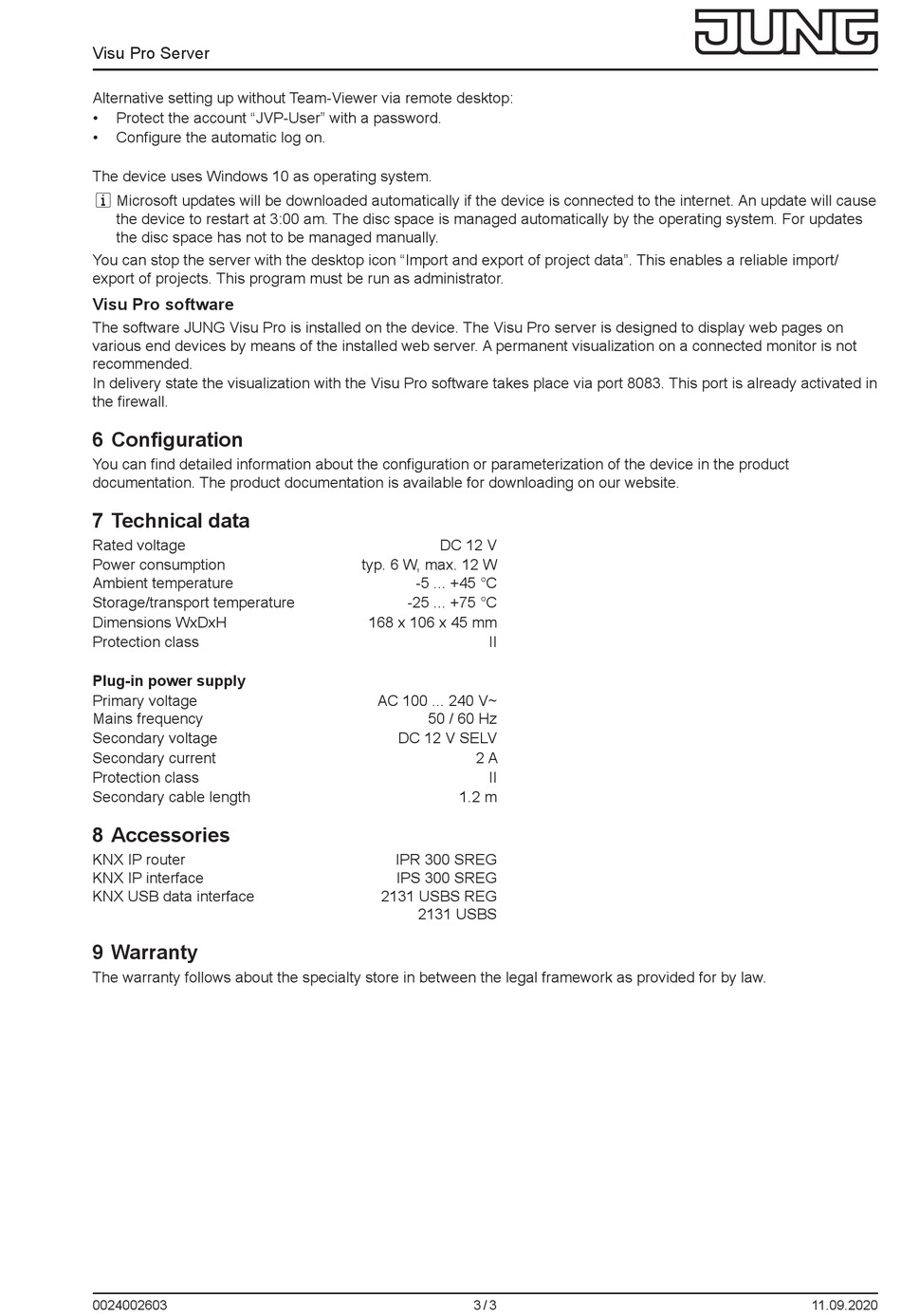

Visu Pro Server
Alternative setting up without Team‑Viewer via remote desktop:
Protect the account "JVP‑User" with a password.
Configure the automatic log on.
The device uses Windows 10 as operating system.
i Microsoft updates will be downloaded automatically if the device is connected to the internet. An update will cause
the device to restart at 3:00 am. The disc space is managed automatically by the operating system. For updates
the disc space has not to be managed manually.
You can stop the server with the desktop icon "Import and export of project data". This enables a reliable import/
export of projects. This program must be run as administrator.
Visu Pro software
The software JUNG Visu Pro is installed on the device. The Visu Pro server is designed to display web pages on
various end devices by means of the installed web server. A permanent visualization on a connected monitor is not
recommended.
In delivery state the visualization with the Visu Pro software takes place via port 8083. This port is already activated in
the firewall.

6 Configuration

You can find detailed information about the configuration or parameterization of the device in the product
documentation. The product documentation is available for downloading on our website.

7 Technical data

Rated voltage
Power consumption
Ambient temperature
Storage/transport temperature
Dimensions WxDxH
Protection class
Plug-in power supply
Primary voltage
Mains frequency
Secondary voltage
Secondary current
Protection class
Secondary cable length

8 Accessories

KNX IP router
KNX IP interface
KNX USB data interface

9 Warranty

The warranty follows about the specialty store in between the legal framework as provided for by law.
0024002603
DC 12 V
typ. 6 W, max. 12 W
‑5 ... +45 °C
‑25 ... +75 °C
168 x 106 x 45 mm
II
AC 100 ... 240 V~
50 / 60 Hz
DC 12 V SELV
2 A
II
1.2 m
IPR 300 SREG
IPS 300 SREG
2131 USBS REG
2131 USBS
3 / 3
11.09.2020
