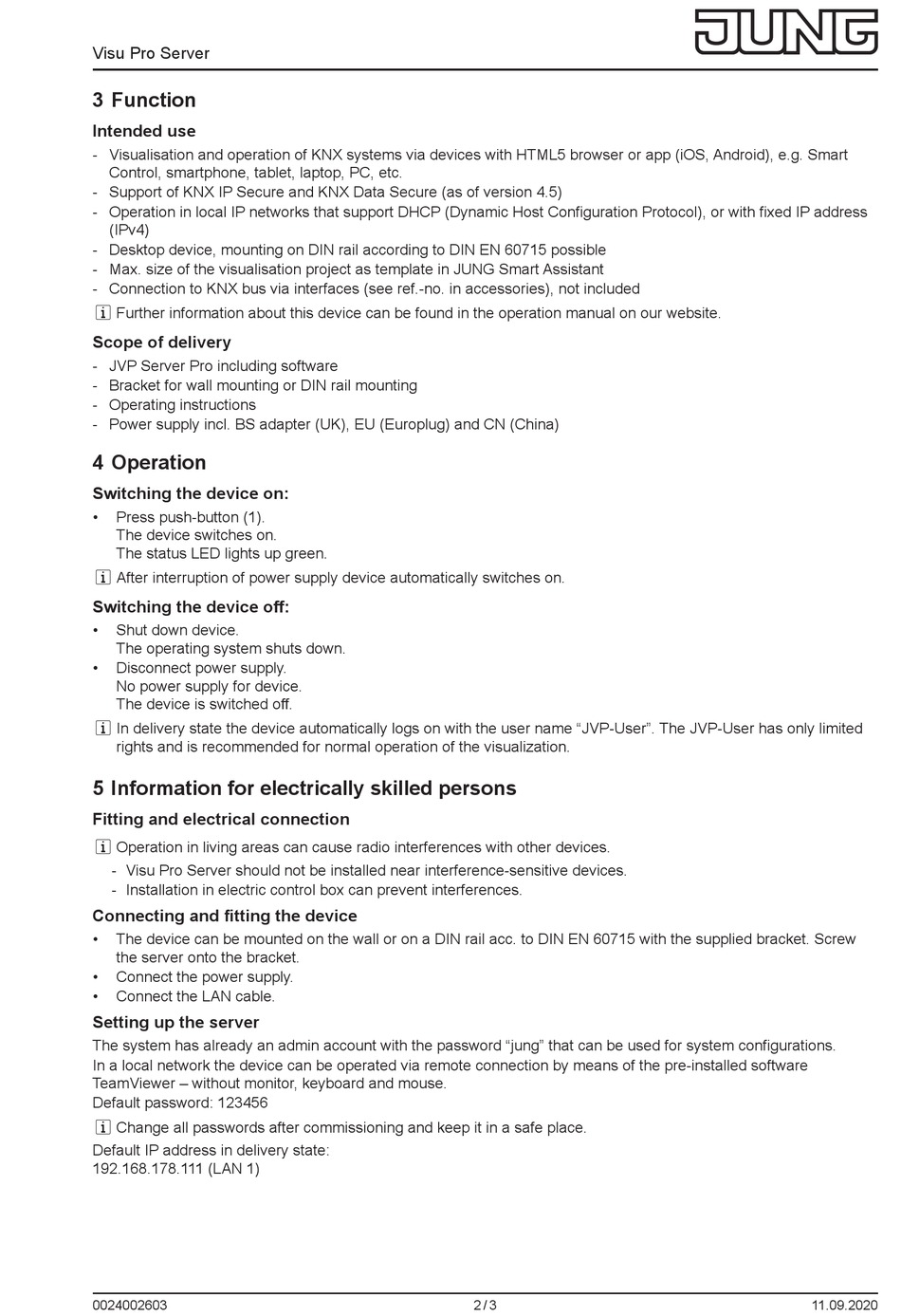

Visu Pro Server

3 Function

Intended use
- Visualisation and operation of KNX systems via devices with HTML5 browser or app (iOS, Android), e.g. Smart
Control, smartphone, tablet, laptop, PC, etc.
- Support of KNX IP Secure and KNX Data Secure (as of version 4.5)
- Operation in local IP networks that support DHCP (Dynamic Host Configuration Protocol), or with fixed IP address
(IPv4)
- Desktop device, mounting on DIN rail according to DIN EN 60715 possible
- Max. size of the visualisation project as template in JUNG Smart Assistant
- Connection to KNX bus via interfaces (see ref.‑no. in accessories), not included
i Further information about this device can be found in the operation manual on our website.

Scope of delivery

- JVP Server Pro including software
- Bracket for wall mounting or DIN rail mounting
- Operating instructions
- Power supply incl. BS adapter (UK), EU (Europlug) and CN (China)

4 Operation

Switching the device on:
Press push‑button (1).
The device switches on.
The status LED lights up green.
i After interruption of power supply device automatically switches on.
Switching the device off:
Shut down device.
The operating system shuts down.
Disconnect power supply.
No power supply for device.
The device is switched off.
i In delivery state the device automatically logs on with the user name "JVP‑User". The JVP‑User has only limited
rights and is recommended for normal operation of the visualization.

5 Information for electrically skilled persons

Fitting and electrical connection
i Operation in living areas can cause radio interferences with other devices.
- Visu Pro Server should not be installed near interference‑sensitive devices.
- Installation in electric control box can prevent interferences.
Connecting and fitting the device
The device can be mounted on the wall or on a DIN rail acc. to DIN EN 60715 with the supplied bracket. Screw
the server onto the bracket.
Connect the power supply.
Connect the LAN cable.

Setting up the server

The system has already an admin account with the password "jung" that can be used for system configurations.
In a local network the device can be operated via remote connection by means of the pre‑installed software
TeamViewer – without monitor, keyboard and mouse.
Default password: 123456
i Change all passwords after commissioning and keep it in a safe place.
Default IP address in delivery state:
192.168.178.111 (LAN 1)
0024002603
2 / 3
11.09.2020
