ARRI LMB 6x6 User Manual

ARRI LMB 6x6 User Manual

Lightweight matte box

Advertisement

Quick Links

Lightweight Matte Box
LMB 6x6
U S E R
G U I D E
Date: September 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMB 6x6 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARRI LMB 6x6

  • Page 1 Lightweight Matte Box LMB 6x6 U S E R G U I D E Date: September 2018...
  • Page 2 No parts of this document may be reproduced without prior written consent of Arnold & Richter Cine Technik GmbH & Co. Betriebs KG. Specifications are subject to change without notice. Errors, omissions, and modifications excepted. ARRI, ALEXA, AMIRA, LDS and LENS DATA SYSTEM are trademarks or registered trademarks of Arnold &...
  • Page 3: Table Of Contents

    LMB 19 mm Studio Rod Adapter...............16 LMB 15 mm Studio Rod Adapter...............16 3.10 Tray Catcher .....................17 3.11 LMB 6x6 Swing Away Tilt Module (19 mm / 15 mm) .........18 3.12 LMB Accessory Adapter ................21 3.13 LMB 6x6 Top, Bottom Flag ................23 3.14...
  • Page 4: Introduction

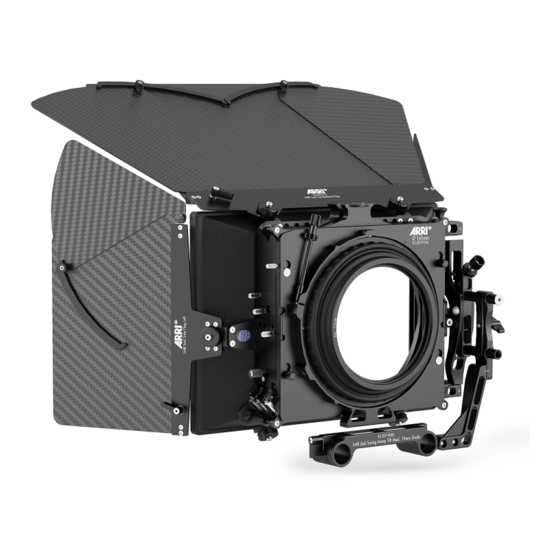

    The LMB 6x6 is designed for maximum modularity at a minimum weight, and can be fitted without the use of tools. Optimized for up to three 6.6 x 6.6 inch filters, the LMB 6x6 can be used with 15 mm and 19 mm studio rod support.
  • Page 5: Lmb 6X6 Overview

    Overview LMB 6 x 6 Overview...
  • Page 6 Overview LMB 6x6 Swing Away Tilt Mod. Page 19 mm Studio Product Number K2.0019083 LMB 6x6 Swing Away Tilt Mod. Page 15 mm Studio Product Number K2.0019895 LMB 19 mm Studio Rod Adapter Page Product Number K2.0013432 LMB 15 mm Studio Rod Adapter Page Product Number K2.0013440...
  • Page 7 LMB 6x6 Top, Bottom Flag Page Product Number K2.0019178 LMB Accessory Adapter Page Product Number K2.0013014 LMB 6x6 Set of Mattes spherical Page Product Number K2.0019253 LMB 6x6 Set of Mattes anamorphic Page Product Number K2.0019258 LMB 6x6 Clamp Adapter 143 mm Page Product Number K2.0019275...
  • Page 8: Instructions

    Instructions Instructions Clamp Adapter The LMB 6x6 matte box adapts to various lens diameters via a series of interchangeable clamp adapters and the Tilt and Flex Adapter. To fit a clamp adapter: • Open the grey screws at the left and the right side to unlock the clamp device (Fig. 1).
  • Page 9: Lmb 6X6 Clamp Adapter 143 Mm

    Instructions LMB 6x6 Clamp Adapter 143 mm Works with ARRI standard R2 rings when either the LMB 15 mm or 19 mm Studio Rod Adapter is attached at the bottom of the LMB 6x6 Clamp Adapter 143 mm. LMB 6x6 Clamp Adapter 165 mm Works with ARRI standard R1 rings when either the LMB 15 mm or 19 mm Studio Rod Adapter is attached at the bottom of the LMB 6x6 Clamp Adapter 165 mm.
  • Page 10: Lmb 6X6 Tilt And Flex Adapter 80-156 Mm

    80 mm to less than 156 mm. It works perfectly with lenses where lens elements are extending and can compensate the tilting angle when using the Swing Away Tilt Modules from the LMB 6x6. An interface for both LMB 15 mm and LMB 19 mm Studio Rod Adapters is integrated at the bottom.
  • Page 11 The Black Hole Donut is optimized for lenses with diameters between 95 and 136 mm. Be sure that the Adapter fits perfectly on the lens. Please take care that no pointed or sharp objects come into contact with the LMB 6x6 Tilt and Flex Adapter.
  • Page 12: Lmb 6X6 Extra Non-Rotatable Filter Stage

    Tilt and Flex Adapter. Each filter frame is secured with an extra tray catcher which holds them perfectly in place. To attach the LMB 6x6 Extra Non-Rotatable Filter Stage • Before fitting the filter stage remove the rear clamp adapter.
  • Page 13: Lmb 6X6 Extra Rotatable Filter Stage

    Instructions LMB 6x6 Extra Rotatable Filter Stage The Extra Rotatable Filter Stage gives the possibility to rotate an additional 6.6 inch x 6.6 inch filter 360°. It attaches to the basic module by sliding to the rear and fixed by two thumb screws without the need for any tools.
  • Page 14 Instructions How to use • Insert a filter frame from the top of the matte box into the filter stage (Fig. 1). • Rotate the filter stage to the required angle (Fig. 2). • Fix the position with the metallic screw at the left side of the Extra Rotatable Filter Stage (Fig.
  • Page 15: Filter Frame 6.6 X 6.6 Inch

    Two filter frames are typically inserted from the top of the matte box with the clamp adapter fitted. • If a third filter frame is needed, add a LMB 6x6 Extra Non-Rotatable Filter Stage (please see description 3.5) or a LMB 6x6 Extra Rotatable Filter Stage (please see description 3.6).
  • Page 16: Lmb 19 Mm Studio Rod Adapter

    Tool-less screw in 19 mm studio support adapter to fix the Matte Box to 19 mm studio rods. Compatible with LMB 6x6 Clamp Adapter 165 mm, LMB 6x6 Clamp Adapter 143 mm and LMB 6x6 Tilt and Flex Adapter 80-156 mm.
  • Page 17: Tray Catcher

    Instructions 3.10 Tray Catcher Each filter frame is secured with its own Tray Catcher holding them perfectly in place. Two Tray Catchers are included in the basic module on the left side of the filter stage guide. The Extra Non Rotatable Filter Stage and the Extra Rotatable Filter Stage do have their own Tray Catcher.
  • Page 18: Lmb 6X6 Swing Away Tilt Module (19 Mm / 15 Mm)

    Instructions 3.11 LMB 6x6 Swing Away Tilt Module (19 mm / 15 mm) This module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module that allows 10° up and down adjustments to avoid unwanted reflections.
  • Page 19 Instructions Vertical adjustment • Unlock the two 3 mm hex screws at the front of the tilt module. • Adjust the matte box into the desired positioning. • Mark the position with the two screws. • Use the marker if you want to go back to the original position. Fig.
  • Page 20 Instructions Swing Away • Loosen the Tilt and Flex Adapter or remove the lens rubber ring from the lens. Alternatively, extend the matte box with the extension module. • Pull the release plunger while opening the matte box to the right of the camera until it locks automatically (Fig.
  • Page 21: Lmb Accessory Adapter

    Instructions 3.12 LMB Accessory Adapter For 3/8” accessories, such as ultrasonic devices, with an additional sliding capability for perfect positioning. Mounting the Accessory Adapter • Remove all filter frames (Fig. 1). • Place the Accessory Adapter on top of the matte box (Fig. 2). •...
  • Page 22 Instructions How to use • Unlock the 3/8“ mount lock (Fig. 1). • Slide the mount to the desired position (Fig. 2). • Lock the 3/8“ mount lock (Fig. 3). Fig. 1 Fig. 2 Fig. 3 NOTICE The LMB Accessory Adapter is not designed to mount heavy or carrying accessories.
  • Page 23: Lmb 6X6 Top, Bottom Flag

    The carbon fiber Top, Bottom Flag including two extendable wings to prevent possible image quality loss caused by stray light. It can be fitted to the top or at the bottom of the LMB 6x6 Basic Module and will cover the opening of the sunshade 100% for best protection during a break.
  • Page 24: Lmb 6X6 Side Flags

    Instructions 3.14 LMB 6x6 Side Flags Mounting the side flags • Open the Flag Holders slightly until a gap of around 4 mm is visible. • Connect the side flag cut-outs to the Flag Holder. • To mount: Lock the side flag in place by fastening the Flag Holder nut.
  • Page 25: Bottom Flag Holders

    LMB 6x6 Set of Mattes (spherical / anamorphic) A set of 5 hard mattes with different spherical or anamorphic openings that can be clicked into the sunshade of the LMB 6x6 to prevent image quality loss caused by stray light. •...
  • Page 26: Backplate With Filter Guides

    The sunshade can be removed easily on set for special applications such as macro work, helicopter shots, or when a specific effect is desired. It can be mounted directly to the LMB 6x6 Extra Non Rotatable Filter Stage for a very lightweight solution. •...
  • Page 27: Configurations

    Configurations C onfigurations 4.1 Filter Configurations 1-Filter Stage Ultra-lightweight configuration for gimbals, drones, and stabilizer by using the rotatable or non-rotatable filter stage with a clamp adapter 2-Filter Stage Basic For two filters. All non rotatable 3-Filter Stage Non-Rotatable For three filters. All non rotoatable 3-Filter Stage Rotatable For three filters.
  • Page 28: Buy Sets & Parts

    LMB 6x6 Basic Module K2.0019218 The basic module is the starting point for the modular LMB 6x6 matte box. By just adding a clamp adapter it offers a clip-on version which can be extended by adding other LMB 6x6 parts.
  • Page 29 Buy Sets & Parts LMB 6x6 19 mm Studio 3-Stage Set KK.0020234 The LMB 6x6 19 mm Studio 3-Stage Set comes with all the components included in the LMB 6x6 Clamp-On Set, with an additional mounting for 19 mm studio rods, and a flexible rubber “donut”...
  • Page 30 Buy Sets & Parts LMB 6x6 Pro 15 mm Studio Set KK.0020235 The LMB 6x6 15 mm Studio 3-Stage Set includes all the components of the modular LMB 6x6. It includes mounting options for clamping-on, and for 15 mm rods.
  • Page 31: Inlay For Peli Case 1637

    LMB 6x6 Extra Non-Rotatable Filter Stage LMB 6x6 Side Flags LMB Accessory Adapter LMB 6x6 Top Bottom Flag Clamp Adapters Free space for 6.6x6.6 filters LMB 6x6 Swing Away Tilt Module LMB 6x6 Extra Rotatable Filter Stage 10. LMB Studio Rod Adapter...
  • Page 32: Top

    Inlay for Peli Case 1637 Set of anamorphic Mattes Set of spherical Mattes...
  • Page 33: Legal Disclaimer

    Disclaimer Legal Disclaimer © 2017 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG (“ARRI”). All rights reserved. This specification is provided “as is” and without any warranty of any kind, expressed or implied. Without limitation, there is no warranty of non-infringement, no warranty of merchantability, and no warranty of fitness for a particular purpose.
  • Page 34: Service Contacts

    Business hours: Business hours: Mo. - Fr. 8:00 - 18:00 (AEST) Mo. - Fr. 9:00 - 18:00 (CET) ARRI CT France Sarl ARRI Inc. / West Coast & Mexico (Sales) (Sales & Service) 54, Rue René Boulanger 600 North Victory Blvd.
