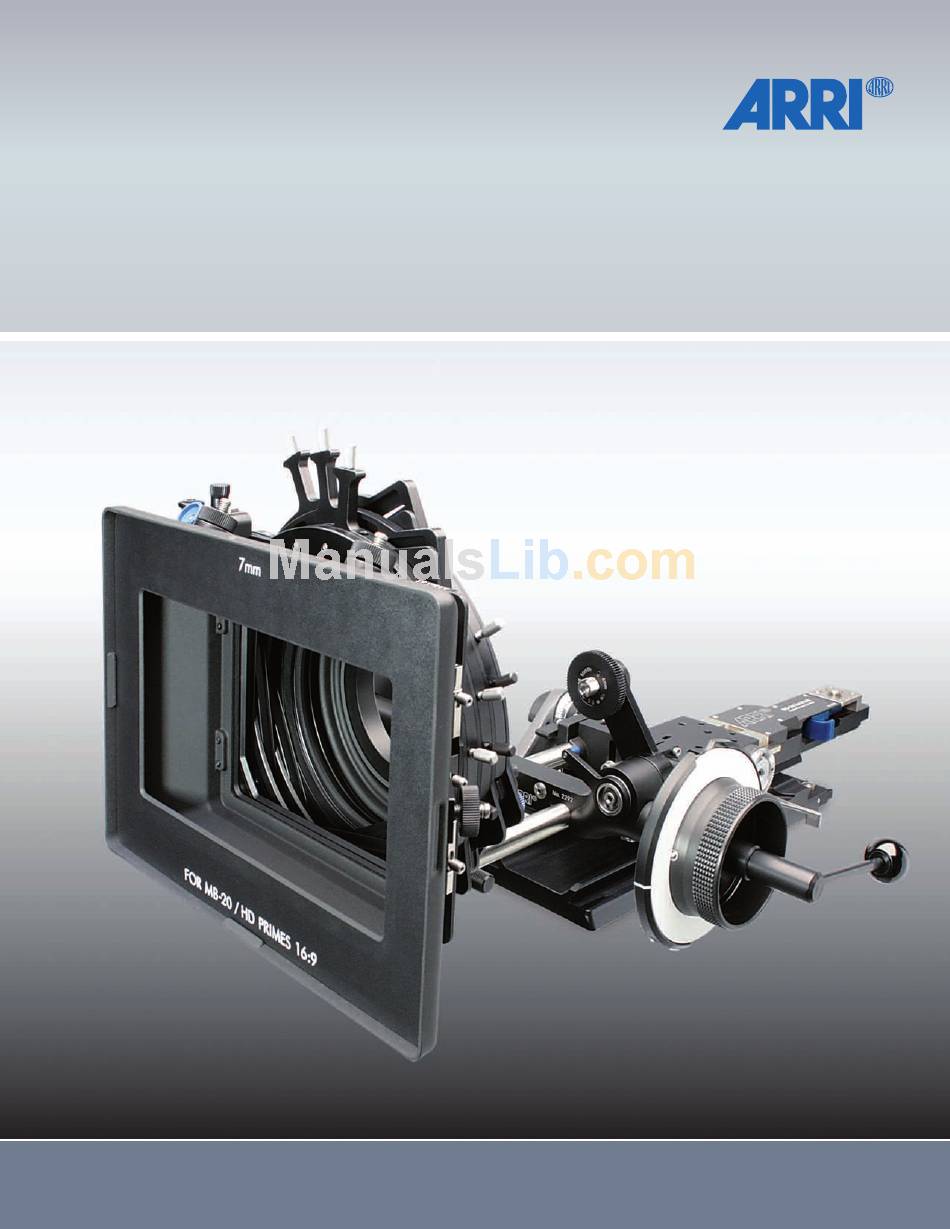

- Page 1 Professional Camera Accessories ARRI Quality for Digital Applications...
- Page 2 MB-20 MATTEBOX Compact precision light control and swing-away lens access.
- Page 3 Modern digital production requires high quality film style accessories to help capture the striking images photographed by today’s creatives. Equally at home on digital or film cameras, ARRI’s new Mattebox and Follow Focus Systems provide the highest quality and unprecedented flexibility. ARRI’s worldwide support means that spare parts, service and technical information are always available.
- Page 4 Follow Focus FF-5HD Quick Release HD Baseplate QR-HD1...
- Page 5 ARRI’s QR-HD1 makes transitions fast and easy. The bridgeplate adapts to either ARRI Standard 19 mm or 15 mm rods. The Quick Release ARRI | PROFESSIONAL CAMERA ACCESSORIES for a wide range of video lenses.
-
Page 6: System Features
CLAMP-ON MATTEBOX MB-20 Modular Compact Matte Box ARRI’s MB-20 System is the most flexible, compact mattebox available. The system accepts virtually all professional lenses including the Canon 4.7 x 11 and Fujinon 4.5 x 13, HD Primes, and film format prime lenses as wide as 14 mm. - Page 7 Whether the script calls for a traditional studio setup, handheld move or Steadicam shot, the ARRI MB-20 system adapts to each scenario without a hitch. use with 4 x 5.65 filters. When used in HDTV format, it is compatible with lenses as wide as 3.9 mm.
- Page 8 The FF5-HD integral snap-on mechanism locks to 15mm lightweight support rods and can be adapted to work with ARRI Standard 15 mm or 19 mm bridgeplate support rods. ARRI Follow Focus drive gears can be attached to either side of the swing arm, allowing greater mounting flexibility.
- Page 9 As with the QR-HD1, the ULB-3 incorporates a centering adjustment system to compensate for variations in camera base to optical axis measurement. * For compatibility with other cameras please contact your ARRI representative. | PROFESSIONAL CAMERA ACCESSORIES UNIVERSAL LIGHTWEIGHT BRACKET...
- Page 10 Configuration Overview 5.65 x 5.65 MATTEBOX MB-20 NOTE ON CATALOG NUMBERS: KX.XXXXX.X FOR CUSTOMERS IN EUROPE AND ASIA LIGHT PROTECTION TOP FLAG K2.66019.0 338676 BOTTOM FLAG K2.66019.0 338676 SIDE FLAG (PAIR) K2.65056.0 338222 TOP FLAG K2.47740.0 338221 BOTTOM FLAG K2.47740.0 338221 SIDE FLAG (PAIR) K0.60029.0 338223...
- Page 11 CONNECTION RING 114-105 K2.65096.0 338247 (ø 105 mm)-VA105 CONNECTION RING 114-110 K2.65045.0 338242 (ø 110 mm)-VA110 ARRI | PROFESSIONAL CAMERA ACCESSORIES 4 1/2" FILTER RINGS 4 1/2" (114 mm) FILTER RING K2.49109.0 333064 (ø 87 mm)-R CONNECTION RING 100-80 K2.47226.0 333065 (ø...
- Page 12 Configuration Overview LIGHTWEIGHT MATTEBOX LMB-15 NOTE ON CATALOG NUMBERS: KX.XXXXX.X FOR CUSTOMERS IN EUROPE AND ASIA LMB-15 FOR 4 x 5.65 AND 4 x 4 FILTERS SET-LMB-15 K0.60047.0 333970 INCLUDING -1x BASIC MODULE, K2.66012.0 333980 -1x 3-FILTER STAGE, K2.66013.0 333981 -1x 2-FILTER STAGE, K2.66014.0 333982 -3x FILTER FRAME 4 x 5.65, K2.47669.0 338688 -1x LIGHTSHIELD, K2.47244.0 333940...
- Page 13 FF-5HD TRANSMISSION RATIO I= 1,00 35,00 43,00 64,00 75,00 64,00 ARRI | PROFESSIONAL CAMERA ACCESSORIES 3XXXXX FOR CUSTOMERS IN NORTH AND SOUTH AMERICA FOLLOW FOCUS FF-5 HD LEFT FOCUS KNOB K4.47589.0 381443 MARKING DISK FLAT K4.32713.0 381150 ADAPTER FOR BRIDGEPLATE 15 mm RODS K2.47630.0 381562...
- Page 14 QUICK RELEASE BASEPLATE QUICK RELEASE BASEPLATE • Quick switch from tripod to handheld for digital cameras • Compatible with ARRI Studio System • Unique centering adjustment allows perfect fit with many digital cameras SET QUICK RELEASE BASEPLATE 19 mm RODS K0.60058.0 338351 * SET QUICK RELEASE BASEPLATE 15 mm RODS K0.60059.0 338353 *...
- Page 15 FOCAL LENGTH LENS FRONT DIAMETER ARRI/ZEISS MASTER PRIME All Master Primes ø114 ARRI/ZEISS LDS ULTRA PRIME 12 mm ø156 14 mm ø114 Primes 16-180 mm ø104 ARRI/ZEISS ULTRA PRIME 8 mm ø134 10 mm ø156 12 mm ø156 14 mm ø114...
- Page 16 ARRI Inc. 600 N. Victory Blvd. Burbank CA, 91502-1639 Tel.+1(818)841-7070 Fax+1(818)848-4028 www.arri.com ARRI Inc. 2385 Stirling Road Ft. Lauderdale FL, 33312-6608 Tel.+1(954)322-4545 Fax+1(954)322-4188 www.arri.com ARRI Canada LTD. 415 Horner Avenue, Unit 11 Etobicoke, Ontario M8W 4W3, Canada Tel.+1(416)255-3335 Fax+1(416)255-3399 www.arrican.com www.arri.com...
