Playcore ultraPLAY uPLAY TODAY CUMBERLAND GAP Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
u
PLAY TODAY

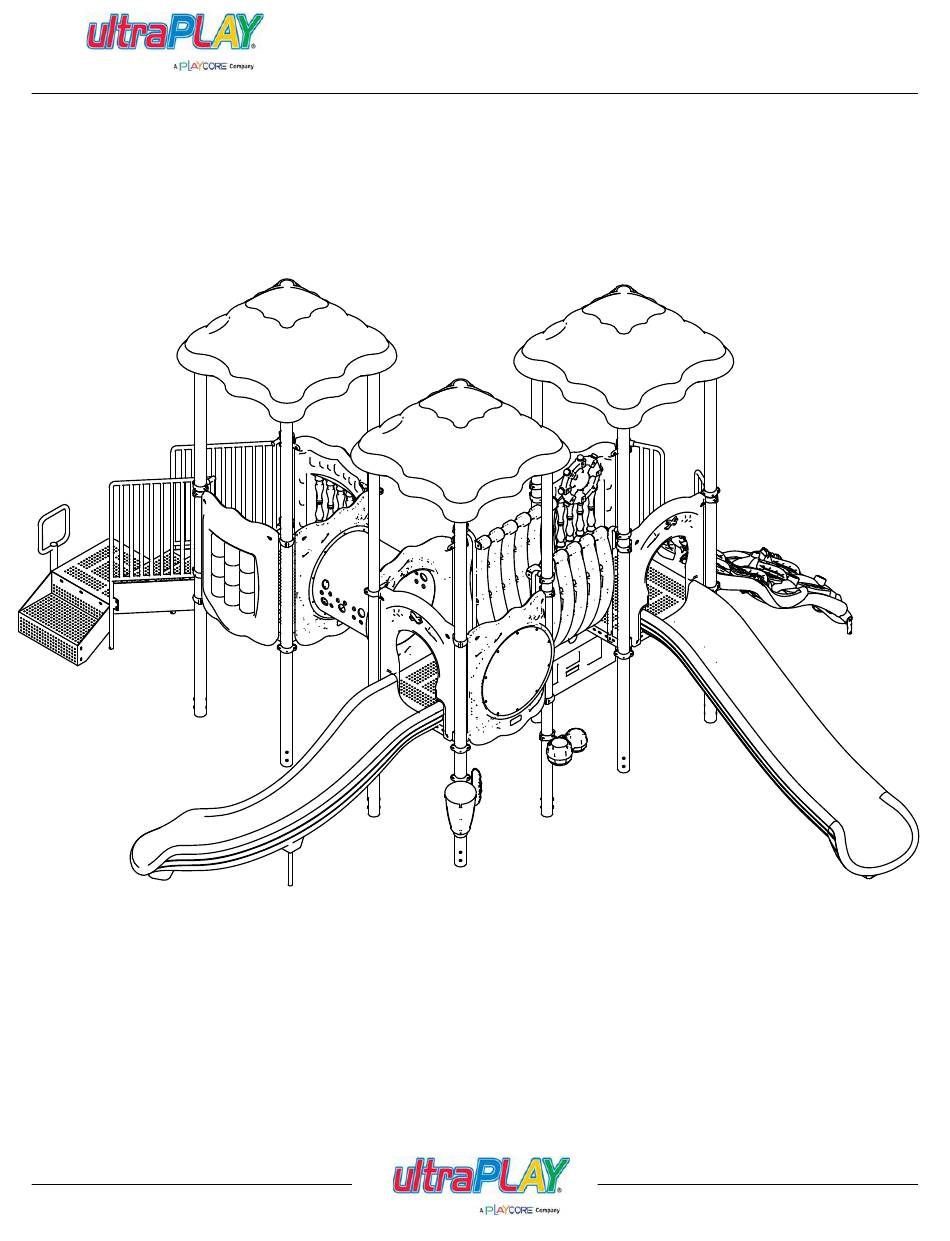

CUMBERLAND GAP
MODEL # UPLAY-007-N
MODEL # UPLAY-007-P
Issued/Revised: 10/13/15
www.ultraplay.com
800.458.5872
