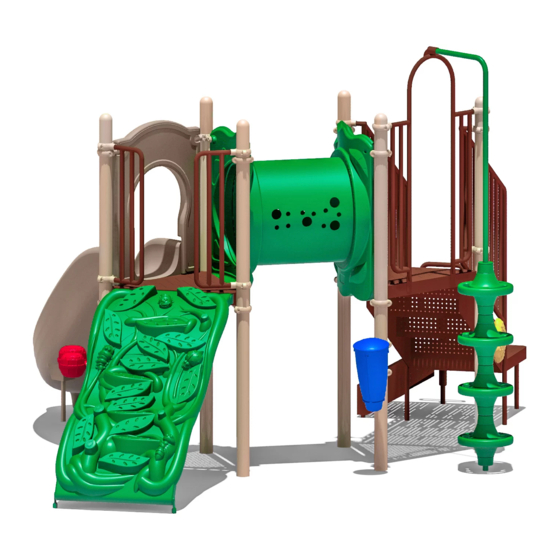

u
PLAY TODAY
DEER CREEK
MODEL # UPLAY-002-N
MODEL # UPLAY-002-P
Issued/Revised: 12/19/13
www.ultraplay.com
800.458.5872

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ultraPlay uPlay Today Deep Creek Series and is the answer not in the manual?

Questions and answers

Related Manuals for Playcore ultraPlay uPlay Today Deep Creek Series

Summary of Contents for Playcore ultraPlay uPlay Today Deep Creek Series

  • Page 1 PLAY TODAY DEER CREEK MODEL # UPLAY-002-N MODEL # UPLAY-002-P Issued/Revised: 12/19/13 www.ultraplay.com 800.458.5872...
  • Page 3 For more information on UPlayToday and UltraPlay products, please do not hesitate to give us a call or visit ultraplay.com. Thank you for your business; we look forward to working with you on all of your future playground equipment projects! Sincerely, UPlayToday by UltraPlay A PlayCore® Company Issued/Revised: 12/19/13 www.ultraplay.com 800.458.5872...
  • Page 4 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Maintaining your playground equipment and its surrounding area is essential to minimizing the risk of injury to users as well as maximizing its useful lifespan. UPlayToday STRONGLY recommends that you follow these Safety Guidelines in conjunction with conducting periodic maintenance inspections using the accompanying Playground Maintenance Checklist.
  • Page 5 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Install Wood Mulch (EWF) at a depth of 12". Over time this mulch will compress to a depth of 9" as required by the U.S. Consumer Product Safery Commission, ASTM standard F-1487 and Canadian Standard CAN/CSA-Z-614.

  • Page 6: Routine Maintenance

    PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES TRIPPING HAZARDS: There should be no exposed concrete footings, abrupt changes in surface elevations, tree roots, tree stumps, and rocks, which can trip children and adults. Check for trip hazards, such as the balance beam support posts, or environmental trip hazards, such as rocks or roots in the play area.
  • Page 7 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -Proper maintenance of UPlayToday equipment requires regular tightening of all bolts, nuts, set screws, and other hardware. -All equipment should be free of rust and repainted with an appropriate lead-free paint whenever necessary to deter rusting. This should also be done for any chipped or peeling areas. -Regular checking of all parts, casting, etc., should be made.
  • Page 8 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -Check for accessible sharp edges or points. Check for protruding bars, bolts, nuts, etc. Eliminate these conditions. -Check for exposed ends of tubing that should be covered with plugs or caps. -Check for loose bolts, nuts, etc. and tighten. -Check for broken or missing rails, steps, rungs, or seats and replace.
  • Page 12 PLAY TODAY UPlayToday Warranty UltraPlay warrants its products to be free from defects in materials and/or workmanship, subject to normal usage and installation, for a period of 1-year from the date of shipment to the original purchaser. In the event of a claim under this warranty, UltraPlay will replace the component at no cost within the first 12 months from date of shipment to the original customer.

  • Page 13: Warranty Exclusions

    PLAY TODAY WARRANTY EXCLUSIONS All warranties specifically exclude damage caused by man-made or natural disasters, vandalism, negligence, improper installation or improper use, modification, changes in appearance resulting from weathering, scratches, dents, discoloration, normal wear and tear, or marring as a result of public or private use.
  • Page 14 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS IMPORTANT! Please read the entire Installation Instructions packet before beginning the installation. UltraPlay has designed UPlayToday to take advantage of all Consumer Product Safety Commission (CPSC) and ASTM guidelines in force at the time of purchase in an effort to prevent playground accidents.
  • Page 15 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS TOOLS REQUIRED: UltraPlay supplies only the special wrenches and bits required to fasten the "tamper-resistant" hardware and components. You will need common wrenches and an Allen key set as well as a drill, string line, level, shovels, post hole digger, pry bar, washable felt tip marker, phillips head screw driver, utility knife, rubber mallet, and a tape measure.

  • Page 16: Safety During Installation

    PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS 7. CPSC guidelines mandate that there shall be no gaps present in the playground equipment that fall between 3-1/2" and 9". The positioning of certain components by the installer can affect this criteria, so you should always measure distances created when attaching components in order to avoid these spaces which can cause entrapment of a child using the equipment.
  • Page 17 PLAY TODAY WARNING LABEL APPLICATION INSTRUCTIONS The enclosed Warning Labels must be affixed to your playground equipment. At least one Warning Label is needed per play structure, permanently affixed in a conspicuous location within easy view of users. INSTRUCTIONS: 1. Fully assemble and install your UPlayToday playground equipment per the accompying installatioin instructions.

  • Page 18: Tools Required

    PLAY TODAY TOOLS REQUIRED Issued/Revised: 12/19/13 www.ultraplay.com 800.458.5872...

  • Page 19: Hardware Reference

    INCH HARDWARE REFERENCE M8 B.H.C.S. Bolts 45mm 100mm 20mm 25mm 30mm 35mm 40mm 50mm 70mm 13mm 1-3/4" 4" 3/4" 1-3/16" 1 3/8" 1-9/16" 2" 2-3/4" 1" 1/2" (33-11-0113) (33-11-0105) (33-11-0106) (33-11-0109) (33-11-0114) (33-11-0107) (33-11-0102) (33-11-0103) (33-11-0104) (33-11-0101) M8 Barrel Nut (33-11-0501) M8 Flat Washer (33-11-0300)
  • Page 20 PLAY TODAY UPRIGHT PLACEMENT UPRIGHTS LIST DESCRIPTION PART NUMBER 7'-8" UPRIGHT 02-07-5025 7'-8" UPRIGHT (02-07-5025) 7'-8" UPRIGHT (02-07-5025) Issued/Revised: 12/19/13 www.ultraplay.com 800.458.5872...
  • Page 21 PLAY TODAY USE ZONE 27'-3" 4FT BEANSTALK CLIMBER (02-07-5057) RAINWHEEL (02-07-5022) 4FT ADA STEPS BASS DRUM (02-07-5000) (02-07-5023) CRAWL TUNNEL (02-07-5017) 23'-10" TRIANGLE DECK (02-07-5037) VINE CLIMBER (02-07-5008) BONGO DRUMS 6'-0" (02-07-5024) 4FT RIGHT CURVED SLIDE (02-07-5005) TOP VIEW MINIMUM USE ZONE* REQUIRED NOTE: Equipment shall be positioned to eliminate conflicting traffic patterns.

  • Page 22: Site Preparation

    PLAY TODAY FOOTING DETAIL - SURFACE MOUNT (33-12-0085) Parts List PART NUMBER DESCRIPTION CONCRETE ANCHOR 33-11-0702 UPRIGHT POST UPRIGHT FOOTER CONCRETE CONCRETE ANCHOR 4" MINIMUM w/3000 PSI GRAVEL IMPORTANT: Never install play equipment over hard, unresilient surfaces such as asphalt, concrete, or compacted earth.
  • Page 23 INCH FOOTING DETAIL - SURFACE MOUNT 1. Using Upright Footers as template, mark hole position on concrete. Drill 3/8" Dia. x 2" deep holes into concrete to receive anchor. 2. Attach Upright Footers to concrete using Concrete Anchor, Flat Washer, and Lock Nut. See Detail 067. LOCK NUT FLAT WASHER UPRIGHT...
  • Page 24 PLAY TODAY FOOTING DETAIL - ON GROUND (33-12-0111) Parts List PART NUMBER DESCRIPTION GROUND SPIKE 02-07-0048 IMPORTANT: UPRIGHTS WILL COME PRE-ASSEMBLED WITH UPRIGHT FOOTER UPRIGHT POSITIONED IN THE POST BOTTOM (2) HOLES TO ACCOMODATE 2" OF SURFACING. WHEN INSTALLING 12" OF SURFACING, REMOVE BOLTS AND ADJUST UPRIGHT FOOTER...
  • Page 25 INCH FOOTING DETAIL - ON GROUND 1. With Upright Footers in position, secure each Upright Footer to the ground using Ground Spikes. NOTE: A 4lb. hammer may be required to drive spikes into the ground. Install ground spikes angled inward as shown in illustration. See Detail 068. IMPORTANT: Refer to Post Placement/Hole Locations diagram to mark locations of Upright Footers.
  • Page 26 PLAY TODAY FOOTING DETAIL - IN GROUND (33-12-0086) Parts List DESCRIPTION PART NUMBER INGROUND FOOTER 02-07-0049 3/8" x 1 1/4" P.B.H.C.S. w/PATCH 33-05-0019 3/8" FLAT WASHER 33-02-0002 3/8" HEX NUT 33-01-0002 IMPORTANT: UPRIGHT UPRIGHTS WILL COME PRE-ASSEMBLED WITH UPRIGHT FOOTER POSITIONED IN THE BOTTOM (2) HOLES TO ACCOMODATE 2"...
  • Page 27 INCH FOOTING DETAIL - IN GROUND 1. Attach Inground Footer to Upright Post using 3/8" x 1 1/4" P.B.H.C.S., 3/8" Flat Washer, and 3/8" Hex Nut. Refer to Footing Table and Footing Layout page for Hole/Footer location. See Detail 069. 2.
  • Page 28 PLAY TODAY DEER CREEK Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 PANEL CLAMP 02-07-0040 PANEL CLAMP 60° 02-07-0201 4FT ADA STEPS 02-07-5000 4FT RIGHT CURVED SLIDE 02-07-5005 VINE CLIMBER 02-07-5008 CRAWL TUNNEL w/PANELS 02-07-5017 RAINWHEEL w/TUBE CLAMP 02-07-5022 02-07-5023 BASS DRUM w/TUBE CLAMP BONGO DRUMS 02-07-5024...

  • Page 29: Finished Assembly

    PLAY TODAY DEER CREEK PANEL CLAMP 60° (02-07-0201) CRAWL TUNNEL (02-07-5017) VINE CLIMBER (02-07-5008) RAINWHEEL (02-07-5022) BASS DRUM (02-07-5023) TRIANGLE DECK 4FT BEANSTALK CLIMBER (02-07-5037) (02-07-5057) TUBE CLAMP (02-07-0039) FINISHED ASSEMBLY MODEL # UPLAY-002-N PANEL CLAMP MODEL # UPLAY-002-P (02-07-0040) 4FT ADA STEPS (02-07-5000) 7'-8"...
  • Page 30 TOP VIEW FOOTING TABLE Diagonal Hole No. Hor. Dim. Ver. Dim. 8 3/4" 67 1/2" 68 1/4" 29" 70" 75 3/4" 43 3/4" 68 1/4" 81" 5 1/4" 43 1/4" 43 1/2" 31 1/2" 43 1/4" 53 1/2" 43 3/4" 43 3/4"...

  • Page 31: Maintenance Procedure

    PLAY TODAY TUBE CLAMP 02-07-0039 Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 32 INCH TUBE CLAMP 02-07-0039 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP IN UPRIGHT TO INSTALL CLAMP RIVET. (33-11-0700) Issued/Revised: 06/03/13...
  • Page 33 PLAY TODAY PANEL CLAMP - SINGLE 02-07-0040 Parts List DESCRIPTION PART NUMBER PANEL CLAMP 02-07-0040 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 34 INCH PANEL CLAMP - SINGLE 02-07-0040 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET.
  • Page 35 PLAY TODAY PANEL CLAMP 60° 02-07-0201 Parts List DESCRIPTION PART NUMBER PANEL CLAMP 60° 02-07-0201 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 36 INCH PANEL CLAMP 60° 02-07-0201 PANEL CLAMP 60° (02-07-0201) M8 LOCK NUT (33-11-0500) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP IN UPRIGHT TO INSTALL CLAMP RIVET. (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) Issued/Revised: 03/03/14 www.ultraplay.com 800.458.5872...
  • Page 37 PLAY TODAY ADA STEPS 02-07-5000 Parts List DESCRIPTION PART NUMBER ADA BARRIER LEFT 02-07-0008 ADA BARRIER RIGHT 02-07-0010 1" FOOTER 02-07-0043 ADA TRANSFER STAIR 02-07-0005 ADA DECK 02-07-0004 ADA DECK SUPPORT POST 02-07-0047 02-07-0011 ADA HANDHOLD ADA STEP 02-07-0006 8 1/4" EXTENSION POST 02-07-0060 15"...
  • Page 38 PLAY TODAY ADA STEPS 02-07-5000 7. Attach ADA Transfer Step to ADA Barriers using M10 x 25mm B.H.C.S. Bolt, M10 Flat Washer, and M10 Lock Nut. See Detail 032. 8. Attach Barrier Footer to ADA Deck Support using M10 x 35mm B.H.C.S. Bolt and M10 Lock Nut. See Detail 028. 9.
  • Page 39 PLAY TODAY ADA STEPS 02-07-5000 ADA BARRIER LEFT (02-07-0008) ADA BARRIER RIGHT (02-07-0010) ADA HANDHOLD ADA DECK (02-07-0011) (02-07-0004) ADA STEP ADA TRANSFER (02-07-0006) STAIR (02-07-0005) UNDERNEATH UNDERNEATH UNDERNEATH UNDERNEATH ADA DECK SUPPORT POST COMPONENTS SHOWN IN (02-07-0047) HIDDEN LINES ARE SOLD SEPARATELY FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 04/22/13...
  • Page 40 INCH ADA STEPS 02-07-5000 BARRIER M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT TUBE CLAMP (33-11-0005) SUPPORT POST M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 LOCKWASHER (33-11-0301) FOOTER M8 x 25mm (1") BHCS M10 LOCK NUT BOLT (33-11-0103) (33-11-0400) M10 FLATWASHER...
  • Page 41 INCH ADA STEPS 02-07-5000 M10 LOCK NUT (33-11-0400) DECK M10 LOCK NUT M10 FLATWASHER (33-11-0400) (33-11-0200) STAIR M10 FLATWASHER (33-11-0200) M10 x 25mm (1") BHCS BOLT (33-11-0003) DECK SUPPORT M10 FLATWASHER BARRIER (33-11-0200) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) STEP M10 LOCK NUT...
  • Page 42 INCH ADA STEPS 02-07-5000 EXTENSION POST M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) LARGER HOLE FOOTER PLATE 04/22/13 Issued/Revised: www.ultraplay.com 800.458.5872...
  • Page 43 PLAY TODAY 4FT. CURVED SLIDE 02-07-5005 Parts List DESCRIPTION PART NUMBER CURVED SLIDE 02-07-0027 MOUNTING BRACKET 02-07-0045 EXTENSION TUBE 02-07-0044 FOOTER PLATE 02-07-0046 SLIDE HOOD 02-07-0025 CENTER SUPPORT POST 02-07-0062 FOOTER 02-07-0043 33-12-0072 HARDWARE COMPLETE M10 x 20mm (3/4") BHCS BOLT 33-11-0002* M12 LOCKWASHER 33-11-0203*...
  • Page 44 PLAY TODAY 4FT. CURVED SLIDE 02-07-5005 6. Clean out slots in Deck with utility knife if necessary. 7. Attach Slide to Deck using M10 x 20mm B.H.C.S, M12 Lock Washer, and M10 Flat Washer. See Detail 058. 8. Attach Slide Hood to Slide using M10 x 60mm B.H.C.S, M12 Lock Washer, and M10 Flat Washer. See Detail 059. 9.
  • Page 45 INCH 4FT. CURVED SLIDE 02-07-5005 PLATFORM MOUNTING M8 x 25mm (1") BHCS BRACKET BOLT (33-11-0103) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M10 LOCK NUT CLAMP RIVET (33-11-0400) (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED FOOTBUCK...
  • Page 46 INCH 4FT. CURVED SLIDE 02-07-5005 SLIDE SLIDE DECK MOUNTING BRACKET M10 x 20mm (3/4") (02-07-0045 BHCS BOLT M10 FLATWASHER (33-11-0002) (33-11-0200) M12 LOCKWASHER M12 LOCKWASHER (33-11-0203) M10 FLATWASHER M10 x 20mm (3/4") (33-11-0203) (33-11-0200) BHCS BOLT (33-11-0002) SLIDE M8 LOCK NUT (33-11-0500) SLIDE HOOD M12 LOCKWASHER...
  • Page 47 INCH 4FT. CURVED SLIDE 02-07-5005 UPRIGHT SLIDE M8 BARREL NUT (33-11-0501) PANEL CENTER SUPPORT M10 FLATWASHER POST (33-11-0200) PANEL M8 x 20mm (3/4") CLAMP BHCS BOLT M12 LOCKWASHER (33-11-0102) (33-11-0203) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) Issued/Revised: 05/22/13 www.ultraplay.com 800.458.5872...
  • Page 48 PLAY TODAY VINE CLIMBER 02-07-5008 Parts List DESCRIPTION PART NUMBER VINE CLIMBER 02-07-0032 DECK MOUNTING BRACKET 02-07-0085 VINE CLIMBER EXTENSION POST-LONG 02-07-0097 VINE CLIMBER EXTENSION POST-SHORT 02-07-0098 FOOTER PLATE 02-07-0046 GRAB BAR 02-07-0033 TUBE CLAMP 02-07-0039 HARDWARE COMPLETE 33-12-0077 M10 x 20mm (3/4") BHCS BOLT 33-11-0002* M10 x 25mm (1") BHCS BOLT 33-11-0003*...
  • Page 49 PLAY TODAY VINE CLIMBER 02-07-5008 NOTE: THE VERTICAL POSITION OF THE GRAB BARS MUST BE A MINIMUM OF 38" ABOVE THE DECK. THE CLAMP POSITION CAN BE ADJUSTED HIGHER TO AVOID INTERFERENCE WITH OTHER CLAMPS. 7. Attach Tube Clamp to Upright using M8 x 25mm B.H.C.S. Bolt and M8 Lock Nut. Once all clamps are on and secure drill Ø1/4" hole through Clamp and Upright to install Clamp Rivet.
  • Page 50 INCH VINE CLIMBER 02-07-5008 M8 x 25mm (1") BHCS GRAB BAR BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 LOCKWASHER CLAMP RIVET (33-11-0301) M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED...
  • Page 51 INCH VINE CLIMBER 02-07-5008 DECK DECK MOUNTING BRACKET ROTOMOLD M10 FLATWASHER (33-11-0200) M10 x 25mm (1") BHCS BOLT (33-11-0003) M10 FLATWASHER (33-11-0200) ROTOMOLD EXTENSION POST M12 LOCKWASHER M12 LOCKWASHER (33-11-0203) (33-11-0203) M10 x 25mm (1") BHCS BOLT (33-11-0003) Issued/Revised: 04/26/13 www.ultraplay.com 800.458.5872...

  • Page 52: Installation Instructions

    PLAY TODAY CRAWL TUNNEL w/ PANELS 02-07-5017 Parts List DESCRIPTION PART NUMBER CRAWL TUNNEL w/ PANELS 02-07-0021 33-12-0017 HARDWARE COMPLETE M10 x 20mm (3/4") BHCS BOLT 33-11-0002* M12 LOCKWASHER 33-11-0203* M10 FLATWASHER 33-11-0200* M8 x 25mm (1") BHCS BOLT 33-11-0103* M8 x 55mm (2 3/16") BHCS BOLT 33-11-0110* M8 LOCK NUT...
  • Page 53 PLAY TODAY CRAWL TUNNEL w/ PANELS 02-07-5017 CRAWL TUNNEL w/ PANELS (02-07-0021) UNDERNEATH = INSTALLATION DETAIL COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY 04/10/13 www.ultraplay.com 800.458.5872...
  • Page 54 INCH CRAWL TUNNEL w/ PANELS 02-07-5017 PANEL CLAMP M10 x 20mm (3/4") BHCS BOLT M8 x 25mm (1") BHCS (33-11-0002) BOLT (33-11-0103) M12 LOCKWASHER (33-11-0203) M10 FLATWASHER (33-11-0200) M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET DECK (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED...
  • Page 55 PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 Parts List DESCRIPTION PART NUMBER RAINWHEEL CLAMP 02-07-0143 PLASTIC INSERT 02-07-0094 METAL BUSHING 02-07-0095 RAIN WHEEL 02-07-0012 YELLOW PLASTIC CAP 02-07-0088 33-12-0035 HARDWARE COMPLETE M8 x 100mm (4") BHCS BOLT 33-11-0113* M8 FLATWASHER 33-11-0300* M8 LOCK NUT 33-11-0500*...
  • Page 56 PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 UPRIGHT RAIN WHEEL (02-07-0012) RAINWHEEL TUBE CLAMP (02-07-0143) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 05/06/13 www.ultraplay.com 800.458.5872...
  • Page 57 INCH RAIN WHEEL w/TUBE CLAMP 02-07-5022 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT M8 x 100mm (4") TO INSTALL CLAMP RIVET.
  • Page 58 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 Parts List DESCRIPTION PART NUMBER BASS DRUM BRACKET 02-07-0091 TUBE CLAMP 02-07-0039 02-07-0013 BASS DRUM HARDWARE COMPLETE 33-12-0021 M8 x 25mm (1") BHCS BOLT 33-11-0103* M8 LOCKWASHER 33-11-0301* M8 LOCK NUT 33-11-0500* M8 x 20mm (3/4") BHCS BOLT 33-11-0102* M8 FLATWASHER 33-11-0300*...
  • Page 59 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 UPRIGHT BASS DRUM BRACKET (02-07-0091) UNDERNEATH TUBE CLAMP BASS DRUM (02-07-0039) (02-07-0013) = INSTALLATION DETAIL COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 05/07/13 www.ultraplay.com 800.458.5872...
  • Page 60 INCH BASS DRUM w/TUBE CLAMP 02-07-5023 BASS DRUM M8 x 25mm (1") BHCS BOLT (33-11-0103) BRACKET TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 LOCKWASHER CLAMP RIVET (33-11-0301) M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED...
  • Page 61 PLAY TODAY BONGO DRUMS 02-07-5024 Parts List DESCRIPTION PART NUMBER BONGO DRUMS BRACKET 02-07-0092 BONGO DRUMS TUBE CLAMP 02-07-0056 MOUNTING BAR 02-07-0093 BONGO DRUMS 02-07-0014 HARDWARE COMPLETE 33-12-0020 33-11-0103* M8 x 25mm (1") BHCS BOLT M8 BARREL NUT 33-11-0501* M8 x 20mm (3/4") BHCS BOLT 33-11-0102* M8 FLATWASHER 33-11-0300*...
  • Page 62 PLAY TODAY BONGO DRUMS 02-07-5024 MOUNTING BAR (02-07-0093) BONGO DRUMS TUBE CLAMP (02-07-0056) BONGO DRUMS (02-07-0014) COMPONENTS SHOWN IN FINISHED ASSEMBLY = INSTALLATION DETAIL HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 05/08/13 www.ultraplay.com 800.458.5872...
  • Page 63 INCH BONGO DRUMS 02-07-5024 M8 x 25mm (1") BHCS M8 x 20mm (3/4") BOLT (33-11-0103) BHCS BOLT BONGOS (33-11-0102) (02-08-0025) UPRIGHT M10 LOCKWASHER (33-11-0201) M8 FLATWASHER M8 LOCK NUT (33-11-0300) (33-11-0500) M8 LOCK NUT (33-11-0500) MOUNTING BAR (02-08-0126) M8 LOCK NUT BONGO SUPPORT (33-11-0500) CLAMP RIVET...
  • Page 64 PLAY TODAY 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 Parts List DESCRIPTION PART NUMBER 3 1/2" UPRIGHT, 7'-8" LG. 02-07-0144 UPRIGHT FOOTER 02-07-0042 33-12-0026 HARDWARE COMPLETE M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011* M10 BARREL NUT 33-11-0401* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 65 PLAY TODAY 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 3-1/2" UPRIGHT, 7'-8" LG. (02-07-0144) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 05/23/13 www.ultraplay.com 800.458.5872...
  • Page 66 INCH 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 67 PLAY TODAY TRIANGLE DECK 02-07-5037 Parts List PART NUMBER DESCRIPTION TRIANGLE DECK 02-07-0183 HARDWARE COMPLETE 33-12-1031 M10 x 30mm (1 3/16") BHCS BOLT 33-11-0004* M10 FLATWASHER 33-11-0200* M10 LOCK NUT 33-11-0400* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 68 PLAY TODAY TRIANGLE DECK 02-07-5037 TRIANGLE DECK (02-07-0183) UNDERNEATH = INSTALLATION DETAIL COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 06/12/13 www.ultraplay.com 800.458.5872...
  • Page 69 INCH TRIANGLE DECK 02-07-5037 M10 FLATWASHER M10 LOCK NUT (33-11-0200) (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004) Issued/Revised: 06/12/13 www.ultraplay.com 800.458.5872...
  • Page 70 PLAY TODAY 4FT BEANSTALK CLIMBER 02-07-5057 Parts List DESCRIPTION PART NUMBER 4FT BEANSTALK CLIMBER 02-07-0164 ENTRY ARCHWAY w/SOCKET 02-07-0161 EXTENSION PIPE 02-07-0203 FOOTER PLATE 02-07-0046 HARDWARE COMPLETE 33-12-1034 M8 x 25mm (1") BHCS BOLT 33-11-0103* M8 LOCKWASHER 33-11-0301* M8 LOCK NUT 33-11-0500* M10 x 20mm (3/4") BHCS BOLT 33-11-0002*...
  • Page 71 PLAY TODAY 4FT BEANSTALK CLIMBER 02-07-5057 MAINTENANCE PROCEDURE: Periodically check hardware for tightness, and tighten as necessary. Always check all parts for breakage or wear, and immediately put equipment out of service until any faulty parts found are repaired or replaced. Also Check all metal parts for rust, paint loss and touch-up if necessary with paint.
  • Page 72 INCH 4FT BEANSTALK CLIMBER 02-07-5057 M8 x 25mm (1") BHCS BOLT (33-11-0103) HANDRAIL UPRIGHT TUBE CLAMP M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) M8 LOCKWASHER BOLT (33-11-0103) (33-11-0301) DRILL THROUGH PRE-DRILLED...
  • Page 73 INCH 4FT BEANSTALK CLIMBER 02-07-5057 ENTRY ARCHWAY w/SOCKET M10 x 20mm (3/4") BHCS BOLT (33-11-0002) PIPE w/INSERT M10 FLATWASHER (33-11-0200) M12 LOCKWASHER (33-11-0203) CLIMBER M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT (33-11-0400) EXTENSION Issued/Revised: 09/05/13 www.ultraplay.com 800.458.5872...
