RC Factory Crack Pitts Backyard Manual

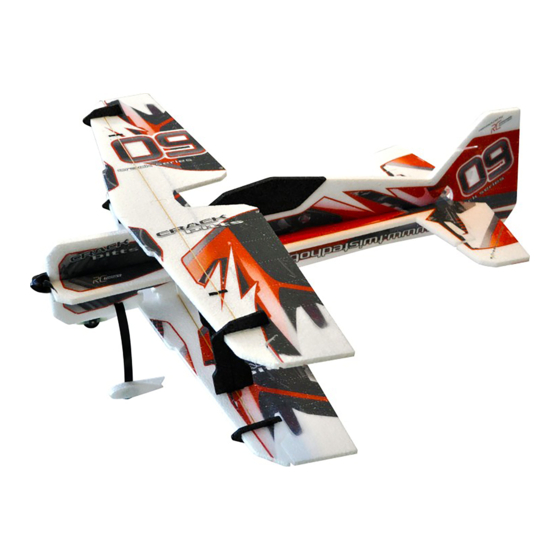

Crack Pitts Backyard
Li-pol 2-3s
755 mm 810 mm
450 mAh
Kit Contents:
*Fuselage
*Wings
*Canopy
*Vertical Stab
Acessory Pack Contents:
Control/servo horns set
Motor mount
Plywood reinfrocement
Heatshrink tube 4 cm
4x Adjustable link+quicklock washer
Wood wing struts 1,5x5x150
Plywood frame:
1. Aileron horn
2. Horizontal+Vertical stabilizator horn
3. Aileron servo arm extension
4. Horizontal+Vertical stab. servo arm ext.
5. Pushrod guides
6.Interlinking aileron control horns
You Will Also Need:
* CA medium+thin, CA kicker
* Sharp hobby knife
* Screwdriver
180g
*Horizontal Stab
*SFG's
*Acessory Pack
*Backbone
Wood fuselage stiffener 2x9x150mm
Wood fuselage stiffener 2x9x90mm
2x Wood wing struts 1,5x5x150mm
4x "Z" bends
2x Carbon 1,5x165mm ... Ailerons connection
2x Carbon 1,5x 110mm ... Aileron pushrod
4
6
* Ruler
* Sandpaper 100-500
*Wing Struts
*Torsion Strips
*Wing Spar
*Carbon parts:
- 2x 1x500 ... Stabs pushrods o
o
o
4
1
2
2
5
3
1
