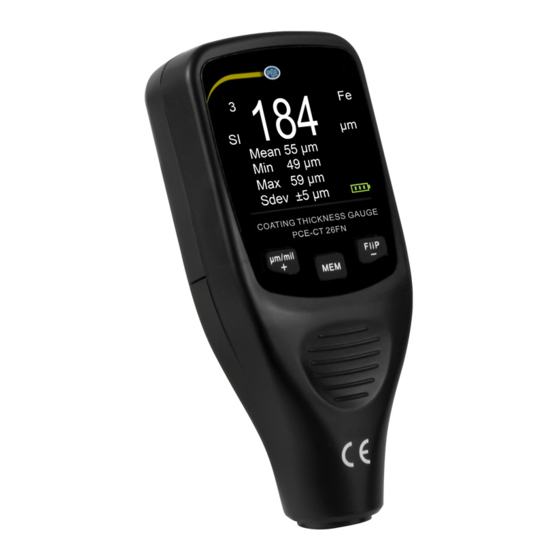

- Page 1 User Manual PCE CT 26FN Material Thickness Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 12 December 2019 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Contents Safety notes ................... 1 Specifications ..................2 Operation ....................2 Start-up ..........................2 Measurement ........................3 Measuring Range ......................4 Battery Indicator ....................... 4 Unit of Measurement ......................4 Display Flip ........................4 View Memory ........................5 SI and CO measurement mode ..................5 Standard Plastic Films &... -
Page 3: Safety Notes
Safety notes Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
Specifications 0 ... 1250 μm (0 ... 50 mils) Measuring range 1 μm (0.1 mils) Resolution ± (3% + 2 μm) or ± (3% + 0.1 mils) Accuracy Smallest measuring surface 5 x 5 mm Smallest radius of curvature Convex. 3 mm / concave: 50 mm Smallest thickness of the base material Fe: at least 0.5 mm NFe: at least 0.3 mm... -
Page 5: Measurement
Measurement Hold the instrument steadily and press the probe vertically against the coating or plating to take a measurement, the instrument will beep once and display the thickness value on the screen when the reading is acquired. The image above shows a typical screen display. •... -
Page 6: Measuring Range
Measuring Range The meter is used to measure the thickness of coating or plating from 0 μm to 1,250 μm. In the case of thickness beyond this range, “---” will appear on the screen. Please refer to below figure: icon means that the thickness measured is beyond the measuring range or the meter has failed to measure. -
Page 7: View Memory
View Memory • Use the “Mem” button to enter the memory storage for last 99 measurement values • “0” (in white colour) will appear to the left of the main reading (main reading still shows the current measured value), press “+” or “-” to browse the saved values one by one •... -
Page 8: Standard Plastic Films & Calibration
Standard Plastic Films & Calibration The meter is provided with standard plastic films, which can be used to check the measurement accuracy, and also used to cover rough or hot surfaces during measurement to protect the sensor from possible damage. Accuracy Checking The user may check the accuracy of the meter according to the given reference standards, using the standard plastic films and substrate blocks supplied in the package. -
Page 9: Initialisation
Initialisation In case the zero-in procedure or calibration with standard plastic films does not work, please reinitialize the meter: • Press and hold the “-” button for 2 seconds, “0”, “00”, and “000” will blink in sequence indicating that the initialization is completed •... -
Page 10: Warranty
Warranty You can read our warranty terms in our General Business Terms which you can find here: https://www.pce-instruments.com/english/terms. Disposal For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament applies. Due to the contained pollutants, batteries must not be disposed of as household waste. They must be given to collection points designed for that purpose. - Page 11 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel.
