Industrial Electronic Devices

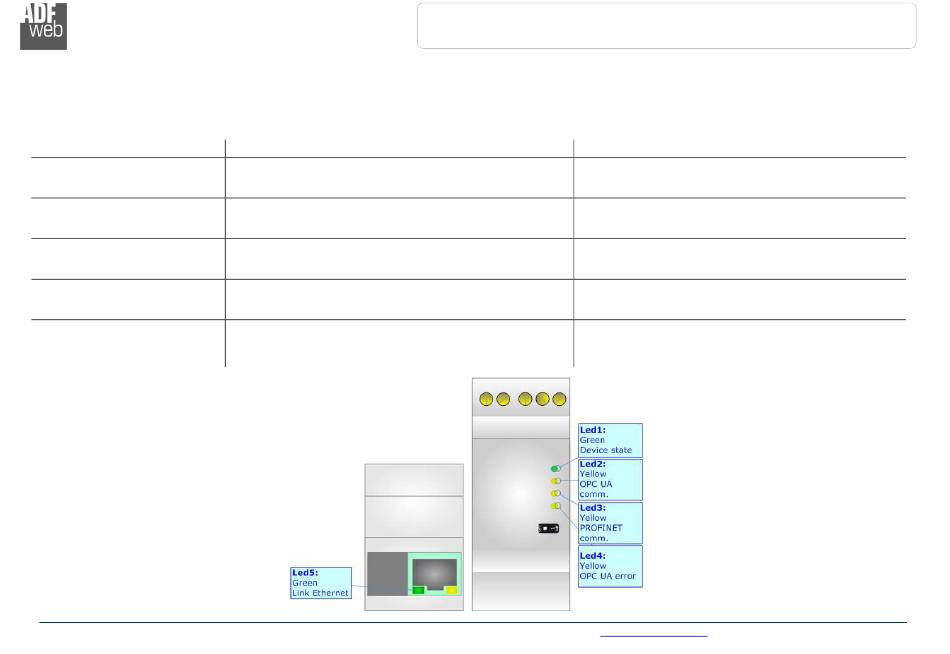

LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: OPC UA comm. (yellow)
3: PROFINET comm. (yellow)
4: OPC UA error (yellow)
5: Link Ethernet (green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks slowly (~1Hz)
Flashing: OPC UA response
OFF: No OPC UA response
Flashing: PROFINET communication
OFF: No PROFINET communication
ON: At least one OPC UA Server is disconnected
OFF: all OPC UA Servers are connected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
User Manual OPC UA Client / PROFINET Slave
Document code: MN67B22_ENG
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
INFO:
www.adfweb.com
Revision 1.000
Page 9 of 32
Boot Mode
Phone +39.0438.30.91.31
