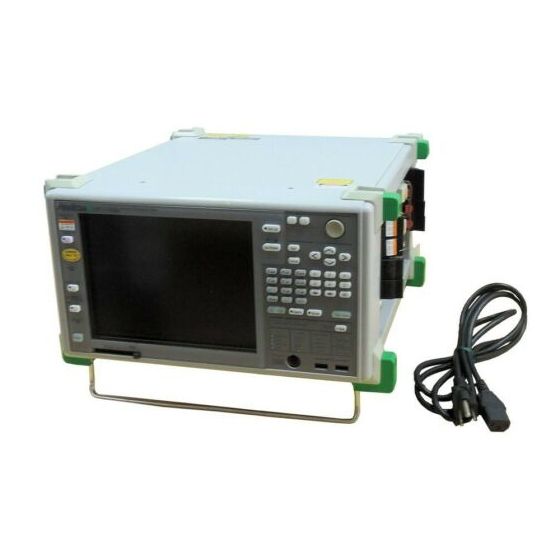

Anritsu MP1590B Operation Manual

Anritsu MP1590B Operation Manual

Network performance tester remote control

Hide thumbs Also See for MP1590B:

Operation manual (154 pages)

,

Quick start manual (26 pages)

page of 1436

/ 1436
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual

MP1590B

Network Performance Tester

Remote Control

Operation Manual

10th Edition

• This is an operation manual of MP1590B-01,

MP1590B-02,

MP1590B-03,

MX159001B-02, MX159001B-03.

• For safety and warning information, please read this

manual before attempting to use the equipment.

• Additional safety and warning information is provided

in

the

MP1590B

Operation Manual. Please also refer to one of these

documents before using the equipment.

• Keep this manual with the equipment.

ANRITSU CORPORATION

Document No.: M-W2423AE-10.0

MX159001B-01,

Network

Performance Tester

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the MP1590B and is the answer not in the manual?

Questions and answers

Summary of Contents for Anritsu MP1590B

Page 1 MP1590B Network Performance Tester Remote Control Operation Manual 10th Edition • This is an operation manual of MP1590B-01, MP1590B-02, MP1590B-03, MX159001B-01, MX159001B-02, MX159001B-03. • For safety and warning information, please read this manual before attempting to use the equipment. • Additional safety and warning information is provided...
Page 2 Ensure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this manual.
Page 3 In addition, this warranty is valid only for the original equipment purchaser. It is not transferable if the equipment is resold. Anritsu Corporation shall assume no liability for injury or financial loss of the customer due to the use of or a failure to be able to use this equipment.
Page 4 Notes On Export Management This product and its manuals may require an Export License/Approval by the Government of the product's country of origin for re-export from your country. Before re-exporting the product or manuals, please contact us to confirm whether they are export-controlled items or not. When you dispose of export-controlled items, the products/manuals need to be broken/shredded so as not to be unlawfully used for military purpose.
Page 5 Anritsu electronic equipment). By reading this EULA and using this software, you are agreeing to be bound by the terms of its contents and Anritsu Corporation (hereafter Anritsu) hereby grants you the right to use this Software with the Anritsu-specified equipment (hereafter Equipment) for the purposes set out in this EULA.
Page 6 Commerce Denied Persons List or Entity otherwise, due to your violation of the terms List. By using this Software, you warrant of this EULA, Anritsu shall have the right to that you are not located in any such country seek proportional damages from you.
Page 7 Cautions against computer virus infection • Copying files and data Only files that have been provided directly from Anritsu or generated using Anritsu equipment should be copied to the instrument. All other required files should be transferred by means of USB or CompactFlash media after undergoing a thorough virus check.
Page 8 MX159001B-03 ETHERNET Control 2. Applied Directive and Standards When the above options are installed in the MP1590B, the applied directive and standards of this unit conform to those of the MP1590B main frame. PS: About main frame Please contact Anritsu for the latest information on the main frame types that these options can be used with.
Page 9 MX159001B-03 ETHERNET Control 2. Applied Directive and Standards When the above options are installed in the MP1590B, the applied directive and standards of this unit conform to those of the MP1590B main frame. PS: About main frame Please contact Anritsu for the latest information on the main frame...
Page 11 This manual uses the following notations. Notation on equipment name This manual uses the following abbreviations on equipment name. Full Name Abbreviated Name MP1590B MP1590B Network Performance Tester MU120101A/11A 10M/100M Ethernet Module MU120121A/31A 10/100/1000M Ethernet Module Ethernet Module MU120102A/12A/22A/32A Gigabit Ethernet Module...
Page 12: Table Of Contents
Table of Contents About This Manual........Chapter 1 Overview ........Interface function ............Typical System Up............Chapter 2 GPIB Interface ......GPIB Interface Function ..........Device Message List ............ Bus Command.............. GPIB Cable Connection ..........GPIB Setting ..............Device Initialization............Chapter 3 RS-232C Interface .....
Page 13 Chapter 6 Talker Output Response Message Format........Talker Output Response Message Format ....Function Element of Response Message..... Chapter 7 SCPI Overview......Command Configuration..........Command Description Method ........Command Combinations ..........Buffer Size ..............Chapter 8 IEEE488.2 Common Commands and Interface Setting Commands Chapter 9 Device Common Setting Commands ........
Page 14 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands ..11-1 11.1 SDH (SONET)/OTN/Jitter Mode-Unique Commands ... 11-3 11.2 Setup Screen Commands ..........11-14 11.3 Test menu Screen Commands ........11-435 11.4 Result Screen Commands ..........11-624 11.5 Analyze Screen Commands .......... 11-812 11.6 Assist Screen Commands ..........
Page 15: Chapter 1 Overview
Chapter 1 Overview The MP1590B Network Performance Tester is capable of performing automatic measurements when combined with an external controller. For connection, the optional RS-232C, GPIB or Ethernet interface is used. This manual describes the commands divided into the following catego- ries: •...
Page 16: Interface Function
Chapter 1 Overview 1.1 Interface function A remote control connector is provided on the rear panel of the MP1590B. Remote control of the MP1590B is available by installing the GPIB, RS-232C or Ethernet interface option. Options, GPIB or RS-232C, is allocated for remote control is designated on the Remote control screen of the Setup utility main screen.
Page 17: Typical System Up
Typical System Up 1.2 Typical System Up System up examples using interfaces are shown below. Controlling from a host computer Connect a host computer for automatic measurement by the MP1590B. 　　　　　 MP1590B Host computer Fig. 1.2-1 System up...
Page 18 Chapter 1 Overview 1-4.
Page 19: Chapter 2 Gpib Interface
Chapter 2 GPIB Interface In this chapter, information relating to GPIB interface functions and set- ting procedures are described when the GPIB interface is optionally used. GPIB Interface Function ..........2-2 Device Message List..........2-3 Bus Command ............2-5 GPIB Cable Connection..........2-6 GPIB Setting ..............
Page 20: Gpib Interface Function
Chapter 2 GPIB Interface 2.1 GPIB Interface Function The MP1590B has device functions only and has no controller functions. For this reason, the interface functions provided are limited as listed in the table below. Code Interface Function IEEE488.2 Standard With all source handshake functions All functions are standard equipped.
Page 21: Device Message List
Response message • IEEE488.2 common com- mand (Details in Chapter 8) Program query Program message Response message Controller MP1590B Fig. 2.2-1 Device message Above messages are communicated via I/O buffer of device. The I/O buf- fer is briefly described below.
Page 22 All DABs (response messages) DAB (program and query mes- transmitted from device to con- sages) before conducting syntax troller are stored in this memory analysis. Input buffer capacity of until read by controller is com- the MP1590B is 256 bytes. pleted.
Page 23: Bus Command
Device Initialization 2.3 Bus Command The bus command is the interface internal communications transmitted while the bus mode is the command mode (the ATN line is "L"). Table below lists the bus commands. Bus Command Operation DCL (Device Clear) Initializes all message exchange for all units connected to the GPIB bus.
Page 24: Gpib Cable Connection
Chapter 2 GPIB Interface 2.4 GPIB Cable Connection Connect the GPIB cable to the GPIB connector on the rear panel. The GPIB system has the restrictions. Observe the following conditions for connection: • Number of devices connected ≤ 15 • Total length of cable ≤ 2 m × number of devices (Maximum 20 m) GPIB GPIB Connector GPIB Cable...
Page 25: Gpib Setting
Device Initialization 2.5 GPIB Setting Set the MP1590B to Local and enter the settings listed in the table below using keys on the front panel when the GPIB is used as the remote in- terface. Enter the settings on the Remote control sub-screen of the Setup utility main-screen.
Page 26 Chapter 2 GPIB Interface Fig. 2.5-1 Setup utility:<Remote control> screen-GPIB setting For details on setting contents, refer to the MP1590B Operation Manual.
Page 27: Device Initialization
Device Initialization 2.6 Device Initialization The IEEE488.2 specifies system initialization in three levels of the bus, message and device initialization levels. Level Initialization type Description Bus initialization Initializes all interface functions con- nected to the bus by IFC message from controller.
Page 28: Device Initialization
EoS mode. Conversely, EoS mode is not initialized in SDH/OTN (SONET/OTN) mode. 2.6.4 Device status at power on The MP1590B is set to the following conditions when power is turned on. - Settings at the preceding power off are recreated. - Input buffer and output queue are cleared.
Page 29: Chapter 3 Rs-232C Interface
Chapter 3 RS-232C Interface In this chapter, the setting procedures are described when the RS-232C interface is optionally used. Device Message List..........3-2 RS-232C Cable Connection ........3-4 RS-232C Setting ............3-5 Device Initialization ............ 3-7 3.4.1 Device initialization ........3-7 3.4.2 Device status at power on ......
Page 30: Device Message List
Program command Status message (Details in Chapter • Equipment unique command (Details in Chapter 9 thru 11) Response message • IEEE488.2 common com- mand (Details in Chapter 8) Program query Program message Response message Controller MP1590B Fig. 3.1-1 Device message...
Page 31 Device Initialization Above messages are communicated via the I/O device buffer. The I/O buffer is briefly described below. Input Buffer Output Queue FIFO (First In First Out) type FIFO type queue memory area. memory area which temporarily All DABs (response messages) saves DAB (program and query transmitted from device to con- messages) before conducting syntax...
Page 32: Rs-232C Cable Connection
Chapter 3 RS-232C Interface 3.2 RS-232C Cable Connection Connect the RS-232C cable to the RS-232C connector on the rear panel. RS-232C Connector Fig. 3.2-1 RS-232C cable connection...
Page 33: Rs-232C Setting
Device Initialization 3.3 RS-232C Setting Set the MP1590B to Local and enter the settings listed below using keys on the front panel when the RS-232C is used as the automatic control interface. Enter the settings on the Remote control sub-screen of the Setup utility main-screen.
Page 34 (3) Set Active interface. (4) Select each item of RS-232C, then press the Apply button. For the MX159001B, select the COM port number for connecting. Fig. 3.3-1 Setup utility:<Remote control> screen-RS-232C setting For details on setting contents, refer to the MP1590B Operation Manual.
Page 35: Device Initialization
EoS mode. Conversely, EoS mode is not initialized in SDH/OTN (SONET/OTN) mode. 3.4.2 Device status at power on The MP1590B is set to the following conditions when power is turned on. - Settings at preceding power off are recreated. - Input buffer and output queue are cleared.
Page 36 Chapter 3 RS-232C Interface 3-8.
Page 37: Chapter 4 Ethernet Interface
Chapter 4 Ethernet Interface In this chapter, the setting procedures are described when the Ethernet interface is optionally used. Device Message List..........4-2 Ethernet Board Setting ..........4-4 Connection to Network and Data Flow ...... 4-7...
Page 38: Device Message List
Program command Status message (Details in Chapter • Equipment unique command (Details in Chapter 9 thru 11) Response message • IEEE488.2 common com- mand (detail in Chapter 8) Program query Program message Response message Controller MP1590B Fig. 4.1-1 Device message...
Page 39 The MP1590B must be connected to a TCP/IP network when the Ethernet interface is used. The MP1590B works as a server in this in- stance.
Page 40: Ethernet Board Setting
Chapter 4 Ethernet Interface 4.2 Ethernet Board Setting Set the MP1590B to Local and enter the settings listed in the table below using keys on the front panel when the Ethernet is used as the remote interface. Enter the settings on the Remote control and IP Address sub-screens of the Setup utility main-screen.
Page 41 Connection to Network and Data Flow Fig. 4.2-1 Setup utility:<Remote control> screen-Ethernet setting Fig. 4.2-2 Setup utility:<IP Address> screen-Ethernet setting For details on setting contents, refer to the MP1590B Operation Manual.
Page 42 Chapter 4 Ethernet Interface Notes: IP Address Each device (connected to the TCP/IP-used network) is identi- fied by its IP address. Therefore, each device must have a unique IP address. The IP address is a number consisting of 32 bits, and usually split by a dot into four 8-bit sections. (This is called the dot notation.) An IP address contains not only the device (host) information but also the network information.
Page 43: Connection To Network And Data Flow
Connect an Ethernet cable to the MP1590B, then connect the MP1590B to a network. Fig. 4.3-1 Ethernet cable connection The connection to the MP1590B is a data communication using the TCP connection. The communication program (Socket client) must be cre- ated at the communication terminal for communication. Refer to rele- vant books sold at stores for the IP packets used in the data communica- tion.
Page 44 Chapter 4 Ethernet Interface Remarks: Comment on data communication (1) The MP1590B saves the data from client at reception buffer. When internal buffer becomes full, TCP flow control occurs, and the response of command level to client may not be returned. Then, the abnormal termination (such as timeout for any application software) may occur.
Page 45: Chapter 5 Listener Input Format
Chapter 5 Listener Input Format This chapter describes the format of program messages received by the listener (the MP1590B) from the talker (controller). Since the device-unique commands conform to the SCPI standards, ex- amples are given using the SCPI commands.
Page 46: Listener Input Program Message Format
Chapter 5 Listener Input Format 5.1 Listener Input Program Message Format As an example, the program message is shown below when the jitter unit is set to the same mode for transmitter and receiver, and the bit rate is set to 9953M. <TERMINATED PROGRAM MESSAGE>...
Page 47: Functional Element Of Program Message
WRITE @03: ” : ROUT : INP : SEL PORT1 ; : SENS : TEL : BRAT M2” Listener address (when GPIB address of the MP1590B tester is set to 3) READ @ Data being input from device is substituted to variable.
Page 48: Functional Element Of Program Message
Chapter 5 Listener Input Format 5.2 Functional Element of Program Message The MP1590B accepts a program message when it detects a terminator located at the end of a program message. Functional elements of pro- gram messages are described below. 5.2.1 <TERMINATED PROGRAM MESSAGE>...
Page 49: Program Message Terminator
Functional Element of Program Message 5.2.2 <PROGRAM MESSAGE TERMINATOR> The <PROGRAM MESSAGE TERMINATOR> terminates the sequence of one or more <PROGRAM MESSAGE UNIT> elements. The definition of the <PROGRAM MESSAGE TERMINATOR> is differ- ent according to the interface. (1) GPIB interface <White space>...
Page 50: White Space
ASCII code bytes between 00 and 09 or 0B to 20 (0 to 9 or 11 to 32 in decimal notation). Although the range includes the ASCII control code and space signal, ex- cept the new line, the MP1590B handles it merely as a space or ignores it without interpreting it as an ASCII control code.
Page 51: Program Message
Functional Element of Program Message 5.2.4 <PROGRAM MESSAGE> Example: for selecting unbalanced connector and setting the receive sig- nal to 2M. <PROGRAM MESSAGE> : ROUT : INP : SEL PORT1 ; : SENS : TEL : BRAT M2 <PROGRAM MESSAGE UNIT SEPARATOR> <PROGRAM MESSAGE UNIT>...
Page 52: Separator
The <PROGRAM MESSAGE UNIT SEPARATOR> divides multiple <PROGRAM MESSAGE UNIT> element sequences within the <PRO- GRAM MESSAGE> range. The MP1590B interprets the semicolon “;” as the <PROGRAM MES- SAGE UNIT> separator. Therefore, <white space character> before and after a semicolon “;” are ignored.
Page 53 Functional Element of Program Message 5.2.7 <COMMAND MESSAGE UNIT>/<QUERY MESSAGE UNIT> (1) <COMMAND MESSAGE UNIT> Example: Setting a date <PROGRAM DATA> : SYST : DATE 2004, 7, 15 <PROGRAM DATA SEPARATOR> <PROGRAM HEADER SEPARATOR> <COMMAND PROGRAM HEADER> The <COMMAND MESSAGE UNIT> is defined as shown below. <PROGRAM DATA SEPARATOR>...
Page 54: Query Message Unit
MP1590B. <QUERY PROGRAM HEADER> is a query command; the controller sends it to the MP1590B beforehand in order to receive a response mes- sage from the MP1590B. The feature of this header is that the query indicator “?” is always at- tached to the end of the header.
Page 55: Command Program Header
Functional Element of Program Message 5.2.8 <COMMAND PROGRAM HEADER> The <COMMAND PROGRAM HEADER> is defined as shown below. A <white space> may be located before each header. <White space> <Instrument- Control Header> 5.2.3 <common command program header> (1) The <Instrument-Control Headers> are defined as shown below. (2) The <common command program header>...
Page 56 <COMMAND PROGRAM HEADER> This header identifies the application, function or operation of pro- gram data to be executed by the MP1590B. When no program data are attached, the header alone identifies an application, function or operation to be executed inside the MP1590B. The <program mne- monic>...
Page 57 Functional Element of Program Message <common command program header> With respect to the <common command program header>, an asterisk "*" is always attached before a <program mnemonic>. (For details, re- fer to “Chapter 8 Common Command”.) 5-13...
Page 58: Query Program Header
<QUERY PROGRAM HEADER> The <QUERY PROGRAM HEADER> is a query command; the con- troller sends it to the MP1590B beforehand in order to receive a re- sponse message from the MP1590B. The feature of this header is that the query indicator “?” is always attached at the end of the header.
Page 59: Program Header Separator
Functional Element of Program Message 5.2.10 <PROGRAM HEADER SEPARATOR> <PROGRAM DATA> : SYST : DATE 2004, 7, 15 <PROGRAM DATA SEPARATOR> <PROGRAM HEADER SEPARATOR> <COMMAND PROGRAM HEADER> Definition The <PROGRAM HEADER SEPARATOR> is defined as shown below. <White space> 5.2.3 The <PROGRAM HEADER SEPARATOR>...
Page 60: Program Data Separator
Chapter 5 Listener Input Format 5.2.11 <PROGRAM DATA SEPARATOR> The <PROGRAM DATA SEPARATOR> is defined as shown below. <White space> <White space> 5.2.3 5.2.3 The <PROGRAM DATA SEPARATOR> is used to separate parameters when a <COMMAND PROGRAM HEADER> or <QUERY PROGRAM HEADER>...
Page 61: Program Data Format
<COMMAND PROGRAM HEADER> The <PROGRAM DATA> function elements are used for transmitting various parameters relating to the program header. Program data shown in the figure below are used by the MP1590B. <PROGRAM DATA> Type <CHARACTER PROGRAM DATA> Represents a short alphabetic character or alphanumeric data.
Page 62: Character Program Data
Chapter 5 Listener Input Format 5.3.1 <CHARACTER PROGRAM DATA> The <CHARACTER PROGRAM DATA> represents a short alphabetic character or alphanumeric data. <Example> : SENSe : TELecom : PATTern : TYPE PRBS11 （Mnemonic data representing PRBS2 -1） : SENSe : MEASure : TYPE SINGle （Mnemonic data representing a single measurement） Description of alphabetic data is the same as Section 5.2.8 (3) <COM- MAND PROGRAM HEADER>.
Page 63: Decimal Numeric Program Data
The <DECIMAL NUMERIC PROGRAM DATA> represents a decimal value and is defined as shown below. <White space> <mantissa> <exponet> 5.2.3 The <mantissa> is defined as shown below. The <exponent> is defined as shown below. Values used by the MP1590B are integers in decimal notations. 5-19...
Page 64 Chapter 5 Listener Input Format Integer format Represents an integer in decimal notation. • ”0” may be inserted at the beginning. (005) • No space is allowed between sign and numerals. (+5 (ok), + Δ 5 (not ok)) • Spaces may be inserted after a numeral. (+5 ΔΔ ) •...
Page 65: Boolean Program Data
Functional Element of Program Message 5.3.3 <BOOLEAN PROGRAM DATA> The <BOOLEAN PROGRAM DATA> is program data specified by the SCPI and represents a logical value. ON and OFF of <CHARACTER PROGRAM DATA> and 1 and 0 of <DECIMAL NUMREIC PROGRAM DATA> are defined as values corre- sponding to true and false.
Page 66: String Program Data
Chapter 5 Listener Input Format 5.3.4 <STRING PROGRAM DATA> The <STRING PROGRAM DATA> represents a character string enclosed by double or single quotation marks. However, you must describe the two quotation marks successively if there is double or single quotation marks in a character string. This is defined as shown below.
Page 67 Functional Element of Program Message <Example> The following examples are correct entries. For enclosing with single quotation marks (‘): 'calculate ' 'remote"control' (Double quotation between two words is consid- ered as a string.) '"Jan.""Feb."' (Double quotation between two words is consid- ered as a string.) For enclosing with double quotation marks (“): "...
Page 68 Chapter 5 Listener Input Format 5-24.
Page 69 Chapter 6 Talker Output Response Message Format This chapter describes formats of response messages returned from the talker (the MP1590B) to the listener (controller). Talker Output Response Message Format....6-2 Function Element of Response Message....6-3 6.2.1 <TERMINATED RESPONSE MESSAGE> ... 6-3 6.2.2 <RESPONSE MESSAGE TERMINATOR>...
Page 70: Talker Output Response Message Format
Chapter 6 Talker Output Response Message Format 6.1 Talker Output Response Message Format Responses for input connector selection query :ROUT:INP:SEL? and re- ception signal bit rate query :SENS:TEL:BRAT? are shown below. Only data are returned as responses because no headers are attached to the SCPI response.
Page 71: Function Element Of Response Message
1B6.2 Function Element of Response Message 6.2 Function Element of Response Message 6.2.1 <TERMINATED RESPONSE MESSAGE> The <TERMINATED RESPONSE MESSAGE> linking two message units is as shown below. <TERMINATED RESPONSE MESSAGE> <RESPONSE MESSAGE> <RESPONSE> MESSAGE Address 3 Listener Talker (controller) (device) PORT1 ;...
Page 72: Response Message Terminator
Chapter 6 Talker Output Response Message Format 6.2.2 <RESPONSE MESSAGE TERMINATOR> <RESPONSE MESSAGE TERMINATOR>, which is located after the <RESPONSE MESSAGE UNIT>, terminates one or more <RESPONSE MESSAGE UNIT> element sequences with constant length. The definition of <RESPONSE MESSAGE TERMINATOR> differs ac- cording to the interface.
Page 73: Response Message
<RESPONSE MESSAGE> is a sequence of one or more <RESPONSE MESSAGE UNIT> elements. A <RESPONSE MESSAGE UNIT> element expresses a single message being sent from the MP1590B to the controller. The <RESPONSE MES- SAGE UNIT SEPARATOR> element is used as a separator for delimiting multiple <RESPONSE MESSAGE UNITS> elements.
Page 74: Separator
RATOR> semicolon (;) when a sequence of multiple <RESPONSE MES- SAGE UNIT> elements is output as a single <RESPONSE MESSAGE>. 6.2.5 <RESPONSE MESSAGE UNIT> The <RESPONSE MESSAGE UNIT> used in the MP1590B is a response message unit without header, and only the measured result data are re- sponded.
Page 75: Response Data
1B6.2 Function Element of Response Message 6.2.7 <RESPONSE DATA> This section describes <RESPONSE DATA> used in the MP1590B. The response data returned is determined according to the query mes- sage. Element Function (1) CHARACTER Expresses a short mnemonic data. RESPONSE DATA <Example>...
Page 76 Chapter 6 Talker Output Response Message Format Element Function (4) NR3 NUMERIC Expresses an actual decimal value with exponent. RESPONSE DATA <Example> 1.23E+45 –12.3E+45 (5) STRING Expresses a character string enclosed by double quotation marks. RESPONSE DATA <Example> “1234” “ABCD” “...
Page 77: Syntax Differences Between Listener Input
1B6.2 Function Element of Response Message 6.2.8 Syntax Differences Between Listener Input Format and Talker Output Format This section describes the syntax differences between listener input for- mat and talker output format. Listener Input Format A listener input message possesses flexibility so that the device can eas- ily receive program messages from the controller.
Page 78 Chapter 6 Talker Output Response Message Format 6-10.
Page 79: Chapter 7 Scpi Overview
Chapter 7 SCPI Overview This chapter describes overview of the SCPI command system. The SCPI is the equipment command language that is not dependent on the hardware defined by the SCPI Consortium. The purpose of the SCPI lies in shortening the program development pe- riod for automatic measuring equipment (ATE) by unifying the pro- gramming environment including the equipment control and data han- dling.
Page 80: Command Configuration
Chapter 7 SCPI Overview 7.1 Command Configuration The SCPI commands are constructed by a layer composition. Commands are grouped by related functions and each group forms a layer construction called a subsystem. In this manual, a subsystem is expressed by a command tree as in the example shown below.
Page 81: Command Description Method
1B7.2 Command Description Method 7.2 Command Description Method :SOURce:TELecom:PATTern[:TYPE] <pattern> :SOURce:TELecom:PATTern[:TYPE]? :SOURce:TELecom:PATTern:UWORd <string> :SOURce:TELecom:PATTern:UWORd? Fig. 7.2-1 Example of SCPI commands The command trees shown in Section 7.1 are actually expressed as the commands shown above. The following describes rules on command de- scription.
Page 82 Chapter 7 SCPI Overview <Header Separator> At least one space is necessary between the command and a parameter. Two or more parameters must be delimited by a comma (“,”).
Page 83: Command Combinations
2B7.3 Command Combinations 7.3 Command Combinations Commands can be combined using a semicolon (‘;’) as shown in the fol- lowing example. The second command is referred to as the same level as that of the lowest layer of the first command. Thus the second command can be described in full path as shown in Example 1, or described omitting the higher-level header than TYPE as shown in Example 2.
Page 84: Buffer Size
Chapter 7 SCPI Overview 7.4 Buffer Size A buffer that receives response messages must be prepared at the control side. The response message size varies according to the device message. The MP1590B has a response message of 138 Kbytes at maximum. 7-6.
Page 85: Chapter 8 Ieee488.2 Common Commands And Interface Setting Commands
MP1590B are described in this chapter. Common commands can be used commonly on any of the GPIB, RS-232C, or Ethernet interface. All common commands supported by the MP1590B are sequential com- mands. The status register is not supported by the IP/EoS mode functions. It is supported only in the SDH (SONET)/OTN/Jitter mode.
Page 86 <Serial No.> = <NR1 NUMERIC RESPONSE DATA> 0000000000 to 9999999999 Main frame Serial number • Function Reports manufacture name, model, etc. • Example use > *IDN? < ANRITSU,MP1590B,0123456789,1.00 *RST Reset Command ∇ Parameter None • Function Initializes entire system. Note: For the MU150101A, SDH/OTN (SONET/OTN) mode is not initialized in EoS mode.
Page 87 Chapter 8 IEEE488.2 Common Commands and Interface Setting Commands *OPC Operation Complete Command ∇ Parameter None • Function Sets bit 0 (operation complete bit) of standard event status register and sets SRQ to ON, when execution of preceding command is completed. •...
Page 88 The parameter represents the total of bit digit values when bits to be en- abled are selected from bits of standard event enable register. The digit value for bit to be disabled is set to 0. For the MP1590B, register settings are as listed below: Bit 7 (2 = 128)
Page 89 Parameter represents the total of bit digit values when bits to be enabled are selected from bits of service request enable register. The digit value for a bit to be disabled is set to 0. For the MP1590B, register settings are as listed below: Bit 7 (2 = 128)
Page 90 Reports a list of the installed options/modules. All installed options and modules are reported, separated by commas. Reports main frame (MP1590B) options and then modules in slots 1 to 8 in this sequence. Options in each unit are reported after the module model name.
Page 91 Chapter 8 IEEE488.2 Common Commands and Interface Setting Commands Option Character List Main Frame / Module Name Option No. Option Name OPT01 RS-232C MP1590B OPT02 GPIB Network Performance Tester OPT03 MU159101A OPT07 OSPF Protocol Control Module OPT08 MPLS (LDP/CR-LDP) Protocol...
Page 92 Chapter 8 IEEE488.2 Common Commands and Interface Setting Commands Main Frame / Module Name Option No. Option Name 10/10.7G Optical Unit (Tx) OPT03 Wavelength 1.31/1.55 µm OPT04 Optical Output power Adjustable MU150121B OPT01 Wavelength 1.31 µm 10/10.7G Optical/Electrical Unit (Tx) OPT02 Wavelength 1.55 µm OPT03...
Page 93 Chapter 8 IEEE488.2 Common Commands and Interface Setting Commands Main Frame / Module Name Option No. Option Name MU120105A − − 10G (1.31) Module MU120106A − − 10G (1.55) Module MU120131A OPT01 Clock Measurement 10/100/1000M Ethernet Module OPT02 MU120132A OPT01 Clock Measurement Gigabit Ethernet Module...
Page 94 Chapter 8 IEEE488.2 Common Commands and Interface Setting Commands Terminal Setting < numeric > ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> NL+^END CR+NL+^END • Function Sets the terminator type for response data. • Example use To set the terminator to CR+NL+^END: >...
Page 95: Chapter 9 Device Common Setting Commands
Chapter 9 Device Common Setting Commands This chapter describes the list and contents of the device messages used for remote control related to MP1590B common settings. List of Device Messages ..........9-2 Details of Device Messages ........9-9...
Page 96: List Of Device Messages
√: Usable –: Not usable ∆: Usable only in SDH (SONET)/OTN/Jitter mode [MbE], [GbE] and [2.5G/10G] indicate the following modules. The MP1590B only supports the modules shown below. MbE: MU120101A/MU120111A 10M/100M Ethernet module GbE: MU120102A/MU120112A Gigabit Ethernet module MU120118A/B/C 10 Gigabit Ethernet module...
Page 97 List of Device Messages Default: Indicates the initial value (setting value at shipment) of the item set by the program message. The program messages in the list are arranged to classify the messages in each function. In each function, the message is described in the order of (1) Operation (measurement start etc.), (2) Setting, (3) Results or state-acquisition.
Page 98 Chapter 9 Device Common Setting Commands System setting commands (SYSTem) Command Query Description Default :SYSTem:ERRor? Queries an error message that exists in an error 0,"No error"    event queue. :SYSTem:{SDH|SONet}:STA :SYSTem:{SDH|SONet}:STA Selects the terms for screen display from SDH ...
Page 99 List of Device Messages Command Query Description Default :SYSTem:MEMory:EXPort Saves measured results in the    SDH(SONET)/-OTN/Jitter mode to a file in csv or HTML format. Loads the saved setting data. :SYSTem:MEMory:LOAD {"    MEMORY<memory id>"|"< path>"},<datatype> ...
Page 100 Chapter 9 Device Common Setting Commands Unit setting commands (UENTry) Command Query Description Default :UENTry:ID <unit_number :UENTry:ID? Specifies the number of a unit to be operated. √ √ √ > :UENTry:ADD <IP_ADDRE Adds a new unit. √ √ √ SS> :UENTry:DELete <unit_nu Deletes a unit.
Page 101 List of Device Messages Command Query Description Default :UENTry:UNIT:VERSion:SO Queries the unit software version. √ √ √ FTware? :UENTry:UNIT:VERSion:FP Queries the FPGA version for the unit. √ √ √...
Page 102 Chapter 9 Device Common Setting Commands Module setting commands (MODule) Command Query Description Default :MODule:ID<module_numbe :MODule:ID? Sets the number of a module (slot position) to be √ √ √ r> operated. :MODule:TYPE? Queries the module type (model). √ √ √ :MODule:OPTion? <type>...
Page 103: Details Of Device Messages
Details of Device Messages 9.2 Details of Device Messages This section describes the common commands of device messages used on the MP1590B, one by one. The following contents are provided. Command, Query, Response: Describes the names and formats of program message (command mes- sage, query message) and response message (to query message).
Page 104 Chapter 9 Device Common Setting Commands Parameter: Describes the format details of program data and response data, and the contents. Default: Indicates the initial value (setting value at shipment) of the item set by the program message. The program messages are arranged to classify the messages in each function.
Page 105 Details of Device Messages System setting commands (SYSTem) The commands related to the following functions are explained below. • Error information query • Control software setting • Version information check • Alarm/error/history/power fail functions • File/print functions –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :SYSTem:ERRor? Query <Error/event_number>,"<Error/event_description>"...
Page 106 Chapter 9 Device Common Setting Commands :SYSTem:{SDH|SONet}:STANdard:APS{G783|G841} Command :SYSTem:{SDH|SONet}:STANdard:APS? Query {G783|G841} Response Selects the recommendation used for screen display of the APS measurement function Description (display of K1/K2 byte value setting). {G783|G841} Parameter Select one of the followings: G783 Linear terms are used for the display. G841 Ring terms are used for the display.
Page 107 Details of Device Messages :SYSTem:HISTory:ENABle <BOOLEAN> Command :SYSTem:HISTory:ENABle? Query <BOOLEAN> Response Sets the history function to enable or disable. Description <BOOLEAN> Parameter To enable the history function, set {ON|1} (ON or 1). Otherwise, set {OFF|0} (OFF or 0). 1 or 0 is returned as the response data for the query. 0 (disable) Default ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––...
Page 108 Drive name (Upper/lower cases are ignored) <directory> "Directory name" (Upper/lower cases are ignored. Full path only.) Character string length is from 1 to 260 characters, and “” cannot be used. Example: "DEMO1.CND",d,"\Anritsu\Data" *: Can be used only in the SDH(SONET)/OTN/Jitter mode. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 9-14...
Page 109 * Characters can be input: ASCII code 0x20 to 0x7e Note that the following characters cannot be used: \(0x5c) / , ; * " < > | Example: "DEMO1.CND","DEMO2.CND",d,"\Anritsu" *: Can be used only in the SDH (SONET)/OTN/Jitter mode. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :SYSTem:MMEMory:MDIRectory <dir_name>,[<drive>][,<directory>] Command Creates a sub directory (only in the current directory.)
Page 110 Chapter 9 Device Common Setting Commands :SYSTem:MMEMory:CATalog? <numeric> Query <use_byte>,<free_byte>,<current_dir>,<current_file>,<file_entry> Response <use_byte> 0 to ?: Used space <free_byte> 0 to ?: Free space <current_dir> Current directory <current_file> Total number of files in the current directory (including sub directories) <file_entry> File information in the current directory The following information is output for each file: <file_name>,<file_size>,<date_time>...
Page 111 Sets the directory for saving a file created at execution of the Screen copy command. Description <dir_name> Parameter Specify the saving directory with an absolute path of 1 to 260 characters. per/lower cases are ignored. ”” cannot be used. Example: “D:\Anritsu\Data” –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :SYSTem:SCReen:SAVE <type> Command :SYSTem:SCReen:SAVE? Query Response <dir_name>...
Page 112 Chapter 9 Device Common Setting Commands Example: To save the data in the first internal memory, specify as follows (set the ID to 0): "MEMORY0" <path> This is used to save setting data to any location (on the auxiliary storage unit. The location is specified in the absolute path.
Page 113 2.5/10G modules only *3: 10/100M Ethernet modules only *4: Enabled for 10GbE modules with the MP1590B-13 XENPAK Test installed. *5: Enabled when the RFC2889 Bench Marking Test is installed. *6: MU150100A,101A,121A/B,122A,123A/B,124A/B,125A,134A Module only *7: MU150101A 2.5/2.6G EoS Unit only ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––...
Page 114 Chapter 9 Device Common Setting Commands :SYSTem:MEMory:LOAD {"MEMORY<memory id>"|"<path>"},<datatype> Command Description Loads the saved setting data. There are two ways to specify the load destination: the internal memory ID and the folder on the auxiliary storage unit. * During Tx Stream transmission, Counter measurement and Capture operation, don’t use this command.
Page 115 *1: The selected setting data is loaded to the currently selected unit, module and port. *2: 2.5/10G modules only *3: 10/100M Ethernet modules only *4: Enabled for 10GbE modules with the MP1590B-13 XENPAK Test installed. *5: Enabled when the MP1590B-10 is installed. *6: MU150100A,101A,121A/B,122A,123A/B,124A/B,125A,134A Modules only *7: MU150101A 2.5/2.6G EoS Unit only ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––...
Page 116 Chapter 9 Device Common Setting Commands :SYSTem:PRINt:COPY Command Prints out the screen contents in the SDH(SONET)/OTN/Jitter mode to the printer. Description Outputs only items for which Report format output is enabled. *: Can be used only in the SDH(SONET)/OTN/Jitter mode. ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––...
Page 117 Details of Device Messages :SYSTem:REPort:RESult:PERFormance:SELect <rec> Command :SYSTem:REPort:RESult:PERFormance:SELect? Query <rec> Response Sets the contents of results data for the Result:Performance measurement in the Description SDH(SONET)/OTN/Jitter mode that is output in the Report format. *: Can be used only in the SDH(SONET)/OTN/Jitter mode.
Page 118 Chapter 9 Device Common Setting Commands :SYSTem:REPort:RESult:JUSTificat <boolean> Command :SYSTem:REPort:RESult:JUSTificat? Query <boolean> Response Enables/disables the Report format output of results data for Result:Justification Description measurement in the SDH(SONET)/OTN/Jitter mode. *: Can be used only in the SDH(SONET)/OTN/Jitter mode. <boolean> Parameter To enable this function, set {ON|1} (ON or 1).
Page 119 Details of Device Messages :SYSTem:REPort:ANALyze:ERRalm <boolean> Command :SYSTem:REPort:ANALyze:ERRalm? Query <boolean> Response Enables/disables the Report format output of results data for Analyze:Error/Alarm Description measurement in the SDH(SONET)/OTN/Jitter mode. *: Can be used only in the SDH(SONET)/OTN/Jitter mode. <boolean> Parameter To enable this function, set {ON|1} (ON or 1). Otherwise, set {OFF|0} (OFF or 0). 1 or 0 is returned as the response data for the query.
Page 120 Chapter 9 Device Common Setting Commands :SYSTem:REPort:ANALyze:PEAK <boolean> Command :SYSTem:REPort:ANALyze:PEAK? Query <boolean> Response Enables/disables the Report format output of results data for Analyze:Peak jitter Description measurement in the SDH(SONET)/OTN/Jitter mode. *: Can be used only in the SDH(SONET)/OTN/Jitter mode. <boolean> Parameter To enable this function, set {ON|1} (ON or 1).
Page 121 Details of Device Messages Unit setting commands (UENTry) The commands related to the following functions are explained below. • Unit registration • Unit setting –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :UENTry:ID <unit_number> Command :UENTry:ID? Query <unit_number> Response Specifies the number of a unit to be operated. Description <unit_number>...
Page 122 Chapter 9 Device Common Setting Commands :UENTry:UNIT:NUSers? Query <number_of_user> Response Queries the number of users connecting to the unit. Description <number_of_user> Parameter Queries the number of users (including the operator) connecting to the unit (<NR1>). –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :UENTry:UNIT:OPTion? <type> Query <BOOLEAN> Response Queries whether the unit option is installed.
Page 123 Details of Device Messages <BOOLEAN> If the specified option is installed, 1 is returned. If the specified option is not installed, 0 is returned. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :UENTry:UNIT:DEFault Command Resets all the settings of a unit to their defaults. Description –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– : UENTry:UNIT:IVALid? Query <BOOLEAN>...
Page 124 The value ranges from 00:00:00.000 to 23:59:59.999. Example: "2004/08/15 13:22:51.01" –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :UENTry:UNIT:TYPE? Query <type> Response Queries a unit model. Description <type> Parameter One of the following is returned: MD1230A MD1230A, MD1231A, MD1231A1 MD1230B MD1230B MT7407A MT7407A (MU740701A) MP1590B MP1590B MP1591A MP1591A (MU159101A) –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 9-30...
Page 125 Details of Device Messages :UENTry:UNIT:IADDress? Query <IP_ADDRESS> Response Queries the IP address of a unit that are connected. Description <IP_ADDRESS> Parameter The IP address value is returned in the following 4-octet <HEX> format: Example: 192.168.1.3 is expressed as #HC0A80103. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :UENTry:UNIT:TOUTput? Query {NONE|<module_number><port_number>}...
Page 126 Chapter 9 Device Common Setting Commands :UENTry:UNIT:HOOPeration:DATA? Query <NR1> Response Queries the operation time of a unit. Description <NR1> Parameter A numeric value in increments of ten minutes is returned as the operation time. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :UENTry:UNIT:OWNership:TAKE Command Takes the ownership of the unit. Description To make any setting for the unit, it is needed to use this command to obtain the unit ownership.
Page 127 Details of Device Messages :UENTry:UNIT:VERSion:SOFTware? Query "<version>","<version>" Response Queries the unit software version. Description <version> Parameter Returns each version information below in X.XX.XX format. 1. Main program version 2. Boot program version –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :UENTry:UNIT:VERSion:FPGA? Query "<version>" Response Queries the FPGA version for the unit. Description <version>...
Page 128 Chapter 9 Device Common Setting Commands Module setting commands (MODule) The commands related to module setting are explained below. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :MODule:ID <module_number> Command :MODule:ID? Query <module_number> Response Sets the number of a module (slot position) to be operated. Description * For 10GbE module with 2 slots used, the smaller slot number is used. For an example, when a 10GbE module is inserted in slots 4 and 5, the module number becomes 4.
Page 129 Details of Device Messages :MODule:TYPE? Query <moduletype> Response Queries the module type (model). Description * The module specified by :MODule:ID becomes the target of this function. √ MbE √ GbE √ 2.5G/10G Module <moduletype> Parameter The module model is returned: MU120101A 10M/100M Ethernet module MU120102A...
Page 130 Chapter 9 Device Common Setting Commands :MODule:OPTion? <type> Query <BOOLEAN> Response Queries whether the specified module option is installed or not. Description * If the wrong module model option is specified, the error code 2010 (Access to In- valid Unit/Module/Port) is returned. * The module specified by :MODule:ID becomes the target of this function.
Page 131 Available functions vary in MU120112A depending on the condition of the firmware currently downloaded in the FPGA. A remote interface does not provide the opera- tion to switch the FPGA firmware. See the MP1590B Operation manual for how to divide and switch functions by FPGA.
Page 132 Chapter 9 Device Common Setting Commands –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :MODule:VERSion:FPGA? Query "<version>"[,"<version>"] ... Response Queries the FPGA version of a module. Description * The module specified by :MODule:ID becomes the target of this function. √ MbE √ GbE √ 2.5G/10G Module <version> Parameter Each version information shown below is returned in the X.XX.XX format.
Page 133 Details of Device Messages –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– :MODule:VERSion:SOFTware? Query "<version>"[,"<version>"] Response Queries the software version of a module. Description √ MbE √ GbE √ 2.5G/10G Module <version> Parameter Each version information shown below is returned in the X.XX.XX format. The number of version information varies depending on the module. Software version is not available for a module that is not shown below.
Page 134 Chapter 9 Device Common Setting Commands 9-40.
Page 135: Chapter 10 Ip/Eos Mode Unique Commands
Chapter 10 IP/EoS Mode Unique Commands Refer to the MD1230B Remote Control Operation Manual for details on the IP/EoS mode-unique commands. 10-1...
Page 136 Chapter 10 IP/EoS Mode Unique Commands 10-2.
Page 137 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands In this chapter, the SDH (SONET)/OTN/Jitter mode-unique commands are described. 11.1 SDH (SONET)/OTN/Jitter Mode-Unique Commands ............11-3 11.1.1 PROGRAM DATA ........11-5 11.1.2 Response Data .......... 11-6 11.1.3 Response Format........11-7 11.2 Setup Screen Commands ........11-14 11.2.1 Setup Screen Common Commands ..
Page 138 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.8 APS test Sub-screen ....... 11-790 11.4.9 Jitter/Wander Sub-screen ......11-792 11.4.10 Jitter tolerance Sub-screen ...... 11-800 11.4.11 Jitter transfer Sub-screen ......11-801 11.4.12 Ethernet Sub-screen ........ 11-802 11.5 Analyze Screen Commands ........11-812 11.5.1 Analyze Main Screen Common Commands ..........
Page 139: Sdh (Sonet)/Otn/Jitter Mode-Unique Commands
Measurement is resumed when a setting is changed during meas- urement. Refer to Detailed Operation Procedure of the MP1590B Network Performance Tester Operation Manual for conditions to change the set values of other items and for the resume conditions.
Page 140 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Program Query Command> The response content is omitted when a program command correspond- ing to a query exists. (The response content is the same as the parameter content of the program command.) Parameter Type (SCPI, device-unique) Query Command Parameter Type (IEEE488.2) :ROUTe:THRough[:TYPE]?
Page 141: Program Data
11.1 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.1.1 PROGRAM DATA Table 11.1-1 lists the response types used in the SDH(SONET)/OTN/ Jitter mode. The parameter types are shown with small letters enclosed by parenthe- ses < > as shown in Table 11.1-1. The <PROGRAM DATA> types specified by IEEE488.2 (or SCPI) corre- sponding to the parameter types are indicated by capital letters.
Page 142: Response Data
Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.1.2 Response Data Table 11.1-2 lists the response types used in the SDH (SONET)/OTN/ Jitter mode. The response types are shown by small letters enclosed by parentheses <> as shown in Table 11.1-2. The <RESPONSE DATA> types specified by IEEE488.2 (or SCPI) corre- sponding to the response types are indicated by capital letters.
Page 143: Response Format
11.1 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.1.3 Response Format Table 11.1-3 lists the response format used for response data including measured results. Table 11.1-3 Response Format Type Format Description When 0 ≤ value ≤ 999.999, Form1 " XXXXXX" 6 among 8 characters with right justification Integer Type Example: >...
Page 144 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Type Format Description Form5 " XX.XX" When 20UI range UIpp 0.00 ≤ value ≤ 20.20 UI+p, UI-p 0.00 ≤ value ≤ 10.10 UI Type When 60UI range UIpp 0.00 ≤ value ≤ 60.60 UI+p, UI-p 0.00 ≤ value ≤ 30.30 When 80UI range UIpp 0.00 ≤...
Page 145 11.1 SDH (SONET)/OTN/Jitter Mode-Unique Commands Type Format Description ">XX.XX" When value > 20.20 (20UI range, UIpp) When value > 10.10 (20UI range, UI+p, UI-p) When value > 60.60 (60UI range, UIpp) When value > 30.30 (60UI range, UI+p, UI-p) When value > 80.80 (80UI range, UIpp) When value >...
Page 146 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Type Format Description Form6 “ Unlock” When Timeout caused by on Unlock occur. dB Type "> 10.00" When value > 10.00 "<–80.00" When value < –80.00 " ***.**" When parameter overflow occurs. "-------" When invalid data (includes Timeout) or no data are available for queries Form7 "...
Page 147 11.1 SDH (SONET)/OTN/Jitter Mode-Unique Commands Type Format Description Form9 "UNLOCK" When Unlock occurs. Judgme < :CALCulate:DATA? "JMANual:STATus" nt Type > "UNLOCK" "------" When Unlock does not occur. (6 characters) Form10 " XXXXXXXXXXX.X" When 0 ≤ value ≤ 9,999,999,999.9, Integer 13 among 14 characters with right justification Type 2 Example: >...
Page 148 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Type Format Description Form16 "XXXXXX.X" 8 characters with right justification Integer Example: > :CALCulate:WSWeep:DATA? 15,15 Type < 15,100,HZ,0,10,20,30,40, " 15.0"," 15.0"," 15.0"," 15.0"," 15.0", " Acceptable"," Acceptable"," Acceptable", " Acceptable"," Acceptable" "> 2000.0" When value > 2000.0 (APStest, Data Interruption) "--------"...
Page 149 11.1 SDH (SONET)/OTN/Jitter Mode-Unique Commands Type Format Description Form18 " When 0.000000000 ≤ value < 3599.000000000, XXXX.XXXXXXXXX" Type 4 14 among 16 characters with right justification Example: > :CALCulate:DATA? "LATency:CURRent" < " 5.000000000" "> 3599.999999999" When value > 3599.999999999 "<–3599.999999999" When value <...
Page 150: Setup Screen Commands
Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2 Setup Screen Commands 11.2.1 Setup Screen Common Commands In this section, commands related to the Setup screen for each screen are described. Screen change Fig. 11.2.1-1 Setup Sub-screen switching Setting Command (Sub-screen) :DISPlay:SETup[:NAME] 11-14...
Page 151 11.2 Setup Screen Commands :DISPlay:SETup[:NAME] <sdisplay> ∇ Parameter <sdisplay> = <STRING PROGRAM DATA> "SIGNal" Signal screen "SPPData" OH preset data screen "TANDem" SDH tandem / SONET tandem screen "DMYPreset" Dummy Preset screen "JWANder" Jitter/Wander screen "JEDit" Jitter edit screen "MEAScond" Measurement condition screen "APSProg"...
Page 152 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:SETup[:NAME]? ∇ Parameter None • Response <sdisplay> = <STRING RESPONSE DATA> "SIGN" Signal screen "SPPD" OH preset data screen "TAND" SDH tandem / SONET tandem screen "DMYP" Dummy Preset screen "JWAN" Jitter/Wander screen "JED" Jitter edit screen "MEAS"...
Page 153: Signal Sub-Screen
11.2 Setup Screen Commands 11.2.2 Signal Sub-screen 11.2.2.1 Common commands Setting Command Display mode :DISPlay:SETup:SIGNal:DISPmode Tx,Rx setting :INSTrument:COUPle Meas. Mode :SENSe:TELecom:MMODe 11-17...
Page 154 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:SETup:SIGNal:DISPmode <type> ∇ Parameter <type> = <CHRACTER PROGRAM DATA> INTerface Interface MAPPing Mapping CONStruction Construction GUIDe Guide • Function Selects the display items of the Setup:Signal screen. • Example use To select Interface as display item: >...
Page 155 11.2 Setup Screen Commands :INSTrument:COUPle <mode>[,<type>] ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> Tx&Rx (Identical) NONE Tx/Rx (Independent) <type> = <CHARACTER PROGRAM DATA> TXSetting Match setting with Tx RXSetting Match setting with Rx • Function Sets whether identical or independent settings apply for send and receive. Settings can be matched to either Tx, Rx setting side at identical settings.
Page 156 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:MMODe? ∇ Parameter None • Response <service> = <CHARACTER RESPONSE DATA> OSER Out-of-service measurement ISER In-service measurement • Function Queries the measurement mode. • Example use > :SENSe:TELecom:MMODe? < OSER 11-20...
Page 157 11.2 Setup Screen Commands 11.2.2.2 Interface screen Fig. 11.2.2.2-1 Setup:Signal: <Interface> screen - Example of Screen-Tx&Rxmode Fig. 11.2.2.2-2 Setup:Signal: <Interface> screen - Example of Tx/Rx mode 11-21...
Page 158 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Setting Command Bit rate :SOURce:TELecom:BRATe :SENSe:TELecom:BRATe Bit rate(3)-Interface :SOURce:TELecom:INTerface :SOURce:TELecom:M1_5:CODE :ROUTe:M52:OUTPut :ROUTe:STM16:OUTPut :ROUTe:STM64:OUTPut :ROUTe:STS192:OUTPut :SENSe:TELecom: INTerface :SENSe:TELecom:M1_5:CODE :ROUTe:INPut:SELect :ROUTe:M52:MINPut :ROUTe:STM16:INPut :ROUTe:STM64:INPut :ROUTe:STS192:INPut Attenuation :SOURce:TELecom:ATTenuation Laser ON/OFF :SOURce:TELecom:LASer Wave-Length :SOURce:TELecom:XFP:WLENgth? Through :ROUTe:THRough[:TYPE] -Mode(1) :ROUTe:THRough:MODE -Mode(2) :ROUTe:THRough:OH -Mode(3) :ROUTe:THRough:BYTE...
Page 159 11.2 Setup Screen Commands :SOURce:TELecom:BRATe <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s G10_3 10.3 Gbit/s M9953 9953 Mbit/s M2666 2666 Mbit/s M2488 2488 Mbit/s M622 622 Mbit/s M156 156 Mbit/s 52 Mbit/s M139 139 Mbit/s...
Page 160 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:BRATe <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s G10_3 10.3 Gbit/s M9953 9953 Mbit/s M2666 2666 Mbit/s M2488 2488 Mbit/s M622 622 Mbit/s M156 156 Mbit/s 52 Mbit/s M139...
Page 161 11.2 Setup Screen Commands :SOURce:TELecom:INTerface <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> ELECtrical Electrical OPTical1 1.31 µm Optical OPTical2 1.55 µm Optical OPTical Optical EXTMod Optical (Ext. Mod) OXFP Optical (XFP) B3ZS B3ZS HDB3 HDB3 HDBBalance HDB3 (Balance) HDBUnbalance HDB3 (Unbalance) B8ZS B8ZS...
Page 162 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:INTerface? ∇ Parameter None • Response <type> = <CHARACTER RESPONSE DATA> ELEC Electrical OPT1 1.31 µm Optical OPT2 1.55 µm Optical Optical EXTM Optical (Ext. Mod) OXFP Optical (XFP) B3ZS B3ZS HDB3 HDB3 HDBB HDB3 (Balance) HDBU HDB3 (Unbalance)
Page 163 11.2 Setup Screen Commands :SENSe:TELecom:INTerface <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> ELECtrical Electrical OPTical Optical OXFP Optical (XFP) B3ZS B3ZS HDB3 HDB3 HDBBalance HDB3 (Balance) HDBUnbalance HDB3 (Unbalance) B8ZS B8ZS * Parameters for the following commands are described below. :SENSe:TELecom:M1_5:CODE <code>...
Page 164 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:INTerface? ∇ Parameter None • Response <type> = <CHARACTER RESPONSE DATA> ELEC Electrical Optical OXFP Optical (XFP) B3ZS B3ZS HDB3 HDB3 HDBB HDB3 (Balance) HDBU HDB3 (Unbalance) B8ZS B8ZS • Function Queries interface for output signals. •...
Page 165 11.2 Setup Screen Commands :SOURce:TELecom:LASer <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Optical output OFF ON or 1 Optical output ON • Function Sets optical output. • Example use To execute optical output: > :SOURce:TELecom:LASer ON :SOURce:TELecom:LASer? ∇...
Page 166 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :ROUTe:THRough[:TYPE] <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Through OFF ON or 1 Through ON • Function Sets ON/OFF of the Thorough function. • Example use To set the Thorough function to ON: >...
Page 167 11.2 Setup Screen Commands :ROUTe:THRough:MODE <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> TRANs Transparent through OH overwrite (Either SONET/SDH settings) OTN OH overwrite SDH OH overwrite SONet SONET OH overwrite • Function Sets the processing mode of the through data upon Through on. •...
Page 168 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :ROUTe:THRough:OH <otype> ∇ Parameter <otype> = <CHARACTER PROGRAM DATA> OTNA OTU/ODU/OPU All OTN1 OTU/ODU/OPU 1 byte (SDH) (SONET) SOH1 (SDH) SOH 1 byte TOH1 (SONET) TOH 1 byte A1_A2 A1/A2 byte K1_K2 K1/K2 DCC1 DCC1 to DCC3 DCC4 DCC4 to DCC12...
Page 169 11.2 Setup Screen Commands :ROUTe:THRough:BYTE <oh type>,<byte> ∇ Parameter <oh type> = <CHARACTER PROGRAM DATA> OTU/ODU/OPU 1 byte SOH 1 byte(SDH) TOH 1 byte(SONET) <byte> = <CHARACTER PROGRAM DATA> (OTN 1byte) RES_ RES_ RES_ RES_ GCC0_ GCC0_ FAS_11 FAS_12 FAS_13 FAS_14 FAS_15 FAS_16 – SM_18 –...
Page 170 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands • Function Sets the byte position of OTN/SONET/SDH 1byte upon Through on. This setting is valid when 1 byte is specified with:ROUTe:THRough:OH command. oh type matching are required. Settings may be forcibly changed when:ROUTe:THRough:OH command is used.
Page 171 11.2 Setup Screen Commands (SDH) :ROUTe:THRough:SOHChannel? (SONET) :ROUTe:THRough:TOHChannel? ∇ Parameter None • Response <ch> = <NR1 NUMERIC RESPONSE DATA> :ROUTe:THRough:SOHChannel Same as :ROUTe:THRough:TOHChannel. • Function Queries the channel position of SOH/TOH overwrite 1byte upon Through • Example use >:ROUTe:THRough:SOHChannel? < 1 :SOURce:TELecom:DSX <numeric>...
Page 172 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:IMODe <imode> ∇ Parameter <imode> = <CHARACTER PROGRAM DATA> TERMinal Monitor mode OFF MONitoring Monitor mode ON • Function Sets the input signal level. • Example use To set the input signal level to Monitor mode OFF: >...
Page 173 11.2 Setup Screen Commands :SOURce:TELecom:CLOCk:INPut <csource> :SOURce:TELecom:CLOCk:SOURce <csource> ∇ Parameter <csource> = <CHARACTER PROGRAM DATA> INTernal Internal EXTernal External EXTernal4 External(1/4) EXTernal16 External(1/16) EXTernal64 External(1/64) RECeive Receive INSert Insert signal LUNB_2MHZ Lock 2 MHz Unbalanced LBAL_2MHZ Lock 2 MHz Balanced LUNB_2MBPS Lock 2 Mbps Unbalanced LBAL_2MBPS...
Page 174 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:CLOCk:INPut? :SOURce:TELecom:CLOCk:SOURce? ∇ Parameter None • Response <csource> = <CHARACTER RESPONSE DATA> Internal External EXT4 External(1/4) EXT16 External(1/16) EXT64 External(1/64) Receive Insert signal LUNB_2MHZ Lock 2 MHz Unbalanced LBAL_2MHZ Lock 2 MHz Balanced LUNB_2MBPS Lock 2 Mbps Unbalanced LBAL_2MBPS Lock 2 Mbps Balanced...
Page 175 11.2 Setup Screen Commands :SOURce:TELecom:CLOCk:OUTPut? ∇ Parameter None • Response <csource> = <CHARACTER RESPONSE DATA> LUNB_2MHZ Look 2 MHz Unbalanced LUNB_2MBPS Look 2 Mbps Unbalanced LUNB_1_5MHZ Look 1.5 MHz Unbalanced BITS BITS Look 5 MHz L10M Look 10 MHz • Function Queries reference signal output set value for send signals.
Page 176 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:DIFFerential:AMPLitude <mv> ∇ Parameter <mv>= <NON−DECIMAL NUMERIC PROGRAM DATA> 150 to 550 (mV) Step value: 1 mV • Function Sets the output level for a differential module. • Example use To set the differential output level of the MU150121B to 200 mV. >...
Page 177 11.2 Setup Screen Commands :SENSe:TELecom:DIFFerential:DATA:THReshold <mv> ∇ Parameter <mv> = < NON-DECIMAL NUMERIC PROGRAM DATA > −50 to 50 (mV) Step value: 1 mV • Function Sets the input level threshold for a differential module. • Example use To set the differential input level threshold of the MU150123B/24B to 10 >...
Page 178 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:AMPLitude <ampl> ∇ Parameter <ampl> = <DECIMAL NUMERIC PROGRAM DATA> 0.250 to 1.000(Vp-p) Step 2mV • Function Sets the output amplitude of the MU150142A. • Example use To set the output amplitude of the MU150142A to 0.998 Vp-p. >...
Page 179 11.2 Setup Screen Commands :SOURce:TELecom:OFFSet:AC <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 AC Offset OFF ON or 1 AC Offset ON • Function Sets the AC offset ON/OFF for the MU150142A. • Example use To set the AC offset to Off for the MU150142A. >...
Page 180 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:AUX:INPut <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> DIV64 1/64 Clock • Function Sets the AUX input type for the MU150142A. • Example use To set the AUX input to 1/64 Clock for the MU150142A. >...
Page 181 11.2 Setup Screen Commands :SOURce:TELecom:AUX:OUTPut:DIVide <div> ∇ Parameter <div> = <CHARACTER PROGRAM DATA> DIV16 1/16 Clock DIV32 1/32 Clock DIV64 1/64 Clock DIV128 1/128 Clock DIV256 1/256 Clock • Function Sets the N value when the AUX output is 1/N for the MU150142A. •...
Page 182 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:DATA:THReshold <threshold> ∇ Parameter <threshold> = <DECIMAL NUMERIC PROGRAM DATA> -0.100 to 0.100(V) Step 1mV • Function Sets the input threshold level for the MU150142A. • Example use To set the input threshold level to 0.099 V for the MU150142A. >...
Page 183 11.2 Setup Screen Commands :SENSe:TELecom:CLOCk:INPut <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> EXT64div External 1/64 INTVco Internal VCO TXLPback Tx Loopback • Function Sets the input type of 1/64 Reference clock for the MU150142A. • Example use To set the type of 1/64 Reference clock to Internal VCO for the MU150142A. >...
Page 184 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.2.3 Mapping screen Fig. 11.2.2.3-1 Setup:Signal: <Mapping> screen - Example of Tx,Rx setting (Tx&Rx mode) (For SDH) Fig. 11.2.2.3-2 Setup:Signal: <Mapping> screen - Example of Tx setting (Tx/Rx mode) (For SONET) 11-48...
Page 185 11.2 Setup Screen Commands Fig. 11.2.2.3-3 Setup:Signal: <Mapping> screen - Example of Rx setting (Tx/Rx mode) (For SDH) 11-49...
Page 186 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Setting Command OTN-Mapping :SOURce:TELecom:MAPPing:OTN:TYPE :SENSe:TELecom:MAPPing:OTN:TYPE SONET/SDH-Mapping :SOURce:TELecom:MAPPing:TYPE :SOURse:TELecom:MAPPing:AU :SOURce:TELecom:MAPPing:STS :SOURce:TELecom:MAPPing:TU :SOURce:TELecom:MAPPing:VT :SENSe:TELecom:MAPPing:TYPE :SENSe:TELecom:MAPPing:AU :SENSe:TELecom:MAPPing:STS :SENSe:TELecom:MAPPing:TU :SENSe:TELecom:MAPPing:VT Virtual concatenation :SOURce:TELecom:MAPPing:VIRTual :SOURce:TELecom:MAPPing:VLAYer :SENSe:TELecom:MAPPing:VIRTual :SENSe:TELecom:MAPPing:VLAYer Mixed payload :SOURce:TELecom:MAPPing:MPAYload:MODE :SOURce:TELecom:MAPPing:MPAYload:UNIT1 :SOURce:TELecom:MAPPing:MPAYload:UNIT2 :SOURce:TELecom:FEC :SENSe:TELecom:FEC Frame :SOURce:TELecom:FRAMing :SOURce:TELecom:M1_5:FRAMed :SOURce:TELecom:M2:MCHannel :SOURce:TELecom:M2:CRC :SOURce:TELecom:M45:FRAMed :SENSe:TELecom:FRAMing :SENSe:TELecom:M1_5:FRAMed...
Page 187 11.2 Setup Screen Commands :SOURce:TELecom:MAPPing:OTN:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) No frame OPU3Gfp OPU3 GFP (Dummy) OPU3Laps OPU3 LAPS (Dummy) ASYNc_stm64 STM64 Async. SYNC_stm64 STM64 Sync. OPU2Null OPU2 NULL OPU2Prbs OPU2 PRBS OPU2Gfp OPU2 GFP (Dummy) OPU2Laps OPU2 LAPS (Dummy) OPU2E10Gbe...
Page 188 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MAPPing:OTN:TYPE? ∇ Parameter None • Response <type> = <CHARACTER RESPONSE DATA> (SDH) No frame OPU3G OPU3 GFP (Dummy) OPU3L OPU3 LAPS (Dummy) ASYN64 STM64 Async. SYNC64 STM64 Sync. OPU2N OPU2 NULL OPU2P OPU2 PRBS OPU2G OPU2 GFP (Dummy) OPU2L...
Page 189 11.2 Setup Screen Commands :SENSe:TELecom:MAPPing:OTN:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) No frame OPU3Gfp OPU3 GFP (Dummy) OPU3Laps OPU3 LAPS (Dummy) ASYNc_stm64 STM64 Async. SYNC_stm64 STM64 Sync. OPU2Null OPU2 NULL OPU2Prbs OPU2 PRBS OPU2Gfp OPU2 GFP (Dummy) OPU2Laps OPU2 LAPS (Dummy) OPU2E10Gbe...
Page 190 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:MAPPing:OTN:TYPE? ∇ Parameter None • Response <type> = <CHARACTER RESPONSE DATA> (SDH) No frame OPU3G OPU3 GFP (Dummy) OPU3L OPU3 LAPS (Dummy) ASYN64 STM64 Async. SYNC64 STM64 Sync. OPU2Nl OPU2 NULL OPU2P OPU2 PRBS OPU2G OPU2 GFP (Dummy) OPU2L...
Page 191 11.2 Setup Screen Commands :SOURce:TELecom:MAPPing:GBE10 <route> ∇ Parameter <route> = <CHARACTER PROGRAM DATA> No frame GBE10 10Gbe • Function Sets the mapping route of 10.3G transmission signal. • Example use To set the mapping route of 10.3G transmission signal to 10 Gbe. >...
Page 192 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MAPPing:TYPE <mtype> ∇ Parameter <mtype> = <CHARACTER PROGRAM DATA> (SDH) No frame FDDI FDDI (Async.) VC4_ASY 139M (Async.) VC4_BLK VC4 (Bulk) VC3_ASY 34M (Async.) VC3_SYN 34M (Sync.) VC3_45MASY 45M (Async.) VC3_BLK VC3 (Bulk) VC2_6MASY 6M (Async.) VC2_6MBIT 6M (Bitsync.)
Page 193 11.2 Setup Screen Commands (SONET) No frame FDDI FDDI (Async.) STS3_ASY 139M (Async.) STS3_BLK STS3cSPE (Bulk) VC3_ASY 34M (Async.) VC3_SYN 34M (Sync.) STS1_45MASY 45M (Async.) STS1_BLK STS1 SPE (Bulk) VT6_ASY 6M (Async.) VT6_BIT 6M (Bitsync.) VT6_MC VT6 SPE (mc) VT6_BLK VT6 SPE (Bulk) VT2_ASY 2M (Async.)
Page 194 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MAPPing:TYPE? ∇ Parameter None • Response <mtype> = <CHARACTER RESPONSE DATA> Same as :SOURce:TELecom:MAPPing:TYPE. • Function Queries the SDH (SONET) mapping route for receive signals. • Example use > :SOURce:TELecom:MAPPing:TYPE? < VT6_MC (SDH) :SOURce:TELecom:MAPPing:AU <atype>...
Page 195 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:MAPPing:AU? (SONET) :SOURce:TELecom:MAPPing:STS? ∇ Parameter None • Response <atype> = <CHARACTER RESPONSE DATA> :SOURce:TELecom:MAPPing:AU Same as :SOURce:TELecom:MAPPing:STS. • Function Queries the STS/AU route selection of the SONET/SDH mapping route for the send signal. • Example use >...
Page 196 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:MAPPing:TU? (SONET) :SOURce:TELecom:MAPPing:VT? ∇ Parameter None • Response <ttype> = <CHARACTER RESPONSE DATA> :SOURce:TELecom:MAPPing:TU Same as :SOURce:TELecom:MAPPing:VT. • Function Queries the VT/TU route selection of the SONET/SDH mapping route for the send signal. •...
Page 197 11.2 Setup Screen Commands (SONET) No frame FDDI FDDI (Async.) STS3_ASY 139M (Async.) STS3_BLK STS3cSPE (Bulk) VC3_ASY 34M (Async.) VC3_SYN 34M (Sync.) STS1_45MASY 45M (Async.) STS1_BLK STS1 SPE (Bulk) VT6_ASY 6M (Async.) VT6_BIT 6M (Bitsync.) VT6_MC VT6 SPE (mc) VT6_BLK VT6 SPE (Bulk) VT2_ASY 2M (Async.)
Page 198 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:TELecom:MAPPing:AU <type> (SONET) :SENSe:TELecom:MAPPing:STS <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) (SONET) STS3 STS3cSPE STS1 STS1 SPE • Function Selects the STS/AU route of the SONET/SDH mapping route of the receive signals.
Page 199 11.2 Setup Screen Commands (SDH) :SENSe:TELecom:MAPPing:TU <vtype> (SONET) :SENSe:TELecom:MAPPing:VT <vtype> ∇ Parameter <vtype> = <CHARACTER PROGRAM DATA> (SDH) TU12 TU12 TU11 TU11 (SONET) VT15 VT1.5 • Function Selects the VT/TU route of the SONET/SDH mapping route of the send sig- nals.
Page 200 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MAPPing:VIRTual <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets the virtual concatenation On/ Off at the transmitter side. • Example use To set the virtual concatenation at the transmitter side to Off. >...
Page 201 11.2 Setup Screen Commands :SOURce:TELecom:MAPPing:VLAYer <type> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> (SDH) (SONET) STS3 STS3 STS1 STS1 • Function Sets the container type of the virtual concatenation at the transmitter side. • Example use To set the container type of the virtual concatenation at the transmitter side to VC4.
Page 202 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:MAPPing:VIRTual <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets the virtual concatenation On/ Off at the receiver side. • Example use To set the virtual concatenation at the receiver side to Off. >...
Page 203 11.2 Setup Screen Commands :SENSe:TELecom:MAPPing:VLAYer <type> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> (SDH) (SONET) STS3 STS3 STS1 STS1 • Function Sets the container type of the virtual concatenation at the receiver side. • Example use To set the container type of the virtual concatenation at the receiver side to >...
Page 204 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MAPPing:MPAYload:MODE <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Enables Mixed payload setting. • Example use To set Mixed payload to OFF: > :SOURce:TELecom:MAPPing:MPAYload:MODE OFF :SOURce:TELecom:MAPPing:MPAYload:MODE? ∇...
Page 205 11.2 Setup Screen Commands :SOURce:TELecom:MAPPing:MPAYload:UNIT2 <ch>,<unit>,<type1>,<type2>,<type3>,<type4><type5>,<type6>,<type7> ∇ Parameter <ch> = < DECIMAL NUMERIC PROGRAM DATA > 1 to 3 Step value: 1 <unit> = <CHARACTER PROGRAM DATA> (SDH) TUG2 TUG2 VC3_TUG2 VC3-TUG2 (SONET) STS1SPE_VTG STS1SPE-VTG <type1> to <type7> = <CHARACTER PROGRAM DATA> (SDH) TU2VC2_BLK TU2-VC2-Bulk...
Page 206 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MAPPing:MPAYload:UNIT2? <ch> ∇ Parameter <ch> = < DECIMAL NUMERIC PROGRAM DATA > 1 to 3 Step value: 1 • Response <unit>=<CHARACTER RESPONSE DATA> (SDH) TUG2 TUG2 VC3_TUG2 VC3-TUG2 None (SONET) STS1SPE_VTG STS1SPE-VTG None <type1> to <type7>= <CHARACTER RESPONSE DATA> (SDH) TU3_BLK TU3-VC3-Bulk...
Page 207 11.2 Setup Screen Commands :SOURce:TELecom:FEC <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets ON/OFF of FEC encoding function of OTN and SDH signals. • Example use To set FEC encoding function to ON: >...
Page 208 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:FRAMing <type> ∇ Parameter <type> = < CHARACTER PROGRAM DATA > Without frame G_751 With frame (139M/34M) G_742 With frame (8M) M2_30CH With frame (2M) M2_30CHCRC With frame (2M) M2_31CH With frame (2M) M2_31CHCRC With frame (2M) With frame (1.5M) With frame (1.5M)
Page 209 11.2 Setup Screen Commands :SOURce:TELecom:M45:FRAMed <frame> ∇ Parameter <frame> = <CHARACTER PROGRAM DATA> CBIT C-bit • Function Sets test signal frame of send signals. • Example use To set 1.5M test signal frame to D4: > :SOURce:TELecom:FRAMing D4 :SOURce:TELecom:FRAMing? ∇ Parameter None •...
Page 210 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:M1_5:FRAMed <frame> ∇ Parameter <frame> = <CHARACTER PROGRAM DATA> JESF Japan ESF :SENSe:TELecom:M2:MCHannel <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> M2_30CH M2_31CH :SENSe:TELecom:M2:CRC <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 For M2_30CHCRC, M2_30CH For M2_31CHCRC, M2_31CH ON or 1...
Page 211 11.2 Setup Screen Commands :SENSe:TELecom:FRAMing? ∇ Parameter None • Response <type> = < CHARACTER PROGRAM DATA > Without frame G_751 With frame (139M/34M) G_742 With frame (8M) M2_30CH With frame (2M) M2_30CHCRC With frame (2M) M2_31CH With frame (2M) M2_31CHCRC With frame (2M) With frame (1.5M) With frame (1.5M)
Page 212 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MUX:MRATe? ∇ Parameter None • Response <mrate> = <CHARACTER RESPONSE DATA> Same as :SOURce:TELecom:MUX:MRATe. • Function Queries first-stage code speed of MUX. • Example use > :SOURce:TELecom:MUX:MRATe? < M2 :SENSe:TELecom:DEMUX:MRATe <mrate> ∇ Parameter <mrate> = <CHARACTER PROGRAM DATA> DEMUX function OFF 34 Mbit/s 8 Mbit/s...
Page 213 11.2 Setup Screen Commands :SOURce:TELecom:MUX:FRAMing <type> ∇ Parameter <type> = < CHARACTER PROGRAM DATA > Without frame G_751 With frame (34M) G_742 With frame (8M) M2_30CH With frame (2M) M2_30CHCRC With frame (2M) M2_31CH With frame (2M) M2_31CHCRC With frame (2M) With frame (1.5M) With frame (1.5M) JESF...
Page 214 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:DEMUX:FRAMing <type> ∇ Parameter <type> = < CHARACTER PROGRAM DATA > Without frame G_751 With frame (34M) G_742 With frame (8M) M2_30CH With frame (2M) M2_30CHCRC With frame (2M) M2_31CH With frame (2M) M2_31CHCRC With frame (2M) With frame (1.5M) With frame (1.5M)
Page 215 11.2 Setup Screen Commands :SENSe:TELecom:M2:SIGNaling <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Signaling multi-frame OFF ON or 1 Signaling multi-frame ON • Function Sets the signaling frame setting. • Example use To set the signaling multi-frame check to ON: >...
Page 216 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:M45:XBIT? ∇ Parameter None • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:M45:XBIT. • Function Queries Xbit of 45M signals. • Example use > :SOURce:TELecom:M45:XBIT? < “01” :SOURce:TELecom:PATTern[:TYPE] <pattern> ∇ Parameter <pattern> = <CHARACTER PROGRAM DATA> PRBS7 PRBS 2^7-1 PRBS11...
Page 217 11.2 Setup Screen Commands :SOURce:TELecom:PATTern[:TYPE]? ∇ Parameter None • Response <pattern> = <CHARACTER RESPONSE DATA> PRBS7 PRBS 2^7-1 PRBS11 PRBS 2^11-1 PRBS15 PRBS 2^15-1 PRBS20 PRBS 2^20-1 PRBS20Z PRBS 2^20-1 (Zero suppress) PRBS23 PRBS 2^23-1 PRBS31 PRBS 2^31-1 UWOR16 word16 UWOR32 word32 AZERO...
Page 218 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:PATTern[:TYPE]? ∇ Parameter None • Response <pattern> = <CHARACTER RESPONSE DATA> PRBS7 PRBS 2^7-1 PRBS11 PRBS 2^11-1 PRBS15 PRBS 2^15-1 PRBS20 PRBS 2^20-1 PRBS20Z PRBS 2^20-1(Zero suppress) PRBS23 PRBS 2^23-1 PRBS31 PRBS 2^31-1 UWOR16 word16 AZERO All 0...
Page 219 11.2 Setup Screen Commands :SENSe:TELecom:PATTern:UWORd <string> ∇ Parameter <string> = <STRING PROGRAM DATA> “0000000000000000” to ”1111111111111111” • Function Sets the test pattern (receive) word data. This command should be used with hexadecimal setting for display. • Example use To set word data having 16-bit word length to ”1100110011001100”: >...
Page 220 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:INVert? ∇ Parameter None • Response <boolean> = <NR1 NUMERIC RESPONSE DATA> No inversion Inversion • Function Queries the setting of PRBS test pattern inversion. • Example use > :SOURce:TELecom:INVert? < 1 :SENSe:TELecom:INVert <boolean> ∇...
Page 221 11.2 Setup Screen Commands 11.2.2.4 Construction screen Fig. 11.2.2.4-1 Setup:Signal: <Construction> screen - Example of Tx&Rx mode Fig. 11.2.2.4-2 Setup:Signal: <Construction> screen - Example of Tx/Rx mode 11-85...
Page 222 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Setting Command Add/Drop :ROUTe:ADD[:MODE] :SOURce:TELecom:INSert:MODE :ROUTe:DROP[:MODE] :SENSe:TELecom:EXTRact:MODE Rate-CH :SOURce:TELecom:INSert:CH :SENSe:TELecom:EXTRact:CH Rate :SOURce:TELecom:INSert:RATE :SENSe:TELecom:EXTRact:RATE Rate-Interface :ROUTe:ADD:INPut :SOURce:TELecom:INSert:INTerface :ROUTe:DROP:CODE :SENSe:TELecom:EXTRact:INTerface : ROUTe:DROP:DSX Attenuation :SENSe:TELecom:EXTRact:ATTenuation Attenuation ON/OFF :SENSe:TELecom:EXTRact:LASer Payload Replacement :ROUTe:REPLace 11-86...
Page 223 11.2 Setup Screen Commands :ROUTe:ADD[:MODE] <boolean> :SOURce:TELecom:INSert:MODE <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Enables Add function. • Example use To enable Add function: > :ROUTe:ADD:MODE ON > :ROUTe:ADD ON > :SOURce:TELecom:INSert:MODE ON :ROUTe:ADD[:MODE]? :SOURce:TELecom:INSert:MODE? ∇...
Page 224 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :ROUTe:DROP[:MODE] <boolean> :SENSe:TELecom:EXTRact:MODE <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets Drop function of enable/ invalid. • Example use To enable Drop function: > :ROUTe:DROP:MODE ON >...
Page 225 11.2 Setup Screen Commands :SOURce:TELecom:INSert:RATE <rate> ∇ Parameter <rate> = <CHARACTER PROGRAM DATA> M2488 2488M M622 622M M156 156M M156CMI 156M CMI M52B3ZS 52M B3ZS M139 139M M1_5 1.5M • Function Sets the rate to perform Add. • Example use To set 622M for the rate (interface) to perform Insert: >...
Page 226 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:TELecom:EXTRact:RATE? ∇ Parameter None • Response <rate> = <CHARACTER RESPONSE DATA> Same as :SENSe:TELecom:EXTRact:RATE. • Function Queries the rate to perform Extract. • Example use > :SENSe:TELecom:EXTRact:RATE? < M622 :SOURce:TELecom:INSert:CH <ch> ∇ Parameter <ch> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 192 Step value: 1 •...
Page 227 11.2 Setup Screen Commands :SENSe:TELecom:EXTRact:CH? ∇ Parameter None <ch> = <NR1 NUMERIC RESPONSE DATA> • Response Same as :SENSe:TELecom:EXTRact:CH. Queries the target channel for Extract. • Function > :SENSe:TELecom:EXTRact:CH? • Example use < 4 :SOURce:TELecom:INSert:INTerface <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> ELECtrical Electrical OPTical1...
Page 228 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:INSert:INTerface? ∇ Parameter None • Response <type> = <CHARACTER RESPONSE DATA> ELEC Electrical OPT1 1.31 µm Optical OPT2 1.55 µm Optical B3ZS B3ZS HDB3 HDB3 HDBB HDB3 (Balance) HDBU HDB3 (Unbalance) B8ZS B8ZS • Function Queries interface of input signals of Insert signals.
Page 229 11.2 Setup Screen Commands :SENSe:TELecom:EXTRact:INTerface? ∇ Parameter None • Response <optical> = <CHARACTER RESPONSE DATA> ELEC Electrical OPT1 1.31 µm Optical OPT2 1.55 µm Optical B3ZS B3ZS HDB3 HDB3 HDBB HDB3 (Balance) HDBU HDB3 (Unbalance) B8ZS B8ZS • Function Queries interface of input signals of Extract signals. •...
Page 230 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :ROUTe:DROP:DSX <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 0 ft 450 feet 655 feet 900 feet • Function Specifies DSX cable length in Drop (1.5M, 45M) signals. • Example use To set DSX cable length in Drop (1.5M) signals to 450 feet: >...
Page 231 11.2 Setup Screen Commands :SENSe:TELecom:EXTRact:LASer <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Optical output OFF ON or 1 Optical output ON Sets Extract optical output. • Function To execute optical output: • Example use > :SENSe:TELecom:EXTRact:LASer ON :SENSe:TELecom:EXTRact:LASer? ∇...
Page 232: Oh Preset Sub-Screen
Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.3 OH preset Sub-screen 11.2.3.1 OH preset sub-screen Common commands Setting Command Display mode :DISPlay:SETup:OHPReset:DISPmode 11-96...
Page 233 11.2 Setup Screen Commands :DISPlay:SETup:OHPReset:DISPmode <ohpreset> ∇ Parameter <ohpreset> = <CHRACTER PROGRAM DATA> (SDH) (SONET) SONET SONET • Function Selects the display items of the Setup:OH preset screen. • Example use To select OTN as display item: > :DISPlay:SETup:OHPReset:DISPmode OTN :DISPlay:SETup:OHPReset:DISPmode? ∇...
Page 234 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.3.2 OTN display screen Fig. 11.2.3.2-1 Setup: OH preset: <OTN> screen 11-98...
Page 235 11.2 Setup Screen Commands Setting Command Default :SOURce:TELecom:OHPReset:OTN:DEFault OTN OH :SOURce:TELecom:OHPReset:OTN:OHPattern TTI data :SOURce:TELecom:OHPReset:OTN:TTI:DATA (SM,TCM1,TCM2,TCM3,TCM4,TCM5,TCM6,PM) TTI[Default] :SOURce:TELecom:OHPReset:OTN:TTI:DEFault (SM,TCM1,TCM2,TCM3,TCM4,TCM5,TCM6,PM) TTI[IS] :SOURce:TELecom:OHPReset:OTN:TTI:IS (SM,TCM1,TCM2,TCM3,TCM4,TCM5,TCM6,PM) TTI[NS] :SOURce:TELecom:OHPReset:OTN:TTI:NS (SM,TCM1,TCM2,TCM3,TCM4,TCM5,TCM6,PM) SM[3]:[BEI/BIAE] :SOURce:TELecom:OHPReset:OTN:SM:BEIBiae SM[3]:[BDI] :SOURce:TELecom:OHPReset:OTN:SM:BDI SM[3]:[IAE] :SOURce:TELecom:OHPReset:OTN:SM:IAE SM[3]:[RES] :SOURce:TELecom:OHPReset:OTN:SM:RES TCMn[3][BEI/BIAEn] :SOURce:TELecom:OHPReset:OTN:TCM:BEIBiae TCMn[3]:[BDIn] :SOURce:TELecom:OHPReset:OTN:TCM:BDI TCMn[3]:[STATn] (mnemonic setting) :SOURce:TELecom:OHPReset:OTN:TCM:STAT:LABel TCMn[3]:[STATn] (binary setting) :SOURce:TELecom:OHPReset:OTN:TCM:STAT:PATTern PM[3][BEI]...
Page 236 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:DEFault [<brate>] ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s • Function Initializes OTN OH preset data of send signals. Initializes OTN OH preset data of all bit rates when <brate> is omitted. •...
Page 237 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:OHPattern? <brate>,<otnpoint> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> <otnpoint> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:OTN:OHPattern. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:OTN:OHPattern. • Function Queries the OTN OH preset data setting of send signals. •...
Page 238 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:TTI:DATA? <brate>,<ttitype>,<point1>,<point2> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> <ttitype> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:OTN:TTI:DATA. <point1> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 63 Step value: 1 <point2> = <DECIMAL NUMERIC PROGRAM DATA> point1 to 63 Step value: 1 •...
Page 239 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:TTI:IS <brate>,<ttitype>,<sapidappi>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <ttitype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2 TCM2 TCM3 TCM3 TCM4 TCM4 TCM5 TCM5 TCM6 TCM6 <sapidapi>...
Page 240 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:TTI:NS <brate>,<ttitype>,<sapidappi>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <ttitype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2 TCM2 TCM3 TCM3 TCM4 TCM4 TCM5 TCM5 TCM6...
Page 241 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:SM:BEIBiae <brate>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Gbit/s <string> = <STRING PROGRAM DATA> "0000" to "1111" (binary type) • Function Sets third byte Bit 1 to Bit 4 of SM of send signals. •...
Page 242 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:SM:BDI? <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:OTN:SM:BDI. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:OTN:SM:BDI. • Function Queries third byte Bit 5 of SM of send signals. •...
Page 243 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:SM:RES <brate>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <string> = <STRING PROGRAM DATA> "00" to "11" (binary type) • Function Sets third byte Bit 7 to Bit 8 of SM of send signals. •...
Page 244 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:TCM:BEIBiae <brate>,<tcmtype>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <tcmtype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2 TCM2 TCM3 TCM3 TCM4 TCM4 TCM5 TCM5 TCM6...
Page 245 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:TCM:BDI <brate>,<tcmtype>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <tcmtype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2 TCM2 TCM3 TCM3 TCM4 TCM4 TCM5 TCM5 TCM6 TCM6 <string>...
Page 246 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:TCM:STAT:LABel <brate>,<tcmtype>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <tcmtype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2 TCM2 TCM3 TCM3 TCM4 TCM4 TCM5 TCM5 TCM6...
Page 247 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:TCM:STAT:PATTern <brate>,<tcmtype>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <tcmtype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2 TCM2 TCM3 TCM3 TCM4 TCM4 TCM5 TCM5 TCM6 TCM6 <string>...
Page 248 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:PM:BEI <brate>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <string> = <STRING PROGRAM DATA> "0000" to "1111" (binary type) • Function Sets third byte Bit 1 to Bit 4 of PM of send signals. •...
Page 249 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:PM:BDI? <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:OTN:PM:BDI. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:OTN:PM:BDI. • Function Queries third byte Bit 5 of PM of send signals. • Example use To query third byte Bit 5 of 10.7G, PM as follows: >...
Page 250 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:PM:STAT:LABel? <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:OTN:PM:STAT:LABel. • Response <string> = <STRING PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:OTN:PM:STAT:LABel. • Function Queries third byte Bit 6 to Bit 8 of PM of send signals. •...
Page 251 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:FTFL:DATA <brate>,<point>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <point> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 255 Step value: 1 <string> = <STRING PROGRAM DATA> "00"...
Page 252 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:FTFL:FIF:LABel <brate>,<field>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <field> = <CHARACTER PROGRAM DATA> FORWard Forward field BACKward Backward field <string> = <STRING PROGRAM DATA> “No fault”...
Page 253 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:FTFL:FIF:PATTern <brate>,<field>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <field> = <CHARACTER PROGRAM DATA> FORWard Forward field BACKward Backward field <string> = <STRING PROGRAM DATA> “00”...
Page 254 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:FTFL:CC <brate>,<field>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <field> = <CHARACTER PROGRAM DATA> FORWard Forward field BACKward Backward field <string> = <STRING PROGRAM DATA> * Sets 3 characters of CC.
Page 255 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:FTFL:NSC <brate>,<field>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <field> = <CHARACTER PROGRAM DATA> FORWard Forward field BACKward Backward field <string> = <STRING PROGRAM DATA> * Sets 6 characters of ICC or UAPC.
Page 256 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:PSI:DATA <brate>,<point>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s <point> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 255 Step value: 1 <string> = <STRING PROGRAM DATA> "00"...
Page 257 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:OTN:PSI:DEFault <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s • Function Initializes PSI multi data of send signals. • Example use To Initialize PSI multi data of 10.7G as follows: >...
Page 258 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:OTN:PSI:PT:LABel? <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:OTN:PSI:PT:LABel. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:OTN:PSI:PT:LABel. • Function Queries mnemonic setting of PSI multi data PT of send signals. •...
Page 259 11.2 Setup Screen Commands 11.2.3.3 SDH (SONET) display screen Fig. 11.2.3.3-1 Setup:OH preset: <SDH/SONET> screen-Example of OH setting (For SDH) Fig. 11.2.3.3-2 Setup:OH preset: <SDH/SONET> screen-Example of Path trace setting (For SONET) 11-123...
Page 260 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands • OH setting Command Setting Command Default :SOURce:TELecom:OHPReset:DEFault :SOURce:TELecom:OHPReset:SOHPattern SOH data (1 byte setting) :SOURce:TELecom:OHPReset:TOHPattern :SOURce:TELecom:OHPReset:SOHPattern2 SOH data (multi byte setting) :SOURce:TELecom:OHPReset:TOHPattern2 SOH S1 (mnemonic type) :SOURce:TELecom:OHPReset:SSMessage SOH S1 (binary type) :SOURce:TELecom:OHPReset:SSPattern POH data (1 byte setting) :SOURce:TELecom:OHPReset:POHPattern POH data (multi byte setting) :SOURce:TELecom:OHPReset:POHPattern2...
Page 261 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:DEFault [<brate>] ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> M9953 9953 Mbit/s M2488 2488 Mbit/s M622 622 Mbit/s M156 156 Mbit/s 52 Mbit/s • Function Initializes SOH and POH of send signals. Initializes SOH and POH data of all bit rates when <brate> is not specified. •...
Page 262 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHPReset:SOHPattern <brate>,<numeric>,<sohpoint>,<string> (SONET) :SOURce:TELecom:OHPReset:TOHPattern <brate>,<numeric>,<tohpoint>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> M9953 9953 Mbit/s M2488 2488 Mbit/s M622 622 Mbit/s M156 156 Mbit/s 52 Mbit/s <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 * Optional value range varies with selected bit rate.
Page 263 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHPReset:SOHPattern? <brate>,<numeric>,<sohpoint> (SONET) :SOURce:TELecom:OHPReset:TOHPattern? <brate>,<numeric>,<tohpoint> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> <numeric> = <DECIMAL NUMERIC PROGRAM DATA> <sohpoint>,<tohpoint> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:SOHPattern. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:SOHPattern. •...
Page 264 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHPReset:SOHPattern2 <brate>,<numeric>,<row>,<column>,<string> (SONET) :SOURce:TELecom:OHPReset:TOHPattern2 <brate>,<numeric>,<row>,<column>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> M9953 9953 Mbit/s M2488 2488 Mbit/s M622 622 Mbit/s M156 156 Mbit/s 52 Mbit/s <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 * Optional value range varies with selected bit rate.
Page 265 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHPReset:SOHPattern2? <brate>,<numeric>,<row1>,<column1>,<row2>,<column2> (SONET) :SOURce:TELecom:OHPReset:TOHPattern2? <brate>,<numeric>,<row1>,<column>,<row2>,<column2> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> <numeric> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:SOHPattern. <row1>, <row2> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 9 Line number Step value: 1 <column1>, <column2>...
Page 266 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:SSMessage <brate>,<string> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> M9953 9953 Mbit/s M2488 2488 Mbit/s M622 622 Mbit/s M156 156 Mbit/s 52 Mbit/s <string> = <STRING PROGRAM DATA> (SDH) "Quality unknown" (0000) "Reserved0001" (0001) "G.811"...
Page 267 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:SSMessage? <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:SSMessage. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:SSMessage. • Function Queries the mnemonic SOH/TOH S1 preset data of send signals. • Example use To query S1 preset data of 622M: >...
Page 268 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:POHPattern <pohtype>,<pohpoint>,<string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 POH VC3 POH VC2/1 (SONET) STS3 POH STS3 STS1 POH STS1 POH VT <pohpoint> = <CHARACTER PROGRAM DATA> VC2/1 (SDH) (SONET) (SDH) (SONET) (SDH) (SONET) –...
Page 269 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:POHPattern2 <pohtype>,<point>,<string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 POH VC3 POH VC2/1 (SONET) STS3 POH STS3 STS1 POH STS1 POH VT <point> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 9 Line number Step value: 1 <string>...
Page 270 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHPReset:SLABel <pohtype>,<string> (SONET) :SOURce:TELecom:OHPReset:PLABel <pohtype>,<string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 POH VC3 (SONET) STS3 POH STS3 STS1 POH STS1 <string> = <STRING PROGRAM DATA> (SDH) "Unequipped" "UNEQ" (0000 0000) "Reserved01"...
Page 271 11.2 Setup Screen Commands "Unused06" "Unused06” (0000 0110) "Unused11" "Unused11" (0001 0001) "Async. mapping 139M" "139M" (0001 0010) "Mapping for ATM" "ATM" (0001 0011) "Mapping for DQDB" "DQDB" (0001 0100) "Async. Mapping FDDI" "FDDI" (0001 0101) "Mapping HDLC-over-SONET" "HDLC" (0001 0110) "Mapping of SDL sync"...
Page 272 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHPReset:SLABel? <pohtype> (SONET) :SOURce:TELecom:OHPReset:PLABel? <pohtype> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:SLABel. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:SLABel. (full spelling) • Function Queries the mnemonic POH C2 byte preset data of send signals. •...
Page 273 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHPReset:SPATtern? <pohtype> (SONET) :SOURce:TELecom:OHPReset:PPATtern? <pohtype> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHPReset:SPATtern. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:SPATtern. • Function Queries the binary POH C2 byte preset data of send signals. •...
Page 274 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:GLABel <pohtype>,<string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 pattern POH VC3 pattern (SONET) STS3 POH STS3 pattern STS1 POH STS1 pattern <string> = <STRING PROGRAM DATA> (SDH) "Unused000" (000) "No remote defect001" (001) "E-RDI Payload defect"...
Page 275 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:GPATtern <pohtype>,<string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 pattern POH VC3 pattern (SONET) STS3 POH STS3 pattern STS1 POH STS1 pattern <string> = <STRING PROGRAM DATA> ”000” to “111” (binary type) • Function Sets the binary POH G1 (bits 5 to 7) preset data of send signals.
Page 276 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:VLABel <string> ∇ Parameter <string> = <STRING PROGRAM DATA> (SDH) "Unequipped" "UNEQ" (000) "Reserved" "Reserved" (001) "Asynchronous" "Async" (010) "Bitsynchronous" "Bitsync" (011) "Bytesynchronous" "Bytesync" (100) "Extended signal label" "Extended" (101) "O.181 mapping" "O.181" (110) "VC-AIS"...
Page 277 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:VPATtern <string> ∇ Parameter <string> = <STRING PROGRAM DATA> ”000” to “111” (binary type) • Function Sets the binary data of the POH V5 preset data of send signals. • Example use To set the POH V5 preset data to "010": >...
Page 278 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHPReset:KLABel <string> (SONET) :SOURce:TELecom:OHPReset:ZLABel <string> ∇ Parameter <string> = <STRING PROGRAM DATA> (SDH) "Unused000" (000) "No remote defect001" (001) "E-RDI Payload defect" (010) "Unused011" (011) "Unused100" (100) "E-RDI Server defect" (101) "E-RDI Connectivity defect" (110) "Unused111"...
Page 279 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHPReset:KLABel? (SONET) :SOURce:TELecom:OHPReset:ZLABel? ∇ Parameter None • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:KLABel. • Function Queries the mnemonic POH preset data K4[Z7] of send signals. • Example use To query the mnemonic POH K4 preset data: >...
Page 280 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHPReset:KPATtern? (SONET) :SOURce:TELecom:OHPReset:ZPATtern? ∇ Parameter None • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:KPATtern. • Function Queries the binary POH preset data K2[Z7] of send signals. • Example use To query the POH K4 preset data: >...
Page 281 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHPReset:KEXLabel? (SONET) :SOURce:TELecom:OHPReset:ZEXLabel? ∇ Parameter None • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:EXLabel. • Function Queries the mnemonic POH K2[Z7] Extended preset data of send signals. • Example use To query the mnemonic POH K4 Extended data: >...
Page 282 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHPReset:KEXPattern? (SONET) :SOURce:TELecom:OHPReset:ZEXPattern? ∇ Parameter None • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHPReset:EXPattern. • Function Queries the binary POH K4[Z7] Extended preset data of send signals. • Example use To query the binary POH K4 Extended data: >...
Page 283 11.2 Setup Screen Commands :SYSTem:ORDerwire:VOLume <volume> ∇ Parameter <volume> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 7 Step value: 1 • Function Sets the volume of voice data input output when Order wire is other than OFF. • Example use To set the volume of voice data input output to 5: >...
Page 284 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:PTCondition <pttype>,<trace>,<crc> ∇ Parameter <pttype> = <CHARACTER PROGRAM DATA> J0 path trace J1-HP path trace J1-LP path trace J2 path trace <trace> = <BOOLEAN PROGRAM DATA> OFF or 0 Path trace OFF ON or 1 Path trace ON <crc>...
Page 285 11.2 Setup Screen Commands :SOURce:TELecom:OHPReset:PTData <pttype>,<string> ∇ Parameter <pttype> = <CHARACTER PROGRAM DATA> J0 path trace J1-HP path trace J1-LP path trace J2 path trace <string> = <STRING PROGRAM DATA> The string length is 16 characters when CRC-7 is set to ON for :SOURce:TELecom:OHPReset:PTCondition.
Page 286 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHPReset:PTData2 <pttype>,<string> ∇ Parameter <pttype> = <CHARACTER PROGRAM DATA> J0 path trace J1-HP path trace J1-LP path trace J2 path trace <string> = <STRING PROGRAM DATA> <pttype> is 16 characters when CRC-7 is set to ON for :SOURce:TELecom:OHPReset:PTCondition.
Page 287: Sdh Tandem (Sonet Tandem) Sub-Screen
11.2 Setup Screen Commands 11.2.4 SDH tandem (SONET tandem) Sub-screen 11.2.4.1 Common SDH tandem sub-screen commands Setting Command Display mode :DISPlay:SETup:TANDem:DIISPmode Default :SOURce:TELecom:TANDem:DEFault 11-151...
Page 288 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:SETup:TANDem:DISPmode <tandem> ∇ Parameter <tandem> = <CHRACTER PROGRAM DATA> (SDH) N1HP N1-HP N1LP N1-LP (SONET) Z5HP Z5-HP Z5LP Z5-LP • Function Selects the display items of the Setup:SDH tandem screen. • Example use To select N1-HP as display items: >...
Page 289 11.2 Setup Screen Commands :SOURce:TELecom:TANDem:DEFault <tandem> ∇ Parameter <tandem> = <CHRACTER PROGRAM DATA> (SDH) N1HP N1-HP N1LP N1-LP (SONET) Z5HP Z5-HP Z5LP Z5-LP • Function Initializes data within setting parameter range of Setup:SDH tandem screen. • Example use To initializes the N1-HP data: >...
Page 290 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.4.2 For N1-HP(Z5-HP) Fig. 11.2.4.2-1 Setup:SDH tandem/SONET tandem: <N1-HP/Z5-HP> screen (For SDH) Setting Command Mode :SOURce:TELecom:TANDem:CONDition:N1HP:MODE :SOURce:TELecom:TANDem:CONDition:Z5HP:MODE Data :SOURce:TELecom:TANDem:N1HP:TYPE2 TCREI, OEI, FAS, Pattern, :SOURce:TELecom:TANDem:Z5HP:TYPE2 Reserved1 to 6, TC-RDI, ODI 11-154...
Page 291 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:TANDem:CONDition:N1HP:MODE <mode> (SONET) :SOURce:TELecom:TANDem:CONDition:Z5HP:MODE <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets whether or not to send the error and alarm data in the N1-HP tandem connection.
Page 292 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:TANDem:N1HP:TYPE2 <tapoint>, <string> (SONET) :SOURce:TELecom:TANDem:Z5HP:TYPE2 <tapoint>, <string> ∇ Parameter <tapoint> = <CHARACTER PROGRAM DATA> TCREI TCREI PATT Pattern (ASCII format) PATT2 Pattern (HEX format) RES1 Reserved RES2 Reserved RES3 Reserved RES4 Reserved RES5 Reserved RES6 Reserved...
Page 293 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:TANDem:N1HP:TYPE2? <tapoint> (SONET) :SOURce:TELecom:TANDem:Z5HP:TYPE2? <tapoint> ∇ Parameter <tapoint> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:TANDem:N1HP:TYPE2. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom: TANDem:N1HP:TYPE2. • Function Queries the Type2 data of N1 byte (N1-HP) or Z5 byte (Z5-HP). * In case of <tapoint>...
Page 294 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.4.3 For N1-LP (Z5-LP) Fig. 11.2.4.3-1 Setup:SDH tandem/SONET tandem: <N1-LP/Z5-LP> screen (For SONET) Setting Command :SOURce:TELecom:TANDem:CONDition:N1LP:MODE Mode :SOURce:TELecom:TANDem:CONDition:Z5LP:MODE Data :SOURce:TELecom:TANDem:N1LP:TYPE2 TCREI, OEI,FAS, Pattern :SOURce:TELecom:TANDem:Z5LP:TYPE2 Reserved1 to 6, TC-RDI, ODI 11-158...
Page 295 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:TANDem:CONDition:N1LP:MODE <mode> (SONET) :SOURce:TELecom:TANDem:CONDition:Z5LP:MODE <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets error and alarm data transmission in N1-LP tandem connection. • Example use To set N1-LP transmission: >...
Page 296 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:TANDem:N1LP:TYPE2 <tapoint>,<string> (SONET) :SOURce:TELecom:TANDem:Z5LP:TYPE2 <tapoint>,<string> ∇ Parameter <tapoint> = <CHARACTER PROGRAM DATA> TCREI TCREI PATT Pattern (ASCII format) PATT2 Pattern (HEX format) RES1 Reserved RES2 Reserved RES3 Reserved RES4 Reserved RES5 Reserved RES6 Reserved TCRDI TC-RDI...
Page 297 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:TANDem:N1LP:TYPE2? <tapoint> (SONET) :SOURce:TELecom:TANDem:Z5LP:TYPE2? <tapoint> ∇ Parameter <tapoint> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:TANDem:N1LP:TYPE2. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:TANDem:N1LP:TYPE2. • Function Queries the Type 2 data of N1 byte (N1-LP) and Z5 byte (Z5-LP). * In case of <tapoint>...
Page 298 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.4.4 For N2 (Z6) Fig. 11.2.4.4-1 Setup:SDH tandem/SONET tandem: <N2/Z6> screen (For SONET) Setting Command :SOURce:TELecom:TANDem:CONDition:N2:MODE Mode :SOURce:TELecom:TANDem:CONDition:Z6:MODE Data :SOURce:TELecom:TANDem:N2 B3, IncAIS, TCREI, OEI,FAS, Pattern, :SOURce:TELecom:TANDem:Z6 Reserved1 to 6, TC-RDI, ODI 11-162...
Page 299 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:TANDem:CONDition:N2:MODE <mode> (SONET) :SOURce:TELecom:TANDem:CONDition:Z6:MODE <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets error and alarm data transmission in N2 tandem connection. • Example use To set N2 transmission: >...
Page 300 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:TANDem:N2 <tapoint>, <string> (SONET) :SOURce:TELecom:TANDem:Z6 <tapoint>, <string> ∇ Parameter <tapoint> = <CHARACTER PROGRAM DATA> IncAIS TCREI TCREI PATT Pattern (ASCII format) PATT2 Pattern (HEX format) RES1 Reserved RES2 Reserved RES3 Reserved RES4 Reserved RES5 Reserved RES6...
Page 301 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:TANDem:N2? <tapoint> (SONET) :SOURce:TELecom:TANDem:Z6? <tapoint> ∇ Parameter <tapoint> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:TANDem:N2. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:TANDem:N2. • Function Queries the N2 or Z6 byte data. * In case of <tapoint> is PATT, Characters are replaced to '?' when output- ting characters other than 0x20-0x7e.
Page 302: Dummy Preset Sub-Screen
Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.5 Dummy preset Sub-screen 11.2.5.1 Dummy preset sub-screen common commands Setting Command Display mode :DISPlay:SETup:DPReset:DISPmode 11-166...
Page 303 11.2 Setup Screen Commands :DISPlay:SETup:DPReset:DISPmode <dpreset> ∇ Parameter <dpreset> = <CHRACTER PROGRAM DATA> MODE Mode SDH OH (SONET OH) SPATh SDH path trace (SONET path trace) STANdem SDH tandem (SONET tandem) SPAYload SDH payload (SONET payload) • Function Selects the display items of the Setup:Dummy preset screen. •...
Page 304 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.5.2 For Mode: Fig. 11.2.5.2-1 Setup: Dummy preset: <Mode> screen (For SONET) Setting Command Dummy SDH payload :SOURce:TELecom:DPReset:DMODe Dummy SDH payloadonly :SOURce:TELecom:MAPPing:DUMMy :SOURce:TELecom:DPReset:DMODe <type>,<mode> ∇ Parameter <type> = <CHRACTER PROGRAM DATA> SPAYload SDH payload / SONET payload <mode>...
Page 305 11.2 Setup Screen Commands :SOURce:TELecom:DPReset:DMODe? <type> ∇ Parameter <type> = <CHRACTER PROGRAM DATA> Same as :SOURce:TELecom:DPReset:DMODe. • Response <mode> = <CHRACTER PROGRAM DATA> DUMM Dummy COPY Copy • Function Queries dummy type. • Example use > :SOURce:TELecom:DPReset:DMODe? SPAYload < DUMM :SOURce:TELecom:MAPPing:DUMMy <dummy>...
Page 306 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.5.3 For SDH OH (SONET OH): Fig. 11.2.5.3-1 Setup: Dummy preset: <SDH/SONET OH> screen (For SDH) Setting Command Recall :SOURce:TELecom:DPReset:SOH:RECall POH data (1 byte setting) :SOURce:TELecom:DPReset:POHPattern POH data (multi byte setting) :SOURce:TELecom:DPReset:POHPattern2 :SOURce:TELecom:DPReset:SLABel POH C2 (mnemonic setting) :SOURce:TELecom:DPReset:PLABel :SOURce:TELecom:DPReset:SPATtern POH C2 (binary setting)
Page 307 11.2 Setup Screen Commands :SOURce:TELecom:DPReset:SOH:RECall <rectype> ∇ Parameter <rectype> = <CHARACTER PROGRAM DATA> DEFault Default OHPReset OH preset overwrite • Function Initializes the SDH OH (SONET OH) preset data or reads the OH preset data of the Dummy preset screen. •...
Page 308 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:DPReset:POHPattern <pohtype>, <pohpoint>, <string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 POH VC3 POH VC2/1 (SONET) STS3 POH STS3 STS1 POH STS1 POH VT <pohpoint> = <CHARACTER PROGRAM DATA> VC2/1 (SDH) (SONET) (SDH) (SONET) (SDH) (SONET) –...
Page 309 11.2 Setup Screen Commands :SOURce:TELecom:DPReset:POHPattern2 <pohtype>, <point>, <string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 POH VC3 POH VC2/1 (SONET) STS3 POH STS3 STS1 POH STS1 POH VT <point> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 9 Line number Step value: 1 <string>...
Page 310 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:DPReset:SLABel <pohtype>, <string> (SONET) :SOURce:TELecom:DPReset:PLABel <pohtype>, <string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 pattern POH VC3 pattern (SONET) STS3 POH STS3 pattern STS1 POH STS1 pattern <string> = <STRING PROGRAM DATA> (SDH) "Unequipped"...
Page 311 11.2 Setup Screen Commands (SONET) "Unequipped" "UNEQ" (0000 0000) "Equipped-non-specific" "non-specific" (0000 0001) "Floating VT Mode" "Floating VT" (0000 0010) "Locked VT" "Locked VT" (0000 0011) "Async. Mapping DS3" "DS3" (0000 0100) "Mapping under development" "Under development" (0000 0101) "Async. mapping 139M" "139M"...
Page 312 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:DPReset:SPATtern <pohtype>, <string> (SONET) :SOURce:TELecom:DPReset:PPATtern <pohtype>, <string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 pattern POH VC3 pattern (SONET) STS3 POH STS3 pattern STS1 POH STS1 pattern <string> = <STRING PROGRAM DATA> ”00000000”...
Page 313 11.2 Setup Screen Commands :SOURce:TELecom:DPReset:GLABel <pohtype>, <string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 pattern POH VC3 pattern (SONET) STS3 POH STS3 pattern STS1 POH STS1 pattern <string> = <STRING PROGRAM DATA> (SDH) "No remote defect001" (001) "E-RDI Payload defect"...
Page 314 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:DPReset:GPATtern <pohtype>, <string> ∇ Parameter <pohtype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 pattern POH VC3 pattern (SONET) STS3 POH STS3 pattern STS1 POH STS1 pattern <string> = <STRING PROGRAM DATA> ”000” to “111” (binary type) •...
Page 315 11.2 Setup Screen Commands :SOURce:TELecom:DPReset:VLABel <string> ∇ Parameter <string> = <STRING PROGRAM DATA> (SDH) "Unequipped" "UNEQ" (000) "Reserved" "Reserved" (001) "Asynchronous" "Async" (010) "Bitsynchronous" "Bitsync" (011) "Bytesynchronous" "Bytesync" (100) "Extended signal label" "Extended" (101) "O.181 mapping" "O.181" (110) "VC-AIS" "VC-AIS" (111) (SONET) "Unequipped"...
Page 316 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:DPReset:VPATtern <string> ∇ Parameter <string> = <STRING PROGRAM DATA> ”000” to “111” (binary type) • Function Sets the POH V5 (bits 5 to 7) Dummy preset data of send signals. (binary type) • Example use To set the POH V5 Dummy preset data to “011”: >...
Page 317 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:DPReset:KLABel <string> (SONET) :SOURce:TELecom:DPReset:ZLABel <string> ∇ Parameter <string> = <STRING PROGRAM DATA> (SDH) "No remote defect001" (001) "E-RDI Payload defect" (010) "E-RDI Server defect" (101) "E-RDI Connectivity defect" (110) "Unused***" Other than shown above (SONET) "No remote defect000"...
Page 318 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:DPReset:KPATtern <string> (SONET) :SOURce:TELecom:DPReset:ZPATtern <string> ∇ Parameter <string> = <STRING PROGRAM DATA> “000” to “111” (binary type) • Function Sets the POH K4[Z7] byte Dummy preset data of send signals in the binary format.
Page 319 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:DPReset:KEXLabel <string> (SONET) :SOURce:TELecom:DPReset:ZEXLabel <string> ∇ Parameter <string> = <STRING PROGRAM DATA> "Reserved00" (0000 0000) "Reserved07" (0000 0111) "Under development" (0000 1000) "ATM" (0000 1001) "HDLC/PPP" (0000 1010) "HDLC/LAPS" (0000 1011) "Virtual concatenated" (0000 1100) "O.181"...
Page 320 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:DPReset:KEXPattern <string> (SONET) :SOURce:TELecom:DPReset:ZEXPattern <string> ∇ Parameter <string> = <STRING PROGRAM DATA> “00000000” to “11111111” (binary type) • Function Sets the K4[Z7] byte Dummy preset data of send signals in the binary for- mat.
Page 321 11.2 Setup Screen Commands 11.2.5.4 For SDH path trace (SONET path trace): Fig. 11.2.5.4-1 Setup: Dummy preset: <SDH/SONET path trace> screen (For SDH) Setting Command Recall :SOURce:TELecom:DPReset:PTRace:RECall Path trace-J0 -J1-HP :SOURce:TELecom:DPReset:PTCondition -J1-LP Pattern (ASCII character setting) :SOURce:TELecom:DPReset:PTData Pattern (ASCII HEX code) :SOURce:TELecom:DPReset:PTData2 11-185...
Page 322 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:DPReset:PTRace:RECall <rectype> ∇ Parameter <rectype> = <CHARACTER PROGRAM DATA> DEFault Default OHPReset OH preset overwrite • Function Initializes the SDH path trace preset data or reads the OH preset data of the Dummy preset screen. •...
Page 323 11.2 Setup Screen Commands :SOURce:TELecom:DPReset:PTData <pttype>, <string> ∇ Parameter <pttype> = <CHARACTER PROGRAM DATA> J1-HP path trace J1-LP path trace J2 path trace <string> = <STRING PROGRAM DATA> The string length is 16 characters for <pttype> when CRC-7 is set to ON for : .:SOURce:TELecom:DPReset:PTCondition.
Page 324 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:DPReset:PTData2 <pttype>, <data> ∇ Parameter <pttype> = <CHARACTER PROGRAM DATA> J1-HP path trace J1-LP path trace J2 path trace <data> = <PROGRAM DATA> "00" to "FF" (HEX type) <pttype> is 16 characters when CRC-7 is set to ON for :SOURce:TELecom:DPRReset:PTCondition.
Page 325 11.2 Setup Screen Commands 11.2.5.5 For SDH tandem (SONET tandem): Fig. 11.2.5.5-1 Setup:Dummy preset: <SDH/SONET tandem> screen (For SONET) Setting Command Recall :SOURce:TELecom:DPReset:TANDem:RECall :SOURce:TELecom:DPReset:TANDem:CONDition:N1HP:MODE N1-HP[Z5-HP] :SOURce:TELecom:DPReset:TANDem:CONDition:Z5HP:MODE :SOURce:TELecom:DPReset:TANDem:CONDition:N1LP:MODE N1-LP[Z5-LP] :SOURce:TELecom:DPReset:TANDem:CONDition:Z5LP:MODE :SOURce:TELecom:DPReset:TANDem:CONDition:N2:MODE N2[Z6] :SOURce:TELecom:DPReset:TANDem:CONDition:Z6:MODE :SOURce:TELecom:DPReset:TANDem:N1HP:TYPE2 N1-HP(Type2)[Z5-HP(Type2)] :SOURce:TELecom:DPReset:TANDem:Z5HP:TYPE2 N1-LP(Type2)[Z5-LP(Type2)] :SOURce:TELecom:DPReset:TANDem:N1LP:TYPE2 :SOURce:TELecom:DPReset:TANDem:Z5LP:TYPE2 :SOURce:TELecom:DPReset:TANDem:N2 :SOURce:TELecom:DPReset:TANDem:Z6 11-189...
Page 326 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:DPReset:TANDem:RECall <rectype> ∇ Parameter <rectype> = <CHARACTER PROGRAM DATA> DEFault Default OHPReset OH preset overwrite • Function Initializes the SDH tandem (SONET tandem) preset data or reads the OH preset data of the Dummy preset screen. •...
Page 327 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:DPReset:TANDem:CONDition:N1HP:MODE <mode> :SOURce:TELecom:DPReset:TANDem:CONDition:N1LP:MODE <mode> :SOURce:TELecom:DPReset:TANDem:CONDition:N2:MODE <mode> (SONET) :SOURce:TELecom:DPReset:TANDem:CONDition:Z5HP:MODE <mode> :SOURce:TELecom:DPReset:TANDem:CONDition:Z5LP:MODE <mode> :SOURce:TELecom:DPReset:TANDem:CONDition:Z6:MODE <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 No transmission ON or 1 Transmitted • Function Specifies whether to send the data for tandem in the Dummy preset screen. •...
Page 328 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:DPReset:TANDem:N1HP:TYPE2 <tapoint>, <string> :SOURce:TELecom:DPReset:TANDem:N1LP:TYPE2 <tapoint>, <string> (SONET) :SOURce:TELecom:DPReset:TANDem:Z5HP:TYPE2 <tapoint>, <string> :SOURce:TELecom:DPReset:TANDem:Z5LP:TYPE2 <tapoint>, <string> ∇ Parameter <tapoint> = <CHARACTER PROGRAM DATA> TCREI BIT7_8 <string> = <STRING PROGRAM DATA> “0001” to “1111” (Binary type) When <tapoint> is IEC. “0”...
Page 329 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:DPReset:TANDem:N2 <tapoint>, <string> (SONET) :SOURce:TELecom:DPReset:TANDem:Z6 <tapoint>, <string> ∇ Parameter <tapoint> = <CHARACTER PROGRAM DATA> IncAIS TCREI TCREI BIT7_8 b7-8 <string> = <STRING PROGRAM DATA> “0” to “1” (Binary type) When <tapoint> is B3, AIS, TCREI, or OEI. “00”...
Page 330 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.5.6 For SDH payload (SONET payload): Fig. 11.2.5.6-1 Setup:Dummy preset: <SDH/SONET payload> screen (For SONET) Setting Command SDH dummy payload :SOURce:TELecom:DPReset:DUMMy Mixed payload :SOURce:TELecom:DPReset:MPAYload 11-194...
Page 331 11.2 Setup Screen Commands :SOURce:TELecom:DPReset:DUMMy <data> ∇ Parameter <data> = <CHARACTER PROGRAM DATA> PRBS11 PRBS15 ALL0 ALL1 • Function Sets the SDH dummy payload test pattern. • Example use To set the SDH dummy payload test pattern to ALL0: > :SOURce:TELecom:DPReset:DUMMy ALL0 :SOURce:TELecom:DPReset:DUMMy? ∇...
Page 332 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:DPReset:MPAYload <ch1>, <data> ∇ Parameter <ch1> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 3 Ch number of TUG3 or AU3[STS1] <data> = <CHARACTER PROGRAM DATA> PRBS11 PRBS15 ALL0 ALL1 • Function Sets Mixed payload test pattern using each channel number. Note that main channel cannot be set.
Page 333: Jitter/Wander Sub-Screen
11.2 Setup Screen Commands 11.2.6 Jitter/Wander Sub-screen Fig. 11.2.6-1 Setup:Jitter/Wander: <JItter/Wander> screen Setting Command Jitter modulation source :SOURce:JITTer:MANual:MODE Jitter reference clock output :SOURce:JITTer:MANual:REFClock Mod. frequencey resolution :SOURce:JITTer:FREQuency:RESolution Tolerance settling time :SENSe:JITTer:TOLerance:SETTling Fast Jitter tolerance :SENSe:JITTer:TOLerance:FAST:MODE 11-197...
Page 334 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:JITTer:MANual: MODE <mode> ∇ Parameter <mode> = <CHARACTOR PROGRAM DATA> INTernal Internal signal EXTernal External signal • Function Sets the Jitter modulation signal source. • Example use To set the Jitter modulation signal source to INTernal: >...
Page 335 11.2 Setup Screen Commands :SOURce:JITTer:FREQuency:RESolution <resolution> ∇ Parameter <resolution> = <CHARACTOR PROGRAM DATA> NORMal Normal resolution HIGH High resolution • Function Sets the Jitter modulation frequency resolution. • Example use To set the Jitter modulation frequency resolution to NORMal: > :SOURce:JITTer:FREQuency:RESolution NORMal :SOURce:JITTer:FREQuency:RESolution? ∇...
Page 336 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:JITTer:TOLerance:FAST:MODE <mode>  Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 Disable ON or 1 Enable  Function Sets whether to execute Fast Jitter Tolerance measurement.  Example use To execute Fast Jitter Tolerance measurement. >...
Page 337: Jitter Edit Screen
11.2 Setup Screen Commands 11.2.7 Jitter edit screen 11.2.7.1 Jitter edit sub-screen selection Setting Command Display select :DISPlay:SETup:JTEDit:DISPmode 11-201...
Page 338 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:SETup:JTEDit:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> TOLerance Tolerance sub-screen TRANsfer Transfer sub-screen • Function Selects a sub-screen of the Jitter edit screen. • Example use To select Tolerance sub-screen of the Jitter edit screen: >...
Page 339 11.2 Setup Screen Commands 11.2.7.2 Jitter tolerance sub-screen Fig. 11.2.7.2-1 Setup:Jitter edit: <Tolerance> screen-Example for Tolerance table Fig. 11.2.7.2-2 Setup:Jitter edit: <Tolerance> screen-Example for Mask table 11-203...
Page 340 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands • Tolerance table command Setting Command Tolerance table Bit rate Recommendation :SOURce:JITTer:TOLerance:PTABle:TYPE Point :SOURce:JITTer:TOLerance:PTABle:POINt No.(Enable/Disable) :SOURce:JITTer:TOLerance:PTABle:ENABle Default :SOURce:JITTer:TOLerance:PTABle:DEFault User Bit rate :SOURce:JITTer:TOLerance:PTABle:DATA Frequency (Numeric value) Frequency (Unit) • Mask table command Setting Command Mask table Bit rate Recommendation :SENSe:JITTer:TOLerance:MTABle:TYPE Default :SENSe:JITTer:TOLerance:MTABle:DEFault...
Page 341 11.2 Setup Screen Commands :SOURce:JITTer:TOLerance:PTABle:TYPE <brate>,<type> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <type> = <CHARACTER PROGRAM DATA> G783 G.783 G783A G.783 Type A G783AO G.783o Type A G783AE_2M G.783e (2M) Type A G783AE_1_5M...
Page 342 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:JITTer:TOLerance:PTABle:TYPE? <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> Same as :SOURce:JITTer:TOLerance:PTABle:TYPE. • Response <type> = <CHARACTER RESPONSE DATA> Same as :SOURce:JITTer:TOLerance:PTABle:TYPE. • Function Queries edit table for jitter tolerance measurement. • Example use To query edit table of 622M: >...
Page 343 11.2 Setup Screen Commands :SOURce:JITTer:TOLerance:PTABle:ENABle <brate>,<point>,<valid> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <point> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 20 Table No. <valid> = <BOOLEAN PROGRAM DATA> OFF or 0 Disable ON or 1...
Page 344 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:JITTer:TOLerance:PTABle:DEFault <brate> [,<type>] ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <type> = <CHARACTER PROGRAM DATA> G783 G.783 G783A G.783 Type A G783AO G.783o Type A G783AE_2M...
Page 345 11.2 Setup Screen Commands :SOURce:JITTer:TOLerance:PTABle:DATA <brate>,<point>,<freq1>,<freq2> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <point> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 20 Setting point (Step value: 1) <freq1>...
Page 346 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TOLerance:MTABle:TYPE <brate>,<type> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <type> = <CHARACTER PROGRAM DATA> G783 G.783 G783A G.783 Type A G783AO G.783o Type A G783AE_2M...
Page 347 11.2 Setup Screen Commands :SENSe:JITTer:TOLerance:MTABle:TYPE? <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> Same as :SENSe:JITTer:TOLerance:MTABle:TYPE. • Response <type> = <CHARACTER RESPONSE DATA> Same as :SENSe:JITTer:TOLerance:MTABle:TYPE. • Function Queries Mask table for jitter tolerance measurement. • Example use To query 622M Mask table: >...
Page 348 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TOLerance:MTABle:DEFault <brate> [,<type>] ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <type> = <CHARACTER PROGRAM DATA> G783 G.783 G783A G.783 Type A G783AO G.783o Type A G783AE_2M...
Page 349 11.2 Setup Screen Commands :SENSe:JITTer:TOLerance:MTABle:POINt <brate>,<point> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <point> = <DECIMAL NUMERIC PROGRAM DATA> 2 to 20 Step value: 1 • Function Sets number of corner points of Mask table for User.
Page 350 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TOLerance:MTABle:DATA <brate>,<point>,<freq1>,<freq2>,<ampl> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <point> = <CHARACTER PROGRAM DATA> A, B, C, D, E, F, Setting point G, H, I, J, K, L, M, N, O, P, Q,...
Page 351 11.2 Setup Screen Commands 11.2.7.3 Jitter transfer sub-screen Fig. 11.2.7.3-1 Setup:Jitter edit: <Transfer> screen-Example for Transfer table (For User) Fig. 11.2.7.3-2 Setup:Jitter edit: <Transfer> screen-Example for Mask table 11-215...
Page 352 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands • Transfer table setting Setting Command Transfer Table Bit rate Recommendation :SOURce:JITTer:TRANsfer:PTABle:TYPE Number of Points :SOURce:JITTer:TRANsfer:PTABle:POINt No.(Enable/Disable) :SOURce:JITTer:TRANsfer:PTABle:ENABle Default :SOURce:JITTer:TRANsfer:PTABle:DEFault User Bit rate Frequency (Numeric value) :SOURce:JITTer:TRANsfer:PTABle:DATA Frequency (Unit) UIp-p Default :SOURce:JITTer:TRANsfer:PTABle:DEFault2 User2 Bit rate Frequency (Numeric value) :SOURce:JITTer:TRANsfer:PTABle:DATA2 Frequency (Unit)
Page 353 11.2 Setup Screen Commands :SOURce:JITTer:TRANsfer:PTABle:TYPE <brate>,<type> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <type> = <CHARACTER PROGRAM DATA> G8251 G.8251 G783 G.783 B253 GR-253 (Issue 3) B253_4 GR-253 (Issue 4) G825_1_5M...
Page 354 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:JITTer:TRANsfer:PTABle:TYPE? <brate> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> Same as:SOURce:JITTer:TRANsfer:PTABle:TYPE. • Response <type> = <CHARACTER RESPONSE DATA> Same as :SOURce:JITTer:TRANsfer:PTABle:TYPE. • Function Queries edit table for jitter transfer characteristics. • Example use To query 622M edit table: >...
Page 355 11.2 Setup Screen Commands :SOURce:JITTer:TRANsfer:PTABle:ENABle <brate>,<point>,<valid> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <point> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 20 Table No. <valid> = <BOOLEAN PROGRAM DATA> OFF or 0 Disable ON or 1...
Page 356 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:JITTer:TRANsfer:PTABle:DEFault <brate> [,<type>] ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <type> = <CHARACTER PROGRAM DATA> G8251 G.8251 G783 G.783 B253 GR-253 (Issue 3) B253_4 GR-253 (Issue 4)
Page 357 11.2 Setup Screen Commands :SOURce:JITTer:TRANsfer:PTABle:DATA <brate>,<point>,<freq1>,<freq2>,<ampl> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <point> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 20 Setting point (Step value: 1) <freq1>...
Page 358 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:JITTer:TRANsfer:PTABle:DEFault2 <brate> [,<type>] ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <type> = <CHARACTER PROGRAM DATA> G8251 G.8251 G783 G.783 B253 GR-253 (Issue 3) B253_4 GR-253 (Issue 4) G825_1_5M...
Page 359 11.2 Setup Screen Commands :SOURce:JITTer:TRANsfer:PTABle:DATA2 <brate>,<point>,<freq1>,<freq2>,<ampl>,<rxrange> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <point> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 20 Setting point (Step value: 1) <freq1>...
Page 360 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TRANsfer:MTABle:TYPE <brate>,<type> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <type> = <CHARACTER PROGRAM DATA> G8251 G.8251 G783 G.783 E300 ETSI 300 417-1-1 ANSIT1 ANSI T1.105.03 ANSIT1A...
Page 361 11.2 Setup Screen Commands :SENSe:JITTer:TRANsfer:MTABle:DEFault <brate> [,<type>] ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <type> = <CHARACTER PROGRAM DATA> G8251 G.8251 G783 G.783 E300 ETSI 300 417-1-1 ANSIT1 ANSI T1.105.03 ANSIT1A...
Page 362 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TRANsfer:MTABle:POINt <brate>,<point> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <point> = <DECIMAL NUMERIC PROGRAM DATA> 2 to 20 Step value: 1 •...
Page 363 11.2 Setup Screen Commands :SENSe:JITTer:TRANsfer:MTABle:DATA <brate>,<point>,<freq1>,<freq2>,<gain> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> G10_7 10.7G M2666 2666M M9953 9953M M2488 2488M M622 622M M156 156M G10_3 10.3G <point> = <CHARACTER PROGRAM DATA> A, B, C, D, E, F, Setting point G, H, I, J, K, L, M, N, O, P, Q, R, S, T...
Page 364: Measurement Condition Sub-Screen
Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.8 Measurement Condition Sub-screen 11.2.8.1 Common Commands Setting Command Display select :DISPlay:SETup:MEASure:DISPmode 11-228...
Page 365 11.2 Setup Screen Commands :DISPlay:SETup:MEASure:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> OALM OTN alarm sub-screen OTAN OTN tandem sub-screen ODET OTN det. pat. sub-screen SALM SDH/SONET alarm sub-screen STAN SDH/SONET tandem sub-screen SDET SDH/SONET det. pat. sub-screen GBE10 10 GbE sub-screen COND Condition sub-screen...
Page 366 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.8.2 When OTN alarm is selected: Fig. 11.2.8.2-1 Setup:Measurement condition: <OTN alarm> screen Setting Command OTN-Alarm-Default :SENSe:MEASure:ALARm:OTN:DEFault :SENSe:MEASure:ALARm:OTU:MEAS -OTU-Meas. :SENSe:MEASure:ALARm:OTU:DETection -Det. :SENSe:MEASure:ALARm:OTU:REMove -Rem. :SENSe:MEASure:ALARm:ODU:MEAS -ODU-Meas. :SENSe:MEASure:ALARm:ODU:DETection -Det. :SENSe:MEASure:ALARm:ODU:REMove -Rem. 11-230...
Page 367 11.2 Setup Screen Commands :SENSe:MEASure:ALARm:OTN:DEFault ∇ Parameter None • Function Initializes the Alarm detection removal condition of the OTN Alarm meas- urement. • Example use To set the Alarm detection removal condition of the OTN Alarm measure- ment: > :SENSe:MEASure:ALARm:OTN:DEFault 11-231...
Page 368 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:ALARm:OTU:MEAS <type>,<mode> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> SMTim SMTIM SMBiae SM BIAE SMBDi SM BDI SMIae SM IAE <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 Disable ON or 1 Enable • Function Sets enable/disable of an each item of OTU Alarm measurement.
Page 369 11.2 Setup Screen Commands :SENSe:MEASure:ALARm:OTU:DETection <type>,<numeric> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> SMBiae SM BIAE SMBDi SM BDI SMIae SM IAE <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> 1.0 to 5.0 (ms) Step value: 0.1 When <type> is LOF,LOM. 1 to 15 (frame) Step value: 1 When <type>...
Page 370 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:ALARm:OTU:REMove <type>,<numeric> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> SMBiae SM BIAE SMBDi SM BDI SMIae SM IAE <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> 1.0 to 5.0 (ms) Step value: 0.1 When <type> is LOF,LOM. 1 to 15 (frame) Step value: 1 When <type>...
Page 371 11.2 Setup Screen Commands :SENSe:MEASure:ALARm:ODU:MEAS <type>,<mode> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> PMTim PM TIM PMBDi PM BDI <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 Disable ON or 1 Enable • Function Sets enable/disable of each item of ODU Alarm measurement. •...
Page 372 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:ALARm:ODU:DETection <type>,<numeric> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> PMBDi PM BDI <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 15 (frame) Step value: 1 • Function Sets the Alarm detection condition of the ODU Alarm measurement. •...
Page 373 11.2 Setup Screen Commands :SENSe:MEASure:ALARm:ODU:REMove <type>,<numeric> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> PMBDi PM BDI <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 15 (frame) Step value: 1 • Function Sets the Alarm removal condition of the ODU Alarm measurement. •...
Page 374 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.8.3 When OTN tandem is selected: Fig. 11.2.8.3-1 Setup:Measurement condition: <OTN tandem> screen Setting Command :SENSe:MEASure:TANDem:OTN:DEFault OTN-Tandem-Default :SENSe:MEASure:TANDem:OTN:MEAS -Meas. :SENSe:MEASure:TANDem:OTN:DETection -Det. :SENSe:MEASure:TANDem:OTN:REMove -Rem. :SENSe:MEASure:TANDem:OTN:DEFault ∇ Parameter None • Function Initializes the Alarm detection removal condition of the OTN Tandem measurement.
Page 375 11.2 Setup Screen Commands :SENSe:MEASure:TANDem:OTN:MEAS <type>,<mode> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> TCM1 All TCM1 TCM2 All TCM2 TCM3 All TCM3 TCM4 All TCM4 TCM5 All TCM5 TCM6 All TCM6 TIM1 TCM1-TIM TIM2 TCM2-TIM TIM3 TCM3-TIM TIM4 TCM4-TIM TIM5 TCM5-TIM TIM6 TCM6-TIM...
Page 376 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:TANDem:OTN:MEAS? <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:TANDem:OTN:MEAS. • Response <mode> = <NR1 NUMERIC RESPONSE DATA> Disable Enable • Function Queries enable/disable of each item of OTN Tandem measurement. • Example use To query enable/disable setting of TCM1-TIM of OTN Tandem measure- ment: >...
Page 377 11.2 Setup Screen Commands :SENSe:MEASure:TANDem:OTN:REMove <type>,<numeric> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> BIAE TCMi-BIAE TCMi-BDI TCMi-IAE TCMi-LTC <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 15 (frame) Step value: 1 • Function Sets the Alarm removal condition of the OTN Tandem measurement. •...
Page 378 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.8.4 When OTN det. pat. is selected: Fig. 11.2.8.4-1 Setup:Measurement condition: <OTN det.pat.> screen Setting Command :SENSe:MEASure:PSI:DETection:MODE ODU-PLM detection (Mode) (Pattern) :SENSe:MEASure:PSI:DETection:PATTern :SENSe:MEASure:TTI:PRESet Copy preset :SENSe:MEASure:SAPI:IS1 TIM detection pattern SAPI IS1 :SENSe:MEASure:SAPI:IS2 None IS[type] :SENSe:MEASure:SAPI:NS1 :SENSe:MEASure:SAPI:NS2 :SENSe:MEASure:DAPI:IS1...
Page 379 11.2 Setup Screen Commands :SENSe:MEASure:PSI:DETection:MODE <layer>,<mode> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> OTU2 OTU2 OTU1 OTU1 OTU2E OTU2e OTU1E OTU1e <mode> = <CHARACTER PROGRAM DATA> AUTO Auto MANual Manual • Function Sets PSI[0] comparison method of OPU. • Example use To set PSI[0] comparison method of OPU to OTU2 Auto: >...
Page 380 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:PSI:DETection:PATTern? <layer> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:PSI:DETection:PATTern. • Response <pattern> = <STRING RESPONSE DATA> Same as :SENSe:MEASure:PSI:DETection:PATTern. • Function Queries set value of PSI[0] comparison pattern of OPU. • Example use >...
Page 381 11.2 Setup Screen Commands :SENSe:MEASure:SAPI:IS1? <layer>,<ttype> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> <ttype> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:SAPI:IS1. • Response <pattern> = <STRING RESPONSE DATA> 3 characters are output. Characters are replaced to '?' when outputting characters other than 0x20-0x7e.
Page 382 TCM3 TCM2 TCM2 TCM1 TCM1 <pattern> = <STRING PROGRAM DATA> * 12 characters are valid. • Function Sets SAPI:NS data of TTI. • Example use To set SAPI:NS data of SM of OTU2: "ANRITSU 1590" > :SENSe:MEASure:SAPI:NS1 OTU2,SM,"ANRITSU 1590" 11-246...
Page 383 Characters are replaced to '?' when outputting characters other than 0x20-0x7e. • Function Queries SAPI:NS data setting of TTI. • Example use To query SAPI:NS data of SM of OTU2: > :SENSe:MEASure:SAPI:NS1? OTU2,SM < "ANRITSU 1590" :SENSe:MEASure:SAPI:NS2 <layer>,<ttype>,<pattern> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> OTU2 OTU2...
Page 384 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:SAPI:NS2? <layer>,<ttype> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:SAPI:NS2. <ttype> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:SAPI:NS2. • Response <pattern> = <STRING RESPONSE DATA> 12 characters are output. Characters are replaced to ‘?’ when outputting characters other than 0x20-0x7e.
Page 385 11.2 Setup Screen Commands :SENSe:MEASure:DAPI:IS1? <layer>,<ttype> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> <ttype> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:DAPI:IS1. • Response <pattern> = <STRING RESPONSE DATA> 3 characters are output. Characters are replaced to ‘?’ when outputting characters other than 0x20-0x7e.
Page 386 TCM1 <pattern> = <STRING PROGRAM DATA> * 12 characters are valid. • Function Sets DAPI[4 to 15] data of TTI. • Example use To set DAPI[4 to 15] data of SM of OTU2: "ANRITSU 1590" > :SENSe:MEASure:DAPI:NS1 OTU2,SM,"ANRITSU 1590" 11-250...
Page 387 Characters are replaced to ‘?’ when outputting characters other than 0x20-0x7e. • Function Queries DAPI[4 to 15] data setting of TTI. • Example use To query DAPI[4 to 15] data of SM: > :SENSe:MEASure:DAPI:NS1? OTU2,SM < "ANRITSU 1590" :SENSe:MEASure:DAPI:NS2 <layer>,<ttype>,<pattern> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> OTU2 OTU2...
Page 388 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:DAPI:NS2? <layer>,<ttype> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> <ttype> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:DAPI:NS2. • Response <pattern> = <STRING RESPONSE DATA> • Function Queries DAPI:NS data setting of TTI. • Example use To query the DAPI:NS data of SM of OTU2: >...
Page 389 11.2 Setup Screen Commands :SENSe:MEASure:TTI:DETection? <layer>,<ttype> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> <ttype> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:TTI:DETection. • Response <type> = <CHARACTER RESPONSE DATA> Same as :SENSe:MEASure:TTI:DETection. • Function Queries comparison target of SM TTI of OTN. •...
Page 390 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.8.5 When SDH alarm (SONET alarm) is selected: Fig. 11.2.8.5-1 Setup:Measurement condition: <SDH alarm/SONET alarm> screen (For SONET) Setting Command SDH-Alarm-Default :SENSe:MEASure:ALARm:DEFault -Section-Meas. :SENSe:MEASure:ALARm:SECTion:MEAS -Det. :SENSe:MEASure:ALARm:SECTion:DETection -Rem. :SENSe:MEASure:ALARm:SECTion:REMove :SENSe:MEASure:ALARm:HP:MEAS -HP-Meas. :SENSe:MEASure:ALARm:P:MEAS :SENSe:MEASure:ALARm:HP:DETection -Det. :SENSe:MEASure:ALARm:P:DETection :SENSe:MEASure:ALARm:HP:REMove -Rem.
Page 391 11.2 Setup Screen Commands :SENSe:MEASure:ALARm:DEFault ∇ Parameter None • Function Initializes the Alarm detection removal condition of the SDH Alarm meas- urement. • Example use To initialize the Alarm detection removal condition of the SDH Alarm measurement: > :SENSe:MEASure:ALARm:DEFault :SENSe:MEASure:ALARm:SECTion:MEAS <type>,<mode>...
Page 392 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:ALARm:SECTion:DETection <type>,<numeric> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> 1.0 to 5.0 (ms) Step value: 0.1 When <type> is LOF. 1 to 15 (frame) Step value: 1 When <type> is LOF. •...
Page 393 11.2 Setup Screen Commands :SENSe:MEASure:ALARm:SECTion:REMove? <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:ALARm:SECTion:REMove. • Response <numeric> = <NR2 NUMERIC RESPONSE DATA> Same as :SENSe:MEASure:ALARm:SECTion:REMove. • Function Queries the Alarm removal condition of the SDH/SONET Alarm measure- ment. •...
Page 394 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:MEASure:ALARm:HP:MEAS? <type> (SONET) :SENSe:MEASure:ALARm:P:MEAS? <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:ALARm:HP:MEAS. • Response <mode> = <NR1 NUMERIC RESPONSE DATA> Disable Enable • Function Queries enable/disable of each item of SDH/SONET Alarm measurement. •...
Page 395 11.2 Setup Screen Commands (SDH) :SENSe:MEASure:ALARm:HP:DETection? <type> (SONET) :SENSe:MEASure:ALARm:P:DETection? <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:ALARm:HP:DETection. • Response <numeric> = <NR1 NUMERIC RESPONSE DATA> Same as :SENSe:MEASure:ALARm:HP:DETection. • Function Queries the Alarm detection condition of the SDH/SONET Alarm measure- ment.
Page 396 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:MEASure:ALARm:HP:REMove? <type> (SONET) :SENSe:MEASure:ALARm:P:REMove? <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:ALARm:HP:REMove. • Response <numeric> = <NR1 NUMERIC RESPONSE DATA> Same as :SENSe:MEASure:ALARm:HP:REMove. • Function Queries the Alarm removal condition of the SDH/SONET Alarm measure- ment.
Page 397 11.2 Setup Screen Commands (SDH) :SENSe:MEASure:ALARm:LP:MEAS? <type> (SONET) :SENSe:MEASure:ALARm:V:MEAS? <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:ALARm:LP:MEAS. • Response <mode> = <NR1 NUMERIC RESPONSE DATA> Disable Enable • Function Queries enable/disable of each item of SDH/SONET Alarm measurement. •...
Page 398 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:MEASure:ALARm:LP:DETection? <type> (SONET) :SENSe:MEASure:ALARm:V:DETection? <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> Same as :SENSe:MEASure:ALARm:LP:DETection. • Response <numeric> = <NR1 NUMERIC RESPONSE DATA> Same as :SENSe:MEASure:ALARm:LP:DETection. • Function Queries the Alarm detection condition of the SDH/SONET Alarm measure- ment.
Page 399 11.2 Setup Screen Commands (SDH) :SENSe:MEASure:ALARm:LP:REMove? <type> (SONET) :SENSe:MEASure:ALARm:V:REMove? <type> ∇ Parameter <type> = <CHARACTER RESPONCE DATA> Same as :SENSe:MEASure:ALARm:LP:REMove. • Response <numeric> = <NR1 NUMERIC RESPONSE DATA> Same as :SENSe:MEASure:ALARm:LP:REMove. • Function Queries the Alarm removal condition of the SDH/SONET Alarm measure- ment.
Page 400 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:REIDetection <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> M0_M1 M0/M1 • Function Sets the MS-REI detection condition. • Example use To set the MS-REI detection condition to M0/M1: > :SENSe:MEASure:REIDetection M0_M1 :SENSe:MEASure:REIDetection? ∇ Parameter None •...
Page 401 11.2 Setup Screen Commands 11.2.8.6 When SDH tandem (SONET tandem) is selected: Fig. 11.2.8.6-1 Setup:Measurement condition: screen (For SDH) <SDH tandem/SONET tandem> → SONET N1-HP → Z5-HP N1-LP → Z5-LP → Z6 HP(AU) → STS path LP(TU) → VT path 11-265...
Page 402 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Setting Command Tandem-N1-HP(Type2)(SDH) :SENSe:MEASure:TANDem:N1HP:MODE :SENSe:MEASure:TANDem:N1LP:MODE -N1-LP(Type2)(SDH) :SENSe:MEASure:TANDem:N2:MODE -N2(SDH) -Z5-HP(Type2)(SONET) :SENSe:MEASure:TANDem:Z5HP:MODE :SENSe:MEASure:TANDem:Z5LP:MODE -Z5-LP(Type2)(SONET) :SENSe:MEASure:TANDem:Z6:MODE -Z6(SONET) -Default :SENSe:MEASure:TANDem:DEFault :SENSe:MEASure:TANDem:HP:MEAS -HP-Meas. :SENSe:MEASure:TANDem:P:MEAS :SENSe:MEASure:TANDem:HP:DETection -Det. :SENSe:MEASure:TANDem:P:DETection :SENSe:MEASure:TANDem:HP:REMove -Rem. :SENSe:MEASure:TANDem:P:REMove :SENSe:MEASure:TANDem:LP:MEAS -LP-Meas. :SENSe:MEASure:TANDem:V:MEAS :SENSe:MEASure:TANDem:LP:DETection -Det. :SENSe:MEASure:TANDem:V:DETection :SENSe:MEASure:TANDem:LP:REMove -Rem. :SENSe:MEASure:TANDem:V:REMove 11-266...
Page 403 11.2 Setup Screen Commands (SDH) :SENSe:MEASure:TANDem:N1HP:MODE <mode> (SONET) :SENSe:MEASure:TANDem:Z5HP:MODE <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets tandem connection measurement (N1-HP/Z5-HP). • Example use To set to tandem connection measurement of N1-HP: >...
Page 404 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:MEASure:TANDem:N1LP:MODE <mode> (SONET) :SENSe:MEASure:TANDem:Z5LP:MODE <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets tandem connection measurement (N1-LP/Z5-LP). • Example use To set tandem connection measurement of N1-LP: >...
Page 405 11.2 Setup Screen Commands (SDH) :SENSe:MEASure:TANDem:N2:MODE <mode> (SONET) :SENSe:MEASure:TANDem:Z6:MODE <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets tandem connection measurement (N2/Z6). • Example use To set tandem connection measurement of N2: >...
Page 406 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:MEASure:TANDem:HP:MEAS <type>,<mode> (SONET) :SENSe:MEASure:TANDem:P:MEAS <type>,<mode> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> VC-AIS VC-AIS INCais IncAIS TC-RDI TC-RDI TCTIM TC-TIM TCUNEQ TC-UNEQ <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 Disable ON or 1 Enable •...
Page 407 11.2 Setup Screen Commands (SDH) :SENSe:MEASure:TANDem:HP:DETection <type>,<numeric> (SONET) :SENSe:MEASure:TANDem:P:DETection <type>,<numeric> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> VC-AIS VC-AIS INCais IncAIS TC-RDI TC-RDI TCUNEQ TC-UNEQ <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 15 (frame) Step value: 1 • Function Sets the Alarm detection condition of the SDH Tandem measurement.
Page 408 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:MEASure:TANDem:HP:REMove <type>,<numeric> (SONET) :SENSe:MEASure:TANDem:P:REMove <type>,<numeric> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> VC-AIS VC-AIS INCais IncAIS TC-RDI TC-RDI TC-UNEQ TC-UNEQ <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 15 (frame) Step value: 1 •...
Page 409 11.2 Setup Screen Commands (SDH) :SENSe:MEASure:TANDem:LP:MEAS <type>,<mode> (SONET) :SENSe:MEASure:TANDem:V:MEAS <type>,<mode> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> VC-AIS VC-AIS INCais IncAIS TC-RDI TC-RDI TC-TIM TC-TIM TC-UNEQ TC-UNEQ <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 Disable ON or 1 Enable •...
Page 410 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:MEASure:TANDem:LP:DETection <type>,<numeric> (SONET) :SENSe:MEASure:TANDem:V:DETection <type>,<numeric> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> VC-AIS VC-AIS INCais IncAIS TC-RDI TC-RDI TC-UNEQ TC-UNEQ <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 15 (frame) Step value: 1 •...
Page 411 11.2 Setup Screen Commands (SDH) :SENSe:MEASure:TANDem:LP:REMove <type>,<numeric> (SONET) :SENSe:MEASure:TANDem:V:REMove <type>,<numeric> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> VC-AIS VC-AIS INCais IncAIS TC-RDI TC-RDI TC-UNEQ TC-UNEQ <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 15 (frame) Step value: 1 • Function Sets the Alarm removal condition of the SDH Tandem measurement.
Page 412 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.8.7 When SDH det. pat. (SONETdet. pat.) is selected: Fig.11.2.8.7-1 Setup:Measurement condition: < > screen (For SDH) SDH det.pat./SONET det.pat. Setting Command :SENSe:MEASure:SLM:DETection:HP:MODE SLM detection pattern-HP (mode) (pattern) :SENSe:MEASure:SLM:DETection:HP:PATTern -LP (mode) :SENSe:MEASure:SLM:DETection:LP:MODE (pattern) :SENSe:MEASure:SLM:DETection:LP:PATTern :SENSe:MEASure:PLM:DETection:P:MODE PLM detection pattern-HP (mode) (pattern) :SENSe:MEASure:PLM:DETection:P:PATTern...
Page 413 11.2 Setup Screen Commands (SDH) :SENSe:MEASure:SLM:DETection:HP:MODE <mode> (SONET) :SENSe:MEASure:PLM:DETection:P:MODE <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> AUTO Auto MANual Manual • Function Sets comparison method of signal identification pattern of POH. • Example use To set comparison method of signal identification pattern of POH to Auto: >...
Page 414 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:MEASure:SLM:DETection:HP:PATTern <pattern> (SONET) :SENSe:MEASure:PLM:DETection:P:PATTern <pattern> ∇ Parameter <pattern> = <STRING PROGRAM DATA> “00” to “FF” (hexadecimal type) • Function Sets comparison pattern of signal identification pattern of POH. • Example use To set comparison pattern of signal identification pattern of POH to AB: >...
Page 415 11.2 Setup Screen Commands (SDH) :SENSe:MEASure:SLM:DETection:LP:MODE <mode> (SONET) :SENSe:MEASure:PLM:DETection:V:MODE <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> AUTO Auto MANual Manual • Function Sets comparison method of signal identification pattern of POH. • Example use To set comparison pattern of signal identification pattern of POH to Auto: >...
Page 416 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:MEASure:SLM:DETection:LP:PATTern <pattern> (SONET) :SENSe:MEASure:PLM:DETection:V:PATTern <pattern> ∇ Parameter <pattern> = <STRING PROGRAM DATA> “00” to “FF” (HEX type) • Function Sets comparison pattern of signal identification pattern of POH. • Example use To set comparison pattern of signal identification pattern of POH to AB: >...
Page 417 11.2 Setup Screen Commands :SENSe:MEASure:TIM:PTCondition <pttype>,<crc> ∇ Parameter <pttype> = <CHARACTER PROGRAM DATA> J0 path trace J1-HP path trace J1-LP path trace J2 path trace <crc> = <BOOLEAN PROGRAM DATA> OFF or 0 CRC OFF ON or 1 CRC ON •...
Page 418 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:TIM:PTData <pttype>,<pattern> ∇ Parameter <pttype> = <CHARACTER PROGRAM DATA> J0 path trace J1-HP path trace J1-LP path trace J2 path trace <pattern> = <STRING PROGRAM DATA> <pttype> is 16 characters when CRC-7 is set to ON for :SENSe :MEASure :TIM :PTCondition.
Page 419 11.2 Setup Screen Commands :SENSe:MEASure:TCAPI:PTData <type>,<pattern> ∇ Parameter <pttype> = <CHARACTER PROGRAM DATA> HPN1 HP-N1 LPN1 LP-N1 <pattern> = <STRING PROGRAM DATA> 16 characters are valid whilethe first character is converted to CRC code. • Function Sets the TIM path trace data. Data are displayed in the ASCII character string.
Page 420 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.8.8 When Condition is selected: Fig.11.2.8.8-1 Setup:Measurement condition: <Condition> screen Setting Command Mask condition :SENSe:MEASure:ALARm:MASK Trigger output :SYSTem:TRIGgerout Event LED Error Alarm Justification :SYSTem:EVENt:LED Out of frequency range Ethernet Frame Transmit Ethernet Frame Receive Out of frequency range (Offset) :SYSTem:EVENt:FRANge:OFFSet 11-284...
Page 421 11.2 Setup Screen Commands :SENSe:MEASure:ALARm:MASK <mask> ∇ Parameter <mask> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets lower alarm masking when upper alarm occurs. • Example use To set lower alarm masking when upper alarm occurs: >...
Page 422 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SYSTem:TRIGgerout <trg> ∇ Parameter <trg> = <CHARACTER PROGRAM DATA> TXERror Tx Error TXALarm Tx Alarm RXERror Rx Error RXALarm Rx Alarm CAPTure Capture • Function Sets whether or not to execute trigger. • Example use To set trigger output to Tx Error: >...
Page 423 11.2 Setup Screen Commands :SYSTem:EVENt:LED <type>,<mode> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> ERRor Error ALARm Alarm JUSTification Justification OOFR Out of frequency range ETHTx Ethernet Frame Transmit ETHRx Ethernet Frame Receive <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 •...
Page 424 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:EVENt:FRENge:OFFSet <offset> ∇ Parameter <offset> = <NON-NUMERIC PROGRAM DATA> 1.0 to 99.9 (ppm) Step value: 0.1 • Function Sets a limited value of Out of Frequency range. • Example use To set a limited value of Out of Frequency range to ±99.9 ppm: >...
Page 425 11.2 Setup Screen Commands 11.2.8.9 10GbE Screen Fig.11.2.8.9-1 Setup:Measurement condition:<10GbE> Screen Setting Command :SENSe:MEASure:GBE10:UDEFined1:PATTern1 GBE10-Counter1-Pattern1 :SENSe:MEASure:GBE10:UDEFined1:PATTern2 -Counter1-Pattern2 :SENSe:MEASure:GBE10:UDEFined1:ERRor -Counter1-ERRor :SENSe:MEASure:GBE10:UDEFined2:PATTern1 GBE10-Counter2-Pattern1 :SENSe:MEASure:GBE10:UDEFined2:PATTern2 -Counter2-Pattern2 -Counter2-ERRor :SENSe:MEASure:GBE10:UDEFined2:ERRor :SENSe:MEASure:GBE10:PATTern1:OFFSet GBE10-Pattern1 Offset :SENSe:MEASure:GBE10:PATTern1:VALue -Pattern1 Value -Pattern1 Mask :SENSe:MEASure:GBE10:PATTern1:MASK :SENSe:MEASure:GBE10:PATTern1:FORMat -Pattern1 Format :SENSe:MEASure:GBE10:PATTern1:PRESet -Pattern1 Preset Pattern GBE10-Pattern2 Offset :SENSe:MEASure:GBE10:PATTern2:OFFSet -Pattern2 Value...
Page 426 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:GBE10:UDEFined1:PATTern1 <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> DONT Don't care MATCh Match MISMatch Mismatch • Function Sets match conditions for Pattern 1 of 10GbE User Defined Counter. • Example use To set conditions for Pattern 1 of 10GbE User Defined Counter to Match. >...
Page 427 11.2 Setup Screen Commands :SENSe:MEASure:GBE10:UDEFined1:PATTern2 <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> DONT Don't care MATCh Match MISMatch Mismatch • Function Sets match conditions for Pattern 2 of 10GbE User Defined Counter 1. • Example use To set conditions for Pattern 2 of 10GbE User Defined Counter 1 to Match. >...
Page 428 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:GBE10:UDEFined1:ERRor <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> DONT Don't care MATCh Match MISMatch Mismatch • Function Sets match conditions for Erro of 10GbE User Defined Counter 1. • Example use To set conditions for Error of 10GbE User Defined Counter 1 to Match. >...
Page 429 11.2 Setup Screen Commands :SENSe:MEASure:GBE10:UDEFined2:PATTern1 <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> DONT Don't care MATCh Match MISMatch Mismatch • Function Sets match conditions for Pattern 1 of 10GbE User Defined Counter 2. • Example use To set conditions for Pattern1 of 10GbE User Defined Counter 2 to Match. >...
Page 430 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:GBE10:UDEFined2:PATTern2? ∇ Parameter None • Response <mode> = <CHARACTER RESPONSE DATA> DONT Don't care MATC Match MISM Mismatch • Function Queries match conditions for Pattern 2 of 10GbE User Defined Counter 2. • Example use >...
Page 431 11.2 Setup Screen Commands :SENSe:MEASure:GBE10:PATTern1:OFFSet? ∇ Parameter None • Response <offset> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SENSe:MEASure:GBE10:PATTern1:OFFSet. • Function Queries Base Position of 10GbE Pattern 1 • Example use > :SENSe:MEASure:GBE10:PATTern1:OFFSet? < 5 11-295...
Page 432 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:GBE10:PATTern1:VALue <pattern> ∇ Parameter <pattern> = <STRING PROGRAM DATA> “00000000000000000000000000000000”to ”FFFFFFFFFFFFFFFFFFFFFF FFFFFFFFFF” (HEX 6 byte Data) • Function Sets evaluation pattern for 10Gbe Pattern 1 • Example use To set evaluation pattern for 10Gbe Pattern 1 to following pattern ““0101 0101 0101 0101 0101 0101 0101 0101”...
Page 433 11.2 Setup Screen Commands :SENSe:MEASure:GBE10:PATTern1:MASK? ∇ Parameter None • Response <pattern> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SENSe:MEASure:GBE10:PATTern1:MASK • Function Queries mask for 10GbE Pattern1 • Example use > :SENSe:MEASure:GBE10:PATTern1:MASK? < “0F0F0F0F0F0F0F0F0F0F0F0F0F0F0F0F” :SENSe:MEASure:GBE10:PATTern1:PRESet <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> MACDa MAC DA MACSa...
Page 434 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:GBE10:PATTern2:VALue <pattern> ∇ Parameter <pattern> = <STRING PROGRAM DATA> “00000000000000000000000000000000” to ”FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF” (HEX 6 byte Data) • Function Sets evaluation pattern for 10Gbe Pattern 2 • Example use To set evaluation pattern for 10Gbe Pattern 2 to following pattern “0101 0101 0101 0101 0101 0101 0101 0101”...
Page 435 11.2 Setup Screen Commands :SENSe:MEASure:GBE10:PATTern2:PRESet <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> MACDa MAC DA MACSa MAC SA ETHer Ether Type • Function Sets selected Preset Pattern at 10GbE Pattern2 Selectable patterns are Base Position/Offset/Mask/Format • Example use To set 10Gbe Pattern2 to Pattern for Ether Type >...
Page 436 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:GBE10:COMBination <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> • Function Sets logical OR and logical AND match conditions for 10GbE User Defined • Example use To set 10GbE User Defined to logical AND >...
Page 437 11.2 Setup Screen Commands 11.2.9 APS Programmable Data Sub-screen 11.2.9.1 APS programmable data sub-screen common commands Setting Command Display select :DISPlay:SETup:APSProg:DISPmode Recall-Default :SOURce:TELecom:APRogram:DEFault -Captured data :SOURce:TELecom:APRogram:CAPTured -Copy & Paste :SOURce:TELecom:APRogram:COPY 11-301...
Page 438 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:SETup:APSProg:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) K1K2 K1/K2 sub-screen K3HP K3-HP sub-screen K3LP K3-LP sub-screen K4 sub-screen (SONET) K1K2 K1/K2 sub-screen Z4HP Z4-HP sub-screen Z4LP Z4-LP sub-screen Z7 sub-screen • Function Selects a sub-screen of the APS programmable data screen.
Page 439 11.2 Setup Screen Commands :SOURce:TELecom:APRogram:CAPTured ∇ Parameter None • Function Loads the Capture data of the Analyze:APS capture screen. Note that Capture data is not loaded when no data exists. • Example use > :SOURce:TELecom:APRogram:CAPTured :SOURce:TELecom:APRogram:COPY <type>,<destno>,<source1>,<source2> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) K1K2 K1/K2...
Page 440 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.9.2 When K1/K2 is selected: Fig. 11.2.9.2-1 Setup:APS programmable data: <K1/K2> screen-Example for Ring Setting Command No.-K1 b1-b4 (mnemonic format) :SOURce:TELecom:APRogram:MSPMessages:REQuest (binary format) :SOURce:TELecom:APRogram:MSPBits:REQuest -K1 b5-b8 (mnemonic format) :SOURce:TELecom:APRogram:MSPMessages:CHANnel (binary format) :SOURce:TELecom:APRogram:MSPBits:CHANnel -K2 b1-b4 (mnemonic format) :SOURce:TELecom:APRogram:MSPMessages:BRIDge (binary format) :SOURce:TELecom:APRogram:MSPBits:BRIDge -K2 b5 (mnemonic format)
Page 441 11.2 Setup Screen Commands :SOURce:TELecom:APRogram:MSPMessages:REQuest <no>,<request> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <request> = <CHARACTER PROGRAM DATA> (Linear) NREQ No request (0000) Do not revet (0001) RREQ Reverse request (0010) UUS3 Unused (0011) EXER Exercise...
Page 442 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:APRogram:MSPMessages:REQuest? <no> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:APRogram:MSPMessages:REQuest. • Response <request> = <CHARACTER RESPONSE DATA> Same as :SOURce:TELecom:APRogram:MSPMessages:REQuest. • Function Queries K1 (1 to 4 bits) byte. (Mnemonic format) •...
Page 443 11.2 Setup Screen Commands :SOURce:TELecom:APRogram:MSPMessages:CHANnel <no>,<mspch> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <mspch> = <CHARACTER PROGRAM DATA> (Linear) Null signal (0000) Normal traffic signal #1 (0001) Normal traffic signal #2 (0010) Normal traffic signal #3 (0011) Normal traffic signal #4 (0100)
Page 444 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:APRogram:MSPBits:CHANnel <no>,<mspch> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <mspch> = <STRING PROGRAM DATA> "0000" to "1111" • Function Sets K1 (5 to 8 bits) byte. (Binary format) •...
Page 445 11.2 Setup Screen Commands :SOURce:TELecom:APRogram:MSPMessages:BRIDge <no>,<bridge> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64No. Step value: 1 <bridge> = <CHARACTER PROGRAM DATA> (Linear) Null signal (0000) Normal traffic signal #1 (0001) Normal traffic signal #2 (0010) Normal traffic signal #3 (0011) Normal traffic signal #4 (0100)
Page 446 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:APRogram:MSPBits:BRIDge <no>,<bridge> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <bridge> = <STRING PROGRAM DATA> "0000" to "1111" • Function Sets K2 (1 to 4 bits) byte. (Bit format) •...
Page 447 11.2 Setup Screen Commands :SOURce:TELecom:APRogram:MSPMessages:ARCHitect? <no> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:APRogram:MSPMessages:ARCHitect. • Response <arch> = <CHARACTER RESPONSE DATA> Same as :SOURce:TELecom:APRogram:MSPMessages:ARCHitect. * Mnemonic of response varies by the Linear or Ring. • Function Queries K2 (5 bit) byte. (mnemonic format) •...
Page 448 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:APRogram:MSPMessages:REServed <no>,<res> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <res> = <CHARCTER PROGRAM DATA> (Linear) REServed000 REServed001 REServed010 REServed011 REServed100 REServed101 MRDI (SDH) RDIL (SONET) MAIS (SDH) AISL (SONET) (Ring)
Page 449 11.2 Setup Screen Commands :SOURce:TELecom:APRogram:MSPBits:REServed <no>,<res> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <res> = <STRING PROGRAM DATA> "000" to "111" • Function Sets K2 (6 to 8 bits) byte. (Binary format) • Example use To set No.
Page 450 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:APRogram:FRAMe? <no> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:APRogram:FRAMe. • Response <frame> = <NR1 NUMERIC RESPONSE DATA> Same as :SOURce:TELecom:APRogram:FRAMe. • Function Queries the setting for Frame of K1/K2. • Example use To query the No.
Page 451 11.2 Setup Screen Commands 11.2.9.3 When K3-HP/Z4-HP is selected: Fig. 11.2.9.3-1 Setup:APS programmable data: <K3-HP/Z4-HP> screen (For SDH) Setting Command :SOURce:TELecom:APRogram:K3HP:PROGram (SDH) No.-Data, Frame :SOURce:TELecom:APRogram:Z4HP:PROGram (SONET) 11-315...
Page 452 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:APRogram:K3HP:PROGram <no>,<k3>,<frame> (SONET) :SOURce:TELecom:APRogram:Z4HP:PROGram <no>,<k3>,<frame> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <k3> = <STRING PROGRAM DATA> "00" to "FF" (hexadecimal format) <frame> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 8000 Frame •...
Page 453 11.2 Setup Screen Commands 11.2.9.4 When K3-LP/Z4-LP is selected: Fig. 11.2.9.4-1 Setup:APS programmable data: <K3-LP/Z4-LP> screen (For SONET) Setting Command :SOURce:TELecom:APRogram:K3LP:PROGram (SDH) No.-Data, Frame :SOURce:TELecom:APRogram:Z4LP:PROGram (SONET) 11-317...
Page 454 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:APRogram:K3LP:PROGram <no>,<k3>,<frame> (SONET) :SOURce:TELecom:APRogram:Z4LP:PROGram <no>,<k3>,<frame> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <k3> = <STRING PROGRAM DATA> "00" to "FF" (hexadecimal format) <frame> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 8000 Frame Step value: 1...
Page 455 11.2 Setup Screen Commands 11.2.9.5 When K4/Z7 is selected: Fig. 11.2.9.5-1 Setup:APS programmable data: <K4/Z7> screen (For SDH) Setting Command :SOURce:TELecom:APRogram:K4LSB:DATA (SDH) No.-K4 b1-b4 :SOURce:TELecom:APRogram:Z7LSB:DATA (SONET) -K4 b5-b7 :SOURce:TELecom:APRogram:K4Messages (SDH) (mnemonic format) :SOURce:TELecom:APRogram:Z7Messages (SONET) :SOURce:TELecom:APRogram:K4Bits (SDH) (binary format) :SOURce:TELecom:APRogram:Z7Bits (SONET) :SOURce:TELecom:APRogram:K4MSB:DATA (SDH) -K4 b8 :SOURce:TELecom:APRogram:Z7MSB:DATA (SONET)
Page 456 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:APRogram:K4LSB:DATA <no>,<data> (SONET) :SOURce:TELecom:APRogram:Z7LSB:DATA <no>,<data> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <data> = <STRING PROGRAM DATA> "0000" to "1111" (binary format) • Function Sets K4/Z7 (1 to 4 bits). •...
Page 457 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:APRogram:K4Messages <no>,<rem> (SONET) :SOURce:TELecom:APRogram:Z7Messages <no>,<rem> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <rem> = <CHARCTER PROGRAM DATA> (SDH) UNUSed000 NORemote PAYLoad UNUSed011 UNUSed100 SERVer CONNect UNUSed111 (SONET) NORemote000 NORemote001 PAYLoad NORemote011...
Page 458 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:APRogram:K4Messages? <no> (SONET) :SOURce:TELecom:APRogram:Z7Messages? <no> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:APRogram:K4Messages. • Response <rem> = <CHARACTER RESPONSE DATA> (SDH) UNUS000 PAYL UNUS011 UNUS100 SERV CONN UNUS111 (SONET) NOR000 NOR001 PAYL NOR011...
Page 459 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:APRogram:K4Bits <no>,<rem> (SONET) :SOURce:TELecom:APRogram:Z7Bits <no>,<rem> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <rem> = <STRING PROGRAM DATA> "000" to "111" (bit format) • Function Sets K4/Z7 (5 to 7 bits) byte. (binary format) •...
Page 460 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:APRogram:K4MSB:DATA <no>,<data> (SONET) :SOURce:TELecom:APRogram:Z7MSB:DATA <no>,<data> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <data> = <STRING PROGRAM DATA> "0" to "1" (bit format) • Function Sets K4/Z7 (bit8). •...
Page 461 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:APRogram:K4:FRAMe <no>,<frame> (SONET) :SOURce:TELecom:APRogram:Z7:FRAMe <no>,<frame> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <frame> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 8000 Frame Step value: 1 • Function Sets the counts of frame of K4/Z7. •...
Page 462 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:APRogram:K4:PROGram <no>,<k4>,<frame> (SONET) :SOURce:TELecom:APRogram:Z7:PROGram <no>,<k4>,<frame> ∇ Parameter <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <k4> = <STRING PROGRAM DATA> "00" to "FF"(hexadecimal format) <frame> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 8000 Frame Step value: 1...
Page 463 11.2 Setup Screen Commands 11.2.10 OH change data Sub-screen 11.2.10.1 OH change data sub-screen common commands Setting Command Display mode :DISPlay:SETup:OHCHange:DISPmode 11-327...
Page 464 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:SETup:OHCHange:DISPmode <ohchange> ∇ Parameter <ohchange> = <CHRACTER PROGRAM DATA> (SDH) (SONET) SONET SONET • Function Selects the display items of the Setup:OH change screen. • Example use To select OTN as display items: > :DISPlay:SETup:OHCHange:DISPmode OTN :DISPlay:SETup:OHCHange:DISPmode? ∇...
Page 465 11.2 Setup Screen Commands 11.2.10.2 For OTN: Fig. 11.2.10.2-1 Setup:OH change data: <OTN> screen 11-329...
Page 466 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Setting Command Recall-Default :SOURce:TELecom:OHCHange:OTN:RECall:DEFault Recall-Preset Overwrite :SOURce:TELecom:OHCHange:OTN:RECall:PRESet OTN OH :SOURce:TELecom:OHCHange:OTN:OHPattern TTI data (SM,TCM1,TCM2,TCM3,TCM4, :SOURce:TELecom:OHCHange:OTN:TTI:DATA TCM5,TCM6,PM) TTI[Recall](SM,TCM1,TCM2, TCM3,TCM4,TCM5,TCM6,PM) :SOURce:TELecom:OHCHange:OTN:TTI:RECall:DEFault -Default :SOURce:TELecom:OHCHange:OTN:TTI:RECall:PRESet -OH preset overwrite TTI[IS](SM,PM,TCM1,TCM2, :SOURce:TELecom:OHCHange:OTN:TTI:IS TCM3,TCM4,TCM5,TCM6,PM) TTI[NS](SM,TCM1,TCM2,TCM3, :SOURce:TELecom:OHCHange:OTN:TTI:NS TCM4,TCM5,TCM6,PM) SM[3]:[BEI/BIAE] :SOURce:TELecom:OHCHange:OTN:SM:BEIBiae SM[3]:[BDI] :SOURce:TELecom:OHCHange:OTN:SM:BDI SM[3]:[IAE] :SOURce:TELecom:OHCHange:OTN:SM:IAE SM[3]:[RES] :SOURce:TELecom:OHCHange:OTN:SM:RES...
Page 467 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:RECall:DEFault ∇ Parameter None • Function Initializes the OTN OH change data of send signals. • Example use To initialize OTN OH change data of Pattern A,No.5: > :SOURce:TELecom:OHCHange:OTN:RECall:DEFault :SOURce:TELecom:OHCHange:OTN:RECall:PRESet <select>,<brate>,<from>,<to> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern...
Page 468 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:OHPattern <select>,<no>,<otnpoint>,<data> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value: 1 <otnpoint>, = <CHARACTER PROGRAM DATA> GCC0 GCC0 RES_...
Page 469 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:TTI:DATA <select>,<ttitype>,<point>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <ttitype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2 TCM2 TCM3 TCM3 TCM4 TCM4 TCM5 TCM5 TCM6 TCM6 <point>...
Page 470 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:TTI:RECall:DEFault <select>,<ttitype> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <ttitype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2 TCM2 TCM3 TCM3 TCM4 TCM4 TCM5 TCM5 TCM6 TCM6 •...
Page 471 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:TTI:IS <select>,<position>,<ttitype>,<sapidappi>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <position> = <CHARACTER PROGRAM DATA> POS1 1-64 POS65 65-128 POS129 129-192 POS193 193-256 <ttitype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2...
Page 472 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:TTI:IS? <select>,<no>,<ttitype>,<sapidappi> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> <position> = <CHARACTER PROGRAM DATA> <ttitype> = <CHARACTER PROGRAM DATA> <sapidapi> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:TTI:IS. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:OTN:TTI:IS.
Page 473 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:TTI:NS <select>,<position>,<ttitype>,<sapidappi>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <position> = <CHARACTER PROGRAM DATA> POS1 1-64 POS65 65-128 POS129 129-192 POS193 193-256 <ttitype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2...
Page 474 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:TTI:NS? <select>,<no>,<ttitype>,<sapidappi> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> <position> = <CHARACTER PROGRAM DATA> <ttitype> = <CHARACTER PROGRAM DATA> <sapidapi> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:TTI:NS. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:OTN:TTI:NS.
Page 475 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:SM:BDI <select>,<no>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value: 1 <string> = <STRING PROGRAM DATA> "0"...
Page 476 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:SM:IAE? <select>,<no> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:SM:IAE. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:OTN:SM:IAE. • Function Queries third byte Bit 6 of SM of send signals. •...
Page 477 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:TCM:BEIBiae <select>,<no>,<tcmtype>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value: 1 <tcmtype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2...
Page 478 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:TCM:BDI <select>,<no>,<tcmtype>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value: 1 <tcmtype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2...
Page 479 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:TCM:STAT:LABel <select>,<no>,<tcmtype>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value: 1 <tcmtype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2...
Page 480 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:TCM:STAT:PATTern <select>,<no>,<tcmtype>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value: 1 <tcmtype> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2...
Page 481 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:PM:BEI <select>,<no>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value: 1 <string> = <STRING PROGRAM DATA> "0000"...
Page 482 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:PM:BDI? <select>,<no> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:PM:BDI. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:OTN:PM:BDI. • Function Queries third byte Bit 5 of PM of send signals. •...
Page 483 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:PM:STAT:LABel? <select>,<no> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:PM:STAT:LABel. • Response <string> = <STRING PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:PM:STAT:LABel. • Function Queries third byte Bit 6 to Bit 8 of PM of send signals. •...
Page 484 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:FTFL:DATA <select>,<point>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <point> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 255 Step value: 1 (FTFL byte position) <string>...
Page 485 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:FTFL:RECall:PRESet <select>,<brate> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <brate> = <CHARACTER PROGRAM DATA> G11_09 11.09 Gbit/s G11_04 11.04 Gbit/s G10_7 10.7 Gbit/s M2666 2666 Mbit/s •...
Page 486 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:FTFL:FIF:LABel? <select>,<field> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> <field> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:FTFL:FIF:LABel. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:OTN:FTFL:FIF:LABel. • Function Queries mnemonic setting of FIF byte of FTFL multi data for send signals. •...
Page 487 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:FTFL:FIF:PATTern? <select>,<field> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> <field> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:FTFL:FIF:PATTern. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:OTN:FTFL:FIF:PATTern. • Function Queries hexadecimal setting of FIF byte of FTFL multi data for send sig- nals.
Page 488 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:FTFL:CC? <select>,<field> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> <field> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:FTFL:CC. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:OTN:FTFL:CC. • Function Queries the OIF CC setting of the FTFL multi data of send signals. Characters are replaced to ‘?’...
Page 489 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:FTFL:NSC? <select>,<field> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> <field> = <CHARACTER PROGRAM DATA> :SOURce:TELecom:OHCHange:OTN:FTFL:NSC. • Response <string> = <STRING RESPONSE DATA> Same as Same as :SOURce:TELecom:OHCHange:OTN:FTFL:NSC. • Function Queries the OIF NSC setting of the FTFL multi data of send signals. Characters are replaced to ‘?’...
Page 490 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:PSI:DATA? <select>,<point1>,<point2> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:PSI:DATA. <point1> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 255 Step value: 1 <point2> = <DECIMAL NUMERIC PROGRAM DATA> point1 to 255 Step value: 1 •...
Page 491 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:OTN:PSI:PT:LABel <select>,<string> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <string> = <STRING PROGRAM DATA> “Unused00” (00) “Experimental” (01) “async. CBR” (02) “bit sync. CBR” (03) “ATM” (04) “GFP”...
Page 492 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:OTN:PSI:PT:LABel? <select> ∇ Parameter <select> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:OTN:PSI:PT:LABel. • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:OTN:PSI:PT:LABel. • Function Queries mnemonic setting of PSI multi data of PT for send signals. •...
Page 493 11.2 Setup Screen Commands 11.2.10.3 For SDH (SONET): Fig. 11.2.10.3-1 Setup:OH change data: <SDH/SONET> screen (For SONET) 11-357...
Page 494 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Setting Command Recall-Default :SOURce:TELecom:OHCHange:RECall:DEFault Recall-Preset Overwrite :SOURce:TELecom:OHCHange:RECall:PRESet :SOURce:TELecom:OHCHange:SOHPattern SOH,TOH data (1 byte setting) :SOURce:TELecom:OHCHange:TOHPattern :SOURce:TELecom:OHCHange:SOHPattern2 SOH,TOH data (multi byte setting) :SOURce:TELecom:OHCHange:TOHPattern2 SOH S1 (mnemonic setting) :SOURce:TELecom:OHCHange:SSMessage SOH S1 (binary setting) :SOURce:TELecom:OHCHange:SSPattern POH data (1 byte setting) :SOURce:TELecom:OHCHange:POHPattern POH data (multi byte setting) :SOURce:TELecom:OHCHange:POHPattern2...
Page 495 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:RECall:DEFault ∇ Parameter None • Function Initializes the OH change data of send signals. • Example use To initialize the OH change data: > :SOURce:TELecom:OHCHange:RECall:DEFault :SOURce:TELecom:OHCHange:RECall:PRESet <brate>,<ch>,<type>,<select>,<from>,<to> ∇ Parameter <brate> = <CHARACTER PROGRAM DATA> M9953 9953 Mbit/s M2488 2488 Mbit/s M622...
Page 496 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHCHange:SOHPattern <type>,<select>,<no>,<sohpoint>,<data> (SONET) :SOURce:TELecom:OHCHange:TOHPattern <type>,<select>,<no>,<tohpoint>,<data> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) STM1 STM0 (SONET) STS3 STS1 <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no>...
Page 497 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHCHange:SOHPattern? <type>,<select>, <no>, <sohpoint> (SONET) :SOURce:TELecom:OHCHange:TOHPattern? <type>, <select>, <no>, <tohpoint> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> <sohpoint>,<tohpoint> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:SOHPattern. •...
Page 498 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHCHange:SOHPattern2 <type>,<select>,<no>,<row>,<column>,<data> (SONET) :SOURce:TELecom:OHCHange:TOHPattern2 <type>,<select>,<no>,<row>,<column>,<data> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) STM1 STM0 (SONET) STS3 STS1 <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no>...
Page 499 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHCHange:SOHPattern2? <type>,<select>,<no>,<row1>,<column1>,<row2>,<column2> (SONET) :SOURce:TELecom:OHCHange:TOHPattern2? <type>,<select>,<no>,<row1>,<column1>,<row2>,<column2> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:SOHPattern2. <row1> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 9 Line number Step value: 1 <row2>...
Page 500 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:SSMessage <type>, <select>, <no>, <data> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) STM1 STM0 (SONET) STS3 STS1 <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value 1 <data>...
Page 501 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:SSMessage? <type>, <select>, <no> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:SSMessage. • Response <data> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:SSMessage. • Function Queries S1 data of SOH (TOH) change data of send signals in mnemonic format.
Page 502 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:SSPattern? <type>, <select>, <no> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:SSPattern. • Response <data> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:SSPattern. •...
Page 503 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:POHPattern <type>,<select>,<no>,<pohtype>,<pohpoint>,<data> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) STM1 STM0 (SONET) STS3 STS1 <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value 1 <pohtype>...
Page 504 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:POHPattern? <type>,<select>,<no>,<pohtype>,<pohpoint> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> <pohtype> = <CHARACTER PROGRAM DATA> <pohpoint> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:POHPattern. • Response <data>...
Page 505 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:POHPattern2 <type>,<select>,<no>,<pohtype>,<point>,<data> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) STM1 STM0 (SONET) STS3 STS1 <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value 1 <pohtype>...
Page 506 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:POHPattern2? <type>,<select>,<no>,<pohtype>,<point1>,<point2> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> <pohtype> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:POHPattern. <point1> =<DECIMAL NUMERIC PROGRAM DATA> 1 to 9 Line number Step value: 1 <point2>...
Page 507 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHCHange:SLABel <type>,<select>,<no>,<pohtype>,<data> (SONET) :SOURce:TELecom:OHCHange:PLABel <type>,<select>,<no>,<pohtype>,<data> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) STM1 STM0 (SONET) STS3 STS1 <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value: 1 <pohtype>...
Page 508 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands "UnusedCE" "UnusedCE" (1100 1110) "ReservedCF" "ReservedCF" (1100 1111) "Reserved for national useD0" "ReservedD0” (1101 0000) "Reserved for national useFC" "ReservedFC" (1111 1100) "UnusedFD" "UnusedFD" (1111 1101) "O.181 mapping" "O.181" (1111 1110) "VC-AIS" "VC-AIS" (1111 1111) (SONET) "Unequipped"...
Page 509 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHCHange:SLABel? <type>, <select>, <no>, <pohtype> (SONET) :SOURce:TELecom:OHCHange:PLABel? <type>, <select>, <no>, <pohtype> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> <pohtype> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:PLABel. •...
Page 510 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHCHange:SPATtern <type>,<select>,<no>,<pohtype>,<data> (SONET) :SOURce:TELecom:OHCHange:PPATtern <type>,<select>,<no>,<pohtype>,<data> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) STM1 STM0 (SONET) STS3 STS1 <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no>...
Page 511 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHCHange:SPATtern? <type>,<select>,<no>,<pohtype> (SONET) :SOURce:TELecom:OHCHange:PPATtern? <type>,<select>,<no>,<pohtype> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> <pohtype> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:PPATtern. • Response <data> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:PPATtern.
Page 512 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:GLABel <type>,<select>,<no>,<pohtype>,<data> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) STM1 STM0 (SONET) STS3 STS1 <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value 1 <pohtype>...
Page 513 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:GLABel? <type>, <select>, <no>, <pohtype> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> <pohtype> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:GLABel. • Response <data> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:GLABel.
Page 514 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:GPATtern? <type>, <select>, <no>, <pohtype> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> <pohtype> = <CHARACTER PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:GPATtern. • Response <data> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:GPATtern.
Page 515 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:VLABel <type>,<select>,<no>,<data> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) STM1 STM0 (SONET) STS3 STS1 <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value: 1 <data>...
Page 516 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OHCHange:VLABel? <type>,<select>,<no> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:VLABel. • Response <data> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:VLABel. • Function Queries V5 data (Bit 5 to Bit 7) of POH change data of send signals in mnemonic format.
Page 517 11.2 Setup Screen Commands :SOURce:TELecom:OHCHange:VPATtern? <type>,<select>,<no> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:VPATtern. • Response <data> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:VPATtern. • Function Queries V5 data (Bit 5 to Bit 7) of POH change data of send signals in bina- ry format.
Page 518 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHCHange:KLABel <type>,<select>,<no>,<data> (SONET) :SOURce:TELecom:OHCHange:ZLABel <type>,<select>,<no>,<data> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) STM1 STM0 (SONET) STS3 STS1 <select> = <CHARACTER PROGRAM DATA> APATtern Pattern A (pattern type to edit) BPATtern Pattern B <no>...
Page 519 11.2 Setup Screen Commands (SDH) :SOURce:TELecom:OHCHange:KLABel? <type>,<select>,<no> (SONET) :SOURce:TELecom:OHCHange:ZLABel? <type>,<select>,<no> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:KLABel. • Response <data> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:KLABel. •...
Page 520 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:TELecom:OHCHange:KPATtern? <type>,<select>,<no> (SONET) :SOURce:TELecom:OHCHange:ZPATtern? <type>,<select>,<no> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> <select> = <CHARACTER PROGRAM DATA> <no> = <DECIMAL NUMERIC PROGRAM DATA> Same as :SOURce:TELecom:OHCHange:KPATtern. • Response <data> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:OHCHange:KPATtern.
Page 521 11.2 Setup Screen Commands 11.2.11 System Sub-screen 11.2.11.1 System sub-screen common commands Setting Command Display mode :DISPlay:SETup:SYSTem:DISPmode 11-385...
Page 522 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:SETup:SYSTem:DISPmode <system> ∇ Parameter <system> = <CHRACTER PROGRAM DATA> SYSTem System • Function Selects the display items of the Setup:System screen. • Example use To select GPS as display item: > :DISPlay:SETup:SYSTem:DISPmode SYSTem :DISPlay:SETup:SYSTem:DISPmode? ∇...
Page 523 11.2 Setup Screen Commands 11.2.11.2 For System: Fig. 11.2.11.2-1 Setup:System: <System> screen Setting Command :SYSTem:RDI:VC43 RDI Detection/Remove VC4-Xc/VC4/VC3 :SYSTem:RDI:STS :SYSTem:RDI:VC21 RDI Detection/Remove VC2/VC1 :SYSTem:RDI:VT Date & Time adjust (Date) :SYSTem:DATE Date & Time adjust (Time) :SYSTem:TIME 11-387...
Page 524 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SYSTem:RDI:VC43 <bit> (SONET) :SYSTem:RDI:STS <bit> ∇ Parameter <bit> = <CHARACTER PROGRAM DATA> ERDI G1(b5-7) G1(b5) • Function Sets the condition to detect of RDI in VC4-Xc/VC4/VC3 (STS3c-Xc/STS3c/STS1). • Example use To set the RDI detection condition to ERDI: >...
Page 525 11.2 Setup Screen Commands (SDH) :SYSTem:RDI:VC21 <bit> (SONET) :SYSTem:RDI:VT <bit> ∇ Parameter <bit> = <CHARACTER PROGRAM DATA> ERDI K4(b5-7)[Z7(b5-7)] V5(b8) • Function Sets the condition to detect of RDI in VC2/VC1 (VT6/VT2). • Example use To set the RDI detection condition to ERDI: >...
Page 526 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SYSTem:DATE <numeric1>,<numeric2>,<numeric3> ∇ Parameter <numeric1> = <DECIMAL NUMERIC PROGRAM DATA> 2000 to 2036 Year <numeric2> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 12 Month <numeric3> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 31 • Function Sets the date of the current day.
Page 527 11.2 Setup Screen Commands :SYSTem:TIME? ∇ Parameter None • Response <numeric1>,<numeric2>,<numeric3> = <NR1 NUMERIC RESPONSE DA- TA> Same as :SYSTem:TIME. • Function Queries the current time. • Example use > :SYSTem:TIME? < 14,20,30 11-391...
Page 528 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.12 Ethernet Setting Sub-screen 11.2.12.1 Ethernet Setting Sub-screen Common Commands Setting Command Display select :DISPlay:SETup:ETHernet:DISPmode <type> 11-392...
Page 529 11.2 Setup Screen Commands :DISPlay:SETup:ETHernet:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> GENeral General sub-screen FRAMe Frame sub-screen • Function Selects sub-screen of Ethernet setting screen • Example use To set sub-screen of Ethernet setting screen to Frame: > :DISPlay:SETup:ETHernet:DISPmode FRAMe :DISPlay:SETup:ETHernet:DISPmode? ∇...
Page 530 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.12.2 General Screen Fig. 11.2.12.2-1 Setup:Ethernet Setting:<General>Screen Setting Command Flow control receive :SOURce:TELecom:ETHernet:FCONtrol:MPControl:ENABle <mode> Maximum frame size :SENSe:TELecom:ETHernet:MFSize <numeric> Link fault signaling reply :SOURce:TELecom:ETHernet:LFS:REPLy <mode> IPG violation threshold :SENSe:TELecom:ETHernet:IPGThreshold <numeric> 11-394...
Page 531 11.2 Setup Screen Commands :SOURce:TELecom:ETHernet:FCONtrol:MPControl:ENABle <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 Disable ON or 1 Disable • Function Specifies whether or not to suppress sending when receiving Multicast Pause Frame • Example use To suppress sending when receiving Multicast Pause Frame: >...
Page 532 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:ETHernet:LFS:REPLy <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 Disable ON or 1 Enable • Function Specifies whether or not to perform Link fault signaling emulation • Example use To set Link fault signaling emulation: >...
Page 533 11.2 Setup Screen Commands :SENSe:TELecom:ETHernet:IPGThreshold <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 5 to 12 step 1 • Function Sets threshold value to evaluate IPG violation. • Example use To set threshold value to 12: > :SENSe:TELecom:ETHernet:IPGThreshold 12 :SENSe:TELecom:ETHernet:IPGThreshold? ∇...
Page 534 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.2.12.3 Frame Screen 11.2.12.3.1 Frame Screen Common Commands Setting Command Display select :DISPlay:SETup:ETHernet:DSELect <disp> Frame Data Import :SOURce:TELecom:EFRame:IMPort <pass> Frame Data Export :SOURce:TELecom:EFRame:EXPort <pass> 11-398...
Page 535 11.2 Setup Screen Commands :DISPlay:SETup:ETHernet:DSELect <disp> ∇ Parameter <disp> = <CHARACTER PROGRAM DATA> GENeral General ETHernet Ethernet DFIeld Data Field ERRor Error insertion • Function Selects Stream Setting items • Example use To select General as Stream Setting item: > :DISPlay:SETup:ETHernet:DSELect GENeral :DISPlay:SETup:ETHernet:DSELect? ∇...
Page 536 Loads Frame setting information of Ethernet setting from the specified file. • Example use To load Frame setting information of Ethernet setting from “Ether- Frame.dat” : > :SOURce:TELecom:EFRame:IMPort "C:/MP1590B/Setting/EtherFrame.dat" :SOURce:TELecom:EFRame:EXPort <pass> ∇ Parameter <pass> = <STRING PROGRAM DATA> • Function Outputs Frame setting information of Ethernet setting to the specified file.
Page 537 11.2 Setup Screen Commands 11.2.12.3.2 General Screen Fig. 11.2.12.3.2-1 General Screen Setting Command :SOURce:TELecom:EFRame:GENeral:FSIZe:TYPE <type> Frame Length Type Frame Length<Value> :SOURce:TELecom:EFRame:GENeral:FSIZe:VALue <numeric> Frame Length<From> :SOURce:TELecom:EFRame:GENeral:FSIZe:MINimum <numeric> :SOURce:TELecom:EFRame:GENeral:FSIZe:MAXimum <numeric> Frame Length<to> Background Data :SOURce:TELecom:EFRame:GENeral:FRAMe:BDATa <bdata> :SOURce:TELecom:EFRame:GENeral:VLAN:ENABle <mode> Data Link Layer VLAN :SOURce:TELecom:EFRame:GENeral:VLAN:PRID <pid>...
Page 538 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:GENeral:FSIZe:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> AUTO Auto FIXed Fixed INCRement Increment RANDom Random • Function Sets Frame Length type • Example use To set Frame Length type to Fixed: > :SOURce:TELecom:EFRame:GENeral:FSIZe:TYPE FIXed :SOURce:TELecom:EFRame:GENeral:FSIZe:TYPE? ∇...
Page 539 11.2 Setup Screen Commands :SOURce:TELecom:EFRame:GENeral:FSIZe:MINimum <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 48 to 16384 (byte) • Function Sets Frame Length or minimum value of Frame Length change • Example use To set minimum value of Frame Length change to 128 bytes: >...
Page 540 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:GENeral:FRAMe:BDATa <bdata> ∇ Parameter <bdata> = <CHARACTER PROGRAM DATA> ALL0 All0 ALL1 All1 • Function Sets value of background data. • Example use To set background data pattern to All 1s: > :SOURce:TELecom:EFRame:GENEral:FRAMe:BDATa ALL1 :SOURce:TELecom:EFRame:GENeral:FRAMe:BDATa? ∇...
Page 541 11.2 Setup Screen Commands :SOURce:TELecom:EFRame:GENeral:VLAN:PRID <pid> ∇ Parameter <pid> = <STRING PROGRAM DATA> “0000” to ”FFFF” • Function Sets VLAN Tag Protocol ID • Example use To set VLAN Tag Protocol ID to 8100 - 802.1QtagType: > :SOURce:TELecom:EFRame:GENeral:VLAN:PRID “8100” :SOURce:TELecom:EFRame:GENeral:VLAN:PRID? ∇...
Page 542 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:GENeral:VLAN:CFI <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> RESet Reset • Function Sets VLAN Tag CFI • Example use To set VLAN Tag CFI: > :SOURce:TELecom:EFRame:GENeral:VLAN:CFI SET :SOURce:TELecom:EFRame:GENeral:VLAN:CFI? ∇ Parameter None • Response <mode>...
Page 543 11.2 Setup Screen Commands :SOURce:TELecom:EFRame:GENeral:VLAN:ID:MASK <bitpt> ∇ Parameter <bitpt> = <STRING PROGRAM DATA> “111111111111” “111111110000” “000011111111” “111100000000” “000011110000” “000000001111” “000000000000” • Function Sets VLAN Tag VID mask • Example use To set VLAN Tag VID mask to 000000001111: > :SOURce:TELecom:EFRame:GENeral:VLAN:ID:MASK ”000000001111” :SOURce:TELecom:EFRame:GENeral:VLAN:ID:MASK? ∇...
Page 544 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:GENeral:VLAN:ID:MODE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> STATic Static INCRement Increment DECRement Decrement RANDom Random • Function Sets VLAN Tag type of change for each frame • Example use To set VLAN Tag VID type to increment: >...
Page 545 11.2 Setup Screen Commands 11.2.12.3.3 Ethernet Screen Fig. 11.2.12.3.3-1 Setup:Ethernet setting:< Ethernet > Screen Setting Command :SOURce:TELecom:EFRame:ETHernet:PREamble:PATTern Preamble Pattern <pattern> :SOURce:TELecom:EFRame:ETHernet:PREamble:SIZE <numeric> Preamble Size :SOURce:TELecom:EFRame:ETHernet:SFD <data> Ethernet Frame Type :SOURce:TELecom:EFRame:ETHernet:TYPE <type> Destination Address :SOURce:TELecom:EFRame:ETHernet:DA:TYPE <type> Type -Value :SOURce:TELecom:EFRame:ETHernet:DA:VALue <addr> :SOURce:TELecom:EFRame:ETHernet:DA:MASK <mask> -Mask MAC Source Address Type :SOURce:TELecom:EFRame:ETHernet:SA:TYPE <type>...
Page 546 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:ETHernet:PREamble:PATTern <pattern> ∇ Parameter <pattern> = <STRING PROGRAM DATA> 4 to 255 byte HEX data However, the front byte is fixed to 55 hex and the end byte is the setting value of SFD, and then the specified value using this command is ignored. •...
Page 547 11.2 Setup Screen Commands :SOURce:TELecom:EFRame:ETHernet:SFD <data> ∇ Parameter <data> = <STRING PROGRAM DATA> (HEX 1 byte Data) • Function Sets Ethernet SFD • Example use To set SFD to E5: > :SOURce:TELecom:EFRame:ETHernet:SFD “E5” :SOURce:TELecom:EFRame:ETHernet:SFD? ∇ Parameter None • Response <data> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:EFRame:ETHernet:SFD.
Page 548 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:ETHernet:TYPE <type> ∇ Parameter <type> = <STRING PROGRAM DATA> “0000” to “FFFF” (HEX 16 bit Data) *The meanings of the values are as follows: 0800 - Internet IP 0806 – ARP 8100 - 802.1QTagType 8137 - Novell, Inc.
Page 549 11.2 Setup Screen Commands :SOURce:TELecom:EFRame:ETHernet:DA:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> STATic Static INCRement Increment DECRement Decrement RANDom Random • Function Sets MAC Destination Address type • Example use To set MAC Destination Address type to Static: > :SOURce:TELecom:EFRame:ETHernet:DA:TYPE STATic :SOURce:TELecom:EFRame:ETHernet:DA:TYPE? ∇...
Page 550 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:ETHernet:DA:MASK <mask> ∇ Parameter <mask> = <STRING PROGRAM DATA> “000000000000” to “FFFFFFFFFFFF” (HEX 6 byte Data) *The pattern is a combination of 0s and Fs. However, use contiguous Fs at one location only. (See below.) •...
Page 551 11.2 Setup Screen Commands :SOURce:TELecom:EFRame:ETHernet:SA:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> STATic Static INCRement Increment DECRement Decrement RANDom Random • Function Sets MAC Source Address type • Example use To set MAC Source Address type to Static: > :SOURce:TELecom:EFRame:ETHernet:SA:TYPE STATic :SOURce:TELecom:EFRame:ETHernet:SA:TYPE? ∇...
Page 552 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:ETHernet:SA:MASK <mask> ∇ Parameter <mask> = <STRING PROGRAM DATA> “000000000000” to “FFFFFFFFFFFF” (HEX 6 byte Data) *The pattern is a combination of 0s and Fs. However, use contiguous Fs at one location only. (Same as :SOURce:TELecom:EFRame:ETHernet:DA:MASK) •...
Page 553 11.2 Setup Screen Commands 11.2.12.3.4 Data fields Screen Fig. 11.2.12.3.4-1 Data fields Screen Setting Command :SOURce:TELecom:EFRame:DFIeld1:ENABle <mode> Data Field :SOURce:TELecom:EFRame:DFIeld1:TYPE <type> Pattern Offset :SOURce:TELecom:EFRame:DFIeld1:OFFSet <numeric> Length :SOURce:TELecom:EFRame:DFIeld1:LENGth <numeric> :SOURce:TELecom:EFRame:DFIeld1:WORD:PATTern <pattern> Word16 Pattern :SOURce:TELecom:EFRame:DFIeld1:PROGram:PATTern <pattern> Programmable Pattern Programmable Header :SOURce:TELecom:EFRame:HEADer:PROGram:LENGth <length> Length Programmable Header :SOURce:TELecom:EFRame:HEADer:PROGram:PATTern <pattern>...
Page 554 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:DFIeld1:ENABle <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 Disable ON or 1 Enable • Function Sets whether or not to append Data Field • Example use To append Data Field: >...
Page 555 11.2 Setup Screen Commands :SOURce:TELecom:EFRame:DFIeld1:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> ALL0 All 0 ALL1 All 1 WORD16 WORD16 INCByte Increment by byte (00 01 02 03 ...) DECByte Decrement by byte (FF FE FD FC ...) PROGram Programmable TESTframe Test Frame...
Page 556 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:DFIeld1:OFFSet <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 16365 Step value:1 (Offset position) • Function Sets Data Field Offset position • Example use To set Offset position to 128: > :SOURce:TELecom:EFRame:DFIeld1:OFFSet 128 :SOURce:TELecom:EFRame:DFIeld1:OFFSet? ∇...
Page 557 11.2 Setup Screen Commands :SOURce:TELecom:EFRame:DFIeld1:WORD:PATTern <pattern> ∇ Parameter <pattern> = <STRING PROGRAM DATA> “0000” to “FFFF” (HEX 16 bit Data) • Function Sets pattern when Data Field is Word16 • Example use To set Data Field Word16 Pattern to 416E: >...
Page 558 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:HEADer:PROGram:LENGth <length> ∇ Parameter <length> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 1500 Step value:1 • Function Sets Programmable Header Length. • Example use To set Programmable Header Length to 5: > :SOURce:TELecom:EFRame:HEADer:PROGram:LENGth 5 :SOURce:TELecom:EFRame:HEADer:PROGram:LENGth? ∇...
Page 559 11.2 Setup Screen Commands 11.2.12.3.5 Error insertion Screen Fig. 11.2.12.3.5-1 Error insertion Screen Setting Command :SOURce:TELecom:EFRame:ERRor:ETHernet:TYPE <type> Ethernet 11-423...
Page 560 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:EFRame:ERRor:ETHernet:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> NONE None FCS Error USIZe Undersize OSIZe Oversize FRAGments Fragments OFCS Oversize & FCS Error • Function Sets error appended to data link layer • Example use To set appended error to FCS Error: >...
Page 561 11.2 Setup Screen Commands 11.2.13 PCS setting Sub-screen 11.2.13.1 PCS setting Sub-screen Common Commands Setting Command :DISPlay:SETup:PCSSetting:DISPmode <type> Display mode 11-425...
Page 562 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:SETup:PCSSetting:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> P66B 66B programmable SEED Seed • Function Selects sub-screen of PCS setting screen • Example use To set sub-screen of PCS setting screen to Seed: >...
Page 563 11.2 Setup Screen Commands 11.2.13.2 66B programmable Screen Fig. 11.2.13.2-1 66B programmable Screen Setting Command :SOURce:TELecom:PCSSetting:RDEFault Recall-Default :SOURce:TELecom:PCSSetting:CAPTured -Captured data <source1>,<source2>,<destno> :SOURce:TELecom:PCSSetting:COPY -Copy & Paste <source>,<destno1>,<destno2> :SOURce:TELecom:PCSSetting:HEADer <number>,<value> Sync header value Invalid sync header error :SOURce:TELecom:PCSSetting:ERRor <number>,<mode> insertion Block type user value :SOURce:TELecom:PCSSetting:BLOCk <number>,<value>[,<user>] Pattern :SOURce:TELecom:PCSSetting:PATTern <number>,<pattern>...
Page 564 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:PCSSetting:RDEFault ∇ Parameter None • Function Initializes send Frame data • Example use > :SOURce:TELecom:PCSSetting:RDEFault :SOURce:TELecom:PCSSetting:CAPTured <source1>,<source2>, <destno> ∇ Parameter <source1> = <DECIMAL NUMERIC PROGRAM DATA> 1 to Capture count Step value:1 Copy source start No. <source2>...
Page 565 11.2 Setup Screen Commands :SOURce:TELecom:PCSSetting:HEADer <number>,<value> ∇ Parameter <number> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value:1 (Data No.) <value> = <CHARACTER PROGRAM DATA> DATA Data CONTrol Control • Function Sets PCS 66B programmable data sync header • Example use To set 5th data sync header value to Control: >...
Page 566 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:PCSSetting:ERRor <number>,<mode> ∇ Parameter <number> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value:1 (Data No.) <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 No error insertion ON or 1 Error insertion • Function Sets PCS 66B programmable data error insertion •...
Page 567 11.2 Setup Screen Commands :SOURce:TELecom:PCSSetting:BLOCk <number>,<value> ∇ Parameter <number> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value:1 <value> = <STRING PROGRAM DATA> “00” to “FF” HEX 8 bit Data • Function Sets PCS 66B programmable data Block type •...
Page 568 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:PCSSetting:PATTern <number>,<pattern> ∇ Parameter <number> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Step value:1 <pattern> = <STRING PROGRAM DATA> “00” to “FF” × 7 or 8 * The valid data range and number of parameters for <pattern> vary ac- cording to the setting for Sync header (when Sync head is Control) and Block type.
Page 569 11.2 Setup Screen Commands 11.2.13.3 Seed Screen Fig. 11.2.13.3-1 Seed Screen Setting Command Default :SOURce:TELecom:PCSSetting:SDEFault :SOURce:TELecom:PCSSetting:SEED <type>,<pattern> Seed A Pattern Seed B Pattern 11-433...
Page 570 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:PCSSetting:SDEFault ∇ Parameter None • Function Initializes PCS test Scrambler Pattern • Example use To initialize PCS test Scramble Pattern: > :SOURce:TELecom:PCSSetting:SDEFault :SOURce:TELecom:PCSSetting:SEED <type>,<pattern> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> Seed A Seed B <pattern>...
Page 571: Test Menu Screen Commands
11.3 Test menu Screen Commands 11.3 Test menu Screen Commands 11.3.1 Test menu Common Commands 11.3.1.1 Test menu sub-screen setting Screen change Fig. 11.3.1.1-1 Test menu sub-screen change Setting Command Test menu :DISPlay:TMENu[:NAME] 11-435...
Page 572 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:TMENu[:NAME] <tdisplay> ∇ Parameter <tdisplay> = <STRING PROGRAM DATA> "MANual” Manual screen "OHTest" OH test screen "APSTest" APS test screen "DELay" Delay screen "JTOLerance" Jitter tolerance screen "JTRansfer" Jitter transfer screen "PCSTest" PCS test screen "BERTest"...
Page 573 11.3 Test menu Screen Commands 11.3.1.2 Error/Alarm setting Fig. 11.3.1.2-1 Example for Error/Alarm setting screen 11-437...
Page 574 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Alarm setting> • Common setting Setting Command Alarm –type :SOURce:TELecom:ALARm:TYPE Alarm –timing :SOURce:TELecom:ALARm:TIMing:TYPE • When Alarm type is Burst: Setting Command Alarm -Burst pattern :SOURce:TELecom:ALARm:TIMing:BURSt • When Alarm type is Alternate: Setting Command Alarm -Alarm :SOURce:TELecom:ALARm:TIMing:ALARm -Normal...
Page 575 11.3 Test menu Screen Commands • When Error items are B1, B2, B3, BIP-2, BIP-8: Setting Command Bit position -B1 :SOURce:TELecom:ERRor:BITPosition:B1 Bit position -B2 :SOURce:TELecom:ERRor:BITPosition:B2 Bit position -B3 :SOURce:TELecom:ERRor:BITPosition:B3 Bit position -BIP-2 :SOURce:TELecom:ERRor:BITPosition:BIP2 Bit position -BIP-8 :SOURce:TELecom:ERRor:BITPosition:BIP8 -All 0 :SOURce:TELecom:ERRor:BITPosition:ALL0 -All 1 :SOURce:TELecom:ERRor:BITPosition:ALL1 •...
Page 576 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:ALARm:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (OTN) OLOF LOF (OTN) OLOM LOM (OTN) SBDI SM-BDI PBDI PM-BDI OTUAIS OTU-AIS ODUAIS ODU-AIS ODUOCI ODU-OCI ODULCK ODU-LCK SIAE SM-IAE CAIS Client-AIS STIM SM-TIM PTIM PM-TIM SBIAE...
Page 577 11.3 Test menu Screen Commands AISL (SONET) AIS-L MRDI (SDH) MS-RDI RDIL (SONET) RDI-L AAIS (SDH) AU-AIS AISP (SONET) AIS-P ALOP (SDH) AU-LOP LOPP (SONET) LOP-P HSLM (SDH) HP-SLM PLMP (SONET) PLM-P HRDI (SDH) HP-RDI RDIP (SONET) RDI-P HERDIP (SDH) HP-ERDIP ERDIPP (SONET)
Page 578 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands LTTIM LP-TC-TIM LLTC LP-LTC (PDH/DSn) LOF139 LOF 139M LOF45 LOF 45M LOF34 LOF 34M LOF8 LOF 8M LOF2 LOF 2M LOF1_5 LOF 1.5M AIS139 AIS 139M AIS45 AIS 45M AIS34 AIS 34M AIS8 AIS 8M AIS2 AIS 2M AIS1_5...
Page 579 11.3 Test menu Screen Commands :SOURce:TELecom:ALARm:TIMing:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> SINGle Single BURSt Burst ALTernate Alternative • Function Sets the alarm insertion timing value and the unit. • Example use To set alarm insertion timing to Burst: >...
Page 580 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:ALARm:TIMing:BURSt <burst>,<unit> ∇ Parameter <burst> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64000 Step value: 1 When <unit> is frame. 1 to 192000000 Step value: 1 When <unit> is µs. 10 to 10000 Step value: 10 When <unit>...
Page 581 11.3 Test menu Screen Commands :SOURce:TELecom:ALARm:TIMing:ALARm <alarm>[,<unit>] ∇ Parameter <alarm> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 64000 Step value: 1 When <unit> is frame. 0 to 192000000 Step value: 1 When <unit> is µs. 10 to 10000 Step value: 10 When <unit>...
Page 582 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:ALARm:TIMing:NORMal <normal>[,<unit>] ∇ Parameter <normal> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64000 Step value: 1 When <unit> is frame. 1 to 192000000 Step value: 1 When <unit> is µs. 10 to 10000 Step value: 10 When <unit>is ms.
Page 583 11.3 Test menu Screen Commands :SOURce:TELecom:ERRor:TYPE <etype> ∇ Parameter <etype> = <CHARACTER PROGRAM DATA> BITO OH Bit (OTN) OFAS FAS (OTN) SMBIP8 SM BIP-8 PMBIP8 PM BIP-8 SMBEI SM BEI PMBEI PM BEI T1BIP8 TCM1 BIP-8 T2BIP8 TCM2 BIP-8 T3BIP8 TCM3 BIP-8 T4BIP8 TCM4 BIP-8...
Page 584 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands BIT1_5 Bit 1.5M PBINF Bit Info. (PDH/DSn) CODE Code EBIT E-Bit FAS139 FAS 139M FAS45 FAS 45M FAS34 FAS 34M FAS8 FAS 8M FAS2 FAS 2M FAS1_5 FAS 1.5M REI45 REI 45M PARity Parity CRC6 CRC-6 CBIT...
Page 585 11.3 Test menu Screen Commands :SOURce:TELecom:ERRor:TYPE? ∇ Parameter None • Response <etype> = <CHARACTER RESPONSE DATA> Same as :SOURce:TELecom:ERRor:TYPE except the following parameter. Parity • Function Queries the type of error inserted against send signals. • Example use > :SOURce:TELecom:ERRor:TYPE? <...
Page 586 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:ERRor:TIMing:TYPE? :SOURce:TELecom:ERRor:ERATe? ∇ Parameter None • Response <timing> = <CHARACTER RESPONSE DATA> Same as :SOURce:TELecom:ERRor:TIMing:TYPE except the following pa- rameter. BURS Burst PROG User Program Alternative • Function Queries the setting for error addition timing. •...
Page 587 11.3 Test menu Screen Commands :SOURce:TELecom:ERRor:TIMing:BURSt:SETTing <burst>,<unit> :SOURce:TELecom:ERRor:TIMing:BURSt:BIT <burst>[,<unit>] ∇ Parameter <burst> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 64000 Step value: 1 When <unit> is frame. 0 to 32000000 Step value: 1 When <unit> is µs. <unit> = <CHARACTER PROGRAM DATA> FRAMe frame µs...
Page 588 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:ERRor:TIMing:ERRor <error>[,<unit>] ∇ Parameter <error> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 64000 Step value: 1 When <unit> is frame. 0 to 32000000 Step value: 1 When <unit> is µs. <unit> = <CHARACTER PROGRAM DATA> FRAMe frame µs...
Page 589 11.3 Test menu Screen Commands :SOURce:TELecom:ERRor:TIMing:NORMal <normal>[,<unit>] ∇ Parameter <normal> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64000 Step value: 1 When <unit> is frame. 1 to 32000000 Step value: 1 When <unit> is µs. <unit> = <CHARACTER PROGRAM DATA> FRAMe frame µs...
Page 590 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:ERRor:TIMing:PROGrate <error> ∇ Parameter <error> = <STRING PROGRAM DATA> “0.1E-10” to “1.9E-1” Mantissa portion 0.1 to 1.9 Step value: 0.1 Exponent portion –10 to –1 Step value: 1 * Both “1.0E-2” and “1E-2” are acceptable. •...
Page 591 11.3 Test menu Screen Commands :SOURce:TELecom:ERRor:BITPosition:B2 <ch>,<pattern> ∇ Parameter <ch> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 <pattern> = <STRING PROGRAM DATA> "00000000" to "11111111" (52M) "000000000000000000000000" to "111111111111111111111111" (Other than 52M) • Function Sets the B2 error addition bit pattern. •...
Page 592 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:ERRor:BITPosition:BIP2 <pattern> ∇ Parameter <pattern> = <STRING PROGRAM DATA> "00" to "11" (binary setting) • Function Sets the BIP-2 error addition bit pattern. • Example use To set the BIP-2 error addition bit pattern to "01”: >...
Page 593 11.3 Test menu Screen Commands :SOURce:TELecom:ERRor:BITPosition:ALL0 ∇ Parameter None • Function Sets the error addition bit pattern to All 0: • Example use > :SOURce:TELecom:ERRor:BITPosition:ALL0 :SOURce:TELecom:ERRor:BITPosition:ALL1 ∇ Parameter None • Function Sets the error addition bit pattern to All 1: •...
Page 594 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:ERRor:BLENgth <len> ∇ Parameter <len> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 • Function Sets the burst error insert bit length for FEC evaluation. • Example use To set the burst error insert bit length to 8: >...
Page 595 11.3 Test menu Screen Commands 11.3.1.3 Offset setting Fig. 11.3.1.3-1 Example of Offset setting screen Setting Command Payload offset -type :SOURce:TELecom:PLOFfset:TYPE Payload offset -value :SOURce:TELecom:PLOFfset:VALue :SOURce:TELecom:POFFset 11-459...
Page 596 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:PLOFfset:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> SONetsdh SONET/SDH PDHDsn PDH/DSn • Function Sets the Payload offset type. • Example use To set the Payload offset type to SDH: > :SOURce:TELecom:PLOFfset:TYPE SONetsdh :SOURce:TELecom:PLOFfset:TYPE? ∇...
Page 597 11.3 Test menu Screen Commands 11.3.1.4 Mode setting Fig. 11.3.1.4-1 Example for Mode setting screen Setting Command Graph resolution :SENSe:MEASure:GRESolution Mode (1) :SENSe:MEASure:TYPE Mode (2) (3) :SENSe:MEASure:PERiod 11-461...
Page 598 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:GRESolution <gres> ∇ Parameter <gres> = <CHARACTER PROGRAM DATA> SEC1 1 sec MIN1 1 min MIN15 15 min MIN60 60 min • Function Sets the time base resolution for analysis graph. • Example use To set the time base resolution for analysis graph to 1 minute: >...
Page 599 11.3 Test menu Screen Commands :SENSe:MEASure:PERiod <numeric>,<suffix> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 99 Step value: 1 <suffix> = <CHARACTER PROGRAM DATA> hour minute second • Function Sets the measurement period setting. • Example use To set the measurement period to 1 hour: >...
Page 600 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.2 Manual screen 11.3.2.1 Common commands Setting Command Display select :DISPlay:TMENu:MANual:DISPmode 11-464...
Page 601 11.3 Test menu Screen Commands :DISPlay:TMENu:MANual:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> EALArm Error/Alarm sub-screen PTR, K1/K2 sub-screen OFFSet Offset sub-screen JWANder Jitter/Wander sub-screen STReam Stream Control screen MODE Mode sub-screen • Function Selects a sub-screen of the Manual screen. •...
Page 602 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.2.2 Error/Alarm screen Fig. 11.3.2.2-1 Test menu:Manual: <Error/Alarm> screen * Refer to “Common test menu screen commands - Error/Alarm setting”. 11-466...
Page 603 11.3 Test menu Screen Commands 11.3.2.3 PTR, K1/K2 screen Fig. 11.3.2.3-1 Test menu:Manual: <PTR,K1/K2> screen (For SDH) 11-467...
Page 604 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Setting Command OTN justification +JC :SOURce:TELecom:OSETting:PJC –JC :SOURce:TELecom:OSETting:NJC OTN justification Single/Burst :SOURce:TELecom:OSETting:TIMing OTN justification Count for Burst :SOURce:TELecom:OSETting:BURSt K1 Bit1-4 (mnemonic type) :SOURce:TELecom:MSPMessages:REQuest K1 Bit1-4 (binary type) :SOURce:TELecom:MSPBits:REQuest K1 Bit5-8 (mnemonic type) :SOURce:TELecom:MSPMessages:CHANnel K1 Bit5-8 (binary type) :SOURce:TELecom:MSPBits:CHANnel K2 Bit1-4 (mnemonic type) :SOURce:TELecom:MSPMessages:BRIDge...
Page 605 11.3 Test menu Screen Commands :SOURce:TELecom:OSETting:PJC ∇ Parameter None • Function Inserts +JC against send signals. • Example use To insert +JC against OTN send signals: > :SOURce:TELecom:OSETting:PJC :SOURce:TELecom:OSETting:NJC ∇ Parameter None • Function Inserts -JC against send signals. • Example use To insert -JC against OTN send signals: >...
Page 606 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:OSETting:BURSt <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 • Function Sets the number of alarm addition at OTN justification Burst. • Example use To set the number of alarm addition at OTN justification Burst to 3: >...
Page 607 11.3 Test menu Screen Commands :SOURce:TELecom:MSPMessages:REQuest <request> ∇ Parameter <request> = <CHARACTER PROGRAM DATA> (Linear) NREQ No request (0000) Do not revert (0001) RREQ Reverse request (0010) UUS3 Unused (0011) EXER Exercise (0100) UUS5 Unused (0101) Wait to restore (0110) UUS7 Unused (0111)
Page 608 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MSPMessages:REQuest? ∇ Parameter None • Response <request> = <CHARACTER RESPONSE DATA> Same as :SOURce:TELecom:MSPMessages:REQuest. * Response mnemonic differs depending on Protection protocol Linear, Ring. • Function Queries K1 (1 to 4 bits). (Mnemonic type) •...
Page 609 11.3 Test menu Screen Commands :SOURce:TELecom:MSPMessages:CHANnel <mspch> ∇ Parameter <mspch> = <CHARACTER PROGRAM DATA> (Linear) Null channel (0000) Working channel1 (0001) Working channel2 (0010) Working channel3 (0011) Working channel4 (0100) Working channel5 (0101) Working channel6 (0110) Working channel7 (0111) Working channel8 (1000) Working channel9 (1001)
Page 610 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MSPBits:CHANnel <string> ∇ Parameter <string> = <STRING PROGRAM DATA> "0000" to "1111" • Function Sets K1 (5 to 8 bits) byte. (Binary type) • Example use To set the 5 to 8 bits of K1 to "1110": >...
Page 611 11.3 Test menu Screen Commands :SOURce:TELecom:MSPMessages:BRIDge <bridge> ∇ Parameter <bridge> = <CHARCTER PROGRAM DATA> (Linear) Null channel (0000) Working channel1 (0001) Working channel2 (0010) Working channel3 (0011) Working channel4 (0100) Working channel5 (0101) Working channel6 (0110) Working channel7 (0111) Working channel8 (1000) Working channel9 (1001)
Page 612 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MSPBits:BRIDge <string> ∇ Parameter <string> = <STRING PROGRAM DATA> "0000" to "1111" • Function Sets K2 (1 to 4 bits). (Binary type) • Example use To set the 1 to 4 bits of K2 to "1110": >...
Page 613 11.3 Test menu Screen Commands :SOURce:TELecom:MSPBits:ARCHitect <string> ∇ Parameter <string> = <STRING PROGRAM DATA> "0" "1" • Function Sets K2 (5 bit). (Binary type) • Example use To set the 5 bit of K2 to "1": > :SOURce:TELecom:MSPBits:ARCHitect "1" :SOURce:TELecom:MSPBits:ARCHitect? ∇...
Page 614 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MSPMessages:REServed <res> ∇ Parameter <res> = <CHARACTER PROGRAM DATA> (Linear) REServed000 REServed001 REServed010 REServed011 REServed100 REServed101 MRDI (SDH) RDIL (SONET) MAIS (SDH) AISL (SONET) (Ring) IDLE BR&SW EXTRa REServed100 REServed101 MRDI (SDH) RDIL (SONET) MAIS (SDH) AISL...
Page 615 11.3 Test menu Screen Commands :SOURce:TELecom:MSPMessages:REServed? ∇ Parameter None • Response <res> = <CHARACTER RESPONSE DATA> (Linear) RES000 RES001 RES010 RES011 RES100 RES101 MRDI (SDH) RDIL (SONET) MAIS (SDH) AISL (SONET) (Ring) IDLE BR&SW EXTR RES100 RES101 MRDI (SDH) RDIL (SONET) MAIS (SDH)
Page 616 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:MSPBits:REServed? ∇ Parameter None • Response <string> = <STRING RESPONSE DATA> Same as :SOURce:TELecom:MSPBits:REServed. • Function Queries the setting for K2 (6 to 8 bits). (Binary type) • Example use > :SOURce:TELecom:MSPBits:REServed? < "101" :SOURce:TELecom:PSETting:NDFSet <ptype>,<string>...
Page 617 11.3 Test menu Screen Commands :SOURce:TELecom:PSETting:SSSet <ptype>,<string> ∇ Parameter <ptype> = <CHARACTER PROGRAM DATA> AU-PTR / STS-PTR TU-PTR / VT-PTR <string> = <STRING PROGRAM DATA> "00" "01""10""11" • Function Sets the pointer value (SS). • Example use To set AU PTR SS to "10": >...
Page 618 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:PSETting:IDSet <ptype>,<numeric> ∇ Parameter <ptype> = <CHARACTER PROGRAM DATA> AU-PTR / STS-PTR TU-PTR / VT-PTR <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 1023 Step value: 1 • Function Sets the pointer value (ID). •...
Page 619 11.3 Test menu Screen Commands :SOURce:TELecom:PSETting:TIMing <ptype>,<type> ∇ Parameter <ptype> = <CHARACTER PROGRAM DATA> AU-PTR / STS-PTR TU-PTR / VT-PTR <type> = <CHARACTER PROGRAM DATA> SINGle Single BURSt Burst • Function Sets additional timing of pointer Justification. • Example use To set additional timing of AU pointer Justification to Burst: >...
Page 620 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:PSETting:BURSt <ptype>,<numeric> ∇ Parameter <ptype> = <CHARACTER PROGRAM DATA> AU-PTR / STS-PTR TU-P R / VT-PTR <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 • Function Sets number of additions of pointer Justification for Burst. •...
Page 621 11.3 Test menu Screen Commands :SOURce:TELecom:PSETting:AUTO:STATe? ∇ Parameter None • Response < boolean > = < NR1 NUMERIC RESPONSE DATA> Stopped Operating • Function Queries the automatic pointer justification operation state. • Example use To query the automatic pointer justification operation state: >...
Page 622 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:PSETting:AUTO:TYPE <ptype> ∇ Parameter <ptype> = <CHARACTER PROGRAM DATA> ALTernate Alternative Inc. Dec. • Function Sets the type of the automatic pointer justification operation. • Example use To set the type of the automatic pointer justification operation to Alternate: >...
Page 623 11.3 Test menu Screen Commands :SOURce:TELecom:PSETting:AUTO:TIMing <num> ∇ Parameter <num> = <DECIMAL NUMERIC PROGRAM DATA> 4 to 8000 Step value: 1 • Function Sets the justification generation interval for the automatic pointer justifica- tion operation. • Example use To set the justification generation interval for the automatic pointer justifi- cation operation to 100: >...
Page 624 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.2.4 Offset screen Fig. 11.3.2.4-1 Test menu:Manual: <Offset> screen Setting Command Offset Range :SOURce:TELecom:FOFFset:ORANge :SOURce:TELecom:JWANder:ORANge Frequency offset :SOURce:TELecom:FOFFset:PPM :SOURce:TELecom:OFFSet * See “Test menu screen common commands – Offset setting” for the Payload offset item. 11-488...
Page 625 11.3 Test menu Screen Commands :SOURce:TELecom:FOFFset:ORANge <numeric> :SOURce:TELecom:JWANder:ORANge <numeric> ∇ Parameter <numeric> = <CHARCTER PROGRAM DATA> ±100999 ±999 • Function Sets frequency offset range. • Example use To set frequency offset range to 999: > :SOURce:TELecom:FOFFset:ORANge 999 > :SOURce:TELecom:JWANder:ORANge 999 :SOURce:TELecom:FOFFset:ORANge? :SOURce:TELecom:JWANder:ORANge? ∇...
Page 626 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:FOFFset:PPM <numeric> :SOURce:TELecom:OFFSet <numeric> ∇ Parameter <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> -999.9 to 999.9 Step value: 0.1 • Function Sets frequency offset. • Example use To set frequency offset to -999.9: > :SOURce:TELecom:FOFFset:PPM -999.9 >...
Page 627 11.3 Test menu Screen Commands 11.3.2.5 Jitter/Wander screen Fig. 11.3.2.5-1 Test menu:Manual: <Jitter/Wander> screen 11-491...
Page 628 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands • Common Jitter/Wander item Setting Command Tx-Mod. select :SOURce:TELecom:JWANder:MSELect Rx-Meas. select :SENSe:MEASure:JWANder:MSELect -Range :SENSe:JITTer:MANual:RANGe -Filter :SENSe:JITTer:MANual:FILTer -Hit threshold :SENSe:JITTer:MANual:THReshold -RMS Correction Button :SENSe:JITTer:MANual:RMSCorrection:SET -RMS Correction Value :SENSe:JITTer:MANual:RMSCorrection:VALue -Peak Correction Button :SENSe:JITTer:MANual:PKCorrection:SET -Peak Correction Value :SENSe:JITTer:MANual:PKCorrection:VALue -Meas.
Page 629 11.3 Test menu Screen Commands :SOURce:TELecom:JWANder:MSELect <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> Without generation. JITTer Jitter is generated. WANDer Wander is generated. • Function Sets whether jitter or wander is generated. • Example use To set jitter generation: >...
Page 630 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:MANual:RANGe <numeric> ∇ Parameter <numeric> = <CHARACTER PROGRAM DATA> 4000 4000 UI range 1000 1000 UI range 250 UI range 80 UI range 20 UI range 2 UI range • Function Sets the Jitter measurement range. •...
Page 631 11.3 Test menu Screen Commands :SENSe:JITTer:MANual:FILTer <filter> ∇ Parameter <filter> = <CHARACTER PROGRAM DATA> LP filter LP filter' LPHP LP filter + HP filter LPHPD LP filter + HP filter' LPHP0 LP filter + HP filter 0 LPHP1 LP filter + HP filter 1 LPHP1D LP filter + HP filter 1' LPHP2...
Page 632 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:MANual:THReshold <numeric> ∇ Parameter <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> 0.05 to 1.00 Step value: 0.01 (2 UI range) 0.5 to 10.0 Step value: 0.1 (20 UI range) * Digits lower than resolution are cut off. •...
Page 633 11.3 Test menu Screen Commands :SENSe:JITTer:MANual:RMSCorrection:VALue <numeric> ∇ Parameter <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> 0.000 to 0.714 Step value: 0.001 (For 2 UI) 0.000 to 7.140 Step value: 0.01 (For 20 UI) • Function Sets RMS value calibration data. •...
Page 634 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:MANual:PKCorrection:VALue <numeric> ∇ Parameter <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> 0.000 to 2.020 Step value: 0.001 (For 2 UI) 0.000 to 20.20 Step value: 0.01 (For 20 UI) • Function Sets Peak value calibration data. •...
Page 635 11.3 Test menu Screen Commands :SENSe:JITTer:MANual:INTerval <numeric> ∇ Parameter <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> 0.5 to 99.5 Step value: 0.5 * The digits lower than the resolution are cut off. • Function Sets measurement interval when Jitter/Wander measurement mode is set to OFF.
Page 636 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:JITTer:MANual:RANGe <numeric> ∇ Parameter <numeric> = <CHARACTER PROGRAM DATA> 4000 4000 UI range 1000 1000 UI range 250 UI range 80 UI range 20 UI range 8 UI range 2 UI range 0.5 UI range •...
Page 637 11.3 Test menu Screen Commands :SOURce:JITTer:MANual:AMPLitude:UIPP <numeric> ∇ Parameter <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> 0.000 to 4040.000 Step value: 0.001 * The digits lower than the resolution are cut off. • Function Sets the jitter amplitude value for jitter generation. Setting type of the jitter amplitude value is automatically set to AUTO when this command is used.
Page 638 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:WANDer:MANual:FREQuency <numeric>,<suffix> ∇ Parameter <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> 0.1 to 999.0 Step value: 0.01/0.1/1 * Step value differs depending on set value. <suffix> = <CHARACTER PROGRAM DATA> MLHZ µHz • Function Sets the wander frequency for wander generation. •...
Page 639 11.3 Test menu Screen Commands :SOURce:WANDer:MANual:AMPLitude:UIPP <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 400000 Step value: 1 • Function Sets the wander amplitude value for wander generation. Setting type of wander amplitude value is automatically set to AUTO when this command is used.
Page 640 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.2.6 Mode screen Fig. 11.3.2.6-1 Test menu:Manual: <Mode> screen Setting Command PRG start (1) :SENSe:MEASure:BTIMe:SET PRG start (2) :SENSe:MEASure:BTIMe:STARt * See “Common test menu screen commands – Mode setting” for commands other than above. 11-504...
Page 641 11.3 Test menu Screen Commands :SENSe:MEASure:BTIMe:SET <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Measurement starting time setting function OFF ON or 1 Measurement starting time setting function ON • Function Sets ON/OFF of the measurement starting time setting function. •...
Page 642 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:BTIMe:STARt <year>,<month>,<day>,<hour>,<minute>,<second> ∇ Parameter <year> = <DECIMAL NUMERIC PROGRAM DATA> 2000 to 2037 <month> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 12 <day> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 31 <hour> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 23 <minute>= <DECIMAL NUMERIC PROGRAM DATA>...
Page 643 11.3 Test menu Screen Commands 11.3.2.7 Stream control screen Stream control Fig. 11.3.2.7-1 Test menu:Manual:< > screen Setting Command Transmit :SOURce:TELecom:STReam:STARt Transmit :SOURce:TELecom:STReam:STOP Transmit :SOURce:TELecom:STReam:STATe? Repeat :SOURce:TELecom:STReam:REPeat <mode> Burst :SOURce:TELecom:STReam:FPBurst <numeric> Gap Insertion Type :SOURce:TELecom:STReam:GAP:IFG:TYPE <type> Gap Insertion Value(Fixed) :SOURce:TELecom:STReam:GAP:IFG:VALue <val> Gap Insertion Value(Min) :SOURce:TELecom:STReam:GAP:IFG:MINimun <val>...
Page 644 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:STReam:STARt ∇ Parameter None • Function Starts Stream sent. • Example use > :SOURce:TELecom:STReam:STARt :SOURce:TELecom:STReam:STOP ∇ Parameter None • Function Stops Stream sent. • Example use > :SOURce:TELecom:STReam:STOP :SOURce:TELecom:STReam:STATe? ∇ Parameter None • Response <boolean>...
Page 645 11.3 Test menu Screen Commands :SOURce:TELecom:STReam:REPeat <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 ON or 1 • Function Sets whether to send continuous Stream. • Example use To set continuous sending of Stream. > :SOURce:TELecom:STReam:REPeat ON :SOURce:TELecom:STReam:REPeat? ∇...
Page 646 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:STReam:GAP:IFG:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> FIXed Fixed RANDom Random • Function Sets Frame Gap type. • Example use To set Frame Gap type to RandomFrame: > :SOURce:TELecom:STReam:GAP:IFG:TYPE RANDom :SOURce:TELecom:STReam:GAP:IFG:TYPE? ∇ Parameter None •...
Page 647 11.3 Test menu Screen Commands :SOURce:TELecom:STReam:GAP:IFG:VALue <val> ∇ Parameter <val> = <DECIMAL NUMERIC PROGRAM DATA> 9 to 150000893952 Byte *Step value differs depending on set value. The values to be set may be rounded. • Function Sets Frame Gap Value (fixed). •...
Page 648 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:TELecom:STReam:GAP:IFG:MINimum <val> ∇ Parameter <val> = <DECIMAL NUMERIC PROGRAM DATA> 9 to 150000893952 Byte *Step values vary according to set values. The values to be set may be rounded. • Function Sets Minimum value for Frame Gap (Random). •...
Page 649 11.3 Test menu Screen Commands :SOURce:TELecom:STReam:GAP:IFG:MAXimum <val> ∇ Parameter <val> = <DECIMAL NUMERIC PROGRAM DATA> 9 to 150000893952 Byte *Step values vary according to set values. The values to be set may be rounded. • Function Sets Maximum value for Frame Gap (Random). •...
Page 650 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.3 Delay Sub-screen Fig. 11.3.3-1 Test menu:Delay: <Delay> screen Setting Command Measurement period :SENSe:MEASure:DELay:PERiod Mode :SENSe:DELay:MEASure:TYPE 11-514...
Page 651 11.3 Test menu Screen Commands :SENSe:MEASure:DELay:PERiod <period> ∇ Parameter <period> = <CHARACTER PROGRAM DATA> MS500 0.5 s SEC1 SEC2 SEC5 SEC10 10 s • Function Sets the measurement period for delay measurement. • Example use To set the measurement period of delay measurement to 1 sec: >...
Page 652 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.4 OH test Sub-screen 11.3.4.1 OH test sub-screen common commands Setting Command Display select :DISPlay:TMENu:OHTest:DISPmode 11-516...
Page 653 11.3 Test menu Screen Commands :DISPlay:TMENu:OHTest:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> OHTest OH test sub-screen MODE Mode sub-screen • Function Selects a sub-screen of the OH test screen. • Example use To select Mode sub-screen of the OH test screen: >...
Page 654 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.4.2 OH test Fig. 11.3.4.2-1 Test menu:OH test: <OH test> screen-Example for OH change Fig. 11.3.4.2-2 Test menu:OH test: <OH test> screen-example for OH BERT 11-518...
Page 655 11.3 Test menu Screen Commands Fig. 11.3.4.2-3 Test menu:OH test: <OH test> screen-Example for OH Add/Drop 11-519...
Page 656 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands • Common commands Setting Command Type :SOURce:OHTest:TYPE • OH change commands Setting Command OH Change(1) :SOURce:OHTest:OHCHange:TYPE OH Change(2)-OTN OH position :SOURce:OHTest:OHCHange:POSitionOTN When OH Change(1) = OTN 1byte. OH Change(3)-ch :SOURce:OHTest:OHCHange:CHANel When OH Change(1) = SOH 1byte. OH Change(4)-position :SOURce:OHTest:OHCHange:POSition:SOH When OH Change(1) = SOH 1byte.
Page 657 11.3 Test menu Screen Commands • OH BERT commands Setting Command Pattern :SENSe:OHTest:OHBert:PATTern Tx(1) :SOURce:OHTest:OHBert:TYPE Tx(2)-OTN OH position :SOURce:OHTest:OHBert:POSition:OTN When Tx(1) = OTN 1byte. Tx(3)-SOH ch :SOURce:OHTest:OHBert:CHANel When Tx(1) = SOH 1byte. Tx(4)-position :SOURce:OHTest:OHBert:POSition:SOH When Tx(1) = SOH 1byte. :SOURce:OHTest:OHBert:POSition:TOH Tx(5)(6)-POH position :SOURce:OHTest:OHBert:POSition:POH When Tx(1) = POH 1byte.
Page 658 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:OHTest:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> OH change OH BERT ADRop OH Add/Drop • Function Switches OH test item. • Example use To set OH test item to OH change: > :SOURce:OHTest:TYPE OHC :SOURce:OHTest:TYPE? ∇...
Page 659 11.3 Test menu Screen Commands :SOURce:OHTest:OHCHange:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> OTN1B OTN 1 byte APS/PCC TCM1 TCM1 TCM2 TCM2 TCM3 TCM3 TCM4 TCM4 TCM5 TCM5 TCM6 TCM6 GCC0 GCC0 GCC1 GCC1 GCC2 GCC2 SOH1B (SDH) SOH 1 byte TOH1B (SONET) TOH 1 byte...
Page 660 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:OHTest:OHCHange:POSition:OTN <otnpoint> ∇ Parameter <otnpoint> = <CHARACTER PROGRAM DATA> RES_ RES_ RES_ RES_ GCC0_1 GCC0_1 FAS_11 FAS_12 FAS_13 FAS_14 FAS_15 FAS_16 – SM_18 – SM_110 TCM6_ TCM6_ TCM5_ TCM5_ TCM4_ TCM4_ FTFL_ RES_ RES_ TCMA_ RES_21 RES_22 RES_23 –...
Page 661 11.3 Test menu Screen Commands :SOURce:OHTest:OHCHange:CHANel <ch> ∇ Parameter <ch> = <DECIMAL NUMERIC PROGRAM DATA> * Setting range differs depending on send bit rate. Step value: 1 (52M, 156M) 1 to 4 Step value: 1 (622M) 1 to 16 Step value: 1 (2488M) 1 to 64 Step value: 1...
Page 662 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SOURce:OHTest:OHCHange:POSition:SOH <posi> (SONET) :SOURce:OHTest:OHCHange:POSition:TOH <posi> ∇ Parameter <posi> = <CHARACTER PROGRAM DATA> (9953M, 2488M, 622M, 156M) – – – – – – – – – – – – (52M) – – – – –...
Page 663 11.3 Test menu Screen Commands :SOURce:OHTest:OHCHange:POSition:POH <vctype>,<posi> ∇ Parameter <vctype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 POH VC3 POH VC2/1 (SONET) STS3 POH STS3 STS1 POH STS1 POH VT <posi> = <CHARACTER PROGRAM DATA> VC2/1 (SDH) (SONET) (SDH) (SONET) (SDH) (SONET) –...
Page 664 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:OHTest:STARt ∇ Parameter None • Function Starts the OH change. • Example use > :SOURce:OHTest:STARt :SOURce:OHTest:STOP ∇ Parameter None • Function Stops the OH change. • Example use > :SOURce:OHTest:STOP :SOURce:OHTest:STATe? ∇ Parameter None •...
Page 665 11.3 Test menu Screen Commands :SOURce:OHTest:OHCHange:SEQuence:A:FRAMe <frame> ∇ Parameter <frame> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Send Frame Number Step value: 1 • Function Sets the number of send frames of the OH change A pattern. • Example use To set the number of send frames of the OH change A pattern to 2: >...
Page 666 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:OHTest:OHCHange:SEQuence:B:FRAMe <frame> ∇ Parameter <frame> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 256 Send Frame Number Step value: 1 • Function Sets the number of send frames of the OH change B pattern. • Example use To set the number of send frames of the OH change B pattern: >...
Page 667 11.3 Test menu Screen Commands :SENSe:OHTest:OHBert:PATTern <pattern> ∇ Parameter <pattern> = <CHARACTER PROGRAM DATA> PRBS11 PRBS15 • Function Sets OH BERT send and receive pattern. • Example use To set OH BERT send and receive pattern to PRBS11: > :SENSe:OHTest:OHBert:PATTern PRBS11 :SENSe:OHTest:OHBert:PATTern? ∇...
Page 668 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:OHTest:OHBert:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> OTN1B OTN 1 byte GCC0 GCC0 GCC1 GCC1 GCC2 GCC2 SOH1B (SDH) SOH 1 byte TOH1B (SONET) TOH 1 byte POH1B POH 1 byte DRSect D1-D3 DMSect D4-D12...
Page 669 11.3 Test menu Screen Commands :SOURce:OHTest:OHBert:POSition:OTN <otnpoint> ∇ Parameter <otnpoint> = <CHARACTER PROGRAM DATA> RES_ RES_ RES_ RES_ GCC0_1 GCC0_1 FAS_11 FAS_12 FAS_13 FAS_14 FAS_15 FAS_16 – SM_18 – SM_110 TCM6_ TCM6_ TCM5_ TCM5_ TCM4_ TCM4_ FTFL_ RES_ RES_ TCMA_ RES_21 RES_22 RES_23 –...
Page 670 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:OHTest:OHBert:CHANel <ch> ∇ Parameter <ch> = <DECIMAL NUMERIC PROGRAM DATA> * Setting range differs depending on send bit rate. Step value: 1 (52M, 156M) 1 to 4 Step value: 1 (622M) 1 to 16 Step value: 1 (2488M) 1 to 64...
Page 671 11.3 Test menu Screen Commands (SDH) :SOURce:OHTest:OHBert:POSition:SOH <posi> (SONET) :SOURce:OHTest:OHBert:POSition:TOH <posi> ∇ Parameter <posi> = <CHARACTER PROGRAM DATA> (9953M, 2488M, 622M, 156M) – – – – – – – – – – – – (52M) – – – – – –...
Page 672 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:OHTest:OHBert:POSition:POH <vctype>,<posi> ∇ Parameter <vctype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 pattern POH VC3 pattern POH VC2/1 pattern (SONET) STS3 POH STS3 pattern STS1 POH STS1 pattern POH VT pattern <posi> = <CHARACTER PROGRAM DATA> VC2/1 (SDH) (SONET) (SDH) (SONET)
Page 673 11.3 Test menu Screen Commands :SENSe:OHTest:OHBert:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> OTN1B OTN 1 byte GCC0 GCC0 GCC1 GCC1 GCC2 GCC2 SOH1B (SDH) SOH 1 byte TOH1B (SONET) TOH 1 byte POH1B POH 1 byte DRSect D1-D3 DMSect D4-D12 * Parameter without (SDH) or (SONET) are common to both SDH and...
Page 674 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:OHTest:OHBert:POSition:OTN <otnpint> ∇ Parameter <otnpoint> = <CHARACTER PROGRAM DATA> RES_ RES_ RES_ RES_ GCC0_1 GCC0_1 FAS_11 FAS_12 FAS_13 FAS_14 FAS_15 FAS_16 – SM_18 – SM_110 TCM6_ TCM6_ TCM5_ TCM5_ TCM4_ TCM4_ FTFL_ RES_ RES_ TCMA_ RES_21 RES_22 RES_23 –...
Page 675 11.3 Test menu Screen Commands :SENSe:OHTest:OHBert:CHANel <ch> ∇ Parameter <ch> = <DECIMAL NUMERIC PROGRAM DATA> * Setting range differs depending on receive bit rate. Step value: 1 (52M, 156M) 1 to 4 Step value: 1 (622M) 1 to 16 Step value: 1 (2488M) 1 to 64 Step value: 1...
Page 676 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :SENSe:OHTest:OHBert:POSition:SOH <posi> (SONET) :SENSe:OHTest:OHBert:POSition:TOH <posi> ∇ Parameter <posi> = <CHARACTER PROGRAM DATA> (39.8G, 9953M, 2488M, 622M, 156M) – – – – – – – – – – – – (52M) – – – –...
Page 677 11.3 Test menu Screen Commands :SENSe:OHTest:OHBert:POSition:POH <vctype>,<posi> ∇ Parameter <vctype> = <CHARACTER PROGRAM DATA> (SDH) POH VC4 POH VC3 POH VC2/1 (SONET) STS3 POH STS3 STS1 POH STS1 POH VT <posi> = <CHARACTER PROGRAM DATA> VC2/1 (SDH) (SONET) (SDH) (SONET) (SDH) (SONET) –...
Page 678 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:OHTest:ADRop:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> GCC0 GCC0 GCC1 GCC1 GCC2 GCC2 DRSect D1-D3 DMSect D4-D12 • Function Sets OH Add type. • Example use To set OH Add type to GCC0: >...
Page 679 11.3 Test menu Screen Commands :SENSe:OHTest:ADRop:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> GCC0 GCC0 GCC1 GCC1 GCC2 GCC2 DRSect D1-D3 DMSect D4-D12 • Function Sets OH Drop type. • Example use To set OH Drop type to OTN 1 byte: >...
Page 680 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.4.3 Mode Fig. 11.3.4.3-1 Test menu:OH test: <Mode> screen * Refer to “Common test menu screen commands - Mode setting”. 11-544...
Page 681 11.3 Test menu Screen Commands 11.3.5 APS test Sub-screen 11.3.5.1 Common APS test sub-screen commands Setting Command Display select :DISPlay:TMENu:APSTest:DISPmode 11-545...
Page 682 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:TMENu:APSTest:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> APSTest APS test sub-screen MODE Mode sub-screen • Function Selects a sub-screen of the APS test screen. • Example use To select Mode sub-screen of the APS test screen: >...
Page 683 11.3 Test menu Screen Commands 11.3.5.2 APS test display screen Fig. 11.3.5.2-1 Test menu:APS test: <APS test> screen-Example for Switching time • Common commands Setting Command Test mode :SENSe:APSTest:MODE Tx-Type :SOURce:APSTest:TYPE -Sequence (1) :SOURce:APSTest:SEQuence:FRAMe -Sequence (2) :SOURce:APSTest:SEQuence:MODE -Sequence count Start :SOURce:APSTest:STARt :SOURce:APSTest:STOP :SOURce:APSTest:STATe?
Page 684 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:APSTest:MODE <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> SWITching Switching time • Function Sets the APS test measurement mode. • Example use To set the APS test measurement mode to Switching time: > :SENSe:APSTest:MODE SWITching :SENSe:APSTest:MODE? ∇...
Page 685 11.3 Test menu Screen Commands :SOURce:APSTest:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) K1K2 K1/K2 K3HP K3-HP K3LP K3-LP (SONET) K1K2 K1/K2 Z4HP Z4-HP Z4LP Z4-LP • Function Sets send pattern of APS test. • Example use To set send pattern of APS test to K1/K2: >...
Page 686 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:APSTest:SEQuence:FRAMe <frame> ∇ Parameter <frame> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Number of send pattern Step value: 1 • Function Sets number of APS programmable data send pattern. • Example use To set send pattern to 2: >...
Page 687 11.3 Test menu Screen Commands :SOURce:APSTest:STARt ∇ Parameter None • Function Starts outputting the data set on the Setup:APS programmable data screen. • Example use > :SOURce:APSTest:STARt :SOURce:APSTest:STOP ∇ Parameter None • Function Stops outputting the data set on the Setup:APS programmable data screen. •...
Page 688 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:APSTest:MEASurement:MODE <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> SINGle Single REPeat Repeat • Function Sets the APS test measurement mode. • Example use To set the APS measurement mode to Single: > :SENSe:APSTest:MEASurement:MODE SINGle :SENSe:APSTest:MEASurement:MODE? ∇...
Page 689 11.3 Test menu Screen Commands :SENSe:APSTest:TRIGger:TYPE <trig> ∇ Parameter <trig> = <STRING PROGRAM DATA> "MAIS" (SDH) MS-AIS "AISL" (SONET) AIS-L "AAIS" (SDH) AU-AIS "AISP" (SONET) AIS-P "TAIS" (SDH) TU-AIS "AISV" (SONET) AIS-V "B1" "B2" "HB3" HP-B3 "LB3" LP-B3 "BIP2" BIP-2 "BIT"...
Page 690 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:APSTest:ALARm:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> MAIS (SDH) MS-AIS AISL (SONET) AIS-L AAIS (SDH) AU-AIS AISP (SONET) AIS-P TAIS (SDH) TU-AIS AISV (SONET) AIS-V * Parameter without (SDH) or (SONET) are common to both SDH and SONET.
Page 691 11.3 Test menu Screen Commands :SOURce:APSTest:ALARm:TIMing:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> SINGle1 Single 1 sec SINGle5 Single 5 sec • Function Sets alarm addition timing. • Example use To set alarm addition timing to All: > :SOURce:APSTest:ALARm:TIMing:TYPE ALL :SOURce:APSTest:ALARm:TIMing:TYPE? ∇...
Page 692 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.5.3 Mode display screen Fig. 11.3.5.3-1 Test menu:APS test: <Mode> screen * Refer to “Common test menu screen commands – Mode setting”. 11-556...
Page 693 11.3 Test menu Screen Commands 11.3.6 Jitter tolerance Sub-screen Fig. 11.3.6-1 Test menu:Jitter tolerance: <Jitter tolerance> screen 11-557...
Page 694 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Setting Command Tolerance table :SOURce:JITTer:TOLerance:TYPE Mask table :SENSe:JITTer:TOLerance:MASK Frequency offset :SOURce:JITTer:TOLerance:FOFFset Detection :SENSe:JITTer:TOLerance:DETection:TYPE Hold time :SENSe:JITTer:TOLerance:DETection:HTIMe Error :SENSe:JITTer:TOLerance:DETection:ERRor Unit :SENSe:JITTer:TOLerance:DETection:UNIT Threshold(Count) :SENSe:JITTer:TOLerance:DETection:THReshold:EC Threshold(Rate) :SENSe:JITTer:TOLerance:DETection:THReshold:ER Waiting time :SENSe:JITTer:TOLerance:WTIMe Step resolution :SENSe:JITTer:TOLerance:RESolution 11-558...
Page 695 11.3 Test menu Screen Commands :SOURce:JITTer:TOLerance:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> G783 G.783 G783A G.783 Type A G783AO G.783o Type A G783AE_2M G.783e (2M) Type A G783AE_1_5M G.783e (1.5M) Type A G783B G.783 Type B G813 G.813 G825E G.825e G825_1_5M...
Page 696 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TOLerance:MASK <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> G783 G.783 G783A G.783 Type A G783AO G.783o Type A G783AE_2M G.783e (2M) Type A G783AE_1_5M G.783e (1.5M) Type A G783B G.783 Type B G813 G.813 G825E G.825e...
Page 697 11.3 Test menu Screen Commands :SOURce:JITTer:TOLerance:FOFFset <numeric> ∇ Parameter <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> –100.0 to 100.0 Step value: 0.1 • Function Sets the frequency offset for jitter tolerance measurement. • Example use To set the frequency offset for jitter tolerance measurement to –99.9 ppm: >...
Page 698 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TOLerance:DETection:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> DEFault Default ANYerrors Any errors SEC1 1-sec error COUNt Count RATE Rate Onset of errors • Function Sets the detection condition for jitter tolerance measurement. •...
Page 699 11.3 Test menu Screen Commands :SENSe:JITTer:TOLerance:DETection:HTIMe <s> ∇ Parameter <s> = <NON-DECIMAL NUMERIC PROGRAM DATA> 1.0 to 99.5 Step value: 0.5 • Function Sets error detection hold time for jitter tolerance measurement. • Example use To set error detection hold time setting to 5.5 seconds: >...
Page 700 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TOLerance:DETection:ERRor <error> ∇ Parameter <error> = <STRING PROGRAM DATA> "SMBIP8" SM BIP-8 "PMBIP8" PM BIP-8 "SMBEI" SM BEI "PMBEI" PM BEI "T1BIP8" TCM1 BIP-8 "T2BIP8" TCM2 BIP-8 "T3BIP8" TCM3 BIP-8 "T4BIP8" TCM4 BIP-8 "T5BIP8" TCM5 BIP-8 "T6BIP8"...
Page 701 11.3 Test menu Screen Commands :SENSe:JITTer:TOLerance:DETection:ERRor? ∇ Parameter None • Response <ERRor> = <CHARACTER RESPONSE DATA> Same as :SENSe:JITTer:TOLerance:DETection:ERRor. • Function Queries detection condition error for jitter tolerance measurement. • Example use > :SENSe:JITTer:TOLerance:DETection:ERRor? < "B1" :SENSe:JITTer:TOLerance:DETection:UNIT <unit> ∇ Parameter <unit>...
Page 702 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TOLerance:DETection:THReshold:EC <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 99999 Step value: 1 • Function Sets threshold count for jitter tolerance measurement. • Example use To set threshold count to 100: >...
Page 703 11.3 Test menu Screen Commands :SENSe:JITTer:TOLerance:DETection:THReshold:ER <erate> ∇ Parameter <erate> = <CHARACTER PROGRAM DATA> R1E_3 >1E-3 R1E_4 >1E-4 R1E_5 >1E-5 R1E_6 >1E-6 R1E_7 >1E-7 R1E_8 >1E-8 R1E_9 >1E-9 R1E_10 >1E-10 R1E_11 >1E-11 • Function Sets threshold rate for jitter tolerance measurement. •...
Page 704 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TOLerance:WTIMe <wait> ∇ Parameter <wait> = <NON-DECIMAL NUMERIC PROGRAM DATA> 0.0 to 99.5 Step value: 0.5 • Function Sets wait time for jitter tolerance measurement. • Example use To set wait time to 1.5 seconds: >...
Page 705 11.3 Test menu Screen Commands 11.3.7 Jitter transfer Screen Fig. 11.3.7-1 Test menu:Jitter transfer: <Jitter transfer> screen Setting Command Measurement type :SENSe:JITTer:TRANsfer:MODE Loopback :SENSe:JITTer:TRANsfer:LOOPback Frequency offset :SOURce:JITTer:TRANsfer:FOFFset Transfer table :SOURce:JITTer:TRANsfer:TYPE Mask table :SENSe:JITTer:TRANsfer:MASK Average level :SENSe:JITTer:TRANsfer:AVERage Waiting time :SENSe:JITTer:TRANsfer:WTIMe 11-569...
Page 706 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TRANsfer:MODE <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> Calibration MEAS Measurement • Function Sets a measurement mode for jitter transfer characteristic measurement. Measurement must be executed after calibration • Example use To set the measurement mode to: >...
Page 707 11.3 Test menu Screen Commands :SOURce:JITTer:TRANsfer:FOFFset <numeric> ∇ Parameter <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> −100.0 to 100.0 Step value: 0.1 • Function Sets frequency offset of jitter transfer characteristic measurement • Example use To set frequency offset of jitter transfer characteristic measurement to −99.9: >...
Page 708 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:JITTer:TRANsfer:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> G8251 G.8251 G783 G.783 B253 GR-253 (Issue 3) B253_4 GR-253 (Issue 4) G825_1_5M G.825 1.5M G825_2M G.825 2M G813 G.813 G783A G.783 Type A G783AO G.783o Type A G783AE_2M G.783e (2M) Type A...
Page 709 11.3 Test menu Screen Commands :SOURce:JITTer:TRANsfer:TYPE? ∇ Parameter None • Response <type> = <CHARACTER RESPONSE DATA> Same as :SOURce:JITTer:TRANsfer:TYPE. • Function Queries an output table for jitter generation of jitter transfer characteris- tics. • Example use > :SOURce:JITTer:TRANsfer:TYPE? < G813 :SENSe:JITTer:TRANsfer:MASK <type>...
Page 710 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:JITTer:TRANsfer:AVERage <step> ∇ Parameter <step> = <CHARACTER PROGRAM DATA> FINE Fine NORMal Normal COARse Coarse • Function Sets Average level (measurement accuracy) for jitter transfer characteristic measurement • Example use Sets the Average level to Fine: >...
Page 711 11.3 Test menu Screen Commands 11.3.8 PCS test Sub-screen 11.3.8.1 PCS test sub-screen common commands Fig. 11.3.8-1 Test menu:Pcs test:<PCS test> Sub-screen Setting Command Display select :DISPlay:TMENu:PCSTest:DISPmode <type> 11-575...
Page 712 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:TMENu:PCSTest:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> PCSTest PCS test Sub-screen MODE Mode Sub-screen • Function Selects sub-screen of PCS test screen • Example use To set sub-screen of PCS test screen to Mode: >...
Page 713 11.3 Test menu Screen Commands 11.3.8.2 PCS test Screen Fig. 11.3.8-2-1 Test menu:Pcs test:<PCS test>screen Setting Command Test Mode :SOURce:PCSTest:MODE <mode> Test Pattern :SOURce:PCSTest:PATTern <pattern> Seed :SOURce:PCSTest:SEED <type> Data Pattern :SOURce:PCSTest:DPATtern <data> Error :SOURce:PCSTest:ERRor:TYPE <type> Error timing :SOURce:PCSTest:ERRor:TIMing <timing> Error Burst :SOURce:PCSTest:ERRor:BURSt <burst>...
Page 714 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:PCSTest:MODE <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> PATTern Pattern P66B 66B programmable data • Function Sets PCS test data pattern • Example use To set PCS test data pattern to 66B programmable data: >...
Page 715 11.3 Test menu Screen Commands :SOURce:PCSTest:SEED <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> Seed A Seed B • Function Selects PCS test send data pattern • Example use To set send data pattern to Seed A: > :SOURce:PCSTest:SEED A :SOURce:PCSTest:SEED? ∇...
Page 716 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:PCSTest:ERRor:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> PBIT Pattern bit • Function Sets error appended at PCS test • Example use To set error appended at PCS test to Pattern bit: > :SOURce:PCSTest:ERRor:TYPE PBIT :SOURce:PCSTest:ERRor:TYPE? ∇...
Page 717 11.3 Test menu Screen Commands :SOURce:PCSTest:ERRor:TIMing <timing> ∇ Parameter <timing> = <CHARACTER PROGRAM DATA> ONCE Single R1E_3 1.0E-3 R1E_4 1.0E-4 R1E_5 1.0E-5 R1E_6 1.0E-6 R1E_7 1.0E-7 R1E_8 1.0E-8 R1E_9 1.0E-9 PROGrate User Program • Function Sets timing of error appended at PCS test •...
Page 718 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:PCSTest:ERRor:USER <rate> ∇ Parameter <rate> = <STRING PROGRAM DATA> “0.1E-10” to “1.0E-3” Mantissa 0.1 – 9.9 Step： 0.1 Exponent –10 – –3 Step: 1 *1.0E-3 and １E-3 are both OK • Function Sets rate when appending error with User program •...
Page 719 11.3 Test menu Screen Commands :SOURce:PCSTest:SEQUence:STARt ∇ Parameter None • Function Starts sending of PCS test Generation pattern • Example use > :SOURce:PCSTest:SEQuence:STARt :SOURce:PCSTest:SEQUence:STOP ∇ Parameter None • Function Stops sending of PCS test Generation pattern • Example use > :SOURce:PCSTest:SEQuence:STOP :SOURce:PCSTest:SEQUence:STATe? ∇...
Page 720 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.8.3 Mode Screen FIg. 11.3.8-3-1 Test menu:Pcs test:<Mode> screen * Refer to “Common test menu screen commands - Mode setting”. 11-584...
Page 721 11.3 Test menu Screen Commands 11.3.9 BER test Sub-screen 11.3.9.1 BER test sub-screen common commands Fig. 11.3.9.1-1 Test menu:BER test:<BER test> Sub-screen Setting Command Display select :DISPlay:TMENu:BERTest:DISPmode <type> 11-585...
Page 722 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:TMENu:BERTest:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> BERTest BER test Sub-screen STReam Stream Control Sub-screen MODE Mode Sub-screen • Function Selects sub-screen of BER test screen • Example use To set sub-screen of BER test screen to Mode: >...
Page 723 11.3 Test menu Screen Commands 11.3.9.2 BER test Screen Fig. 11.3.9.2-1 Test menu:BER test:<BER test> Screen Setting Command Type :SOURce:BERTest:TYPE <type> Pattern :SOURce:BERTest:PATTern <pattern> Invert :SOURce:BERTest:INVert <mode> Word16 :SOURce:BERTest:UWORd <pattern> Error-Type :SOURce:BERTest:ERRor:TYPE <type> Error-timing :SOURce:BERTest:ERRor:TIMing <timing> MAC Destination Address Type :SOURce:BERTest:DA:TYPE <type> -Value :SOURce:BERTest:DA:VALue <addr>...
Page 724 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:BERTest:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> FRAMed Framed NOFRame No Frame • Function Sets BER test type • Example use To set BER test type to Frame: > :SOURce:BERTest:TYPE FRAMed :SOURce:BERTest:TYPE? ∇...
Page 725 11.3 Test menu Screen Commands :SOURce:BERTest:INVert <mode> ∇ Parameter <mode> = <BOOLEAN PROGRAM DATA> OFF or 0 No PRBS inversion ON or 1 PRBS inversion • Function Sets send/receive PRBS pattern for BER test to inverted/non-inverted • Example use To invert PRBS pattern: >...
Page 726 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:BERTest:ERRor:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> • Function Sets type of appended error for BER test send signal • Example use To set appended error to Bit: > :SOURce:BERTest:ERRor:TYPE BIT :SOURce:BERTest:ERRor:TYPE? ∇...
Page 727 11.3 Test menu Screen Commands :SOURce:BERTest:ERRor:TIMing <timing> ∇ Parameter <timing> = <CHARACTER PROGRAM DATA> ONCE Single R1E_4 1.0E-4 R1E_5 1.0E-5 R1E_6 1.0E-6 R1E_7 1.0E-7 R1E_8 1.0E-8 R1E_9 1.0E-9 • Function Sets timing of appended error at BER test • Example use To set timing of appended at BER test to Single: >...
Page 728 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:BERTest:DA:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> STATic Static INCRement Increment DECRement Decrement RANDom Random • Function Sets type of MAC Destination Address for BER test • Example use To set MAC Destination Address type to Static: >...
Page 729 11.3 Test menu Screen Commands :SOURce:BERTest:DA:MASK <mask> ∇ Parameter <mask> = <STRING PROGRAM DATA> “000000000000” to “FFFFFFFFFFFF” （HEX 6 byte data） *The pattern is a combination of 0s and Fs. However, use contiguous Fs at one location only. (See below.) •...
Page 730 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:BERTest:SA:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> STATic Static INCRement Increment DECRement Decrement RANDom Random • Function Sets type of MAC Source Address for BER test • Example use To set MAC Source Address type to Static: >...
Page 731 11.3 Test menu Screen Commands :SOURce:BERTest:SA:MASK <mask> ∇ Parameter <mask> = <STRING PROGRAM DATA> “000000000000” to “FFFFFFFFFFFF” （HEX 6 byte data） *The pattern is a combination of 0s and Fs. However, use contiguous Fs at one location only. （Same as :SOURce:BERTest:DA:MASK） •...
Page 732 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.9.3 Stream control Screen Fig. 11.3.9.3-1 Test menu:BER test:<Stream control> Screen Setting Command Frame Gap Type :SOURce:BERTest:GAP:IFG:TYPE <type> Frame Gap Value(Fixed) :SOURce:BERTest:GAP:IFG:VALue <val> Frame Gap Value(Min) :SOURce:BERTest:GAP:IFG:MINimun <val> Frame Gap Value(Max) :SOURce:BERTest:GAP:IFG:MAXimum <val> Length Type :SOURce:BERTest:FSIZe:TYPE <type>...
Page 733 11.3 Test menu Screen Commands :SOURce:BERTest:GAP:IFG:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> FIXed Fixed RANDom Random • Function Sets Frame Gap type for BER test • Example use To set Frame Gap type to Random: > :SOURce:BERTest:GAP:IFG:TYPE RANDom :SOURce:BERTest:GAP:IFG:TYPE? ∇...
Page 734 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:BERTest:GAP:IFG:VALue <val> ∇ Parameter <val> = <DECIMAL NUMERIC PROGRAM DATA> 9 to 150000893952 Byte count * Changes with step value. As a result setting may be rounded. • Function Sets value of Frame Gap Value (Fixed) for BER test •...
Page 735 11.3 Test menu Screen Commands :SOURce:BERTest:GAP:IFG:MINimum <val> ∇ Parameter <val> = <DECIMAL NUMERIC PROGRAM DATA> * 9 to 150000893952 Byte count * Changes with step value. As a result setting may be rounded. • Function Sets minimum value for Frame Gap Value (Random) of BER test •...
Page 736 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:BERTest:GAP:IFG:MAXimum <val> ∇ Parameter <val> = <DECIMAL NUMERIC PROGRAM DATA> * 9 to 150000893952 Byte count * Changes with step value. As a result setting may be rounded. • Function Sets maximum value for Frame Gap Value (Random) of BER test •...
Page 737 11.3 Test menu Screen Commands :SOURce:BERTest:GAP:IFG:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> FIXed Fixed INCRement Increment RANDom Random • Function Sets type of Length for send Frame/Test Pattern • Example use To set type of Length to Increment: >...
Page 738 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:BERTest:FSIZe:MINimum <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 64 to 16384 (byte) • Function Sets Minimum value for Length of send Frame/Test Pattern • Example use To set Minimum value for Length of send Frame/Test Pattern to 128 bytes: >...
Page 739 11.3 Test menu Screen Commands 11.3.9.4 Mode Screen Fig. 11.3.9.4-1 Test menu:BER test:<Mode> Screen * Refer to “Common test menu screen commands - Mode setting”. 11-603...
Page 740 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.10 Link fault signaling Sub-screen 11.3.10.1 Link fault signaling test sub-screen common commands Fig. 11.3.10.1-1 Test menu:Link fault signaling:<Send data> Sub-screen Setting Command Display select :DISPlay:TMENu:LFS:DISPmode <type> 11-604...
Page 741 11.3 Test menu Screen Commands :DISPlay:TMENu:LFS:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> Send data Sub-screen MODE Mode Sub-screen • Function Selects sub-screen of Link Fault Signaling screen. • Example use To set sub-screen of Link Fault Signaling screen to Mode: >...
Page 742 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.10.2 Send data Screen Fig. 11.3.10.2-1 Test menu:Link fault signaling:<Send data> Screen Setting Command Transmit :SOURce:LFS:TRANsmit:STARt :SOURce:LFS:TRANsmit:STOP :SOURce:LFS:TRANsmit:STATus? Signal Pattern :SOURce:LFS:TRANsmit:DATA <type>[,<txc>,<txd>] Lane1/2/3 TXC/TXD 11-606...
Page 743 11.3 Test menu Screen Commands :SOURce:LFS:TRANsmit:STARt ∇ Parameter None • Function Starts Link Fault Signaling data sending • Example use > :SOURce:LFS:TRANsmit:STARt :SOURce:LFS:TRANsmit:STOP ∇ Parameter None • Function Stops Link Fault Signaling data sending • Example use > :SOURce:LFS:TRANsmit:STOP :SOURce:LFS:TRANsmit:STATe? ∇...
Page 744 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:LFS:TRANsmit:DATA <type>[,<txc>,<txd>] ∇ Parameter <type> = <NUMERIC PROGRAM DATA> Remote Fault Signal Local Fault Signal Edit Signal <txc> = <STRING PROGRAM DATA> “000” to “111” （3 Bit data：TXC[1-3]） <txd> = <STRING PROGRAM DATA> “000000” to “FFFFFF” （HEX 3 byte data：TXD[1-3]） *<txc>,<txd>...
Page 745 11.3 Test menu Screen Commands 11.3.10.3 Mode Screen Fig. 11.3.10.3-1 Test menu:Link fault signaling:<Mode> Screen * Refer to “Common test menu screen commands - Mode setting”. 11-609...
Page 746 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.11 Latency Sub-screen 11.3.11.1 Latency test sub-screen common commands Fig． 11.3.11-1 Test menu: Latency:<Latency> Sub-screen Setting Command Display select :DISPlay:TMENu:LATency:DISPmode <type> 11-610...
Page 747 11.3 Test menu Screen Commands :DISPlay:TMENu:LATency:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> LATency Latency Sub-screen STReam Stream Control Sub-screen MODE Mode Sub-screen • Function Selects sub-screen for Latency screen • Example use To set sub-screen for Latency screen to Mode: >...
Page 748 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.3.11.2 Latency Screen Fig. 11.3.11-2.1 Test menu: Latency:<Latency> Screen Setting Command MAC Destination Address Type :SOURce:LATency:DA:TYPE <type> -Value :SOURce:LATency:DA:VALue <addr> -Mask :SOURce:LATency:DA:MASK <mask> MAC Source Address Type :SOURce:LATency:SA:TYPE <type> -Value :SOURce:LATency:SA:VALue <addr> -Mask :SOURce:LATency:SA:MASK <mask> 11-612...
Page 749 11.3 Test menu Screen Commands :SOURce:LATency:DA:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> STATic Static INCRement Increment DECRement Decrement RANDom Random • Function Sets MAC Destination Address type for Latency • Example use To set MAC Destination Address type to Static: >...
Page 750 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:LATency:DA:MASK <mask> ∇ Parameter <mask> = <STRING PROGRAM DATA> “000000000000” to “FFFFFFFFFFFF” （HEX 6 byte data） *The pattern is a combination of 0s and Fs. However, use contiguous Fs at one location only. (See below.) •...
Page 751 11.3 Test menu Screen Commands :SOURce:LATency:SA:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> STATic Static INCRement Increment DECRement Decrement RANDom Random • Function Sets type of MAC Source Address for Latency • Example use To set type of MAC Source Address to Static: >...
Page 752 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:LATency:SA:MASK <mask> ∇ Parameter <mask> = <STRING PROGRAM DATA> “000000000000” to “FFFFFFFFFFFF” （HEX 6 byte data） *The pattern is a combination of 0s and Fs. However, use contiguous Fs at one location only. （Same as :SOURce:LATency:DA:MASK） •...
Page 753 11.3 Test menu Screen Commands 11.3.11.3 Stream control Screen Fig. 11.3.11.3-1 Test menu: Latency:<Stream control> Screen Setting Command Frame Gap Type :SOURce:LATency:GAP:IFG:TYPE <type> Frame Gap Value(Fixed) :SOURce:LATency:GAP:IFG:VALue <val> Frame Gap Value(Min) :SOURce:LATency:GAP:IFG:MINimun <val> Frame Gap Value(Max) :SOURce:LATency:GAP:IFG:MAXimum <val> Length<Value> :SOURce:LATency:FSIZe:VALue <numeric> 11-617...
Page 754 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:LATency:GAP:IFG:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> FIXed Fixed RANDom Random • Function Sets Frame Gap type for Latency • Example use To set Frame Gap type to Random: > :SOURce:LATency:GAP:IFG:TYPE RANDom :SOURce:LATency:GAP:IFG:TYPE? ∇...
Page 755 11.3 Test menu Screen Commands :SOURce:LATency:GAP:IFG:VALue <val> ∇ Parameter <val> = <DECIMAL NUMERIC PROGRAM DATA> 9 to 150000893952 Byte count * Changes with step value. As a result setting may be rounded. • Function Sets value of Frame Gap Value (Fixed) for Latency •...
Page 756 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:LATency:GAP:IFG:MINimum <val> ∇ Parameter <val> = <DECIMAL NUMERIC PROGRAM DATA> 9 to 150000893952 Byte count * Changes with step value. As a result setting may be rounded. • Function Sets Minimum value for Frame Gap Value (Random) for Latency •...
Page 757 11.3 Test menu Screen Commands :SOURce:LATency:GAP:IFG:MAXimum <val> ∇ Parameter <val> = <DECIMAL NUMERIC PROGRAM DATA> 9 to 150000893952 Byte count * Changes with step value. As a result setting may be rounded. • Function Sets Maximum value for Frame Gap Value (Random) for Latency •...
Page 758 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SOURce:LATency:FSIZe:VALue <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 48 to 16384 (byte) • Function Sets send Frame/Test Pattern Length • Example use To set send Frame/Test Pattern Length to 128: > :SOURce:LATency:FSIZe:VALue 128 :SOURce:LATency:FSIZe:VALue? ∇...
Page 759 11.3 Test menu Screen Commands 11.3.11.4 Mode Screen Fig. 11.3.11.4-1 Test menu:Latency:<Mode> Screen *Refer to “Common test menu screen commands - Mode setting”. 11-623...
Page 760: Result Screen Commands
Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4 Result Screen Commands 11.4.1 Result Screen Common Commands Measurement start time Screen change Measurement elapsed time Fig. 11.4.1-1 Result Sub-screen change Setting Command (Sub-screen) :DISPlay:RESult[:NAME] Read out Command (Measurement start time) :SENSe:MEASure:STIMe? (Measurement elapsed time) :SENSe:MEASure:ELAPsed? (Measurement remaining time) :SENSe:MEASure:REMain?
Page 761 11.4 Result Screen Commands :DISPlay:RESult[:NAME] <rdisplay> ∇ Parameter <rdisplay> = <STRING PROGRAM DATA> "EALarm" Error/Alarm screen "ETHernet" ETHernet screen "JUSTificat" Justification screen "PERFormance:SG" Performance screen (Series G) "PERFormance:SM" Performance screen (Series M) "PERFormance:GR" Performance screen (Series GR) "DELay" Delay screen "APS"...
Page 762 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :SENSe:MEASure:STIMe? [<type>] ∇ Parameter <type> = <CHARACTER PROGRAM DATA> JWANder Jitter/Wander manual measurement starting time (None) Measurement start time other than above • Response <year>,<month>,<day>,<hour>,<minute>,<second> <year> = <NR1 NUMERIC RESPONSE DATA> 0, 2000 to 2036 year <month>...
Page 763 11.4 Result Screen Commands :SENSe:MEASure:REMain? ∇ Parameter none • Response <second> = <STRING RESPONSE DATA> Form15 • Function Queries remaining measurement time. * The following value is output when not measured or under 10 minutes remaining. < "--------------------" • Example use When there are 50000 minutes remaining: >...
Page 764 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Error: Count) (1/25) Response Item <result> Example use format Bit error "EC:BIT" Form1 > :CALCulate:DATA? "EC:BIT" < " 17773" ODU-SM-BIP8 "EC:SMBIP8:OTU: Form1 > :CALCulate:DATA? "EC:SMBIP8:OTU:OTU" error OTU" < " 163" ODU-SM-BEI "EC:SMBEI:OTU: Form1 >...
Page 765 11.4 Result Screen Commands Response Item <result> Example use format B1 error "EC:B1" Form1 > :CALCulate:DATA? "EC:B1" < " 123" B2 error "EC:B2" Form1 > :CALCulate:DATA? "EC:B2" < " 69873" MS-REI error "EC:REI:MS" (SDH) Form1 > :CALCulate:DATA? "EC:REI:MS" < " 999999"...
Page 766 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Response Item <result> Example use format Code error "EC:CODE" Form1 > :CALCulate:DATA? "EC:CODE" < " 213" EXZ error "EC:EXZ" Form1 > :CALCulate:DATA? "EC:EXZ" < " 24513" 139M frame error "EC:FRAMe:M139" Form1 > :CALCulate:DATA? "EC:FRAMe:M139" <...
Page 767 11.4 Result Screen Commands Measurement Result Query (Error: Rate) (2/25) Response Item <result> Example use format Bit error "ER:BIT" Form2 > :CALCulate:DATA? "ER:BIT" < " 1.1E-01" ODU-SM-BIP8 "ER:SMBIP8:OTU: Form2 > :CALCulate:DATA? "ER:SMBIP8:OTU:OTU" error OTU" < " 0.0E-04" ODU-SM-BEI "ER:SMBEI:OTU: Form2 >...
Page 768 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Response Item <result> Example use format B1 error "ER:B1" Form2 > :CALCulate:DATA? "ER:B1" < " 0.0E-00" B2 error "ER:B2" Form2 > :CALCulate:DATA? "ER:B2" < "<1.0E-18" MS-REI error "ER:REI:MS" (SDH) Form2 > :CALCulate:DATA? "ER:REI:MS" < " 9.9E-15" REI-L error "ER:REI:L"...
Page 769 11.4 Result Screen Commands Response Item <result> Example use format 139M frame error "ER:FRAMe:M139" Form2 > :CALCulate:DATA? "ER:FRAMe:M139" < " 2.6E-10" 45M frame error "ER:FRAMe:M45" Form2 > :CALCulate:DATA? "ER:FRAMe:M45" < " 1.0E-01" 34M frame error "ER:FRAMe:M34" Form2 > :CALCulate:DATA? "ER:FRAMe:M34" <...
Page 770 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Alarm: Sec) (3/25) Response Item <result> Example use format Power fail "ASEConds:POWer" Form1 > :CALCulate:DATA? "ASEConds:POWer" < " 0" "ASEConds:LOS" Form1 > :CALCulate:DATA? "ASEConds:LOS" < " 1" Sync. loss "ASEConds: Form1 >...
Page 771 11.4 Result Screen Commands Response Item <result> Example use format "ASEConds:PMBDI: Form1 > :CALCulate:DATA? ODU:OTU" "ASEConds:PMBDI:ODU:OTU" < " 40153" TCM1 "ASEConds:TIM: Form1 > :CALCulate:DATA? "ASEConds:TIM:TCM1:OTU" TCM1:out" < " 401" BIAE "ASEConds:BIAE: Form1 > :CALCulate:DATA? "ASEConds:BIAE:TCM1:OTU" TCM1:out" < " 40" "ASEConds:BDI: Form1 >...
Page 772 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Response Item <result> Example use format TCM5 "ASEConds:TIM: Form1 > :CALCulate:DATA? "ASEConds:TIM:TCM5:OTU" TCM5:out" < " 401" BIAE "ASEConds:BIAE: Form1 > :CALCulate:DATA? "ASEConds:BIAE:TCM5:OTU" TCM5:out" < " 40" TCM5 "ASEConds:BDI: Form1 > :CALCulate:DATA? "ASEConds:BDI:TCM5:OTU" TCM5:out" < " 4"...
Page 773 11.4 Result Screen Commands Response Item <result> Example use format "ASEConds:LOP:AU" Form1 > :CALCulate:DATA? "ASEConds:LOP:AU" (SDH) < " 716m" "ASEConds:LOP:P" Form1 > :CALCulate:DATA? "ASEConds:LOP:P" (SONET) < " 45" "ASEConds:RDI:HP" Form1 > :CALCulate:DATA? "ASEConds:RDI:HP" (SDH) < " 1.0E+06" HP(AU) "ASEConds:RDI:P" Form1 >...
Page 774 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Response Item <result> Example use format E-RDIP "ASEConds:ERDIP: Form1 > :CALCulate:DATA? "ASEConds:ERDIP:LP" LP" (SDH) < " 1.0E+06" "ASEConds:ERDIP:V Form1 > :CALCulate:DATA? "ASEConds:ERDIP:V" " (SONET) < " 222" E-RDIS "ASEConds:ERDIS: Form1 > :CALCulate:DATA? "ASEConds:ERDIS:LP" LP" (SDH) <...
Page 775 11.4 Result Screen Commands Response Item <result> Example use format "ASEConds:TTIM: Form1 > :CALCulate:DATA? "ASEConds:TTIM:HP" HP" < " 206" "ASEConds:TUNEQ: Form1 > :CALCulate:DATA? "ASEConds:TUNEQ:HP" UNEQ HP" < " 206" TCOH VC-AIS "ASEConds:VAIS: Form1 > :CALCulate:DATA? "ASEConds:VAIS:LP" LP" (LP) < " 9.9E+15" TCOH "ASEConds:LTC:LP"...
Page 776 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Response Item <result> Example use format RDI- "ASEConds:RDI: Form1 > :CALCulate:DATA? "ASEConds:RDI:M45" M45" < " 445" RDI- "ASEConds:RDI: Form1 > :CALCulate:DATA? "ASEConds:RDI:M34" M34" < " 84673" RDI- "ASEConds:RDI:M8" Form1 > :CALCulate:DATA? "ASEConds:RDI:M8" < " 1915"...
Page 777 11.4 Result Screen Commands Measurement Result Query (Alarm: Frame) (4/25) Response Item <result> Example use format "AFRame:OOF:OTU: Form1 > :CALCulate:DATA? "AFRame:OOF:OTU:OTU" OTU" < " 234" "AFRame:LOM:OTU Form1 > :CALCulate:DATA? "AFRame:LOM:OTU:OTU" :out" < " 34" "AFRame:OOM:OTU Form1 > :CALCulate:DATA? "AFRame:OOM:OTU:OTU" :out" <...
Page 778 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Response Item <result> Example use format TCM2 "AFRame:BDI:TCM2 Form1 > :CALCulate:DATA? "AFRame:BDI:TCM2:OTU" :out" < " 4" "AFRame:IAE:TCM2 Form1 > :CALCulate:DATA? "AFRame:IAE:TCM2:OTU" :out" < " 55331" "AFRame:LTC: Form1 > :CALCulate:DATA? "AFRame:LTC:TCM2:OTU" TCM2:OTU" < " 5533" TCM3 "AFRame:TIM:TCM3 Form1...
Page 779 11.4 Result Screen Commands Response Item <result> Example use format TCM6 "AFRame:LTC: Form1 > :CALCulate:DATA? "AFRame:LTC:TCM6:OTU" TCM6:OTU" < " 5533" OTU- "AFRame:SYNCOH: Form1 > :CALCulate:DATA? "AFRame:SYNCOH:OTU" Sync. OTU" (SDH) < " 19562" Section "AFRame:OOF" Form1 > :CALCulate:DATA? "AFRame:OOF" < " 325"...
Page 780 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Response Item <result> Example use format HP(AU) "AFRame:SLM:HP" Form1 > :CALCulate:DATA? "AFRame:SLM:HP" (SDH) < " 534" "AFRame:PLM:P" Form1 > :CALCulate:DATA? "AFRame:PLM:P" (SONET) < " 0" LP(TU) "AFRame:AIS:TU" Form1 > :CALCulate:DATA? "AFRame:AIS:TU" (SDH) < " 764"...
Page 781 11.4 Result Screen Commands Response Item <result> Example use format "AFRame:SYNCOH" Form1 > :CALCulate:DATA? "AFRame:SYNCOH" Sync. < " 19562" TCOH VC-AIS "AFRame:VAIS:HP" Form1 > :CALCulate:DATA? "AFRame:VAIS:HP" (HP) < " 38840" "AFRame:LTC:HP" Form1 > :CALCulate:DATA? "AFRame:LTC:HP" < " 3880" IncAIS "AFRame:IAIS:HP" Form1 >...
Page 782 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Response Item <result> Example use format RDI- "AFRame:RDI:M45" Form1 > :CALCulate:DATA? "AFRame:RDI:M45" < " 445" RDI- "AFRame:RDI:M34" Form1 > :CALCulate:DATA? "AFRame:RDI:M34" < " 84673" RDI- "AFRame:RDI:M8" Form1 > :CALCulate:DATA? "AFRame:RDI:M8" < " 1915" RDI- "AFRame:RDI:M2"...
Page 783 11.4 Result Screen Commands Measurement Result Query (Justification: SDH) (5/25) Response Item <result> Example use format Count "JC:PJC:OPU" Form1 > :CALCulate:DATA? "JC:PJC:OPU" < " 1234" "JC:NJC:OPU" Form1 > :CALCulate:DATA? "JC:NJC:OPU" < " 12345" AU PTR "JC:NDF:AU" Form1 > :CALCulate:DATA? "JC:NDF:AU" <...
Page 784 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Response Item <result> Example use format Rate TU PTR -PJC "JR:NPJC:TU" Form2 > :CALCulate:DATA? "JR:NPJC:TU" < " 9.2E-15" Cons. "JR:CONS:TU" Form2 > :CALCulate:DATA? "JR:CONS:TU" < " 0" "JR:C" Form2 > :CALCulate:DATA? "JR:C" < " 9.6E-15" "JR:C1"...
Page 785 11.4 Result Screen Commands Measurement Result Query (Justification: SONET) (6/25) Response Item <result> Example use format Count "JC:PJC:OPU" Form1 > :CALCulate:DATA? "JC:PJC:OPU" < " 1234" "JC:NJC:OPU" Form1 > :CALCulate:DATA? "JC:NJC:OPU" < " 12345" STS PTR "JC:NDF:P" Form1 > :CALCulate:DATA? "JC:NDF:P" <...
Page 786 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Response Item <result> Example use format Rate VT PTR -PJC "JR:NPJC:V" Form2 > :CALCulate:DATA? "JR:NPJC:V" < " 9.2E-15" Cons. "JR:CONS:V" Form2 > :CALCulate:DATA? "JR:CONS:V" < " 7.3E-03" "JR:C" Form2 > :CALCulate:DATA? "JR:C" < " 9.6E-15" "JR:C1"...
Page 787 11.4 Result Screen Commands Measurement Result Query (Performance: G.821) (7/25) Response Item <result> Example use format G.821 "G821:EC" Form1 > :CALCulate:DATA? "G821:EC" < " 999999" ES(Count) "G821:ES2" Form1 > :CALCulate:DATA? "G821:ES2" < " 12345" ES(Rate) "G821:ES" Form3 > :CALCulate:DATA? "G821:ES" <...
Page 788 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Performance: G.826) (8/25) Response Item <result> Example use format G.826 "G826:ES<para>" Form1 > :CALCulate:DATA? "G826:ES:PARITY" < " 149" "G826:SES<para>" Form1 > :CALCulate:DATA? "G826:SES:PARITY " < " 1.0E+09" "G826:BBE<para>" Form1 > :CALCulate:DATA? "G826:BBE:PARITY " <...
Page 789 11.4 Result Screen Commands Measurement Result Query (Performance: G.828) (9/25) Response Item <result> Example use format G.828 "G828:ES<para>" Form1 > :CALCulate:DATA? "G828:ES:B3:HP" < " 100000" "G828:SES<para>" Form1 > :CALCulate:DATA? "G828:SES:B3:HP" < " 0" "G828:BBE<para>" Form1 > :CALCulate:DATA? "G828:BBE:B3:HP" < " 2001"...
Page 790 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Performance: G.829) (10/25) Response Item <result> Example use format G.829 "G829:ES<para>" Form1 > :CALCulate:DATA? "G829:ES:B1" < " 425" "G829:SES<para>" Form1 > :CALCulate:DATA? "G829:SES:B1" < " 0" "G829:BBE<para>" Form1 > :CALCulate:DATA? "G829:BBE:B1" <...
Page 791 11.4 Result Screen Commands Measurement Result Query (Performance: M.2100/M.2110) (11/25) Response Item <result> Example use format M.2100/ "M21002110:ESR" Form1 > :CALCulate:DATA? "M21002110:ESR" M.2110 < " >9.9E+15" "M21002110:SESR" Form1 > :CALCulate:DATA? "M21002110:SESR" < " 9" "M21002110:USR" Form1 > :CALCulate:DATA? "M21002110:USR" < " 894"...
Page 792 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Performance: M.2100/M.2120) (12/25) Response Item <result> Example use format M.2100/ "M21002120:ESR" Form1 > :CALCulate:DATA? "M21002120:ESR" M.2120 < " >9.9E+15" "M21002120:SESR" Form1 > :CALCulate:DATA? "M21002120:SESR" < " 9" "M21002120:USR" Form1 > :CALCulate:DATA? "M21002120:USR" <...
Page 793 11.4 Result Screen Commands Measurement Result Query (Performance: M.2101/M.2110) (13/25) Response Item <result> Example use format M.2101/ Rx-ES "M21012110:ESR: " Form1 > :CALCulate:DATA? "M21012110:ESR:3" M.2110 n = 1 to 5 < " 754" Rx-SES "M21012110:SESR: " Form1 > :CALCulate:DATA? "M21012110:SESR:3" n = 1 to 5 <...
Page 794 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Performance: M.2101/M.2120) (14/25) Response Item <result> Example use format M.2101/ Rx-ES "M21012120:ESR: " Form1 > :CALCulate:DATA? "M21012120:ESR:3" M.2120 n = 1 to 5 < " 754" Rx-SES "M21012120:SESR: " Form1 > :CALCulate:DATA? "M21012120:SESR:3" n = 1 to 5 <...
Page 795 11.4 Result Screen Commands Response Item <result> Example use format Tx-RTR1- "M2101:RTR1BBET: " Form1 > :CALCulate:DATA? "M21012120:RTR1BBET:3" n = 1, 3, 5 < " 7" M.2101/ Tx-TR2- "M21012120:TR2EST: " Form1 > :CALCulate:DATA? "M21012120:TR2EST:3" M.2120 n = 1 to 5 < " 3"...
Page 796 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Performance: GR-820) (15/25) Response Item <result> Example use format GR-820 "GR820:CV:n" Form1 > :CALCulate:DATA? "GR820:CV:1" n = 1 to 3 < " 754" "GR820:ES:n" Form1 > :CALCulate:DATA? "GR820:ES:1" n = 1 to 3 <...
Page 797 11.4 Result Screen Commands Response Item <result> Example use format GR-820 24-hour Path "GR820:TEST: Form4 > :CALCulate:DATA? "GR820:TEST:H24PATH:1" H24PATH:m" < "Unacceptable" m = 1 to 6 "GR820:TEST: Form4 > :CALCulate:DATA? "GR820:TEST:H24FAR:1" H24FAR:m" < " Acceptable" m = 1 to 6 Notes: •...
Page 798 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Delay) (16/25) Response Item <result> Example use format (unit = us) Current "DELay:CURRent" Form1 > :CALCulate:DATA? "DELay:CURRent" < " 123" Maximum "DELay:MAXimam" Form1 > :CALCulate:DATA? "DELay:MAXimam" < " 564790" Minimum "DELay:MINimam" Form1 >...
Page 799 11.4 Result Screen Commands Measurement Result Query (Jitter Manual) (18/25) Response Item <result> Example use format Peak to Peak "JAMPlitude:PTPeak" Form5 > :CALCulate:DATA? "JAMPlitude:PTPeak" < " 0.234" +Peak "JAMPlitude:PPEak" Form5 > :CALCulate:DATA? "JAMPlitude:PPEak" < " 7.00" -Peak "JAMPlitude:MPEak" Form5 > :CALCulate:DATA? "JAMPlitude:MPEak" <...
Page 800 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Wander Manual) (19/25) Response Item <result> Example use format Wander Peak to Peak "WANDer:PTPeak Form7 > :CALCulate:DATA? "WANDer:PTPeak[:FULL]" (DC-10Hz) [:FULL]" < " 5.0" +Peak "WANDer:PPEak Form7 > :CALCulate:DATA? "WANDer:PPEak[:FULL]" [:FULL]" < " 5000"...
Page 801 11.4 Result Screen Commands Measurement Result Query (Jitter tolerance) (20/25) Response Item <result> Example use format Measurement "JTOLerance:POINt1" (Frequency) > :CALCulate:DATA? "JOLerance:POINt1" result "JTOLerance:POINt2" (UIp-p), < " 100.0, 4040, Acceptable" (Judgment) "JTOLerance:POINt19" Form10 "JTOLerance:POINt20" Form5 Form4 All obtained "JTOLerance:POINt:ADATad" (Point) >...
Page 802 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Jitter transfer) (21/25) Response Item <result> Example use format Measurement "JTRansfer:POINt1" (Frequency), > :CALCulate:DATA? "JTRansfer:POINt1" result "JTRansfer:POINt2" (UIp-p), < " 100.0, 10.00, 0.00, Acceptable" (dB), "JTRansfer:POINt19" (Judgment) "JTRansfer:POINt20" Form10,For Form6, Form4 All obtained JTRansfer:POINt:ADATa"...
Page 803 11.4 Result Screen Commands Measurement Result Query (Latency) (22/25) Response Item <result> Example use format Current "LATency:CURRent" Form18 > :CALCulate:DATA? "LATency:CURRent" < " 5.000000000" Maximum "LATency:MAXimam" Form18 > :CALCulate:DATA? "LATency:MAXimam" < " 10.000000000" Minimum "LATency:MINimam" Form18 > :CALCulate:DATA? "LATency:MINimam" < " 2.000000000"...
Page 804 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Ethernet:Error/Alarm) (23/25) Response Item <result> Example use format Form1 > :CALCulate:DATA? "EC:OVERsize:ETHer" Oversize "EC:OVERsize:ETHer" < " 23" Oversize Form1 > :CALCulate:DATA? "EC:OAFerror:ETHer" "EC:OAFerror:ETHer" ＆ < " 123456" Error Form1 > :CALCulate:DATA? "EC:UNDersize:ETHer" Undersize "EC:UNDersize:ETHer"...
Page 805 11.4 Result Screen Commands Response Item <result> Example use format Form23 > :CALCulate:DATA? "ASEConds:SYNC:ETHer" Sync. "ASEConds:SYNC:ETHer" < " 99999999999" > :CALCulate:DATA? "EC:BIT:ETHer" Form1 "EC:BIT:ETHer" < " 17773" Bit Error > :CALCulate:DATA? "ER:BIT:ETHer" Form2 "ER:BIT:ETHer" < " 1.5E-06" 11-669...
Page 806 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Measurement Result Query (Ethernet:Count) (24/25) Response Item <result> Example use format "EC:FRAMe:TRANsmitted: Form24 >:CALCulate:DATA? "EC:FRAMe:TRANsmitted:ETHer" Frame ETHer" < " 12345678901234567" "EC:BYTE:TRANsmitted:E Form24 >:CALCulate:DATA? "EC:BYTE:TRANsmitted:ETHer" Byte THer" < " 4294967295" Form24 >:CALCulate:DATA? Test "EC:TFRame:TRANsmitted "EC:TFRame:TRANsmitted:ETHer" Frame :ETHer"...
Page 807 11.4 Result Screen Commands Measurement Result Query (Ethernet:Rate) (25/25) Response Item <result> Example use format Form25 >:CALCulate:DATA? Frame "FPS:FRAMe:TRANsmitted "FPS:FRAMe:TRANsmitted:ETHer" (fps) :ETHer" < "67108863" "PER:BIT:TRANsmitted:ET Form21 >:CALCulate:DATA? "PER:BIT:TRANsmitted:ETHer" Bit(%) Her" < "105.10" "BPS:BIT:TRANsmitted:ET Form26 >:CALCulate:DATA? "BPS:BIT:TRANsmitted:ETHer" Bit(bit/s) Her" < " 53687"...
Page 808 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.2 Error Alarm Sub-screen 11.4.2.1 Common commands Setting Command Display mode :DISPlay:RESult:EALarm:DISPmode Measurement result :CALCulate:HISTory? 11-672...
Page 809 11.4 Result Screen Commands :DISPlay:RESult:EALarm:DISPmode <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> OTU2 OTU2 OTU1 OTU1 OTU2E OTU2e OTU1E OTU1e (SDH) SONET (SONET) SONET TC/Sig (SDH) (SONET) * Parameter without (SDH) or (SONET) are common to SDH and SONET. •...
Page 810 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:HISTory? <string> ∇ Parameter <string> = <STRING PROGRAM DATA> "CURRent" Current measurement result "LAST" Last measurement result • Response <string> = <STRING RESPONSE DATA> "Unacceptable" Error/Alarm occur " Acceptable" Error/Alarm do not occur "------------" Invalid •...
Page 811 11.4 Result Screen Commands 11.4.2.2 OTU2/OTU1 screen Fig. 11.4.2.2-1 Result:Error/Alarm:<OTU2/OTU1> screen <Command=:CALCulate:DATA?> Read out Command P-fail :CALCulate:DATA? "[CURRent:]ASEConds:POWer" :CALCulate:DATA? "LAST:ASEConds:POWer" :CALCulate:DATA? "[CURRent:]ASEConds:LOS" :CALCulate:DATA? "LAST:ASEConds:LOS" Sync. :CALCulate:DATA? "[CURRent:]ASEConds:PATTern" :CALCulate:DATA? "LAST:ASEConds:PATTern" :CALCulate:DATA? "[CURRent:]EC:BIT" :CALCulate:DATA? "LAST:EC:BIT" :CALCulate:DATA? "[CURRent:]ER:BIT" :CALCulate:DATA? "LAST:ER:BIT" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” 11-675...
Page 812 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command=:CALCulate:DATA?> • OTU item Read out Command OTU-LOF :CALCulate:DATA? "[CURRent:]ASEConds:LOF:OTU:OTU" :CALCulate:DATA? "LAST:ASEConds:LOF:OTU:OTU" OTU-OOF :CALCulate:DATA? "[CURRent:]ASEConds:OOF:OTU:OTU" :CALCulate:DATA? "LAST:ASEConds:OOF:OTU:OTU" :CALCulate:DATA? "[CURRent:]AFRame:OOF:OTU:OTU" :CALCulate:DATA? "LAST:AFRame:OOF:OTU:OTU" OTU-LOM :CALCulate:DATA? "[CURRent:]ASEConds:LOM:OTU:OTU" :CALCulate:DATA? "LAST:ASEConds:LOM:OTU:OTU" :CALCulate:DATA? "[CURRent:]AFRame:LOM:OTU:OTU" :CALCulate:DATA? "LAST:AFRame:LOM:OTU:OTU" OTU-OOM :CALCulate:DATA? "[CURRent:]ASEConds:OOM:OTU:OTU" :CALCulate:DATA? "LAST:ASEConds:OOM:OTU:OTU" :CALCulate:DATA? "[CURRent:]AFRame:OOM:OTU:OTU"...
Page 813 11.4 Result Screen Commands Read out Command OTN-Frame :CALCulate:DATA? "[CURRent:]EC:FRAMe:OTU:OTU" :CALCulate:DATA? "LAST:EC:FRAMe:OTU:OTU" OTN-Correct :CALCulate:DATA? "[CURRent:]EC:CORR:OTU:OTU" :CALCulate:DATA? "LAST:EC:CORR:OTU" OTN-Uncorrect :CALCulate:DATA? "[CURRent:]EC:UNCO:OTU:OTU" :CALCulate:DATA? "LAST:EC:UNCO:OTU:OTU" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” 11-677...
Page 814 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command=:CALCulate:DATA?> • ODU item Read out Command ODU-AIS :CALCulate:DATA? "[CURRent:]ASEConds:AIS:ODU:OTU" :CALCulate:DATA? "LAST:ASEConds:AIS:ODU:OTU" :CALCulate:DATA? "[CURRent:]AFRame:AIS:ODU:OTU" :CALCulate:DATA? "LAST:AFRame:AIS:ODU:OTU" ODU-OCI :CALCulate:DATA? "[CURRent:]ASEConds:OCI:ODU:OTU" :CALCulate:DATA? "LAST:ASEConds:OCI:ODU:OTU" :CALCulate:DATA? "[CURRent:]AFRame:OCI:ODU:OTU" :CALCulate:DATA? "LAST:AFRame:OCI:ODU:OTU" ODU-LCK :CALCulate:DATA? "[CURRent:]ASEConds:LCK:ODU:OTU" :CALCulate:DATA? "LAST:ASEConds:LCK:ODU:OTU" :CALCulate:DATA? "[CURRent:]AFRame:LCK:ODU:OTU" :CALCulate:DATA? "LAST:AFRame:LCK:ODU:OTU" ODU-PLM :CALCulate:DATA? "[CURRent:]ASEConds:PLM:ODU:OTU"...
Page 815 11.4 Result Screen Commands <Command=:CALCulate:DATA?> • TCM1 item Read out Command TCM1-TIM :CALCulate:DATA? "[CURRent:]ASEConds:TIM:TCM1:OTU:" :CALCulate:DATA? "LAST:ASEConds:TIM:TCM1:OTU" :CALCulate:DATA? "[CURRent:]AFRame:TIM:TIM1:OTU" :CALCulate:DATA? "LAST:AFRame:TIM:TCM1:OTU" TCM1-BIAE :CALCulate:DATA? "[CURRent:]ASEConds:BIAE:TCM1:OTU" :CALCulate:DATA? "LAST:ASEConds:BIAE:TCM1:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BIAE:TCM1:OTU" :CALCulate:DATA? "LAST:AFRame:BIAE:TCM1:OTU" TCM1-BDI :CALCulate:DATA? "[CURRent:]ASEConds:BDI:TCM1:OTU" :CALCulate:DATA? "LAST:ASEConds:BDI:TCM1:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BDI:TCM1:OTU" :CALCulate:DATA? "LAST:AFRame:BDI:TCM1:OTU" TCM1-IAE :CALCulate:DATA? "[CURRent:]ASEConds:IAE:TCM1:OTU" :CALCulate:DATA? "LAST:ASEConds:IAE:TCM1:OTU"...
Page 816 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command=:CALCulate:DATA?> • TCM2 item Read out Command TCM2-TIM :CALCulate:DATA? "[CURRent:]ASEConds:TIM:TCM2:OTU:" :CALCulate:DATA? "LAST:ASEConds:TIM:TCM2:OTU" :CALCulate:DATA? "[CURRent:]AFRame:TIM:TIM1:OTU" :CALCulate:DATA? "LAST:AFRame:TIM:TCM2:OTU" TCM2-BIAE :CALCulate:DATA? "[CURRent:]ASEConds:BIAE:TCM2:OTU" :CALCulate:DATA? "LAST:ASEConds:BIAE:TCM2:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BIAE:TCM2:OTU" :CALCulate:DATA? "LAST:AFRame:BIAE:TCM2:OTU" TCM2-BDI :CALCulate:DATA? "[CURRent:]ASEConds:BDI:TCM2:OTU" :CALCulate:DATA? "LAST:ASEConds:BDI:TCM2:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BDI:TCM2:OTU" :CALCulate:DATA? "LAST:AFRame:BDI:TCM2:OTU" TCM2-IAE :CALCulate:DATA? "[CURRent:]ASEConds:IAE:TCM2:OTU"...
Page 817 11.4 Result Screen Commands <Command=:CALCulate:DATA?> • TCM3 item Read out Command TCM3-TIM :CALCulate:DATA? "[CURRent:]ASEConds:TIM:TCM3:OTU:" :CALCulate:DATA? "LAST:ASEConds:TIM:TCM3:OTU" :CALCulate:DATA? "[CURRent:]AFRame:TIM:TIM1:OTU" :CALCulate:DATA? "LAST:AFRame:TIM:TCM3:OTU" TCM3-BIAE :CALCulate:DATA? "[CURRent:]ASEConds:BIAE:TCM3:OTU" :CALCulate:DATA? "LAST:ASEConds:BIAE:TCM3:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BIAE:TCM3:OTU" :CALCulate:DATA? "LAST:AFRame:BIAE:TCM3:OTU" TCM3-BDI :CALCulate:DATA? "[CURRent:]ASEConds:BDI:TCM3:OTU" :CALCulate:DATA? "LAST:ASEConds:BDI:TCM3:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BDI:TCM3:OTU" :CALCulate:DATA? "LAST:AFRame:BDI:TCM3:OTU" TCM3-IAE :CALCulate:DATA? "[CURRent:]ASEConds:IAE:TCM3:OTU" :CALCulate:DATA? "LAST:ASEConds:IAE:TCM3:OTU"...
Page 818 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command=:CALCulate:DATA?> • TCM4 item Read out Command TCM4-TIM :CALCulate:DATA? "[CURRent:]ASEConds:TIM:TCM4:OTU:" :CALCulate:DATA? "LAST:ASEConds:TIM:TCM4:OTU" :CALCulate:DATA? "[CURRent:]AFRame:TIM:TIM1:OTU" :CALCulate:DATA? "LAST:AFRame:TIM:TCM4:OTU" TCM4-BIAE :CALCulate:DATA? "[CURRent:]ASEConds:BIAE:TCM4:OTU" :CALCulate:DATA? "LAST:ASEConds:BIAE:TCM4:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BIAE:TCM4:OTU" :CALCulate:DATA? "LAST:AFRame:BIAE:TCM4:OTU" TCM4-BDI :CALCulate:DATA? "[CURRent:]ASEConds:BDI:TCM4:OTU" :CALCulate:DATA? "LAST:ASEConds:BDI:TCM4:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BDI:TCM4:OTU" :CALCulate:DATA? "LAST:AFRame:BDI:TCM4:OTU" TCM4-IAE :CALCulate:DATA? "[CURRent:]ASEConds:IAE:TCM4:OTU"...
Page 819 11.4 Result Screen Commands <Command=:CALCulate:DATA?> • TCM5 item Read out Command TCM5-TIM :CALCulate:DATA? "[CURRent:]ASEConds:TIM:TCM5:OTU:" :CALCulate:DATA? "LAST:ASEConds:TIM:TCM5:OTU" :CALCulate:DATA? "[CURRent:]AFRame:TIM:TIM1:OTU" :CALCulate:DATA? "LAST:AFRame:TIM:TCM5:OTU" TCM5-BIAE :CALCulate:DATA? "[CURRent:]ASEConds:BIAE:TCM5:OTU" :CALCulate:DATA? "LAST:ASEConds:BIAE:TCM5:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BIAE:TCM5:OTU" :CALCulate:DATA? "LAST:AFRame:BIAE:TCM5:OTU" TCM5-BDI :CALCulate:DATA? "[CURRent:]ASEConds:BDI:TCM5:OTU" :CALCulate:DATA? "LAST:ASEConds:BDI:TCM5:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BDI:TCM5:OTU" :CALCulate:DATA? "LAST:AFRame:BDI:TCM5:OTU" TCM5-IAE :CALCulate:DATA? "[CURRent:]ASEConds:IAE:TCM5:OTU" :CALCulate:DATA? "LAST:ASEConds:IAE:TCM5:OTU"...
Page 820 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command=:CALCulate:DATA?> • TCM6 item Read out Command TCM6-TIM :CALCulate:DATA? "[CURRent:]ASEConds:TIM:TCM6:OTU:" :CALCulate:DATA? "LAST:ASEConds:TIM:TCM6:OTU" :CALCulate:DATA? "[CURRent:]AFRame:TIM:TIM1:OTU" :CALCulate:DATA? "LAST:AFRame:TIM:TCM6:OTU" TCM6-BIAE :CALCulate:DATA? "[CURRent:]ASEConds:BIAE:TCM6:OTU" :CALCulate:DATA? "LAST:ASEConds:BIAE:TCM6:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BIAE:TCM6:OTU" :CALCulate:DATA? "LAST:AFRame:BIAE:TCM6:OTU" TCM6-BDI :CALCulate:DATA? "[CURRent:]ASEConds:BDI:TCM6:OTU" :CALCulate:DATA? "LAST:ASEConds:BDI:TCM6:OTU" :CALCulate:DATA? "[CURRent:]AFRame:BDI:TCM6:OTU" :CALCulate:DATA? "LAST:AFRame:BDI:TCM6:OTU" TCM6-IAE :CALCulate:DATA? "[CURRent:]ASEConds:IAE:TCM6:OTU"...
Page 821 11.4 Result Screen Commands <Command=:CALCulate:DATA?> • OH item Read out Parameter OH-Sync. :CALCulate:DATA? "[CURRent:]ASEConds:SYNCOH:OTU" :CALCulate:DATA? "LAST:ASEConds:SYNCOH:OTU" :CALCulate:DATA? "[CURRent:]AFRame:SYNCOH:OTU" :CALCulate:DATA? "LAST:AFRame:SYNCOH:OTU" OH-Bit :CALCulate:DATA? "[CURRent:]EC:OHBIT:OTU" :CALCulate:DATA? "LAST:EC:OHBIT:OTU" :CALCulate:DATA? "[CURRent:]ER:OHBIT:OTU" :CALCulate:DATA? "LAST:ER:OHBIT:OTU" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” Setting Command Display mode...
Page 822 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:RESult:EALarm:OTU:DISPmode <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> TCM12 TCM1/TCM2 TCM34 TCM3/TCM4 TCM56 TCM5/TCM6 • Function Changes the measurement result display related to the Error/Alarm (OTU) screen. • Example use To display measurement result to OTU: >...
Page 823 11.4 Result Screen Commands 11.4.2.3 SDH (SONET) screen Fig. 11.4.2.3-1 Result:Error/Alarm:<SDH/SONET> screen (For SDH) <Command=:CALCulate:DATA?> • Section item Read out Command G-AIS :CALCulate:DATA? "[CURRent:]ASEConds:GAIS" :CALCulate:DATA? "LAST:ASEConds:GAIS" :CALCulate:DATA? "[CURRent:]ASEConds:LOF" :CALCulate:DATA? "LAST:ASEConds:LOF" :CALCulate:DATA? "[CURRent:]ASEConds:OOF" :CALCulate:DATA? "LAST:ASEConds:OOF" :CALCulate:DATA? "[CURRent:]AFRame:OOF" :CALCulate:DATA? "LAST:AFRame:OOF" MS-AIS :CALCulate:DATA? "[CURRent:]ASEConds:AIS:MS" (SDH) :CALCulate:DATA? "LAST:ASEConds:AIS:MS"...
Page 824 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Read out Command MS-RDI :CALCulate:DATA? "[CURRent:]ASEConds:RDI:MS" (SDH) :CALCulate:DATA? "LAST:ASEConds:RDI:MS" (SDH) :CALCulate:DATA? "[CURRent:]AFRame:RDI:MS" (SDH) :CALCulate:DATA? "LAST:AFRame:RDI:MS" (SDH) :CALCulate:DATA? "[CURRent:]ASEConds:RDI:L" (SONET) :CALCulate:DATA? "LAST:ASEConds:RDI:L" (SONET) :CALCulate:DATA? "[CURRent:]AFRame:RDI:L" (SONET) :CALCulate:DATA? "LAST:AFRame:RDI:L" (SONET) RS-TIM :CALCulate:DATA? "[CURRent:]ASEConds:TIM:RS" :CALCulate:DATA? "LAST:ASEConds:TIM:RS" :CALCulate:DATA? "[CURRent:]AFRame:TIM:RS" :CALCulate:DATA? "LAST:AFRame:TIM:RS"...
Page 825 11.4 Result Screen Commands <Command=:CALCulate:DATA?> • HP(AU) item Read out Command AU-AIS :CALCulate:DATA? "[CURRent:]ASEConds:AIS:AU" (SDH) :CALCulate:DATA? "LAST:ASEConds:AIS:AU" (SDH) :CALCulate:DATA? "[CURRent:]AFRame:AIS:AU" (SDH) :CALCulate:DATA? "LAST:AFRame:AIS:AU" (SDH) :CALCulate:DATA? "[CURRent:]ASEConds:AIS:P" (SONET) :CALCulate:DATA? "LAST:ASEConds:AIS:P" (SONET) :CALCulate:DATA? "[CURRent:]AFRame:AIS:P" (SONET) :CALCulate:DATA? "LAST:AFRame:AIS:P" (SONET) AU-LOP :CALCulate:DATA? "[CURRent:]ASEConds:LOP:AU" (SDH) :CALCulate:DATA? "LAST:ASEConds:LOP:AU"...
Page 826 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Read out Command HP-E-RDIC :CALCulate:DATA? "[CURRent:]ASEConds:ERDIC:HP" (SDH) :CALCulate:DATA? "LAST:ASEConds:ERDIC:HP" (SDH) :CALCulate:DATA? "[CURRent:]AFRame:ERDIC:HP" (SDH) :CALCulate:DATA? "LAST:AFRame:ERDIC:HP" (SDH) :CALCulate:DATA? "[CURRent:]ASEConds:ERDIC:P" (SONET) :CALCulate:DATA? "LAST:ASEConds:ERDIC:P" (SONET) :CALCulate:DATA? "[CURRent:]AFRame:ERDIC:P" (SONET) :CALCulate:DATA? "LAST:AFRame:ERDIC:P" (SONET) * For details of the :CALCulate:DATA? command, see “Result screen common commands.” 11-690...
Page 827 11.4 Result Screen Commands Read out Command HP-TIM :CALCulate:DATA? "[CURRent:]ASEConds:TIM:HP" (SDH) :CALCulate:DATA? "LAST:ASEConds:TIM:HP" (SDH) :CALCulate:DATA? "[CURRent:]AFRame:TIM:HP" (SDH) :CALCulate:DATA? "LAST:AFRame:TIM:HP" (SDH) :CALCulate:DATA? "[CURRent:]ASEConds:TIM:P" (SONET) :CALCulate:DATA? "LAST:ASEConds:TIM:P" (SONET) :CALCulate:DATA? "[CURRent:]AFRame:TIM:P" (SONET) :CALCulate:DATA? "LAST:AFRame:TIM:P" (SONET) HP-UNEQ :CALCulate:DATA? "[CURRent:]ASEConds:UNEQ:HP" (SDH) :CALCulate:DATA? "LAST:ASEConds:UNEQ:HP" (SDH) :CALCulate:DATA? "[CURRent:]AFRame:UNEQ:HP" (SDH) :CALCulate:DATA? "LAST:AFRame:UNEQ:HP"...
Page 828 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command=:CALCulate:DATA?> • LP(TU) item Read out Parameter TU-AIS :CALCulate:DATA? "[CURRent:]ASEConds:AIS:TU" (SDH) :CALCulate:DATA? "LAST:ASEConds:AIS:TU" (SDH) :CALCulate:DATA? "[CURRent:]AFRame:AIS:TU" (SDH) :CALCulate:DATA? "LAST:AFRame:AIS:TU" (SDH) :CALCulate:DATA? "[CURRent:]ASEConds:AIS:V" (SONET) :CALCulate:DATA? "LAST:ASEConds:AIS:V" (SONET) :CALCulate:DATA? "[CURRent:]AFRame:AIS:V" (SONET) :CALCulate:DATA? "LAST:AFRame:AIS:V" (SONET) TU-LOP :CALCulate:DATA? "[CURRent:]ASEConds:LOP:TU" (SDH) :CALCulate:DATA? "LAST:ASEConds:LOP:TU"...
Page 829 11.4 Result Screen Commands Read out Parameter :CALCulate:DATA? "LAST:AFRame:ERDIC:LP" (SDH) :CALCulate:DATA? "[CURRent:]ASEConds:ERDIC:V" (SONET) :CALCulate:DATA? "LAST:ASEConds:ERDIC:V" (SONET) :CALCulate:DATA?" [CURRent:]AFRame:ERDIC:V" (SONET) :CALCulate:DATA? "LAST:AFRame:ERDIC:V" (SONET) LP-RFI :CALCulate:DATA? "[CURRent:]ASEConds:RFI:LP" (SDH) :CALCulate:DATA? "LAST:ASEConds:RFI:LP" (SDH) :CALCulate:DATA? "[CURRent:]AFRame:RFI:LP" (SDH) :CALCulate:DATA? "LAST:AFRame:RFI:LP" (SDH) :CALCulate:DATA? "[CURRent:]ASEConds:RFI:V" (SONET) :CALCulate:DATA? "LAST:ASEConds:RFI:V" (SONET) :CALCulate:DATA? "[CURRent:]AFRame:RFI:V"...
Page 830 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Read out Command LP-SLM :CALCulate:DATA? "[CURRent:]ASEConds:SLM:LP" (SDH) :CALCulate:DATA? "LAST:ASEConds:SLM:LP" (SDH) :CALCulate:DATA? "[CURRent:]AFRame:SLM:LP" (SDH) :CALCulate:DATA? "LAST:AFRame:SLM:LP" (SDH) :CALCulate:DATA? "[CURRent:]ASEConds:PLM:V" (SONET) :CALCulate:DATA? "LAST:ASEConds:PLM:V" (SONET) :CALCulate:DATA? "[CURRent:]AFRame:PLM:V" (SONET) :CALCulate:DATA? "LAST:AFRame:PLM:V" (SONET) LP-B3 :CALCulate:DATA? "[CURRent:]EC:B3:LP" :CALCulate:DATA? "LAST:EC:B3:LP" :CALCulate:DATA? "[CURRent:]ER:B3:LP" :CALCulate:DATA? "LAST:ER:B3:LP"...
Page 831 11.4 Result Screen Commands <Command=:CALCulate:DATA?> • OH item Read out Command OH-Sync. :CALCulate:DATA? "[CURRent:]ASEConds:SYNCOH" :CALCulate:DATA? "LAST:ASEConds:SYNCOH" :CALCulate:DATA? "[CURRent:]AFRame:SYNCOH" :CALCulate:DATA? "LAST:AFRame:SYNCOH" OH-Bit :CALCulate:DATA? "[CURRent:]EC:OHBIT" :CALCulate:DATA? "LAST:EC:OHBIT" :CALCulate:DATA? "[CURRent:]ER:OHBIT" :CALCulate:DATA? "LAST:ER:OHBIT" :CALCulate:DATA? "[CURRent:]ER:OHBIT" :CALCulate:DATA? "LAST:ER:OHBIT" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” Setting Command Display mode...
Page 832 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :DISPlay:RESult:EALarm:SDH:DISPmode <mode> (SONET) :DISPlay:RESult:EALarm:SONet:DISPmode <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> SECTion Section HP (SDH) STS-path (SONET) LP (SDH) VT-path (SONET) • Function Changes measurement result display related to Error/Alarm(SDH/SONET) screen. • Example use To display measurement result to HP: >...
Page 833 11.4 Result Screen Commands 11.4.2.4 TC/Sig. screen Fig. 11.4.2.4-1 Result:Error/Alarm:<TC/Sig> screen 11-697...
Page 834 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command=:CALCulate:DATA?> • TCOH(HP) item Read out Command TCOH(HP)-VC-AIS :CALCulate:DATA? "[CURRent:]ASEConds:VAIS:HP" :CALCulate:DATA? "LAST:ASEConds:VAIS:HP" :CALCulate:DATA? "[CURRent:]AFRame:VAIS:HP" :CALCulate:DATA? "LAST:AFRame:VAIS:HP" HP-LTC :CALCulate:DATA? "[CURRent:]ASEConds:LTC:HP" :CALCulate:DATA? "LAST:ASEConds:LTC:HP" :CALCulate:DATA? "[CURRent:]AFRame:LTC:HP" :CALCulate:DATA? "LAST:AFRame:LTC:HP" HP-IncAIS :CALCulate:DATA? "[CURRent:]ASEConds:IAIS:HP" :CALCulate:DATA? "LAST:ASEConds:IAIS:HP" :CALCulate:DATA? "[CURRent:]AFRame:IAIS:HP" :CALCulate:DATA? "LAST:AFRame:IAIS:HP" HP-TC-RDI :CALCulate:DATA? "[CURRent:]ASEConds:TRDI:HP"...
Page 835 11.4 Result Screen Commands <Command=:CALCulate:DATA?> • TCOH(LP) item Read out Command LP-VC-AIS :CALCulate:DATA? "[CURRent:]ASEConds:VAIS:LP" :CALCulate:DATA? "LAST:ASEConds:VAIS:LP" :CALCulate:DATA? "[CURRent:]AFRame:VAIS:LP" :CALCulate:DATA? "LAST:AFRame:VAIS:LP" LP-LTC :CALCulate:DATA? "[CURRent:]ASEConds:LTC:LP" :CALCulate:DATA? "LAST:ASEConds:LTC:LP" :CALCulate:DATA? "[CURRent:]AFRame:LTC:LP" :CALCulate:DATA? "LAST:AFRame:LTC:LP" LP-IncAIS :CALCulate:DATA? "[CURRent:]ASEConds:IAIS:LP" :CALCulate:DATA? "LAST:ASEConds:IAIS:LP" :CALCulate:DATA? "[CURRent:]AFRame:IAIS:LP" :CALCulate:DATA? "LAST:AFRame:IAIS:LP" LP-TC-RDI :CALCulate:DATA? "[CURRent:]ASEConds:TRDI:LP" :CALCulate:DATA? "LAST:ASEConds:TRDI:LP"...
Page 836 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Read out Command :CALCulate:DATA? "LAST:ER:N2BIP2" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” Setting Command Display mode :DISPlay:RESult:EALarm:TCSig:DISPmode 11-700...
Page 837 11.4 Result Screen Commands :DISPlay:RESult:EALarm:TCSig:DISPmode <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> TCHP TCOH(HP) TCLP TCOH(LP) • Function Changes the measurement result display related to the Error/Alarm (TC/Sig.) screen. • Example use To display measurement result to TCOH(HP): > :DISPlay:RESult:EALarm:TCSig:DISPmode TCHP :DISPlay:RESult:EALarm:TCSig:DISPmode? ∇...
Page 838 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.2.5 PDH(DSn) screen Fig. 11.4.2.5-1 Result:Error/Alarm:<PDH/DSn> screen (For SONET) <Command=:CALCulate:DATA?> • Input item Read out Command Code :CALCulate:DATA? "[CURRent:]EC:CODE" :CALCulate:DATA? "LAST:EC:CODE" :CALCulate:DATA? "[CURRent:]ER:CODE" :CALCulate:DATA? "LAST:ER:CODE" :CALCulate:DATA? "[CURRent:]EC:EXZ" :CALCulate:DATA? "LAST:EC:EXZ" :CALCulate:DATA? "[CURRent:]ER:EXZ" :CALCulate:DATA? "LAST:ER:EXZ" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” 11-702...
Page 839 11.4 Result Screen Commands <Command=:CALCulate:DATA?> • PDH item Read out Command AIS-139M :CALCulate:DATA? "[CURRent:]ASEConds:AIS:M139" :CALCulate:DATA? "LAST:ASEConds:AIS:M139" :CALCulate:DATA? "[CURRent:]AFRame:AIS:M139" :CALCulate:DATA? "LAST:AFRame:AIS:M139" AIS-45M :CALCulate:DATA? "[CURRent:]ASEConds:AIS:M45" :CALCulate:DATA? "LAST:ASEConds:AIS:M45" :CALCulate:DATA? "[CURRent:]AFRame:AIS:M45" :CALCulate:DATA? "LAST:AFRame:AIS:M45" AIS-34M :CALCulate:DATA? "[CURRent:]ASEConds:AIS:M34" :CALCulate:DATA? "LAST:ASEConds:AIS:M34" :CALCulate:DATA? "[CURRent:]AFRame:AIS:M34" :CALCulate:DATA? "LAST:AFRame:AIS:M34" AIS-8M :CALCulate:DATA? "[CURRent:]ASEConds:AIS:M8" :CALCulate:DATA? "LAST:ASEConds:AIS:M8"...
Page 840 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Read out Command RDI-45M :CALCulate:DATA? "[CURRent:]ASEConds:RDI:M45" :CALCulate:DATA? "LAST:ASEConds:RDI:M45" :CALCulate:DATA? "[CURRent:]AFRame:RDI:M45" :CALCulate:DATA? "LAST:AFRame:RDI:M45" RDI-34M :CALCulate:DATA? "[CURRent:]ASEConds:RDI:M34" :CALCulate:DATA? "LAST:ASEConds:RDI:M34" :CALCulate:DATA? "[CURRent:]AFRame:RDI:M34" :CALCulate:DATA? "LAST:AFRame:RDI:M34" RDI-8M :CALCulate:DATA? "[CURRent:]ASEConds:RDI:M8" :CALCulate:DATA? "LAST:ASEConds:RDI:M8" :CALCulate:DATA? "[CURRent:]AFRame:RDI:M8" :CALCulate:DATA? "LAST:AFRame:RDI:M8" RDI-2M :CALCulate:DATA? "[CURRent:]ASEConds:RDI:M2" :CALCulate:DATA? "LAST:ASEConds:RDI:M2" :CALCulate:DATA? "[CURRent:]AFRame:RDI:M2"...
Page 841 11.4 Result Screen Commands Read out Command FAS-8M :CALCulate:DATA? "[CURRent:]EC:FRAMe:M8" :CALCulate:DATA? "LAST:EC:FRAMe:M8" :CALCulate:DATA? "[CURRent:]ER:FRAMe:M8" :CALCulate:DATA? "LAST:ER:FRAMe:M8" FAS-2M :CALCulate:DATA? "[CURRent:]EC:FRAMe:M2" :CALCulate:DATA? "LAST:EC:FRAMe:M2" :CALCulate:DATA? "[CURRent:]ER:FRAMe:M2" :CALCulate:DATA? "LAST:ER:FRAMe:M2" FAS-1.5M :CALCulate:DATA? "[CURRent:]EC:FRAMe:M1_5" :CALCulate:DATA? "LAST:EC:FRAMe:M1_5" :CALCulate:DATA? "[CURRent:]ER:FRAMe:M1_5" :CALCulate:DATA? "LAST:ER:FRAMe:M1_5" REI-45M :CALCulate:DATA? "[CURRent:]EC:REI:M45" :CALCulate:DATA? "LAST:EC:REI:M45" :CALCulate:DATA? "[CURRent:]ER:REI:M45" :CALCulate:DATA? "LAST:ER:REI:M45"...
Page 842 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :DISPlay:RESult:EALarm:PDH:DISPmode <mode> (SONET) :DISPlay:RESult:EALarm:DSN:DISPmode <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> INPut Input PDH (SDH) DSn (SONET) • Function Changes the measurement result display related to the Error/Alarm (PDH/DSn) screen. • Example use To display measurement result to Input: >...
Page 843 11.4 Result Screen Commands 11.4.2.6 BIP screen Fig. 11.4.2.6-1 Result:Error/Alarm:<BIP> screen Setting Command OTN BIP8 Select :DISPlay:RESult:EALarm:B8Select B2 # :DISPlay:RESult:EALarm:B2POsition • Measurement result obtain command Read item Command BIP error measurement :CALCulate:EALarm:DATA? result 11-707...
Page 844 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:RESult:EALarm:B8Select <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> OTU2 OTU2 OTU1 OTU1 OTU2E OTU2e OTU1E OTU1e • Function Sets position of BIP8 error bit displaying OTN BIP-8 result • Example use To set position of BIP8 error bit to OTU2: >...
Page 845 11.4 Result Screen Commands :DISPlay:RESult:EALarm:B2POsition <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step: 1 • Function Sets B2 monitor position of Result:Error/Alarm (BIP) screen. • Example use To set B2 monitor position to 4: > :DISPlay:RESult:EALarm:B2POsition 4 :DISPlay:RESult:EALarm:B2POsition? ∇...
Page 846 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:EALarm:DATA? <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> OTU*_SMB8 OTU* SM-BIP8 OTU*_PMB8 OTU* PM-BIP8 OTU*_T1B8 OTU* TCM1-BIP8 OTU*_T2B8 OTU* TCM2-BIP8 OTU*_T3B8 OTU* TCM3-BIP8 OTU*_T4B8 OTU* TCM4-BIP8 OTU*_T5B8 OTU* TCM5-BIP8 OTU*_T6B8 OTU* TCM6-BIP8 HP-B3 LP-B3 BIP2 BIP-2...
Page 847 11.4 Result Screen Commands 11.4.3 Justification Sub-screen Fig. 11.4.3-1 Result:Justification:<Justification> screen 11-711...
Page 848 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command = :CALCulate:DATA?> • Count item Read out Command :CALCulate:DATA? "[CURRent:]JC:PJC:OPU" :CALCulate:DATA? "LAST:JC:PJC:OPU" :CALCulate:DATA? "[CURRent:]JC:NJC:OPU" :CALCulate:DATA? "LAST:JC:NJC:OPU" AU/STS :CALCulate:DATA? "[CURRent:]JC:NDF:AU" (SDH) :CALCulate:DATA? "JC:NDF:AU" (SDH) :CALCulate:DATA? "[CURRent:]JC:NDF:P" (SONET) :CALCulate:DATA? "LAST:JC:NDF:P" (SONET) +PJC :CALCulate:DATA? "[CURRent:]JC:PPJC:AU" (SDH) :CALCulate:DATA? "LAST:JC:PPJC:AU"...
Page 849 11.4 Result Screen Commands • Rate item Read out Command :CALCulate:DATA? "[CURRent:]JR:PJC:OPU" :CALCulate:DATA? "LAST:JR:PJC:OPU" :CALCulate:DATA? "[CURRent:]JR:NJC:OPU" :CALCulate:DATA? "LAST:JR:NJC:OPU" AU/STS :CALCulate:DATA? "[CURRent:]JR:NDF:AU" (SDH) :CALCulate:DATA? "LAST:JR:NDF:AU" (SDH) :CALCulate:DATA? "[CURRent:]JR:NDF:P" (SONET) :CALCulate:DATA? "LAST:JR:NDF:P" (SONET) +PJC :CALCulate:DATA? "[CURRent:]JR:PPJC:AU" (SDH) :CALCulate:DATA? "LAST:JR:PPJC:AU" (SDH) :CALCulate:DATA? "[CURRent:]JR:PPJC:P" (SONET) :CALCulate:DATA? "LAST:JR:PPJC:P"...
Page 850 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands • Offset item Read out Command :CALCulate:DATA? "[CURRent:]JO:OPU" :CALCulate:DATA? "LAST:JO:OPU" AU/STS :CALCulate:DATA? "[CURRent:]JO:AU" (SDH) :CALCulate:DATA? "LAST:JO:AU" (SDH) :CALCulate:DATA? "[CURRent:]JO:P" (SONET) :CALCulate:DATA? "LAST:JO:P" (SONET) TU /VT :CALCulate:DATA? "[CURRent:]JO:TU" (SDH) :CALCulate:DATA? "LAST:JO:TU" (SDH) :CALCulate:DATA? "[CURRent:]JO:V" (SONET) :CALCulate:DATA? "LAST:JO:V"...
Page 851 11.4 Result Screen Commands 11.4.4 Performance (Series G) Sub-screen 11.4.4.1 Common performance (Series G) sub-screen commands Setting Command Display select :DISPlay:RESult:PERFormance:SG:DISPmode Frame (for PDH) :CALCulate:TELecom:PERFormance:FRAMe 11-715...
Page 852 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:RESult:PERFormance:SG:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> G821 G.821 G826 G.826 G828 G.828 G829 G.829 • Function Selects result display screen of performance measurement Series G. • Example use To set Select result display screen of performance measurement Series G to G.828: >...
Page 853 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:FRAMe <pdhframe> ∇ Parameter <pdhframe> = <CHARACTER PROGRAM DATA> M139 139 Mbit/s frame 45 Mbit/s frame 34 Mbit/s frame 8 Mbit/s frame 2 Mbit/s frame M1_5 1.5 Mbit/s frame • Function Sets the performance measurement frame. •...
Page 854 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.4.2 Recommendation:G.821 sub-screen Fig. 11.4.4.2-1 Result:Performance(G):<G.821> screen Setting Command Threshold-Grade :CALCulate:TELecom:PERFormance:G821:THReshold:GRADe -Default :CALCulate:TELecom:PERFormance:G821:THReshold:DEFAult -ES(1) :CALCulate:TELecom:PERFormance:G821:THReshold:SET -SES(1) -ES(2) :CALCulate:TELecom:PERFormance:G821:THReshold:RATE -SES(2) 11-718...
Page 855 11.4 Result Screen Commands <Command = :CALCulate:DATA?> Read out Parameter "[CURRent:]G821:EC" "LAST:G821:EC" ES(Count) "[CURRent:]G821:ES2" "LAST:G821:ES2" ES(Rate) "[CURRent:]G821:ES" "LAST:G821:ES" ES(Annex-D) "[CURRent:]G821:ES3" "LAST:G821:ES3" EFS(Count) "[CURRent:]G821:EFS2" "LAST:G821:EFS2" EFS(Rate) "[CURRent:]G821:EFS" "LAST:G821:EFS" SES(Count) "[CURRent:]G821:SES2" "LAST:G821:SES2" SES(Rate) "[CURRent:]G821:SES" "LAST:G821:SES" US(Count) "[CURRent:]G821:US2" "LAST:G821:US2" US(Rate) "[CURRent:]G821:US" "LAST:G821:US" DM(Count) "[CURRent:]G821:DM2"...
Page 856 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:G821:THReshold:GRADe <grade> ∇ Parameter <grade> = <CHARACTER PROGRAM DATA> LOCAl Local MEDium Medium HIGH High USER User • Function Selects Grade type of performance measurement G.821. • Example use To set Grade type to Medium: >...
Page 857 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:G821:THReshold:SET <item>,<boolean> ∇ Parameter <item> = <CHARACTER PROGRAM DATA> <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Test OFF ON or 1 Test ON • Function Specifies whether to perform the test using the threshold of the G.821 per- formance measurement.
Page 858 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:G821:THReshold:RATE <item>,<numeric> ∇ Parameter <item> = <CHARACTER PROGRAM DATA> <numeric> = <NON-DECIMAL NUMERIC PROGRAM DATA> 1.2 to 8.0 Step value: 0.1 (ES) 0.015 to 0.200 Step value: 0.001 (SES) • Function Sets the threshold for the G.821 performance measurement. •...
Page 859 11.4 Result Screen Commands 11.4.4.3 Recommendation:G.826 sub-screen Fig. 11.4.4.3-1 Result:Performance(G):<G.826> screen Setting Command Path end :CALCulate:TELecom:PERFormance:G826:PATH Threshold-Default :CALCulate:TELecom:PERFormance:G826:THReshold:DEFAult -ESR(1) :CALCulate:TELecom:PERFormance:G826:THReshold:SET -SESR(1) -BBER(1) -ESR(2) :CALCulate:TELecom:PERFormance:G826:THReshold:VALue -SESR(2) -BBER(2) Display Error :DISPlay:RESult:PERFormance:G826:DERRor 11-723...
Page 860 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command = :CALCulate:DATA?> Read out Parameter "[CURRent:]G826:ES<para>" "LAST:G826:ES<para>" "[CURRent:]G826:ES<para>" "LAST:G826:ES<para>" "[CURRent:]G826:SES<para>" "LAST:G826:SES<para>" "[CURRent:]G826:ESR<para>" "LAST:G826:ESR<para>" SESR "[CURRent:]G826:SESR<para>" "LAST:G826:SESR<para>" BBER "[CURRent:]G826:BBER<para>" "LAST:G826:BBER<para>" "[CURRent:]G826:SDP<para>" "LAST:G826:SDP<para>" "[CURRent:]G826:US<para>" "LAST:G826:US<para>" Test "[CURRent:]G826:TEST<para>" "LAST:G826:TEST<para>" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” Note: Enter the following character strings to <para>...
Page 861 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:G826:PATH <path> ∇ Parameter <path> = <CHARACTER PROGRAM DATA> NEAR Near-end Far-end • Function Selects Path end type of G.826 performance measurement. • Example use To set Path end type to Near-end: > :CALCulate:TELecom:PERFormance:G826:PATH NEAR :CALCulate:TELecom:PERFormance:G826:PATH? ∇...
Page 862 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:G826:THReshold:SET <item>,<boolean> ∇ Parameter <item> = <CHARACTER PROGRAM DATA> SESR SESR BBER BBER <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Test OFF ON or 1 Test ON • Function Specifies whether to perform the test using the threshold of the G.826 per- formance measurement.
Page 863 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:G826:THReshold:VALue <item>,<numeric> ∇ Parameter <item> = <CHARACTER PROGRAM DATA> SESR SESR BBER BBER <numeric> = <STRING PROGRAM DATA> “1.0E-2” to “6.0E-1” Mantissa portion Step value: 0.1 (ESR) Exponent portion Step value: -1 “1.0E-3” to “6.0E-2” Mantissa portion Step value: 0.1 (SESR) Exponent portion Step value: -1 “1.0E-5”...
Page 864 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:RESult:PERFormance:G826:DERRor <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> PARity Parity CRC4 CRC-4 CRC6 CRC-6 HP-B3 LP-B3 BIP2 BIP2 HREI (SDH) HP-REI REIP (SONET) REI-P LREI (SDH) LP-REI REIV (SONET) REI-V • Function Selects display error item of G.826 performance measurement. •...
Page 865 11.4 Result Screen Commands 11.4.4.4 Recommendation:G.828 sub-screen Fig. 11.4.4.4-1 Result:Performance(G):<G.828> screen Setting Command Path end :CALCulate:TELecom:PERFormance:G828:PATH Threshold-Default :CALCulate:TELecom:PERFormance:G828:THReshold:DEFAult -ESR(1) :CALCulate:TELecom:PERFormance:G828:THReshold:SET -SESR(1) -BBER(1) -ESR(2) :CALCulate:TELecom:PERFormance:G828:THReshold:VALue -SESR(2) -BBER(2) Display Error :DISPlay:RESult:PERFormance:G828:DERRor 11-729...
Page 866 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command = :CALCulate:DATA?> Read out Parameter "[CURRent:]G828:ES<para>" "LAST:G828:ES<para>" "[CURRent:]G828:ES<para>" "LAST:G828:ES<para>" "[CURRent:]G828:SES<para>" "LAST:G828:SES<para>" "[CURRent:]G828:SEP<para>" "LAST:G828:SEP<para>" "[CURRent:]G828:ESR<para>" "LAST:G828:ESR<para>" SESR "[CURRent:]G828:SESR<para>" "LAST:G828:SESR<para>" BBER "[CURRent:]G828:BBER<para>" "LAST:G828:BBER<para>" SEPI "[CURRent:]G828:SEPI<para>" "LAST:G828:SEPI<para>" "[CURRent:]G828:US<para>" "LAST:G828:US<para>" Test "[CURRent:]G828:TEST<para>" "LAST:G828:TEST<para>" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” To query Sequence test result, use :CALCulate:SEQuence:DATA? Note: Enter the following character strings to <para>...
Page 867 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:G828:PATH <path> ∇ Parameter <path> = <CHARACTER PROGRAM DATA> NEAR Near-end Far-end • Function Selects Path end type of G828 performance measurement. • Example use To set Path end type to Near-end: > :CALCulate:TELecom:PERFormance:G828:PATH NEAR :CALCulate:TELecom:PERFormance:G828:PATH? ∇...
Page 868 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:G828:THReshold:SET <item>,<boolean> ∇ Parameter <item> = <CHARACTER PROGRAM DATA> SESR SESR BBER BBER <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Test OFF ON or 1 Test ON • Function Specifies whether to perform the test using the threshold of the G.828 per- formance measurement.
Page 869 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:G828:THReshold:VALue <item>,<numeric> ∇ Parameter <item> = <CHARACTER PROGRAM DATA> SESR SESR BBER BBER <numeric> = <STRING PROGRAM DATA> “1.0E-2” to “6.0E-1” Mantissa portion, Step value: 0.1 (ESR) Exponent portion, Step value: -1 “1.0E-3” to “6.0E-2” Mantissa portion, Step value: 0.1 (SESR) Exponent portion, Step value: -1 “1.0E-5”...
Page 870 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:RESult:PERFormance:G828:DERRor <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> HP-B3 LP-B3 BIP2 BIP2 HREI (SDH) HP-REI REIP (SONET) REI-P LREI (SDH) LP-REI REIV (SONET) REI-V HIEC HP-IEC HTRei HP-TC-REI LIEC LP-IEC N2Bip2 N2 BIP2 LTRei LP-TC-REI •...
Page 871 11.4 Result Screen Commands 11.4.4.5 Recommendation:G.829 sub-screen Fig. 11.4.4.5-1 Result:Performance(G):<G.829> screen Setting Command Path end :CALCulate:TELecom:PERFormance:G829:PATH SES threshold :CALCulate:TELecom:PERFormance:G829:THReshold:DEFAult -Default :CALCulate:TELecom:PERFormance:G829:THReshold:RATE -MS-REI (SDH) -REI-L (SONET) 11-735...
Page 872 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command = :CALCulate:DATA?> Read out Parameter "[CURRent:]G829:ES<para>" "LAST:G829:ES<para>" "[CURRent:]G829:ES<para>" "LAST:G829:ES<para>" "[CURRent:]G829:SES<para>" "LAST:G829:SES<para>" "[CURRent:]G829:US<para>" "LAST:G829:US<para>" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” To query Sequence test result, use :CALCulate:SEQuence:DATA? Note: Enter following character strings to <para>...
Page 873 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:G829:PATH <path> ∇ Parameter <path> = <CHARACTER PROGRAM DATA> NEAR Near-end Far-end • Function Selects Path end type of G829 performance measurement. • Example use To set Path end type to Near-end: > :CALCulate:TELecom:PERFormance:G829:PATH NEAR :CALCulate:TELecom:PERFormance:G829:PATH? ∇...
Page 874 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:G829:THReshold:RATE <item>,<numeric> ∇ Parameter <item> = <CHARACTER PROGRAM DATA> MREI (SDH) MS-REI REIL (SONET) REI-L <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 10 to 90 Step value: 1 • Function Sets threshold for G.829 performance measurement. •...
Page 875 11.4 Result Screen Commands 11.4.5 Performance (Series M) Sub-screen 11.4.5.1 Performance (Series M) sub-screen common commands Setting Command Display select :DISPlay:RESult:PERFormance:SM:DISPmode :CALCulate:TELecom:PERFormance:FRAMe Frame (For PDH) * See “Common commands” of Performance (Series G). 11-739...
Page 876 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:RESult:PERFormance:SM:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> M21002110 M.2100/M.2110 M21002120 M.2100/M.2120 M21012110 M.2101/M.2110 M21012120 M.2101/M.2120 • Function Selects result display screen of performance measurement Series M. • Example use To set result display screen of performance measurement Series M to M.2101/M.2110: >...
Page 877 11.4 Result Screen Commands 11.4.5.2 Recommendation:M.2100/M.2110 sub-screen Fig. 11.4.5.2-1 Result:Performance(M):<M.2100/M.2110> screen Setting Command BIS limits(1) :CALCulate:TELecom:PERFormance:M21002110:BLIMit:TYPE :CALCulate:TELecom:PERFormance:THReshold:M2110:TYPE BIS limits(2) :CALCulate:TELecom:PERFormance:M21002110:BLIMit:RATE :CALCulate:TELecom:PERFormance:THReshold:M2110:LIMit Default :CALCulate:TELecom:PERFormance:M21002110:BLIMit:DEFault 2-hour-ES-S1 :CALCulate:TELecom:PERFormance:M21002110:BLIMit:VALue :CALCulate:TELecom:PERFormance:THReshold:M2110:ES:H2S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:ES:H2S2 -SES-S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:SES:H2S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:SES:H2S2 24-hour-ES-S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:ES:H24S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:ES:H24S2 -SES-S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:SES:H24S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:SES:H24S2 7-day-ES-S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:ES:D7S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:ES:D7S2 -SES-S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:SES:D7S1 :CALCulate:TELecom:PERFormance:THReshold:M2110:SES:D7S2 11-741...
Page 878 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command = :CALCulate:DATA?> Read out Parameter Rx-ES "[CURRent:]M21002110:ESR" "LAST:M21002110:ESR" -SES "[CURRent:]M21002110:SESR" "LAST:M21002110:SESR" "[CURRent:]M21002110:USR" "LAST:M21002110:USR" -2-hour "[CURRent:]M21002110:HOUR2R" "LAST:M21002110:HOUR2R" -24-hour "[CURRent:]M21002110:HOUR24R" "LAST:M21002110:HOUR24R" -7-day "[CURRent:]M21002110:DAY7R" "LAST:M21002110:DAY7R" Tx-ES "[CURRent:]M21002110:EST" "LAST:M21002110:EST" -SES "[CURRent:]M21002110:SEST" "LAST:M21002110:SEST" -2-hour "[CURRent:]M21002110:HOUR2T" "LAST:M21002110:HOUR2T" -24-hour "[CURRent:]M21002110:HOUR24T" "LAST:M21002110:HOUR24T"...
Page 879 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:M21002110:BLIMit:TYPE <type> :CALCulate:TELecom:PERFormance:THReshold:M2110:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> PATH Path allocation USER User • Function Sets BIS limits of M.2100/M.2110 measurement. • Example use To set BIS limits of M.2100/M.2110 measurement to User: >...
Page 880 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:M21002110:BLIMit:RATE? :CALCulate:TELecom:PERFormance:THReshold:M2110:LIMit? ∇ Parameter None • Response <rate> = <NR2 NUMERIC RESPONSE DATA> Same as :CALCulate:TELecom:PERFormance:M21002110:BLIMit:RATE. • Function Queries coefficient setting for S1/S2 calculation of M.2100/M.2110 measurement. • Example use > :CALCulate:TELecom:PERFormance:M21002110:BLIMit:RATE? < 7.5 :CALCulate:TELecom:PERFormance:M21002110:BLIMit:DEFault ∇...
Page 881 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:M21002110:BLIMit:VALue <period>,<item>,<stype>,<numeric> ∇ Parameter <period> = <CHARACTER PROGRAM DATA> 2-hour 24-hour 7-day <item> = <CHARACTER PROGRAM DATA> <stype> = <CHARACTER PROGRAM DATA> <numeric> = <DECIMAL NUMERIC PROGRAM DATA> The range of setting depends on the <period>. However, S2 value is more than S1 value 1 to 7200 Step value: 1...
Page 882 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:THReshold:M2110:ES:H2S1 <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 7200 Step value: 1 • Function Sets 2 hour ES S1 threshold of M.2100/M.2110 measurement. • Example use Sets 2 hour ES S1 threshold of M.2100/M.2110 measurement to 500: >:CALCulate:TELecom:PERFormance:THReshold:M2110:ES:H2S1 500 :CALCulate:TELecom:PERFormance:THReshold:M2110:ES:H2S1? ∇...
Page 883 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:THReshold:M2110:SES:H2S1 <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 7200 Step value: 1 • Function Sets 2 hour SES S1 threshold of M.2100/M.2110 measurement. • Example use To set 2 hour SES S1 threshold of M.2100/M.2110 measurement to 500: >...
Page 884 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:THReshold:M2110:ES:H24S1 <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 86400 Step value: 1 • Function Sets 24 hour ES S1 threshold of M.2100/M.2110 measurement. • Example use To set 24 hour ES S1 threshold of M.2100/M.2110 measurement to 500: >...
Page 885 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:THReshold:M2110:SES:H24S1 <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 86400 Step value: 1 • Function Sets 24 hour SES S1 threshold of M.2100/M.2110 measurement. • Example use To set 24 hour SES S1 threshold of M.2100/M.2110 measurement to 500: >...
Page 886 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:THReshold:M2110:ES:D7S1 <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 604800 Step value: 1 • Function Sets 7 day ES S1 threshold of M.2100/M.2110 measurement. • Example use To set 7 day ES S1 threshold of M.2100/M.2110 measurement to 12340: >...
Page 887 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:THReshold:M2110:SES:D7S1 <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 604800 Step value: 1 • Function Sets 7 day SES S1 threshold of M.2100/M.2110 measurement. • Example use To set 7 day SES S1 threshold of M.2100/M.2110 measurement to 12340: >...
Page 888 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.5.3 Recommendation:M.2100/M.2120 sub-screen Fig. 11.4.5.3-1 Result:Performance(M):<M.2100/M.2120> screen Setting Command Threshold(1) :CALCulate:TELecom:PERFormance:M21002120:THReshold:TYPE :CALCulate:TELecom:PERFormance:THReshold:M2120:TYPe Threshold(2) :CALCulate:TELecom:PERFormance:M21002120:THReshold:RATE :CALCulate:TELecom:PERFormance:THReshold:M2120:LIMit1 Threshold(3) RPOx :CALCulate:TELecom:PERFormance:M21002120:THReshold:RATE2 :CALCulate:TELecom:PERFormance:THReshold:M2120:LIMit2 Default :CALCulate:TELecom:PERFormance:M21002120:THReshold:DEFault TR1(15-minute)-ES :CALCulate:TELecom:PERFormance:M21002120:THReshold:VALue -SES :CALCulate:TELecom:PERFormance:THReshold:M2120:ES:TR1 RTR1(15-minute)-ES :CALCulate:TELecom:PERFormance:THReshold:M2120:SES:TR1 -SES :CALCulate:TELecom:PERFormance:THReshold:M2120:ES:TR2 TR2(24-hour)-ES :CALCulate:TELecom:PERFormance:THReshold:M2120:SES:TR2 -SES Display Error :DISPlay:RESult:PERFormance:M21002120:DERRor 11-752...
Page 889 11.4 Result Screen Commands <Command = :CALCulate:DATA?> Read out Parameter Rx-ES "[CURRent:]M21002120:ESR" "LAST:M21002120:ESR" -SES "[CURRent:]M21002120:SESR" "LAST:M21002120:SESR" "[CURRent:]M21002120:USR" "LAST:M21002120:USR" -TR1-ES "[CURRent:]M21002120:TR1ESR" "LAST:M21002120:TR1ESR" -TR1-SES "[CURRent:]M21002120:TR1SESR" "LAST:M21002120:TR1SESR" -RTR1-ES "[CURRent:]M21002120:RTR1ESR" "LAST:M21002120:RTR1ESR" -RTR1-SES "[CURRent:]M21002120:RTR1SESR" "LAST:M21002120:RTR1SESR" -TR2-ES "[CURRent:]M21002120:TR2ESR" "LAST:M21002120:TR2ESR" -TR2-SES "[CURRent:]M21002120:TR2SESR" "LAST:M21002120:TR2SESR" Tx-ES "[CURRent:]M21002120:EST" "LAST:M21002120:EST" -SES "[CURRent:]M21002110:SEST"...
Page 890 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:M21002120:THReshold:TYPE <type> :CALCulate:TELecom:PERFormance:THReshold:M2120:TYPe <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> PATH Path allocation USER User • Function Sets threshold type of M.2100/M.2120 measurement. • Example use To set threshold type of M.2100/M.2120 measurement to User: >...
Page 891 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:M21002120:THReshold:RATE <rate> :CALCulate:TELecom:PERFormance:THReshold:M2120:LIMit1 <rate> ∇ Parameter <rate> = <NON-DECIMAL NUMERIC PROGRAM DATA> 0.5 to 63.0 Step value: 0.5 • Function Sets coefficient for TR1/RTR1 calculation of M.2100/M.2120 measurement. • Example use To set coefficient for TR1/RTR1 calculation of M.2100/M.2120 measurement to 7.5%: >...
Page 892 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:M21002120:THReshold:RATE2 <rate> :CALCulate:TELecom:PERFormance:THReshold:M2120:LIMit2 <rate> ∇ Parameter <rate> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 100 Step value: 1 • Function Sets coefficient for TR2 calculation of M.2100/M.2120 measurement. • Example use To set coefficient for TR2 calculation of M.2100/M.2120 measurement to 70%: >...
Page 893 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:M21002120:THRehold:DEFault ∇ Parameter None • Function Sets default threshold of M.2100/M.2120 measurement. • Example use To set default threshold of M.2100/M.2120 measurement: > :CALCulate:TELecom:PERFormance:M21002120:THReshold:DEFault :CALCulate:TELecom:PERFormance:M21002120:THReshold:VALue <trtype>,<item>,<numeric> ∇ Parameter <trtype> = <CHARACTER PROGRAM DATA> RTR1 RTR1 <item> = <CHARACTER PROGRAM DATA> <numeric>...
Page 894 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:THReshold:M2120:ES:TR1 <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 900 Step value: 1 • Function Sets TR1 (15-minute) ES threshold of M.2100/M.2120 measurement. • Example use To set TR1 ES threshold of M.2100/M.2120 measurement to 500: >...
Page 895 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:THReshold:M2120:ES:TR2 <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 86400 Step value: 1 • Function Sets TR2 (24-hour) ES threshold of M.2100/M.2120 measurement. • Example use To set TR2 ES threshold of M.2100/M.2120 measurement to 500: >...
Page 896 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:RESult:PERFormance:M21002120:DERRor <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> RTR1 RTR1 • Function Selects display error item of M2100/M2120 performance measurement. • Example use To set display error to TR1: > :DISPlay:RESult:PERFormance:M21002120:DERRor TR1 :DISPlay:RESult:PERFormance:M21002120:DERRor? ∇...
Page 897 11.4 Result Screen Commands 11.4.5.4 Recommendation:M.2101/M.2110 sub-screen Fig. 11.4.5.4-1 Result:Performance(M):<M.2101/M.2110> screen - Example of G.826 Fig. 11.4.5.4-2 Result:Performance(M):<M.2101/M.2110> screen - Example of G.828 11-761...
Page 898 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Setting Command BIS limits(1) :CALCulate:TELecom:PERFormance:M21012110:BLIMit:TYPE BIS limits(2) :CALCulate:TELecom:PERFormance:M21012110:BLIMit:RATE Default :CALCulate:TELecom:PERFormance:M21012110:BLIMit:DEFault 2-hour-ES-S1 :CALCulate:TELecom:PERFormance:M21012110:BLIMit:VALue -SES-S1 -BBE-S1 -SEP-S1 24-hour-ES-S1 -SES-S1 -BBE-S1 -SEP-S1 7-day-ES-S1 -SES-S1 -BBE-S1 -SEP-S1 11-762...
Page 899 11.4 Result Screen Commands <Command = :CALCulate:DATA?> Read out Parameter Rx-ES "[CURRent:]"M21012110:ESR:n" "LAST:"M21012110:ESR:n" n = 1 to 5 -SES "[CURRent:]"M21012110:SESR:n" "LAST:"M21012110:SESR:n" n = 1 to 5 -BBE "[CURRent:]"M21012110:BBER:n" "LAST:"M21012110:BBER:n" n = 1, 3, 5 -SEP "[CURRent:]"M21012110:SEPR:n" "LAST:"M21012110:SEPR:n" n = 3, 5 "[CURRent:]M21012110:USR:n"...
Page 900 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:M21012110:BLIMit:TYPE <layer>,<rec>,<type> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> (SDH) SECT Section AU-path TU-path (SONET) LINE Line STS-path VT-path <rec> = <CHARACTER PROGRAM DATA> G829 G.829 G828 G.828 G826 G.826 <type> = <CHARACTER PROGRAM DATA> PATH Path allocation USER...
Page 901 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:M21012110:BLIMit:RATE <lay- er>,<rec>,<rate> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> (SDH) SECT Section AU-path TU-path (SONET) LINE Line STS-path VT-path <rec> = <CHARACTER PROGRAM DATA> G829 G.829 G828 G.828 G826 G.826 <rate> = <NON-DECIMAL NUMERIC PROGRAM DATA> 0.5 to 63.0 Step value: 0.5 •...
Page 902 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:M21012110:BLIMit:VALue <lay- er>,<rec>,<period>,<item>,<stype>,<numeric> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> (SDH) SECT Section AU-path TU-path (SONET) LINE Line STS-path VT-path <rec> = <CHARACTER PROGRAM DATA> G829 G.829 G828 G.828 G826 G.826 <period> = <CHARACTER PROGRAM DATA> 2-hour 24-hour 7-day...
Page 903 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:M21012110:BLIMit:VALue? ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> <rec> = <CHARACTER PROGRAM DATA> <period> = <CHARACTER PROGRAM DATA> <item> = <CHARACTER PROGRAM DATA> <stype> = <CHARACTER PROGRAM DATA> Same as :CALCulate:TELecom:PERFormance:M21012110:BLIMit:VALue. • Response <numeric> = <STRING RESPONSE DATA> Same as :CALCulate:TELecom:PERFormance:M21012110:BLIMit:VALue.
Page 904 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.5.5 Recommendation:M.2101/M.2120 sub-screen Fig. 11.4.5.5-1 Result:Performance(M):<M.2101/M.2120> screen - Example of G.826 Fig. 11.4.5.5-2 Result:Performance(M):<M.2101/M.2120> screen - Example of G.828 11-768...
Page 905 11.4 Result Screen Commands Setting Command Threshold(1) :CALCulate:TELecom:PERFormance:M21012120:THReshold:TYPE Threshold(2) :CALCulate:TELecom:PERFormance:M21012120:THReshold:RATE Threshold(3) APOx :CALCulate:TELecom:PERFormance:M21012120:THReshold:RATE2 Default :CALCulate:TELecom:PERFormance:M21012120:THReshold:DEFault TR1(15-minute)-ES :CALCulate:TELecom:PERFormance:M21012120:THReshold:VALue -SES -BBE RTR1(15-minute)-ES -SES -BBE TR2(24-hour)-ES -SES -BBE Display Error :DISPlay:RESult:PERFormance:M21012120:DERRor 11-769...
Page 906 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command = :CALCulate:DATA?> Read out Parameter Rx-ES "[CURRent:]M21012120:ESR:n" "LAST:M21012120:ESR:n" n = 1 to 5 -SES "[CURRent:]M21012120:SESR:n" "LAST:M21012110:SESR:n" n = 1 to 5 -BBE "[CURRent:]M21012120:BBER:n" "LAST:M21012120:BBER:n" n = 1, 3, 5 "[CURRent:]M21012120:USR:n" "LAST:M21012120:USR:n" n = 1 to 5 -TR1-ES "[CURRent:]M21012120:TR1ESR:n"...
Page 907 11.4 Result Screen Commands Read out Parameter Tx-ES "[CURRent:]M21012120:EST:n" "LAST:M21012120:EST:n" n = 1 to 5 -SES "[CURRent:]M21012120:SEST:n" "LAST:M21012120:SEST:n" n = 1 to 5 -BBE "[CURRent:]M21012120:BBET:n" "LAST:M21012120:BBET:n" n = 1, 3, 5 -TR1-ES "[CURRent:]M21012120:TR1EST:n" "LAST:M21012120:TR1EST:n" n = 1 to 5 -SES "[CURRent:]M21012120:TR1SEST:n"...
Page 908 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:M21012120:THReshold:TYPE <layer>,<rec>,<type> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> (SDH) SECT Section AU-path TU-path (SONET) LINE Line STS-path VT-path <rec> = <CHARACTER PROGRAM DATA> G829 G.829 G828 G.828 G826 G.826 <type> = <CHARACTER PROGRAM DATA> PATH Path allocation USER...
Page 909 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:M21012120:THReshold:RATE <layer>,<rec>,<rate> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> (SDH) SECT Section AU-path TU-path (SONET) LINE Line STS-path VT-path <rec> = <CHARACTER PROGRAM DATA> G829 G.829 G828 G.828 G826 G.826 <rate> = <NON-DECIMAL NUMERIC PROGRAM DATA> 0.5 to 63.0 Step value: 0.5 •...
Page 910 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:M21012120:THReshold:RATE2 <layer>,<rec>,<rate> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> (SDH) SECT Section AU-path TU-path (SONET) LINE Line STS-path VT-path <rec> = <CHARACTER PROGRAM DATA> G829 G.829 G828 G.828 G826 G.826 <rate> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 100 Step value: 1 •...
Page 911 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:M21012120:THReshold:DEFault ∇ Parameter None • Function Sets default threshold of M.2101/M.2120 measurement. • Example use To set default threshold of M.2101/M.2120 measurement: > :CALCulate:TELecom:PERFormance:M21012120:THReshold:DEFault 11-775...
Page 912 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:M21012120:THReshold:VALue <layer>,<rec>,<trtype>,<item>,<numeric> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> (SDH) SECT Section AU-path TU-path (SONET) LINE Line STS-path VT-path <rec> = <CHARACTER PROGRAM DATA> G829 G.829 G828 G.828 G826 G.826 <trtype> = <CHARACTER PROGRAM DATA> RTR1 RTR1 <item>...
Page 913 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:M21012120:THReshold:VALue? <layer>,<rec>,<trtype>,<item> ∇ Parameter <layer> = <CHARACTER PROGRAM DATA> <rec> = <CHARACTER PROGRAM DATA> <trtype> = <CHARACTER PROGRAM DATA> <item> = <CHARACTER PROGRAM DATA> Same as :CALCulate:TELecom:PERFormance:M21002120:THReshold:VALue. • Response <numeric> = <STRING RESPONSE DATA> Same as :CALCulate:TELecom:PERFormance:M21012120:THReshold:VALue.
Page 914 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:RESult:PERFormance:M21012120:DERRor <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> RTR1 RTR1 • Function Selects display error item of M2101/M2120 performance measurement. • Example use To set display error to TR1: > :DISPlay:RESult:PERFormance:M21012120:DERRor TR1 :DISPlay:RESult:PERFormance:M21012120:DERRor? ∇...
Page 915 11.4 Result Screen Commands 11.4.6 Performance (Series GR) Sub-screen 11.4.6.1 Performance (Series GR) sub-screen common commands Setting Command :CALCulate:TELecom:PERFormance:FRAMe Frame (for PDH) * See “Common commands” of Performance (Series G) Path end :CALCulate:TELecom:PERFormance:GR820:PATH Display Layer :DISPlay:RESult:PERFormance:GR820:DLAYer 11-779...
Page 916 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:GR820:PATH <path> ∇ Parameter <path> = <CHARACTER PROGRAM DATA> NEAR Near-end Far-end • Function Selects Path end type of GR-820 Performance measurement. • Example use To set Path end type to Near-end: > :CALCulate:TELecom:PERFormance:GR820:PATH NEAR :CALCulate:TELecom:PERFormance:GR820:PATH? ∇...
Page 917 11.4 Result Screen Commands 11.4.6.2 Recommendation:GR-820 sub-screen Fig. 11.4.6.2-1 Result:Performance(GR):<GR-820> screen - Example of Path 11-781...
Page 918 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Setting Command Threshold-Default :CALCulate:TELecom:PERFormance:THReshold:DEFAult Threshold(1) :CALCulate:TELecom:PERFormance:GR820:THReshold:SET Line:15-24:CV Line:15-24:ES Line:15-24:SES Path:15-24:CV Path:15-24:ES Path:15-24:SES Path:15-24:SAS Path:15-24:UAS Path:15-24:CVP Path:15-24:CVCP Path:15-24:ESP Path:15-24:ESCP Path:15-24:SESP Path:15-24:SESCP Path:15-24:SASP Path:15-24:SASCP Path:15-24:UASP Path:15-24:UASCP Threshold(2) :CALCulate:TELecom:PERFormance:GR820:THReshold:VALue Line:15-24:CV Line:15-24:ES Line:15-24:SES Path:15-24:CV Path:15-24:ES Path:15-24:SES Path:15-24:SAS Path:15-24:UAS Path:15-24:CVP Path:15-24:CVCP Path:15-24:ESP...
Page 919 11.4 Result Screen Commands <Command = :CALCulate:DATA?> Read out Parameter "[CURRent:]GR820:CV: " "LAST:GR820:CV: " n=1 to 3 "[CURRent:]GR820:ES: " "LAST:GR820:ES:n" n=1 to 3 "[CURRent:]GR820:SES: " "LAST:GR820:SES:M15: " n=1 to 3 LOSS "[CURRent:]GR820:LOSS: " "LAST:GR820:LOSE: " n=1, 3 "[CURRent:]GR820:SAS: " "LAST:GR820:SAS: "...
Page 920 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Notes: 1) Enter the following numbers to “n” depending on Path end, Frame, and Layer. 1: Near 1.5M Line 2: Near 1.5M Path 3: Near 45M Line 4: Near 45M Path 5: Far 45M Path 2) Enter the following numbers to “m”...
Page 921 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:GR820:THReshold:DEFault ∇ Parameter None • Function Sets default threshold for GR-820 Performance measurement. • Example use To set default threshold for GR-820 Performance measurement: > :CALCulate:TELecom:PERFormance:GR820:THReshold:DEFault :CALCulate:TELecom:PERFormance:GR820:THReshold:SET <path>,<layer>,<item>,<boolean> ∇ Parameter <path> = <CHARACTER PROGRAM DATA> NEAR Near end Far end <layer>...
Page 922 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:GR820:THReshold:SET? <path>,<layer>,<item> ∇ Parameter <path> = <CHARACTER PROGRAM DATA> <layer> = <CHARACTER PROGRAM DATA> <item> = <CHARACTER PROGRAM DATA> Same as :CALCulate:TELecom:PERFormance:GR820:THReshold:SET. • Response <boolean> = <NR1 NUMERIC RESPONSE DATA> Test OFF Test ON •...
Page 923 11.4 Result Screen Commands :CALCulate:TELecom:PERFormance:GR820:THReshold:VALue <path>,<layer>,<period>,<item>,<numeric> ∇ Parameter <path> = <CHARACTER PROGRAM DATA> NEAR Near end Far end <layer> = <CHARACTER PROGRAM DATA> LINE Line PATH Path <period> = <CHARACTER PROGRAM DATA> 15 minute 24 hour <item> = <CHARACTER PROGRAM DATA> CVES CVCP ESCP...
Page 924 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:TELecom:PERFormance:GR820:THReshold:VALue? <path>,<layer>,<period>,<item> ∇ Parameter <path> = <CHARACTER PROGRAM DATA> <layer> = <CHARACTER PROGRAM DATA> <period> = <CHARACTER PROGRAM DATA> <item> = <CHARACTER PROGRAM DATA> Same as :CALCulate:TELecom:PERFormance:GR820:THReshold:VALue. • Response <numeric> = <NR1 NUMERIC RESPONSE DATA> Same as :CALCulate:TELecom:PERFormance:GR820:THReshold:VALue.
Page 925 11.4 Result Screen Commands 11.4.7 Delay Sub-screen Fig. 11.4.7-1 Result:Delay:<Delay> screen <Command = :CALCulate:DATA?> Read out Command Current :CALCulate:DATA? "DELay:CURRent" :CALCulate:DATA? "DELay:MAXimam" :CALCulate:DATA? "DELay:MINimam" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” 11-789...
Page 926 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.8 APS test Sub-screen Fig. 11.4.8-1 Result:APS test:<APS test> screen - Example for Measurement :Repeat Setting Command Error free period :CALCulate:TELecom:APSTest:PERiod Read out Command Switch time-data :CALCulate:DATA? "APSTest:SWITchtime" Switch time-Max :CALCulate:DATA? "APSTest:SWITchtime:MAXimum" Switch time-Min :CALCulate:DATA? "APSTest:SWITchtime:MINimum"...
Page 927 11.4 Result Screen Commands :CALCulate:TELecom:APSTest:PERiod <period> ∇ Parameter <period> = <CHARACTER PROGRAM DATA> 1 ms ML10 10 ms ML100 100 ms • Function Sets Error free period of measurement interval for APS test:Switching time. • Example use To set Error free period to 10ms: >...
Page 928 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.9 Jitter/Wander Sub-screen 11.4.9.1 Jitter/Wander screen common commands Setting Command Display select(2) :DISPlay:RESult:JWANder:DISPmode Display select(1) :DISPlay:RESult:JWANder:UNIT <Command = :CALCulate:DATA?> • Monitor data Read out Parameter Monitor Tx Clock loss “[CURRent:]JMANual:TCLock” Monitor Tx Unlock “[CURRent:]JMANual:TSTatus” Monitor Rx Unlock “[CURRent:]JMANual:RSTatus”...
Page 929 11.4 Result Screen Commands :DISPlay:RESult:JWANder:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> PEAKrms Peak/RMS WANDer Wander • Function Sets the display items of the Result:Jitter/Wander screen. • Example use To set the display items of the Result:Jitter/Wander screen to Peak/RMS: >...
Page 930 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:RESult:JWANder:UNIT <unit> ∇ Parameter <unit> = <CHARACTER PROGRAM DATA> PEAKRMS Peak/RMS WANDer1 Wander (DC to 10 Hz) WANDer2 Wander (DC to 0.01 Hz) WANDer3 Wander (0.01 Hz to 10 Hz) • Function Sets the display items of the Result:Jitter/Wander screen. •...
Page 931 11.4 Result Screen Commands 11.4.9.2 Peak/RMS display screen Fig. 11.4.9.2-1 Result:Jitter/Wander:<Peak/RMS> screen <Command = :CALCulate:DATA?> • Unit: Peak/RMS display screen Read out Parameter Jitter Peak-Peak “[CURRent:]JAMPlitude:PTPeak” “LAST:JAMPlitude:PTPeak” Jitter +Peak “[CURRent:]JAMPlitude:PPEak” “LAST:JAMPlitude:PPEak” Jitter -Peak “[CURRent:]JAMPlitude:MPEak” “LAST:JAMPlitude:MPEak” Jitter RMS “[CURRent:]JAMPlitude:RMS” “LAST:JAMPlitude:RMS” Lump read-out data “[CURRent:]JAMPlitude:ADATa”...
Page 932 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.9.3 Hit display screen Fig. 11.4.9.3-1 Result:Jitter/Wander:<Hit> screen <Command = :CALCulate:DATA?> • Unit: Hit display screen Read out Parameter Count “[CURRent:]JHIT:COUNt” “LAST:JHIT:COUNt” Second “[CURRent:]JHIT:SECond” “LAST:JHIT:SECond” %Fsecond “[CURRent:]JHIT:FS” “LAST:JHIT:FS” Lump read-out data “[CURRent:]JHIT:ADATa” Hit Count “LAST:JHIT:ADATa”...
Page 933 11.4 Result Screen Commands 11.4.9.4 Wander display screen Fig. 11.4.9.4-1 Result:Jitter/Wander:<Wander> screen Setting Command Display select (Wander) :DISPlay:RESult:JWANder:WANDer:DISPmode 11-797...
Page 934 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands <Command = :CALCulate:DATA?> • For Unit: Wander (DC to 10 Hz): Read out <Parameter Wander Peak-Peak “[CURRent:]WANDer:PTPeak[:FULL]” Wander +Peak “[CURRent:]WANDer:PPEak[:FULL]” Wander -Peak “[CURRent:]WANDer:MPEak[:FULL]” Wander “[CURRent:]WANDer:TIE[:FULL]” • For Unit: Wander (DC to 0.01 Hz): Read out Parameter Wander Peak-Peak...
Page 935 11.4 Result Screen Commands :DISPlay:RESult:JWANder:WANDer:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> WANDer1 Wander (DC to 10 Hz) WANDer2 Wander (DC to 0.01 Hz) WANDer3 Wander (0.01 Hz to 10 Hz) • Function Sets the display items of the Result:Jitter/Wander screen. •...
Page 936 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.10 Jitter tolerance Sub-screen Fig. 11.4.10-1 Result:Jitter tolerance:<Jitter tolerance> screen <Command = :CALCulate:DATA?> Read out Command Frequency "JTOLerance:POINt1" Tolerance(UIp-p) "JTOLerance:POINt20" All measurement result "JTOLerance:POINt:ADATA" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” 11-800...
Page 937 11.4 Result Screen Commands 11.4.11 Jitter transfer Sub-screen Fig. 11.4.11-1 Result:Jitter transfer:<Jitter transfer> screen <Command = :CALCulate:DATA?> Read out Command Frequency "JTRansfer:POINt1" UIp-p Transfer (dB) "JTRansfer:POINt20" All measurement result "JTRansfer:POINt:ADATA" * For details of the :CALCulate:DATA? command, see “Result screen common commands.” 11-801...
Page 938 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.12 Ethernet Sub-screen 11.4.12.1 Common items Fig. 11.4.12.1-1 Result: Ethernet:< Ethernet>screen Read out Parameter Display mode :DISPlay:RESult:ETHernet:DISPmode Measurement Result :CALCulate:HISTory? 11-802...
Page 939 11.4 Result Screen Commands :DISPlay:RESult:ETHernet:DISPmode <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> EALarm Error/Alarm COUNt Count RATE Rate • Function Switches Ethernet screen measurement results display • Example use To set measurement results display to Count: > :DISPlay:RESult:ETHernet:DISPmode COUNt :DISPlay:RESult:ETHernet:DISPmode? ∇...
Page 940 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.4.12.2 Error/Alarm Screen Fig. 11.4.12.2-1 Result: Ethernet:<Error/Alarm>screen <Command =:CALCulate:DATA?> ・Ethernet data Read out Command* Oversize :CALCulate:DATA? "[CURRent:]EC:OVERsize:ETHer” :CALCulate:DATA? "LAST:EC:OVERsize:ETHer” Oversize ＆ FCS Error :CALCulate:DATA? "[CURRent:]EC:OAFerror:ETHer” :CALCulate:DATA? "LAST:EC:OAFErrror:ETHer” Undersize :CALCulate:DATA? "[CURRent:]EC:UNDersize:ETHer” :CALCulate:DATA? "LAST:EC:UNDersize:ETHer” Fragment :CALCulate:DATA? "[CURRent:]EC:FRAGment:ETHer” :CALCulate:DATA? "LAST:EC:FRAGment:ETHer”...
Page 941 11.4 Result Screen Commands <Command =:CALCulate:DATA?> ・PCS data Read out Command Link down :CALCulate:DATA? "[CURRent:]ASEConds:LINKdown:ETHer” :CALCulate:DATA? "LAST:ASEConds:LINKdown:ETHer” Unlock :CALCulate:DATA? "[CURRent:]ASEConds:UNLock:ETHer” :CALCulate:DATA? "LAST:ASEConds:UNLock:ETHer” Hi-BER :CALCulate:DATA? "[CURRent:]ASEConds:HIBer:ETHer” :CALCulate:DATA? "LAST:ASEConds:HIBer:ETHer” Test Pattern Sync. Loss :CALCulate:DATA? "[CURRent:]ASEConds:TPATtern:ETHer” :CALCulate:DATA? "LAST:ASEConds:TPATtern:ETHer” Sync header :CALCulate:DATA? "[CURRent:]EC:SYHeader:ETHer” :CALCulate:DATA? "LAST:EC:SYHeader:ETHer” Errored block :CALCulate:DATA? "[CURRent:]EC:ERBLock:ETHer”...
Page 942 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Read out Parameter Display select :DISPlay:RESult:ETHernet:EALarm:DISPmode :DISPlay:RESult:ETHernet:EALarm:DISPmode <mode> ∇ Parameter <mode> = <CHARACTER PROGRAM DATA> ETHer Ethernet • Function Switches Ethernet screen Error/Alarm measurement results display • Example use To set Error/Alarm measurement results display to PCS: >...
Page 943 11.4 Result Screen Commands 11.4.12.3 Count Screen Fig. 11.4.12.3-1 Result: Ethernet:<Count>Screen <Command =:CALCulate:DATA?> ・Ethernet Count data Read out Command Transmitted Frame :CALCulate:DATA? "[CURRent:]EC:FRAMe:TRANsmitted:ETHer” :CALCulate:DATA? "LAST:EC:FRAMe:TRANsmitted:ETHer” Received Frame :CALCulate:DATA? "[CURRent:]EC:FRAMe:RECeived:ETHer” :CALCulate:DATA? "LAST:EC:FRAMe:RECeived:ETHer” Transmitted Byte :CALCulate:DATA? "[CURRent:]EC:BYTE:TRANsmitted:ETHer” :CALCulate:DATA? "LAST:EC:BYTE:TRANsmitted:ETHer” Received Byte :CALCulate:DATA? "[CURRent:]EC:BYTE:RECeived:ETHer” :CALCulate:DATA? "LAST:EC:BYTE:RECeived:ETHer”...
Page 944 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:DATA? "LAST:EC:LFSignal:RECeived:ETHer” User Defined 1 :CALCulate:DATA? "[CURRent:]EC:UDEF1:ETHer” :CALCulate:DATA? "LAST:EC:UDEF1:ETHer” User Defined 2 :CALCulate:DATA? "[CURRent:]EC:UDEF2:ETHer” :CALCulate:DATA? "LAST:EC:UDEF2:ETHer” Pause :CALCulate:DATA? "EC:PAUSE:ETHer” Capture filter :CALCulate:DATA? "[CURRent:]EC:CFILter:ETHer” :CALCulate:DATA? "LAST:EC:CFILter:ETHer” Capture trigger :CALCulate:DATA? "[CURRent:]EC:CTRigger:ETHer” :CALCulate:DATA? "LAST:EC:CTRigger:ETHer” *Command: For details of :CALCulate:DATA?, refer to "Result Screen Common Commands". 11-808...
Page 945 11.4 Result Screen Commands 11.4.12.4 Rate Screen Fig. 11.4.12.4-1 Result: Ethernet:<Rate>screen <Command =:CALCulate:DATA?> ・Ethernet Rate data Read out Command Transmitted Frame (fps) :CALCulate:DATA? "[CURRent:]FPS:FRAMe:TRANsmitted:ETHer” :CALCulate:DATA? "LAST:FPS:FRAMe:TRANsmitted:ETHer” Received Frame (fps) :CALCulate:DATA? "[CURRent:]FPS:FRAMe:RECeived:ETHer” :CALCulate:DATA? "LAST:FPS:FRAMe:RECeived:ETHer” Transmitted Bit (%) :CALCulate:DATA? "[CURRent:]PER:BIT:TRANsmitted:ETHer” :CALCulate:DATA? "LAST:PER:BIT:TRANsmitted:ETHer” Received Bit (%) :CALCulate:DATA? "[CURRent:]PER:BIT:RECeived:ETHer”...
Page 946 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands Read out Command* User Defined 1 :CALCulate:DATA? "[CURRent:]FPS:UDEF1:ETHer” :CALCulate:DATA? "LAST:FPS:UDEF1:ETHer” User Defined 2 :CALCulate:DATA? "[CURRent:]FPS:UDEF2:ETHer” :CALCulate:DATA? "LAST:FPS:UDEF2:ETHer” *Command: For details of :CALCulate:DATA?, refer to "Result Screen Common Commands". 11-810...
Page 947 11.4 Result Screen Commands 11.4.13 Latency Sub-screen Fig. 11.4.13-1 Result: Ethernet:<Latency>screen Read out Current time :CALCulate:DATA? "LATency:CURRent" :CALCulate:DATA? "LATency:MAXimam" :CALCulate:DATA? "LATency:MINimam" Average :CALCulate:DATA? "LATency:AVERage" Frames :CALCulate:DATA? "LATency:FRAMes" *Command: For details of :CALCulate:DATA?, refer to "Result Screen Common Commands". 11-811...
Page 948: Analyze Screen Commands
Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.5 Analyze Screen Commands 11.5.1 Analyze Main Screen Common Commands Screen change Fig. 11.5.1-1 Analyze sub-screen change Setting Command (Sub-screen) :DISPlay:ANALysis[:NAME] 11-812...
Page 949 11.5 Analyze Screen Commands :DISPlay:ANALysis[:NAME] <adisplay> ∇ Parameter <adisplay> = <STRING PROGRAM DATA> "EALarm" Error/Alarm screen "POINtermonitor" Pointer monitor screen "ODATamonitor" Data monitor screen (OTN) "O2Datamonitor" Data monitor screen (ODTU23) "SDATamonitor" Data monitor screen (SDH/SONET) "OHMonitor" Data monitor screen (SDH/SONET) "PDATamonitor"...
Page 950 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis[:NAME]? ∇ Parameter None • Response <adisplay> = <STRING RESPONSE DATA> "EAL" Error/Alarm screen "POIN" Pointer monitor screen "ODAT" Data monitor screen (OTN) "O2D" Data monitor screen (ODTU23) "SDAT" Data monitor screen (SDH/SONET) "PDAT" Data monitor screen (PDH/DSn) "FMON"...
Page 951 11.5 Analyze Screen Commands 11.5.2 Error/Alarm sub-screen Fig. 11.5.2-1 Analyze:Error/Alarm<Error/Alarm> screen 11-815...
Page 952 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands • Setting and operation commands Setting Command Title :DISPlay:ANALysis:TGRaph:TITLe (Alarm) (1) :DISPlay:ANALysis:TGRaph:ALARm1 (Alarm) (2) :DISPlay:ANALysis:TGRaph:ALARm2 (Alarm) (3) :DISPlay:ANALysis:TGRaph:ALARm3 (Alarm) (4) :DISPlay:ANALysis:TGRaph:ALARm4 (Alarm) (5) :DISPlay:ANALysis:TGRaph:ALARm5 (Error) :DISPlay:ANALysis:TGRaph:ERRor (Count/Rate) • Measurement result obtain commands Read item Command Number of measurement data :CALCulate:TGRaph:COUNt?
Page 953 11.5 Analyze Screen Commands :DISPlay:ANALysis:TGRaph:TITLe <title> ∇ Parameter <title> = <STRING PROGRAM DATA> " Title characters" Title characters (up to 35 characters) The length of the character string must be 0 to 35 characters; "" is possible. • Function Sets the title on the Analyze main-screen (Error/Alarm sub-screen). •...
Page 954 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:TGRaph:ALARm1 <alarm> ∇ Parameter <alarm> = <STRING PROGRAM DATA> "ALL" "POWer" Power fail "LOS" "PATTern" Sync. loss "JUNLock" Jitter Unlock "LOF:OTN" OTU-LOF "OOF:OTN" OTU-OOF "LOM" OTU-LOM "OOM" OTU-OOM "AIS:OTU" OTU-AIS "TIM:SM" SM-TIM "BIAE:SM" SM-BIAE "BDI:SM"...
Page 955 11.5 Analyze Screen Commands "LTC:TCM6" TCM6-LTC "SYN:OOH" OH sync.(OTN) "GAIS" Generic-AIS "LOF" LOF(SDH/SONET) "OOF" OOF(SDH/SONET) "TIM:RS" RS-TIM "AIS:MS" (SDH) MS-AIS "AIS:L" (SONET) AIS-L "RDI:MS" (SDH) MS-RDI "RDI:L" (SONET) RDI-L "AIS:AU" (SDH) AU-AIS "AIS:P" (SONET) AIS-P "LOP:AU" (SDH) AU-LOP "LOP:P" (SONET) LOP-P "RDI:HP"...
Page 956 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands “ODI:HP" HP-ODI “TTIM:HP” HP-TC-TIM "AIS:LV" LP-VC-AIS “TUNEQ:LP" LP-TC-UNEQ "LTC:LP" LP-LTC "IAIS:LP" LP-IncAIS "TRDI:LP" LP-TC-RDI "ODI:LP" LP-ODI “TTIM:LP” LP-TC-TIM "SYN:OH" OH sync. "AIS:M139" AIS 139M "AIS:M45" AIS 45M "AIS:M34" AIS 34M "AIS:M8" AIS 8M "AIS:M2" AIS 2M "AIS:M1_5"...
Page 957 11.5 Analyze Screen Commands • Function Sets Alarm 1 on the Analyze:Error/Alarm screen. • Example use To display Power fail on Alarm 1: > :DISPlay:ANALysis:TGRaph:ALARm1 "POWer" :DISPlay:ANALysis:TGRaph:ALARm1? ∇ Parameter None • Response <alarm> = <STRING RESPONSE DATA> Same as :DISPlay:ANALysis:TGRaph:ALARm1 other than the following. "POW"...
Page 958 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:TGRaph:ALARm2 <alarm> ∇ Parameter <alarm> = <STRING PROGRAM DATA> Same as :DISPlay:ANALysis:TGRaph:ALARm1. • Function Sets Alarm 2 on the Analyze:Error/Alarm screen. • Example use To display Power fail on Alarm 2: > :DISPlay:ANALysis:TGRaph:ALARm2 "POWer" :DISPlay:ANALysis:TGRaph:ALARm2? ∇...
Page 959 11.5 Analyze Screen Commands :DISPlay:ANALysis:TGRaph:ALARm4 <alarm> ∇ Parameter <alarm> = <STRING PROGRAM DATA> Same as :DISPlay:ANALysis:TGRaph:ALARm1. • Function Sets Alarm 4 on the Analyze:Error/Alarm screen. • Example use To display Power fail on Alarm 4: > :DISPlay:ANALysis:TGRaph:ALARm4 "POWer" :DISPlay:ANALysis:TGRaph:ALARm4? ∇ Parameter None •...
Page 960 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:TGRaph:ERRor <error1>,<error2> ∇ Parameter <error1> = <STRING PROGRAM DATA> "BIT" "HIT" "CORR:OTN" Correction(OTN) "UNCO:OTN" Uncorrection(OTN) "BIP8:SM" SM BIP8 "BEI:SM" SM BEI "BIP8:PM" PM BIP8 "BEI:PM" PM BEI "BIP8:TCM1" TCM1 BIP8 "BIP8:TCM2" TCM2 BIP8 "BIP8:TCM3" TCM3 BIP8 "BIP8:TCM4"...
Page 961 11.5 Analyze Screen Commands "FRAMe:M1_5" FAS 1.5M "REI:M45" REI 45M "PARITY" Parity "CBIT" C-Bit "CRC4" CRC-4 "EBIT" E-Bit "CRC6" CRC-6 "SYHD:PCS" Sync header "ERRBLK:PCS" Errored bLock "CODE:PCS" PCS code "BLKTY:PCS" Block type "IPG:PCS" IPG violation "PBLK:PCS" Pattern block "PBIT:PCS" Pattern bit "OSIZE:ETH"...
Page 962 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:TGRaph:ERRor? ∇ Parameter None • Response <error1> = <STRING RESPONSE DATA> Same as :DISPlay:ANALysis:TGRaph:ERRor other than the following. "FRAM" Frame "FRAM:M139" FAS 139M "FRAM:M45" FAS 45M "FRAM:M34" FAS 34M "FRAM:M8" FAS 8M "FRAM:M2" FAS 2M "FRAM:M1_5"...
Page 963 11.5 Analyze Screen Commands :CALCulate:TGRaph:DATA? <time> ∇ Parameter <time>=<year>,<month>,<day>,<hour>,<minute>,[<second>] <year> = <DECIMAL NUMERIC PROGRAM DATA> 2000 to 2037 Year <month> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 12 Month <day> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 31 <hour> = <DECIMAL NUMERIC PROGRAM DATA> 0 to 23 Hour <minute>...
Page 964 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands * When no data exists, the following contents are output. < 0,0,0,0,0,0,"--------","--------", "--------","--------", "--------","--------", "--------","--------", "--------","--------", "--------","--------" * Set resolution of graph data with :SENSe:MEASure:GRESolution. Refer to “Common test menu screen commands - Mode setting”. •...
Page 965 11.5 Analyze Screen Commands 11.5.3 Pointer monitor screen 11.5.3.1 Common commands Setting Command Disp mode :DISPlay:ANALysis:PMONitor:DISPmode 11-829...
Page 966 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:PMONitor:DISPmode <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> PTR,PJC • Function Switches display type of Analyze:Pointer monitor screen. • Example use To set display type to PTR, PJC: > :DISPlay:ANALysis:PMONitor:DISPmode PTR :DISPlay:ANALysis:PMONitor:DISPmode? ∇ Parameter None •...
Page 967 11.5 Analyze Screen Commands 11.5.3.2 PTR,PJC screen Fig. 11.5.3.2-1 Analyze:Pointer monitor<PTR,PJC> screen Setting Command Interval :DISPlay:ANALysis:PMONitor:INTerval Type :DISPlay:ANALysis:PMONitor:TYPE Marker Display :DISPlay:ANALysis:PMONitor:MDISplay Marker ← → :DISPlay:ANALysis:PMONitor:MARKer Marker Data :DISPlay:ANALysis:PMONitor:DATA? Data :CALCulate:PMONitor:DATA? 11-831...
Page 968 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:PMONitor:INTerval <numeric>,<suffix> ∇ Parameter <numeric> = <CHARACTER PROGRAM DATA> <suffix> = <CHARACTER PROGRAM DATA> minute second • Function Sets an interval of the time axis on the Analyze:Pointer monitor:PTR,PJC screen. • Example use To set the width for one scale at 1 minute: >...
Page 969 11.5 Analyze Screen Commands :DISPlay:ANALysis:PMONitor:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> (SDH) AU PTR TU PTR (SONET) STS PTR VT PTR • Function Sets pointer to be monitored. • Example use To set pointer to be monitored to AU: >...
Page 970 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:PMONitor:MDISplay <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Marker OFF ON or 1 Marker ON • Function Sets whether to display a marker on the Analyze:Pointer monitor:PTR,PJC screen. Pointer monitor data display is paused by setting the marker ON. •...
Page 971 11.5 Analyze Screen Commands :DISPlay:ANALysis:PMONitor:DATA? ∇ Parameter None • Response <year>,<month>,<day>,<hour>,<minute>,<second>,<ptr>,<ppjc>,<mpjc>, <ndf>,<cons> <year> = <NR1 NUMERIC RESPONSE DATA> 0, 2000 to 2036 Year <month> = <NR1 NUMERIC RESPONSE DATA> 0, 1 to 12 Month <day> = <NR1 NUMERIC RESPONSE DATA> 0, 1 to 31 <hour>...
Page 972 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :CALCulate:PMONitor:DATA? <numeric1>,<numeric2> ∇ Parameter <numeric1> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 60 (decimal number) Step value: 1 <numeric2> = <DECIMAL NUMERIC PROGRAM DATA> numeric1 to 60 (decimal number) Step value: 1 • Response <year>,<month>,<day>,<hour>,<minute>,<second>,<ptr>,<ppjc>,<mpjc>, <ndf>,<cons>...
Page 973 11.5 Analyze Screen Commands 11.5.3.3 JC screen Fig. 11.5.3.3-1 Analyze:Pointer monitor<JC> screen Setting Command Interval :DISPlay:ANALysis:PMONitor:JC:INTerval Marker Display :DISPlay:ANALysis:PMONitor:JC:MDISplay Marker ← → :DISPlay:ANALysis:PMONitor:JC:MARKer Marker Data :DISPlay:ANALysis:PMONitor:JC:DATA? Data :CALCulate:PMONitor:JC:DATA? 11-837...
Page 974 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:PMONitor:JC:INTerval <numeric>,<suffix> ∇ Parameter <numeric> = <CHARACTER PROGRAM DATA> <suffix> = <CHARACTER PROGRAM DATA> minute second • Function Sets the interval of the graph on the Analyze:Pointer monitor:JC screen. • Example use To set the width of one scale at 1 minute: >...
Page 975 11.5 Analyze Screen Commands :DISPlay:ANALysis:PMONitor:JC:MDISplay <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Marker OFF ON or 1 Marker ON • Function Sets a marker display status for the Analyze:Pointer monitor:JC screen. • Example use To set to display the marker: >...
Page 976 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:PMONitor:JC:DATA? ∇ Parameter None • Response <year> = <NR1 NUMERIC RESPONSE DATA> • Function Queries monitor data of marker position of Analyze:Pointer monitor:JC screen. • Example use > :DISPlay:ANALysis:PMONitor:JC:DATA? < 2001，12，25，12，54，30， " 0"， " 0"，"...
Page 977 11.5 Analyze Screen Commands 11.5.4 Data monitor (OTN) sub-screen 11.5.4.1 Data monitor(OTN) sub-screen common commands Setting Command Display mode :DISPlay:ANALysis:OOHMonitor:DISPmode Pause :DISPlay:ANALysis:OOHMonitor:PAUSe 11-841...
Page 978 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:OOHMonitor:DISPmode <ohmonitor> ∇ Parameter <ohmonitor> = <CHRACTER PROGRAM DATA> FTFL FTFL PAYLoad Payload • Function Selects monitor display item of Analyze:Data monitor (OTN) screen. • Example use To select Payload as monitor display item: >...
Page 979 11.5 Analyze Screen Commands :DISPlay:ANALysis:OOHMonitor:PAUSe <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Pause OFF ON or 1 Pause ON • Function Sets Pause at the Analyze:Data monitor (OTN) screen. • Example use To set Pause state at the Analyze:Data monitor (OTN) screen: >...
Page 980 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.5.4.2 For OH Fig. 11.5.4.2-1 Analyze:Data monitor(OTN):<OH> screen Setting Command Data :DISPlay:ANALysis:OOHMonitor:OTNData? PSI[0] message :DISPlay:ANALysis:OOHMonitor:PTYPe? 11-844...
Page 981 11.5 Analyze Screen Commands :DISPlay:ANALysis:OOHMonitor:OTNData? ∇ Parameter None • Response <string> = <STRING RESPONSE DATA> Monitor data of OH (OTN) (hexadecimal) * When no data exists, the following contents are output. “--,--,--,--,--,--,--,--,--,--,--,--,--,--,--,--, --,--,--,--,--,--,--,--,--,--,--,--,--,--,--,--, --,--,--,--,--,--,--,--,--,--,--,--,--,--,--,--, --,--,--,--,--,--,--,--,--,--,--,--,--,--,--,--“ • Function Queries OH (OTN) monitor data of Analyze:Data monitor (OTN) screen. •...
Page 982 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.5.4.3 For TTI Fig. 11.5.4.3-1 Analyze:Data monitor(OTN):<TTI> screen Setting Command OH data :DISPlay:ANALysis:OOHMonitor:TTI:TYPE Data :DISPlay:ANALysis:OOHMonitor:TTI:DATA? TTI Country code :DISPlay:ANALysis:OOHMonitor:TTI:CC? 11-846...
Page 983 11.5 Analyze Screen Commands :DISPlay:ANALysis:OOHMonitor:TTI:TYPE <type> ∇ Parameter <type> = <CHARACTER PROGRAM DATA> TCM1 TCM1 TCM2 TCM2 TCM3 TCM3 TCM4 TCM4 TCM5 TCM5 TCM6 TCM6 • Function Selects TTI monitor data. • Example use > :DISPlay:ANALysis:OHMonitor:TTI:TYPE SM :DISPlay:ANALysis:OOHMonitor:TTI:TYPE? ∇ Parameter None •...
Page 984 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:OOHMonitor:TTI:DATA? ∇ Parameter None • Response <sapi>,<dapi>,<ope> <sapi> = <STRING RESPONSE DATA> "00" to "FF" (16 bytes set) <dapi> = <STRING RESPONSE DATA> "00" to "FF" (16 bytes set) <ope> = <STRING RESPONSE DATA> "00"...
Page 985 11.5 Analyze Screen Commands 11.5.4.4 For FTFL Fig. 11.5.4.4-1 Analyze:Data monitor(OTN):<FTFL> screen Setting Command Forward data :DISPlay:ANALysis:OOHMonitor:FTFL:FDATa? Backward data :DISPlay:ANALysis:OOHMonitor:FTFL:BDATa? Forward FIF message :DISPlay:ANALysis:OOHMonitor:FTFL:FFIFcode? Backward FIF message :DISPlay:ANALysis:OOHMonitor:FTFL:BFIFcode? 11-849...
Page 986 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:OOHMonitor:FTFL:FDATa? ∇ Parameter None • Response <fif0>,<oif1-9>,<osf10-127> <fif0> = <STRING RESPONSE DATA> "00" to "FF" (1 byte set) <oif1-9> = <STRING RESPONSE DATA> "00" to "FF" (9 bytes set) <osf10-127> = <STRING RESPONSE DATA> "00"...
Page 987 11.5 Analyze Screen Commands :DISPlay:ANALysis:OOHMonitor:FTFL:BDATa? ∇ Parameter None • Response <fif0>,<oif1-9>,<osf10-127> <fif0> = <STRING RESPONSE DATA> "00" to "FF" (1 byte set) <oif1-9> = <STRING RESPONSE DATA> "00" to "FF" (9 bytes set) <osf10-127> = <STRING RESPONSE DATA> "00" to "FF" (118 bytes set) * When no data exists, the following contents are output.
Page 988 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:OOHMonitor:FTFL:FFIFcode? ∇ Parameter None • Response <fif>, <bitfif> <fif> = <STRING RESPONSE DATA> Data monitor (OTN) data FTFL(Forward):FIF (mnemonic) "No Fault" (0000 0000) "Signal Fail" (0000 0001) "Signal Degrade" (0000 0010) "Reserved" Other than above <bitfif>...
Page 989 11.5 Analyze Screen Commands 11.5.4.5 For Payload Fig. 11.5.4.5-1 Analyze:Data monitor(OTN):<Payload> screen Setting Command Payload :DISPlay:ANALysis:OOHMonitor:OPAYload? Column :DISPlay:ANALysis:OOHMonitor:OPColumn 11-853...
Page 990 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:OOHMonitor:OPAYload? ∇ Parameter None • Response <string> = <STRING RESPONSE DATA> Payload (OTN) monitor data (hexadecimal) *When no data exists, the following contents are output. “--,--,--,--,--,--,--,--,--,--,--,--,--,--,--,--, --,--,--,--,--,--,--,--,--,--,--,--,--,--,--,--, --,--,--,--,--,--,--,--,--,--,--,--,--,--,--,--, --,--,--,--,--,--,--,--,--,--,--,--,--,--,--,--,“ • Function Queries Payload (OTN) monitor data of Analyze:Data monitor (OTN) screen. •...
Page 991 11.5 Analyze Screen Commands 11.5.5 Data monitor (SDH)/Data monitor (SONET) sub-screen 11.5.5.1 Data monitor (SDH)/Data monitor (SONET) sub-screen Common com- mands Setting Command Type :DISPlay:ANALysis:OHMonitor:DISPmode :DISPlay:ANALysis:OHMonitor:TYPE Pause :DISPlay:ANALysis:OHMonitor:PAUSe 11-855...
Page 992 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:OHMonitor:DISPmode <ohmonitor> :DISPlay:ANALysis:OHMonitor:TYPE <ohmonitor> ∇ Parameter <ohmonitor> = <CHRACTER PROGRAM DATA> OHead PMSP PTR, K1/K2 PTRace Path trace PAYLoad Payload TANDem Tandem • Function Selects monitor display item of Data monitor (SDH/SONET) screen. • Example use Selects Path trace as monitor display item: >...
Page 993 11.5 Analyze Screen Commands :DISPlay:ANALysis:OHMonitor:PAUSe <boolean> ∇ Parameter <boolean> = <BOOLEAN PROGRAM DATA> OFF or 0 Pause OFF ON or 1 Pause ON • Function Sets Pause at Data monitor (SDH/SONET). • Example use To set Pause state at Data monitor (SDH/SONET): >...
Page 994 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands 11.5.5.2 For OH Fig. 11.5.5.2-1 Analyze:Data monitor (SDH/SONET):<OH> screen (For SDH) Setting Command SOH# :DISPlay:ANALysis:OHMonitor:SOHCh :DISPlay:ANALysis:OHMonitor:TOHCh Data :DISPlay:ANALysis:OHMonitor:SOHData? :DISPlay:ANALysis:OHMonitor:TOHData? :DISPlay:ANALysis:OHMonitor:SSMessage? POH VC4,VC3 :DISPlay:ANALysis:OHMonitor:POHData? VC4 C2 :DISPlay:ANALysis:OHMonitor:SLABel? VC3 C2 :DISPlay:ANALysis:OHMonitor:PLABel? VC4-G1 :DISPlay:ANALysis:OHMonitor:G1Label? VC3-G1 VC1 V5 :DISPlay:ANALysis:OHMonitor:VLABel? VC1 K4[Z7] :DISPlay:ANALysis:OHMonitor:K4Label?
Page 995 11.5 Analyze Screen Commands (SDH) :DISPlay:ANALysis:OHMonitor:SOHCh <numeric> (SONET) :DISPlay:ANALysis:OHMonitor:TOHCh <numeric> ∇ Parameter <numeric> = <DECIMAL NUMERIC PROGRAM DATA> 1 to 64 Step value: 1 • Function Sets SOH[TOH] monitor channel of Analyze: Data monitor (SDH/SONET) screen. • Example use To set SOH monitor channel to 4: >...
Page 996 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands (SDH) :DISPlay:ANALysis:OHMonitor:SOHData? (SONET) :DISPlay:ANALysis:OHMonitor:TOHData? ∇ Parameter None • Response <string> = <STRING RESPONSE DATA> SOH (TOH) monitor data (hexadecimal) * When no data exists, the following contents are output. • Bit rate : 9953M,2488M, •...
Page 997 11.5 Analyze Screen Commands :DISPlay:ANALysis:OHMonitor:SSMessage? ∇ Parameter None • Response <string>, <s1bit> <string> = <STRING RESPONSE DATA> S1 (5 to 8 bits) monitor data (mnemonic) (SDH) "Quality unknown" (0000) "G.811" (0010) "SSU-A" (0100) "SSU-B" (1000) "SEC" (1011) "Do not use for Sync." (1111) "Reserved"...
Page 998 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands :DISPlay:ANALysis:OHMonitor:POHData? ∇ Parameter None • Response <pohvc4>, <pohvc3>, <pohvc2/1> <pohvc4> = <STRING RESPONSE DATA> POH-VC4 monitor data (hexadecimal) When no data exists, "--,--,--,--,--,--,--,--,--" is displayed. <pohvc3> = <STRING RESPONSE DATA> POH-VC3 monitor data (hexadecimal) When no data exists, "--,--,--,--,--,--,--,--,--"...
Page 999 11.5 Analyze Screen Commands (SDH) :DISPlay:ANALysis:OHMonitor:SLABel? (SONET) :DISPlay:ANALysis:OHMonitor:PLABel? ∇ Parameter None • Response <pohvc4>, <bitvc4>, <pohvc3>,<bitvc3> <pohvc4>, <pohvc3> = <STRING RESPONSE DATA> C2 monitor data of POH-VC4 and POH-VC3 (mnemonic) (SDH) "Unequipped" (0000 0000) "Reserved" (0000 0001) "TUG structure" (0000 0010) "Locked TU"...
Page 1000 Chapter 11 SDH (SONET)/OTN/Jitter Mode-Unique Commands "STS-1 PayloadFC" (1111 1100) "O.181 mapping" (1111 1110) "AIS-P" (1111 1111) "Unused" Other than above * When no data exists, the following contents are output. "-----------------------" <bitvc4>, <bitvc3> = <STRING RESPONSE DATA> C2 monitor data of POH-VC4 and POH-VC3 (bit) "00000000"...
Page 1001 11.5 Analyze Screen Commands :DISPlay:ANALysis:OHMonitor:G1Label? ∇ Parameter None • Response <vc4>,<bitvc4>,<vc3>,<bitvc3> <vc3>,<vc4> = <STRING RESPONSE DATA> G1 of Data monitor (SDH/SONET) data (mnemonic) (SDH) "No remote defect" (001) "E-RDI payload defect" (010) "E-RDI server defect" (101) "E-RDI connectivity defect" (110) "Unused"...
