ADTRAN 424RG Job Aid page 2

WiFi
The WPS or "Wi-Fi Protected Setup" function allows you to connect
wireless devices without entering the password in the device. This is
enabled by simultaneously pressing the button on the left-side of the
424RG ONU and the WPS button on the device which it is going to
link to for 5 seconds.
The 424RG ONU WiFi 802.11b/g /n/ac supports both 2.4 GHz and 5
GHz. When the WPS button on the rear of the 424RG ONU is turned
on (pressed in), the wireless network in your home is secure and
encryption is activated.
USB
There is a USB data connection on the rear of the 424RG ONU that
can be used for connection and communications with other
computers and electronic devices.
I
NSTALLATION
After unpacking the 424RG ONU, inspect it for damage. If damage is
noted, file a claim with the carrier and then contact ADTRAN. For
more information, refer to the warranty.
Installation consists of positioning the 424RG ONU on a desktop and
connecting POTS (PHONE), Ethernet, Fiber, and power.
Installation Guidelines
The following are guidelines for this installation.
■
Read all warnings and cautions before installing or servicing the
424RG ONU.
■
Do not locate the 424RG ONU in direct sunlight or next to any
thermal obstructions.
Installation Overview
To install the 424RG ONU, you will need to complete the following
steps:
■
"Step 1: Install the Base and Connect Fiber"
■
"Step 2: Connect POTS (PHONE)"
■
"Step 3: Connect Ethernet"
■
"Step 4: Connect Power"
■
"Step 5: Connect USB (optional)"
Required tools
Standard technician tools and those listed below are required for
installing the 424RG ONU:
■
Phillips-head screwdriver
■
Two, RJ-11 connectors
■
Four, RJ-45 connectors
■
Wire strippers
■
RJ-11 and RJ-45 crimpers
■
PON power meter with wavelength filtering
■
Fiberscope or videoscope
For fiber optic connections, the following is required:
■
ODC Fiber cleaning tool
2
Installation Steps
NOTICE
The 424RG ONU must sit upright using the stand provided. DO NOT
lay the ONT flat as it may overheat.
To install the 424RG ONU, refer to the figures on the first page and
complete the following steps.
Step 1: Install the Base and Connect Fiber
Ensure the 424RG ONU is not located in direct sunlight and is not
located next to any thermal obstructions. To attach the 424RG ONU to
the base, refer to Figure 1 and complete the following steps:
1. Remove the two screws from the base of the 424RG ONU.
2. Position the 424RG ONU on the base.
3. Using the two screw provided, secure the base to the 424RG
ONU.
4. Thread the fiber cable through the opening in the base. If there
is excess fiber, carefully wrap it around the Fiber Tray.
5. Remove the plug from the SC/APC Connector and insert the
fiber cable. Retain this plug and insert it in the fiber connection
when the fiber cable is not connected. This will protect the
optical portion of the connection.
Figure 2 illustrates the 424RG ONU after the base has been
attached.
Fiber
Tray
SC/APC
Connector

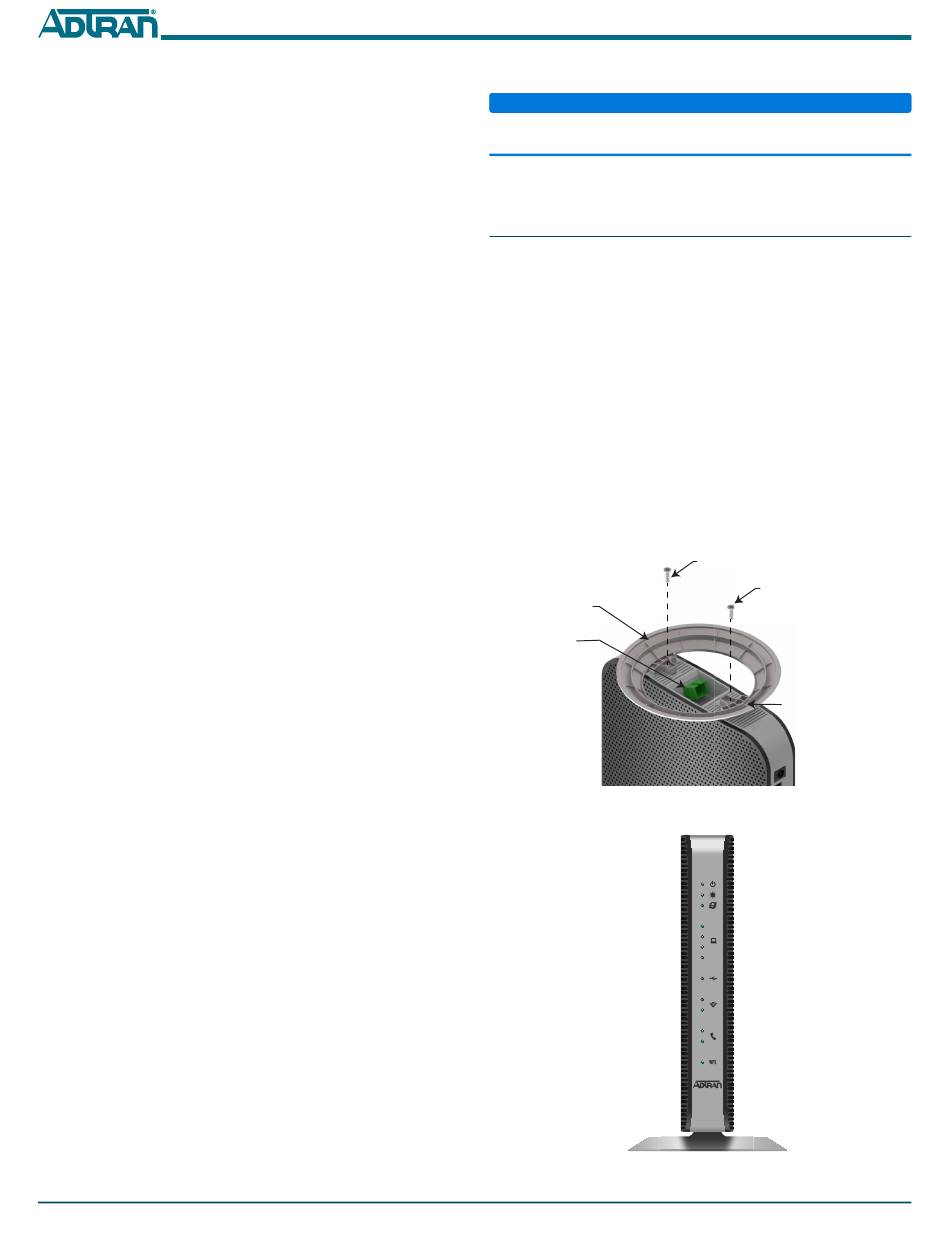

Figure 1. Attach 424RG ONU to Base and Connect Fiber
Figure 2. 424RG ONU with Base Attached
Screw
Screw
Fiber
Opening
1
2
3
4
2.4
5.0
1
2
61287781F2-22A
