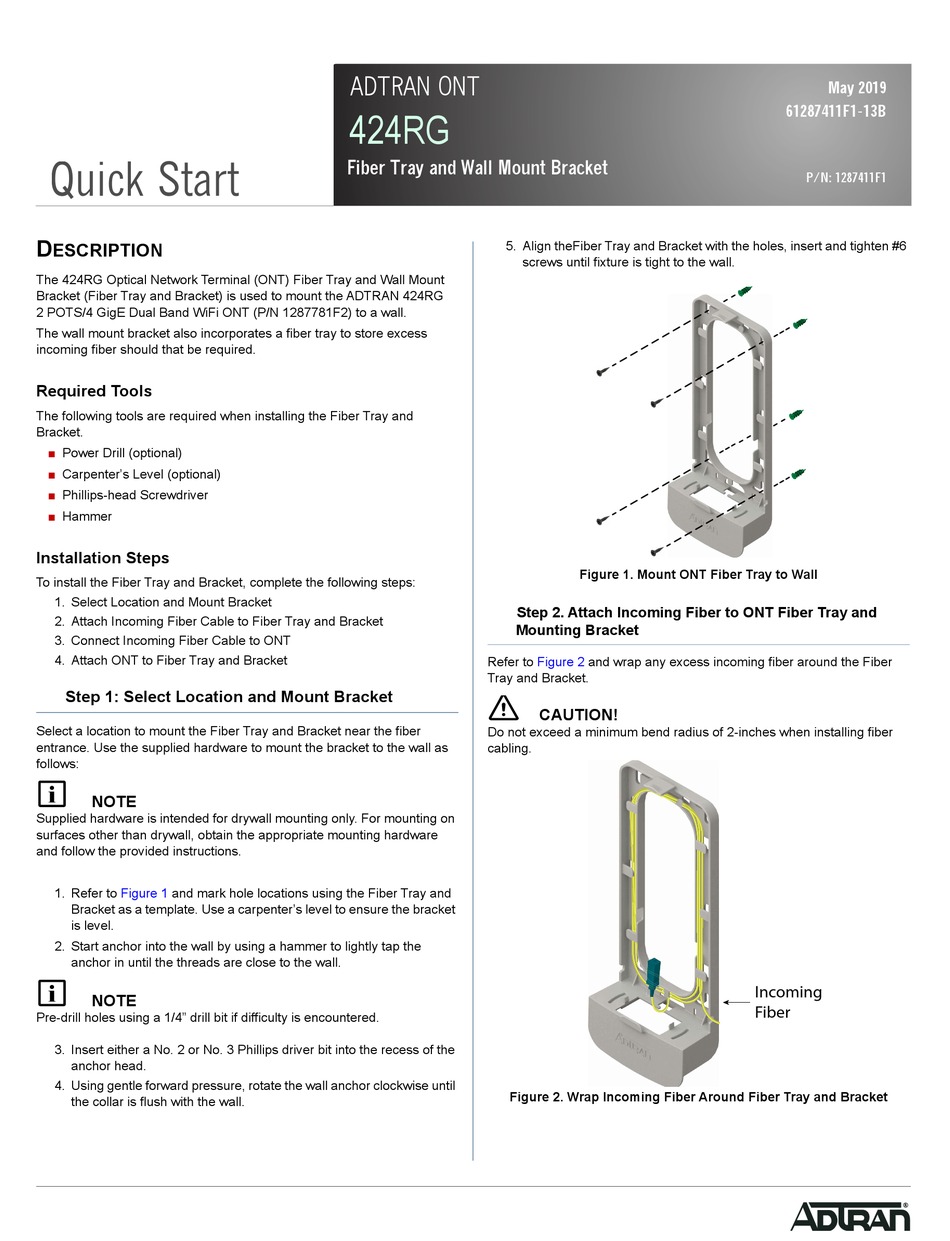

ADTRAN 424RG Quick Start

Quick Start
D
ESCRIPTION

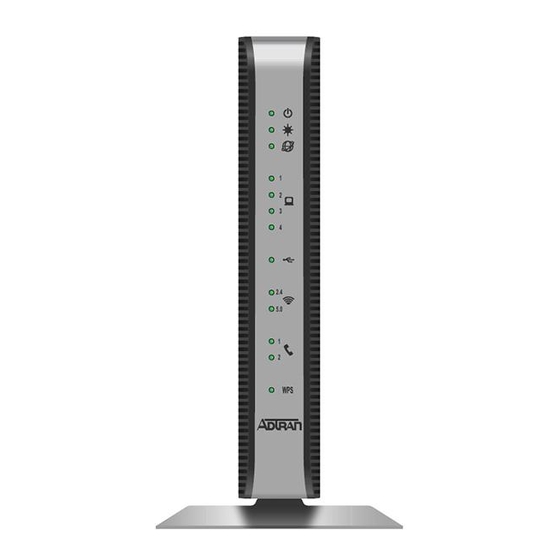

The 424RG Optical Network Terminal (ONT) Fiber Tray and Wall Mount
Bracket (Fiber Tray and Bracket) is used to mount the ADTRAN 424RG
2 POTS/4 GigE Dual Band WiFi ONT (P/N 1287781F2) to a wall.
The wall mount bracket also incorporates a fiber tray to store excess
incoming fiber should that be required.
Required Tools
The following tools are required when installing the Fiber Tray and
Bracket.
■ Power Drill (optional)
■ Carpenter's Level (optional)
■ Phillips-head Screwdriver
■ Hammer
Installation Steps
To install the Fiber Tray and Bracket, complete the following steps:
1. Select Location and Mount Bracket
2. Attach Incoming Fiber Cable to Fiber Tray and Bracket
3. Connect Incoming Fiber Cable to ONT
4. Attach ONT to Fiber Tray and Bracket
Step 1: Select Location and Mount Bracket
Select a location to mount the Fiber Tray and Bracket near the fiber
entrance. Use the supplied hardware to mount the bracket to the wall as
follows:
g
NOTE
Supplied hardware is intended for drywall mounting only. For mounting on
surfaces other than drywall, obtain the appropriate mounting hardware
and follow the provided instructions.
1. Refer to Figure 1 and mark hole locations using the Fiber Tray and
Bracket as a template. Use a carpenter's level to ensure the bracket
is level.
2. Start anchor into the wall by using a hammer to lightly tap the
anchor in until the threads are close to the wall.
g
NOTE
Pre-drill holes using a 1/4" drill bit if difficulty is encountered.
3. Insert either a No. 2 or No. 3 Phillips driver bit into the recess of the
anchor head.
4. Using gentle forward pressure, rotate the wall anchor clockwise until
the collar is flush with the wall.
ADTRAN ONT
424RG
Fiber Tray and Wall Mount Bracket
5. Align theFiber Tray and Bracket with the holes, insert and tighten #6
screws until fixture is tight to the wall.
Step 2. Attach Incoming Fiber to ONT Fiber Tray and
Mounting Bracket
Refer to
Tray and Bracket.
f
Do not exceed a minimum bend radius of 2-inches when installing fiber
cabling.
Figure 2. Wrap Incoming Fiber Around Fiber Tray and Bracket
Figure 1. Mount ONT Fiber Tray to Wall
Figure 2 and wrap any excess incoming fiber around the Fiber
CAUTION!
May 2019
61287411F1-13B
P/N: 1287411F1
Incoming
Fiber
