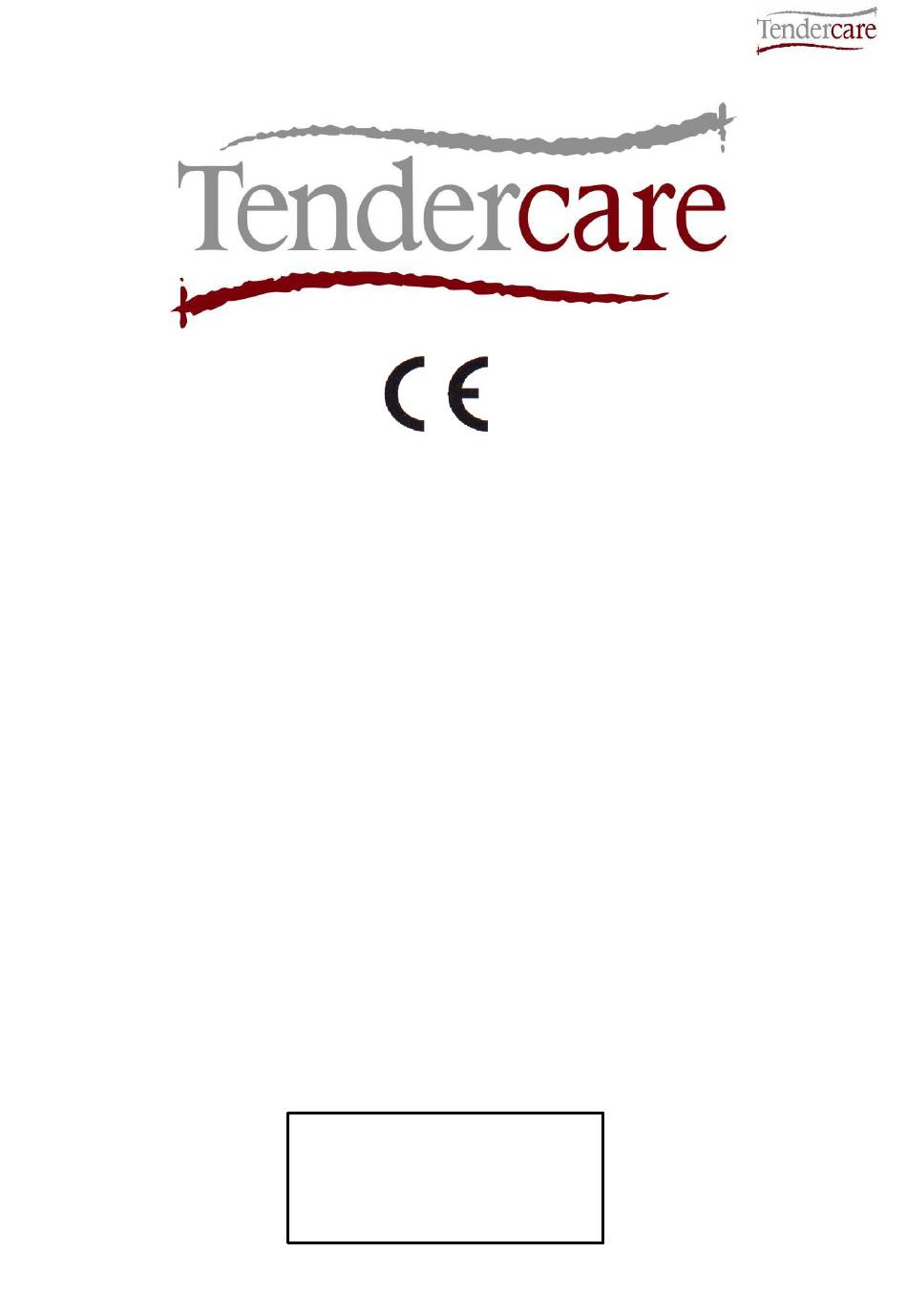

Snappi Seat Standalone User Manual
Snappi Seat
U
M
SER
ANUAL
This manual covers:
Size 1 and 2 Snappi Seats (standalone)
IMPORTANT
Please read these instructions carefully before using the
Snappi Seat
This manual covers setting up and working with the seating system
when supplied standalone with a different chassis. This manual
should be used in conjunction with the manual supplied with the
chassis. If you have a Snappi Pushchair, please refer to the Snappi
Pushchair user manual, which covers both the Snappi Chassis and
Seat.
My Snappi Seat Serial Numbers:
TEN/SC..........
TEN/SS...........
Document No: 053-07 v5
Page 1 of 54
January 2019
Snappi Seat Standalone User Manual.doc
