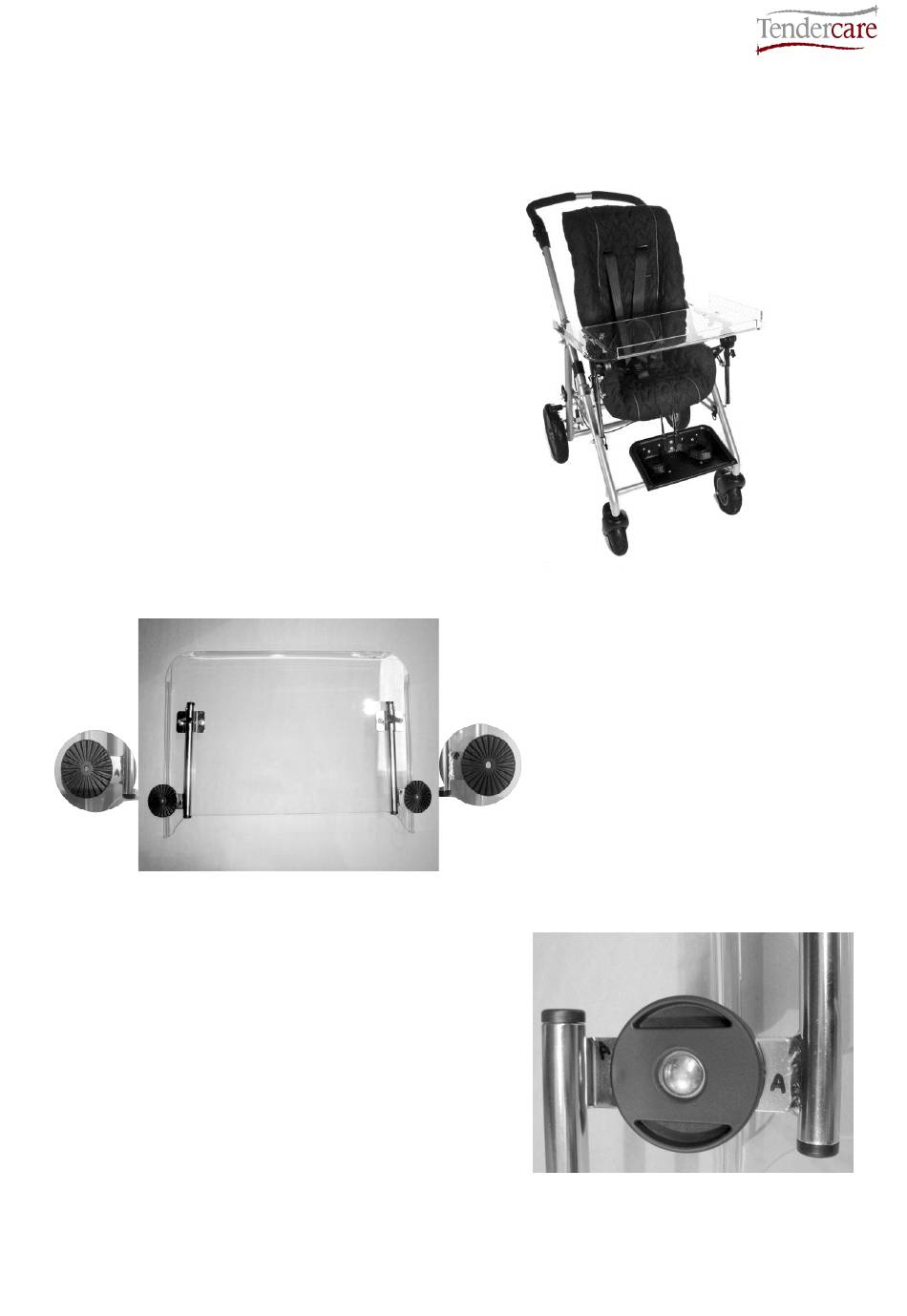

6.6: Playtray – not suitable for rearward facing Snugseat Snappi
The Snugseat Snappi playtray offers height,
depth and angle adjustment, so that it can be
adapted to suit your needs. It is available in
clear or black. (clear playtray shown for
illustrative purposes Fig 6.6.1).
The playtray comes supplied with the
following:
• 2 angle adjustable vertical stems
(marked A and B)
• 2 depth adjustment brackets and
thumbscrews (fitted to the tray, also
marked A and B)
When attaching the angle adjustable vertical
stems to the depth adjustment brackets,
please ensure that you attach stem A to
bracket A and stem B to bracket B (as
illustrated in Fig 6.6.3).
Document No: 053-29 v1
Snappi Playtray Instructions.doc
Snugseat Snappi Playtray Instructions
Fig 6.6.2
Page 1 of 4
Fig 6.6.1
The playtray is supplied with the
depth adjustment brackets fitted to
the tray (as illustrated in Fig 6.6.2)
These are marked with the letters A
and B as shown.
Fig 6.6.3
July 2011
