MAINTENANCE

R
ECOMMENDED TORQUE
Recommended torque for tightening screws and nuts, unless otherwise specified:
O

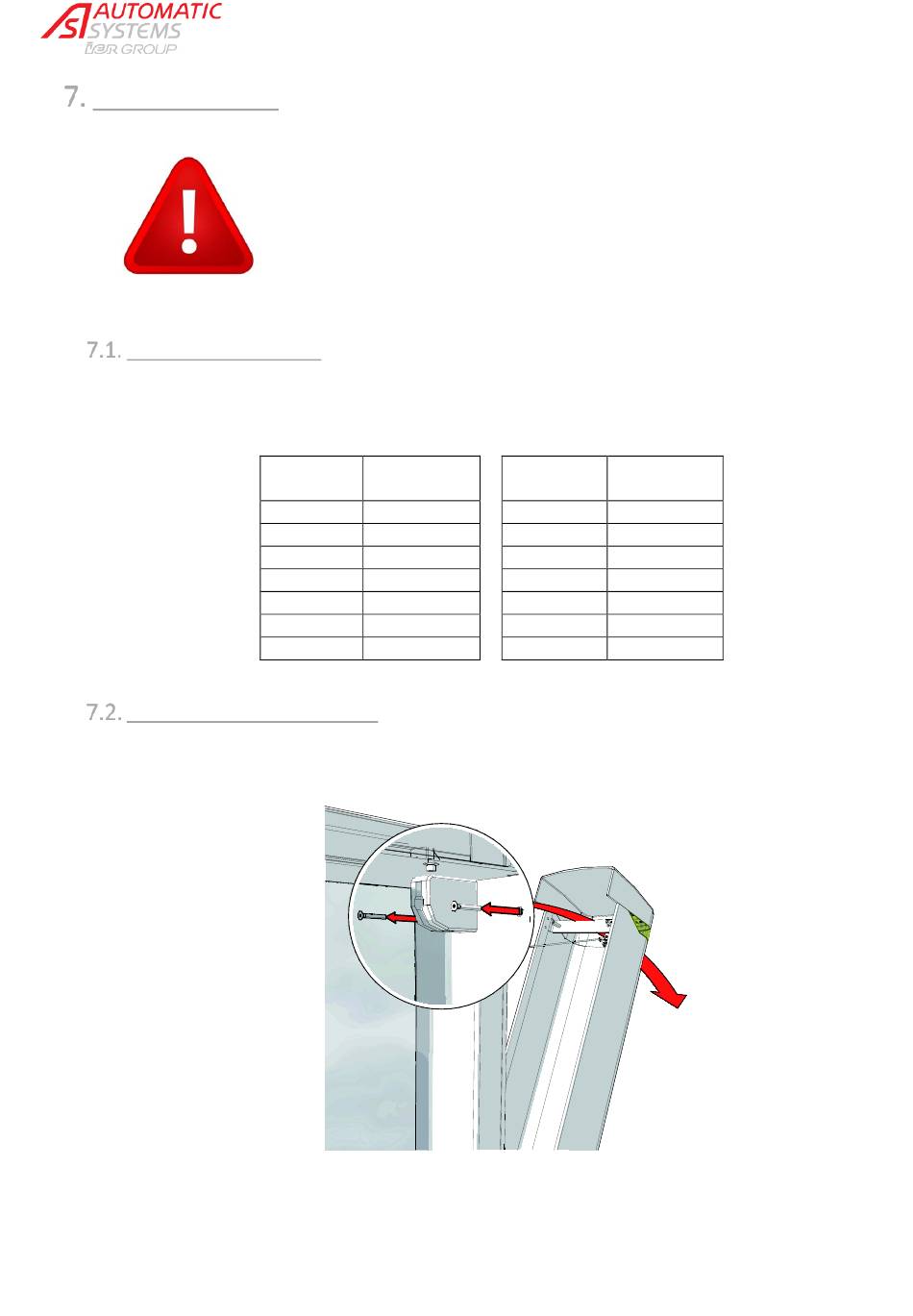

PENING THE EXTENSION COVER
Remove the two screws that fasten the extension cover to the frame of the equipment and tilt the cover
forward until the safety cable that retains the cover on the frame is fully extended.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the
use of the products or the execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement.
Document subject to change without notice.
FirstLane
-MT-EN
All maintenance work on the equipment must be carried out in
•
accordance with the requirements in the safety warnings in chapter 1.
• The ground wires must interconnect all moving metallic parts (not
bolted to the frame).
Special attention should be paid during disassembly of these elements
so as not to damage the wires.
It is imperative to reconnect them during reassembly.
Type of Torque (Nm)
screw
M2 0.32
M3 1.15
M4 2.65
M5 5.2
M6 8.9
M7 14.5
M8 22
Type of Torque (Nm)
screw
M10 43
M12 75
M14 119
M16 182
M18 250
M20 355
M22 480
