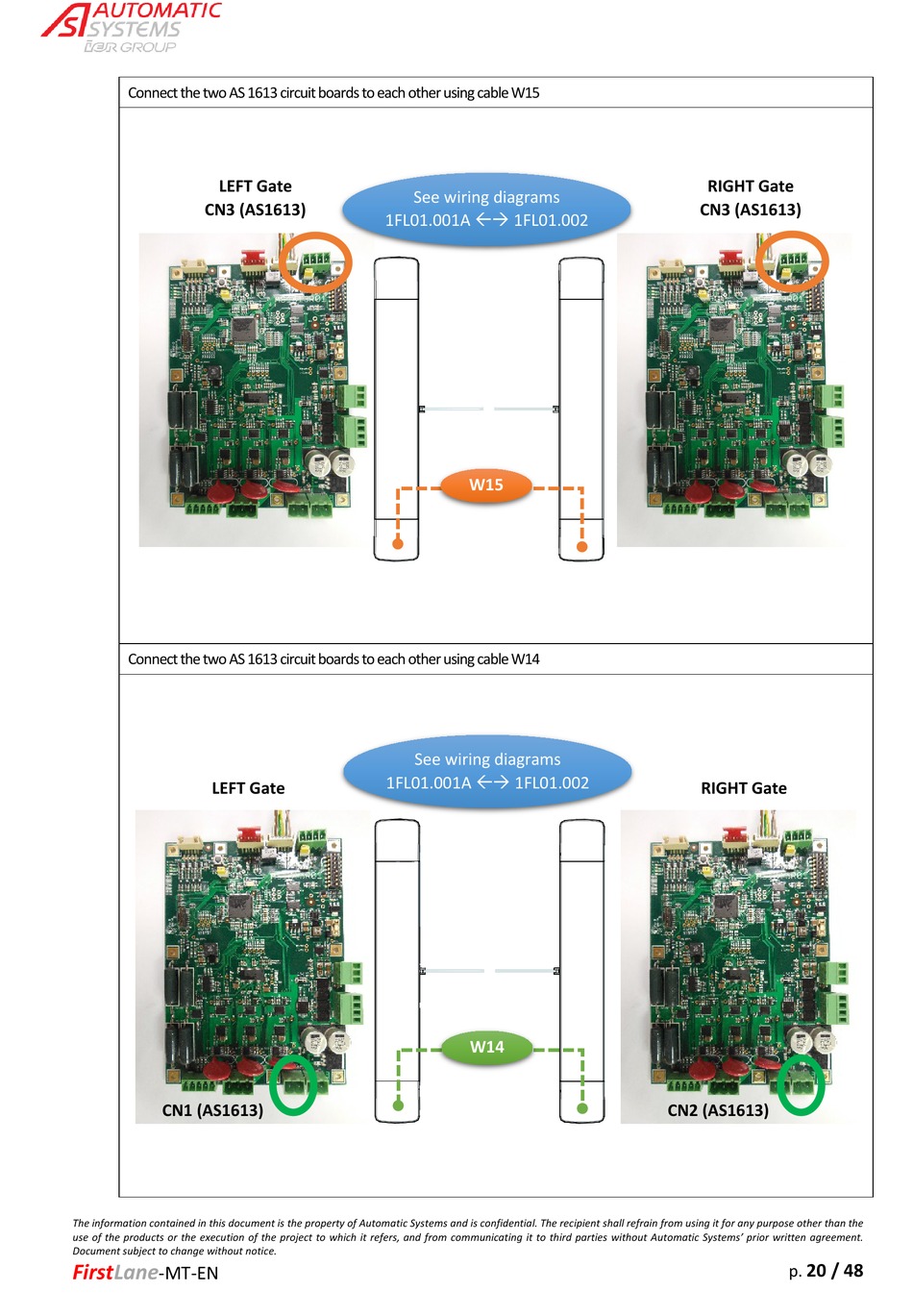

Automatic Systems FirstLane 960 Technical Manual page 20

Connect the two AS 1613 circuit boards to each other using cable W15
LEFT Gate
CN3 (AS1613)
Connect the two AS 1613 circuit boards to each other using cable W14
LEFT Gate
CN1 (AS1613)
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the
use of the products or the execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement.
Document subject to change without notice.
FirstLane
-MT-EN
See wiring diagrams
1FL01.001A  1FL01.002
W15
See wiring diagrams
1FL01.001A  1FL01.002
W14
RIGHT Gate
CN3 (AS1613)
RIGHT Gate
CN2 (AS1613)
