Location Of Internal Components; Right End Unit - Automatic Systems FirstLane 960 Technical Manual

L I
OCATION OF NTERNAL

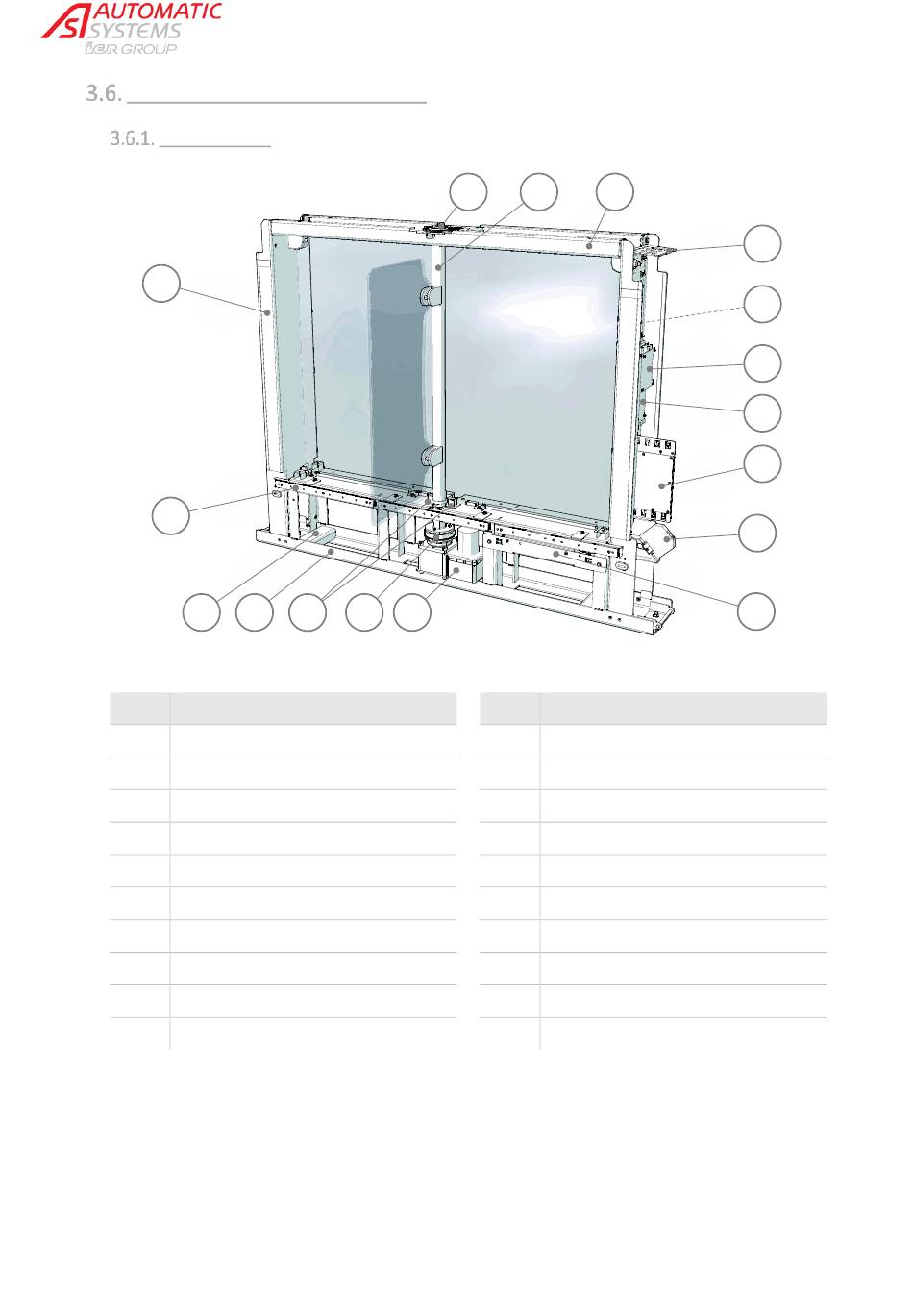

Right end unit

12
24
22 11
Ref.: Designation:
11 Base frame
12 Frame upright
13 Frame top rail
14 Bracket
15 CPU circuit board AS 1190
16 I/O circuit board AS 1612
17 Motor control circuit board AS 1613
18 Main circuit breaker
19 Geared motor
20 End stops
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the
use of the products or the execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement.
Document subject to change without notice.
FirstLane
-MT-EN
C
OMPONENTS
20 25 19
(2x)
14 21 13
Ref.: Designation:
21 Motion transmission shaft
22 Fixing clamp
23 24 VDC 14 A power supply
24 DIRAS detection cell
25 Brake
(Available as option for ASC)
26 Reader support
27 Identification label
26
27
16
15
17
18
23
(2x)
(3x)
