* (drilling dia.)
* (drilling depth)

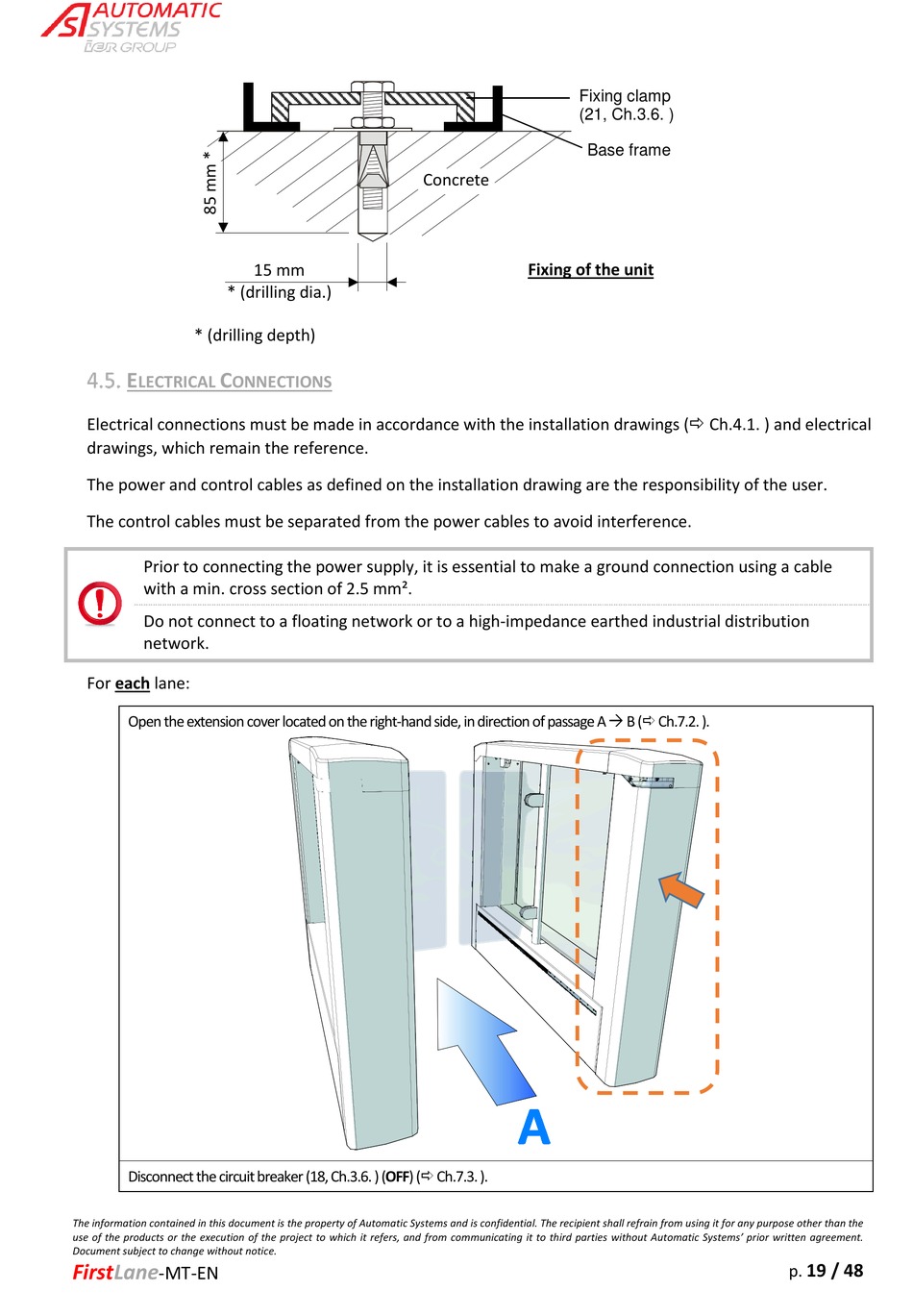

E C
LECTRICAL ONNECTIONS
Electrical connections must be made in accordance with the installation drawings ( Ch.4.1. ) and electrical
drawings, which remain the reference.
The power and control cables as defined on the installation drawing are the responsibility of the user.
The control cables must be separated from the power cables to avoid interference.
Prior to connecting the power supply, it is essential to make a ground connection using a cable
with a min. cross section of 2.5 mm².
Do not connect to a floating network or to a high-impedance earthed industrial distribution
network.
For each lane:
Open the extension cover located on the right-hand side, in direction of passage A  B ( Ch.7.2. ).
Disconnect the circuit breaker (18, Ch.3.6. ) (OFF) ( Ch.7.3. ).
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the
use of the products or the execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement.
Document subject to change without notice.
FirstLane
-MT-EN
Concrete
15 mm
Fixing clamp
(21, Ch.3.6. )
Base frame
Fixing of the unit
